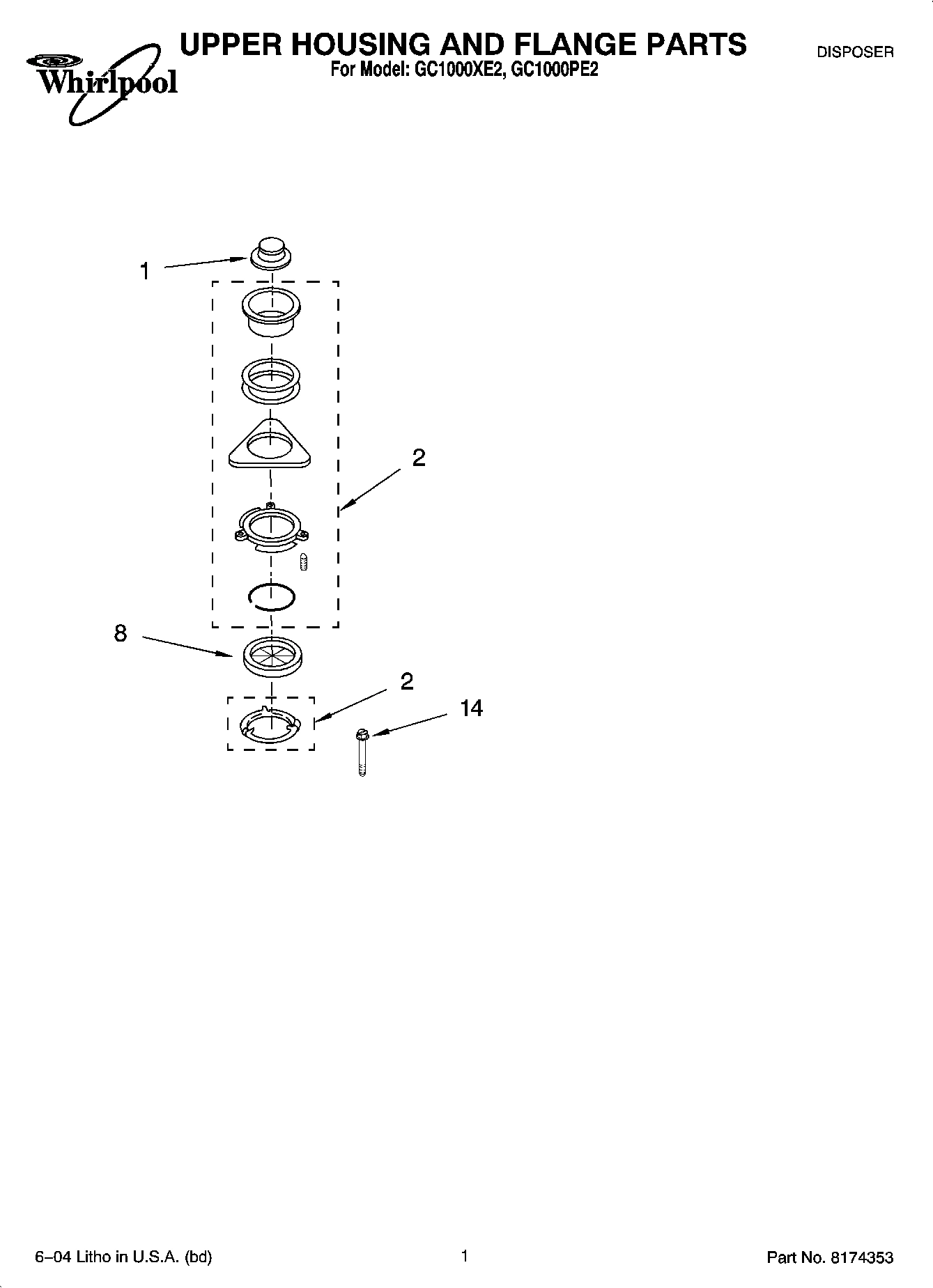

Model Whirlpool GC1000XE2 DISPOSER – Common Parts & Diagrams

1
Stopper Assembly
Stopper Assembly WPL 4211300 Contact Us For Availability
View on Model
7
Stator Assembly
Stator Assembly WPL 8174322 Contact Us For Availability
View on Model
8
Gasket, Mounting
Gasket, Mounting WPL 4211615 Contact Us For Availability
View on Model
8
Switch Assembly, Start
Switch Assembly, Start WPL 8174312 Contact Us For Availability
View on Model
9
Protector, Overload
Protector, Overload WPL 882726 Contact Us For Availability
View on Model
10
End Frame Assembly, Lower
End Frame Assembly, Lower WPL 8174345 Contact Us For Availability
View on Model
14
Bolt, Thru
Bolt, Thru WPL 8174354 Contact Us For Availability
View on Model
15
Plug & Cord (GC1000PE2 Only)
Plug & Cord (GC1000PE2 Only) WPL 4211472 Contact Us For Availability
View on Model
17
Cover, Terminal
Cover, Terminal WPL 4211351 Contact Us For Availability
View on Model
18
Bushing (GC1000PE2 Only)
Bushing (GC1000PE2 Only) WPL 8174329 Contact Us For Availability
View on Model
20
Guide, Use And Care
Guide, Use And Care WPL 8174356 Contact Us For Availability
View on Model
20
FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI59245A7 Contact Us For Availability
View on Model
