Model LG GC-B379SLC.APZCNA0 – Common Parts & Diagrams

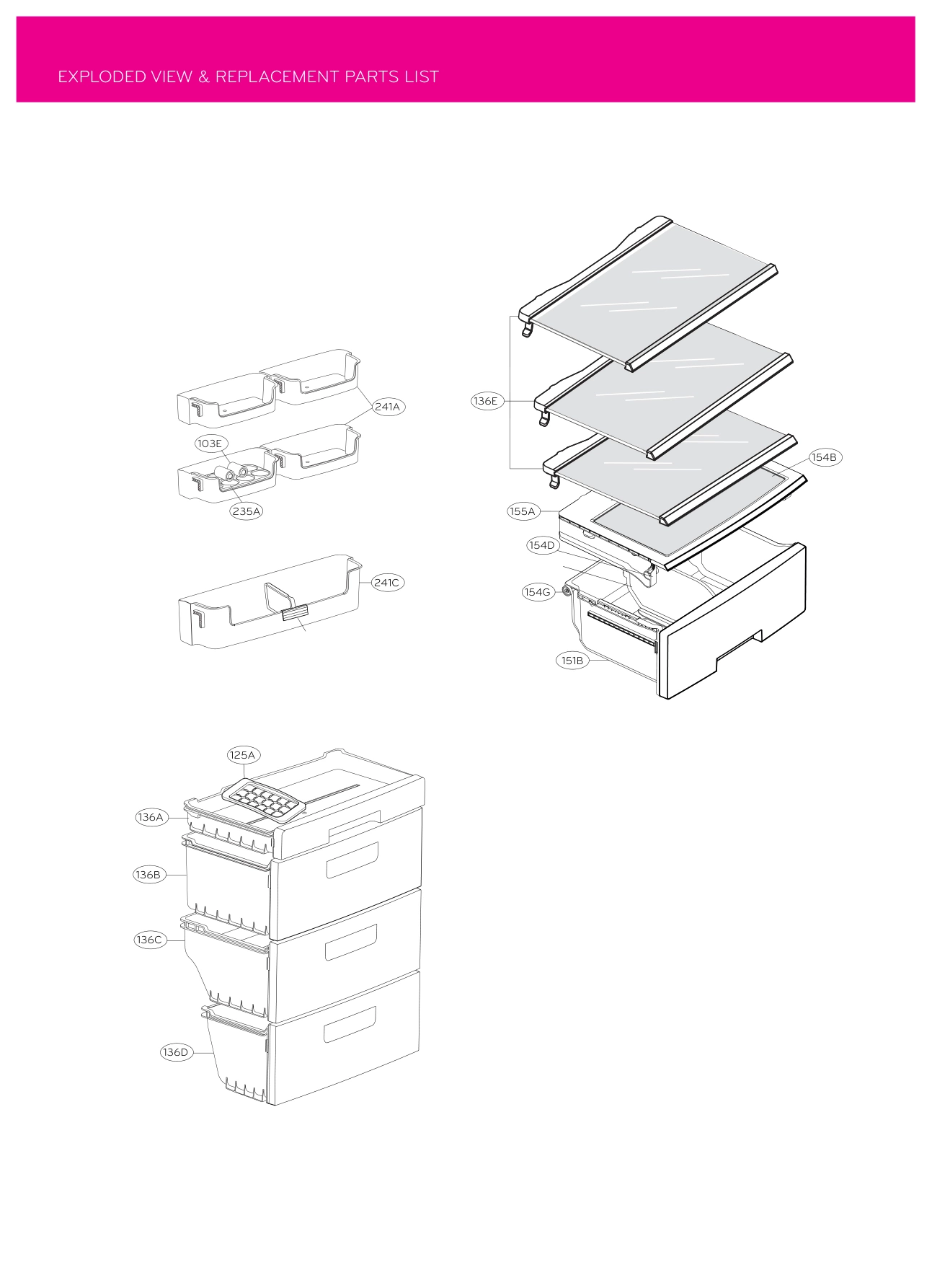

DIAGRAM 1

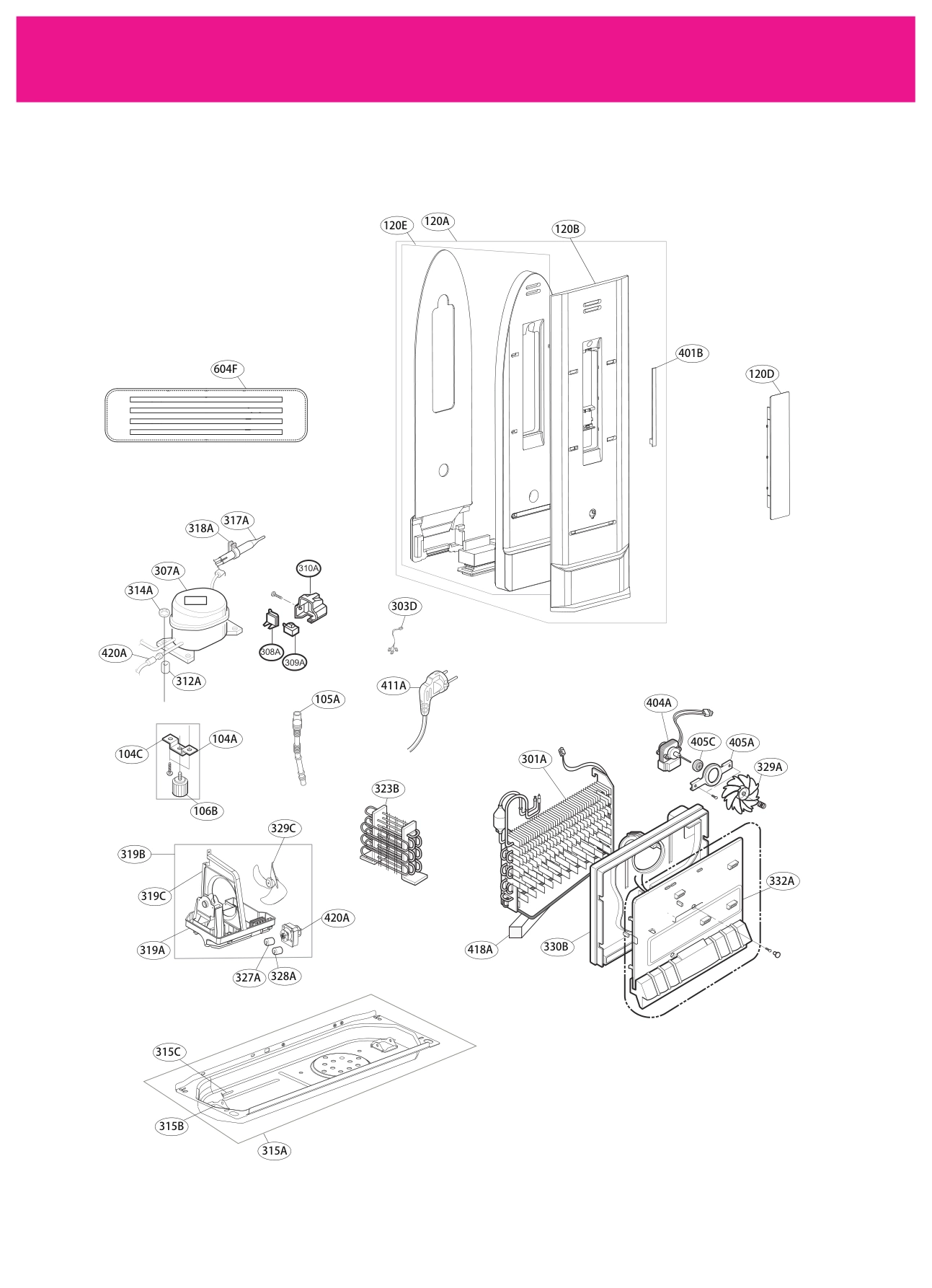

DIAGRAM 2
Common parts from model LG GC-B379SLC.APZCNA0
103E
Stopper,Handle LGE MJB63190801 Contact Us For Availability
125A
Tray,Ice LGE 3390JQ2001A Contact Us For Availability
136A
Tray Assembly,Drawer LGE AJP72975002 Contact Us For Availability
136D
Tray Assembly,Drawer LGE AJP72975302 Contact Us For Availability
151B
Tray Assembly,Vegetable LGE AJP73816309 Contact Us For Availability
154B
Cover,Tray LGE MCK67483101 Contact Us For Availability
154D
Roller Assembly LGE AHJ73229901 Contact Us For Availability
154G
Roller LGE MHA62513501 Contact Us For Availability
155A
Cover Assembly,TV LGE ACQ86325403 Contact Us For Availability
235A
Tray,Egg LGE MJS62773801 Contact Us For Availability
241A
Basket,Door LGE MAN62769103 Contact Us For Availability
315A
Base Assembly,Compressor LGE AAN73069301 Contact Us For Availability
315B
Roller LGE 4580JQ3001B Contact Us For Availability
315C
Pin,Common LGE 1PZZJQ3017A Contact Us For Availability
319A
Tray,Drip LGE MJS61912301 Contact Us For Availability
319C
Guide,Fan LGE MEA62071201 Contact Us For Availability
323B
Condenser Assembly,Wire LGE ACG73924801 Contact Us For Availability
328A
Damper,Motor Support LGE MCQ65884302 Contact Us For Availability
330B
Shroud Assembly,Freezer LGE AHV72970201 Contact Us For Availability
332A
Grille Assembly,Fan LGE 3531JQ2001A Contact Us For Availability
405A
Bracket,Motor LGE MAZ62231901 Contact Us For Availability
411A
Power Cord Assembly LGE EAD62427003 Contact Us For Availability
418A
Heater,Sheath LGE 5300JB1050D Contact Us For Availability
420A
Motor,DC LGE EAU60694520 Contact Us For Availability
604F
Cover,Duct LGE 3550JQ2046A Contact Us For Availability
× ![]()
