Model Maytag GB6525PEAW3 REFRIGERATOR – Common Parts & Diagrams

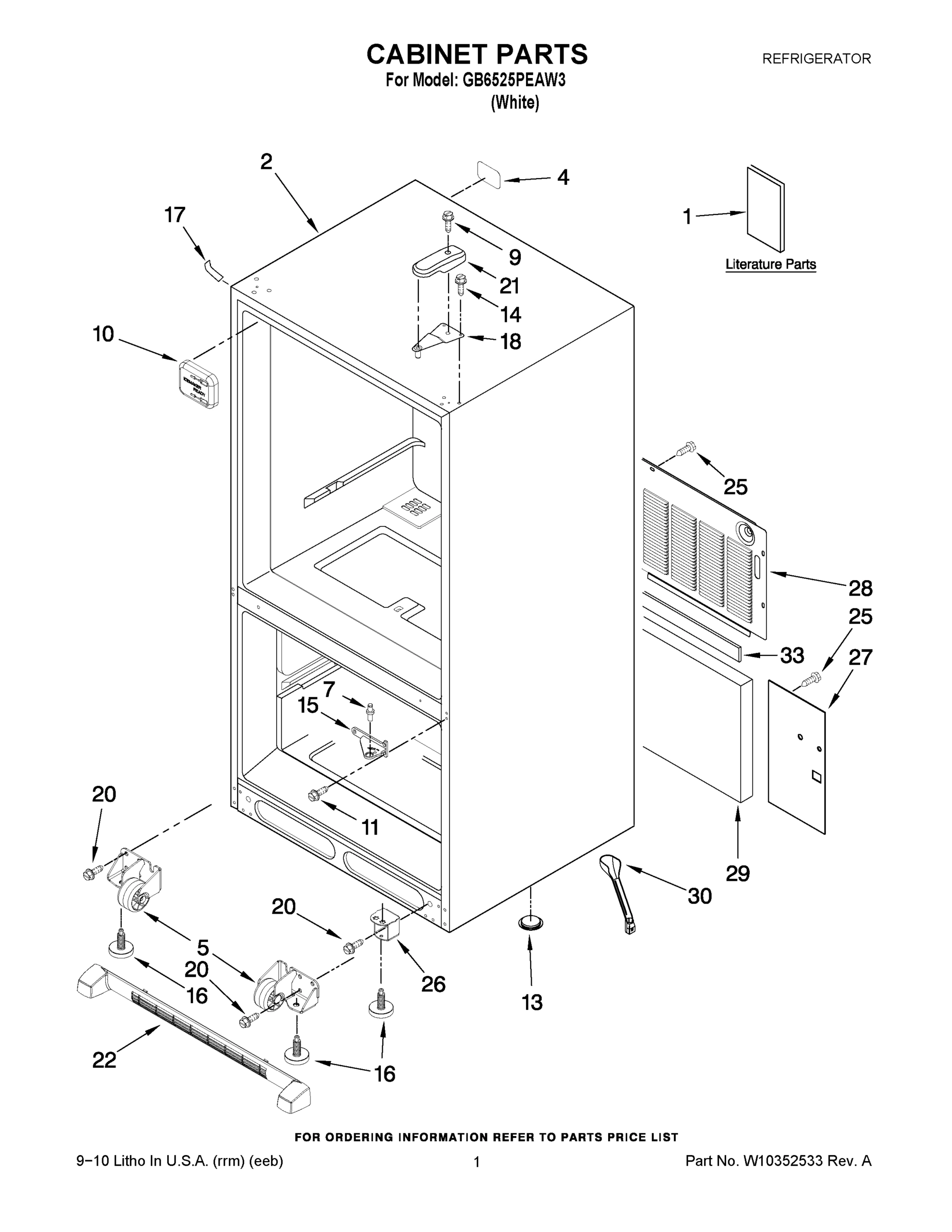

01 - CABINET PARTS

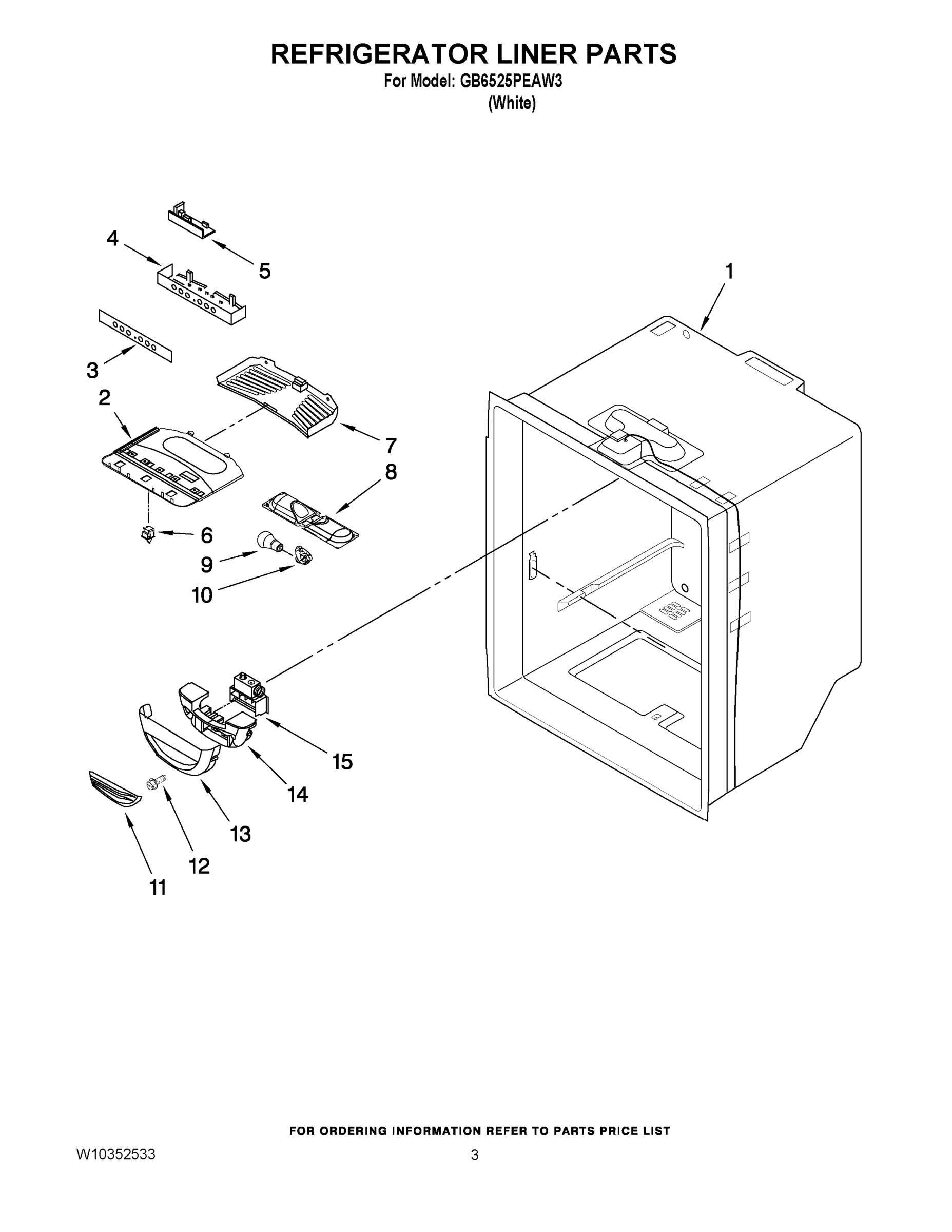

02 - REFRIGERATOR LINER PARTS

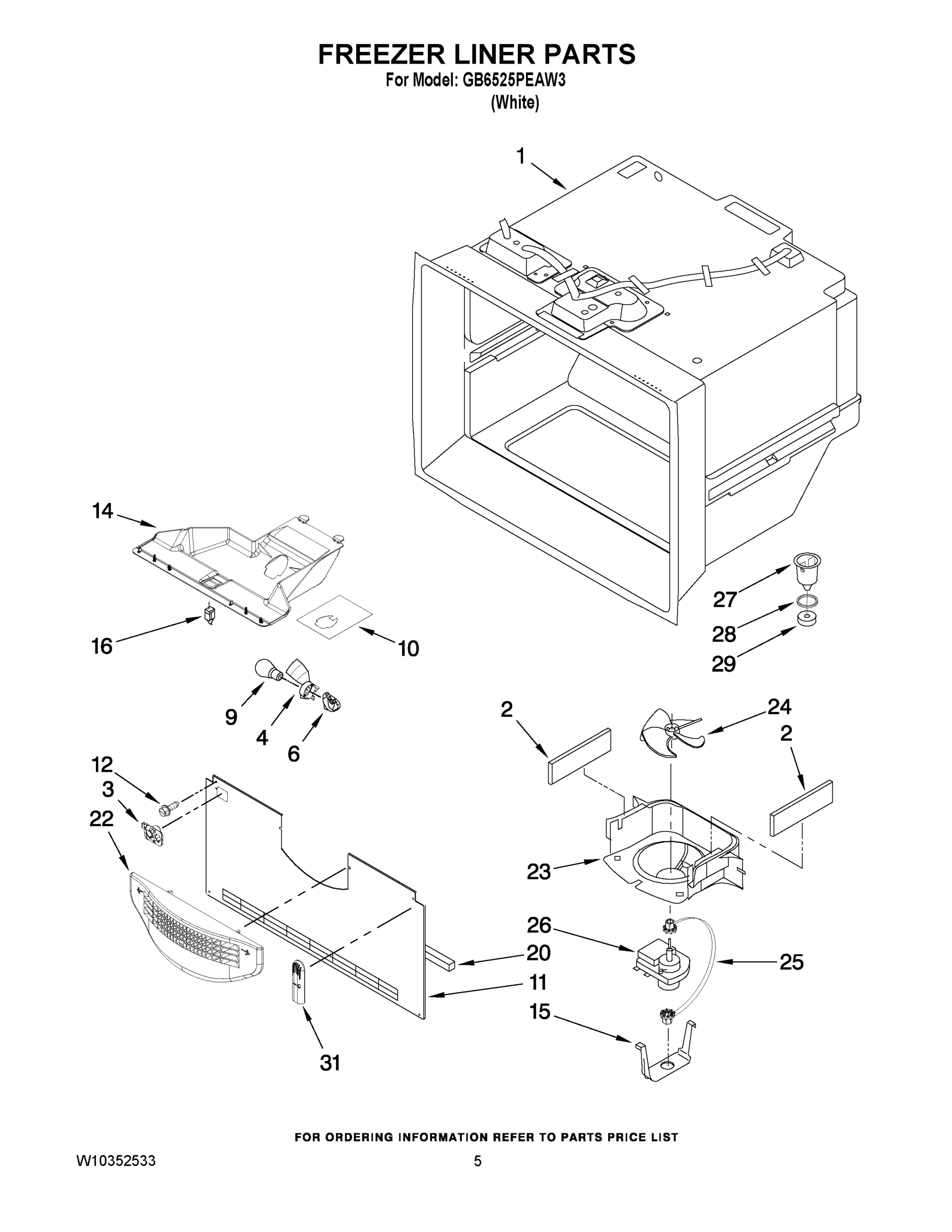

03 - FREEZER LINER PARTS

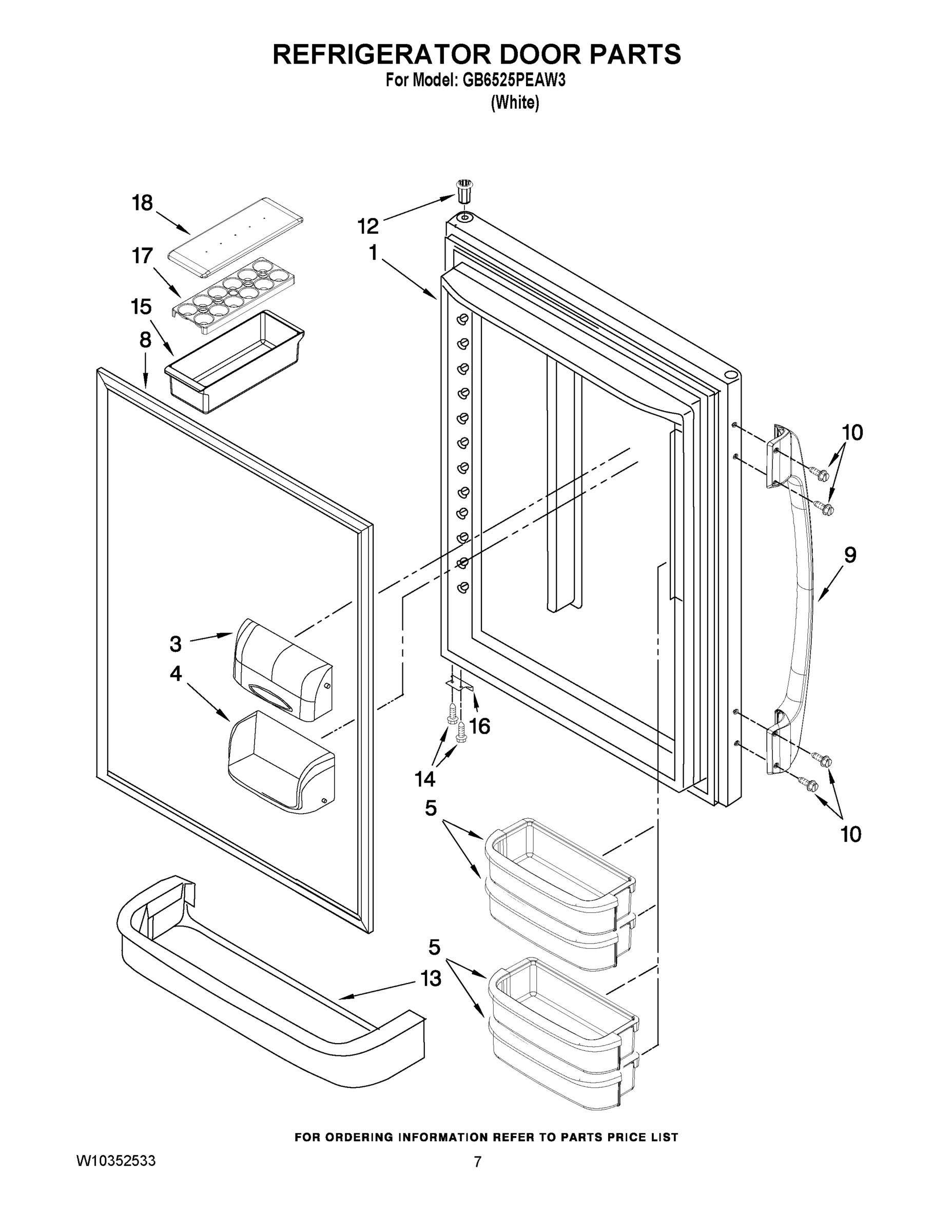

04 - REFRIGERATOR DOOR PARTS

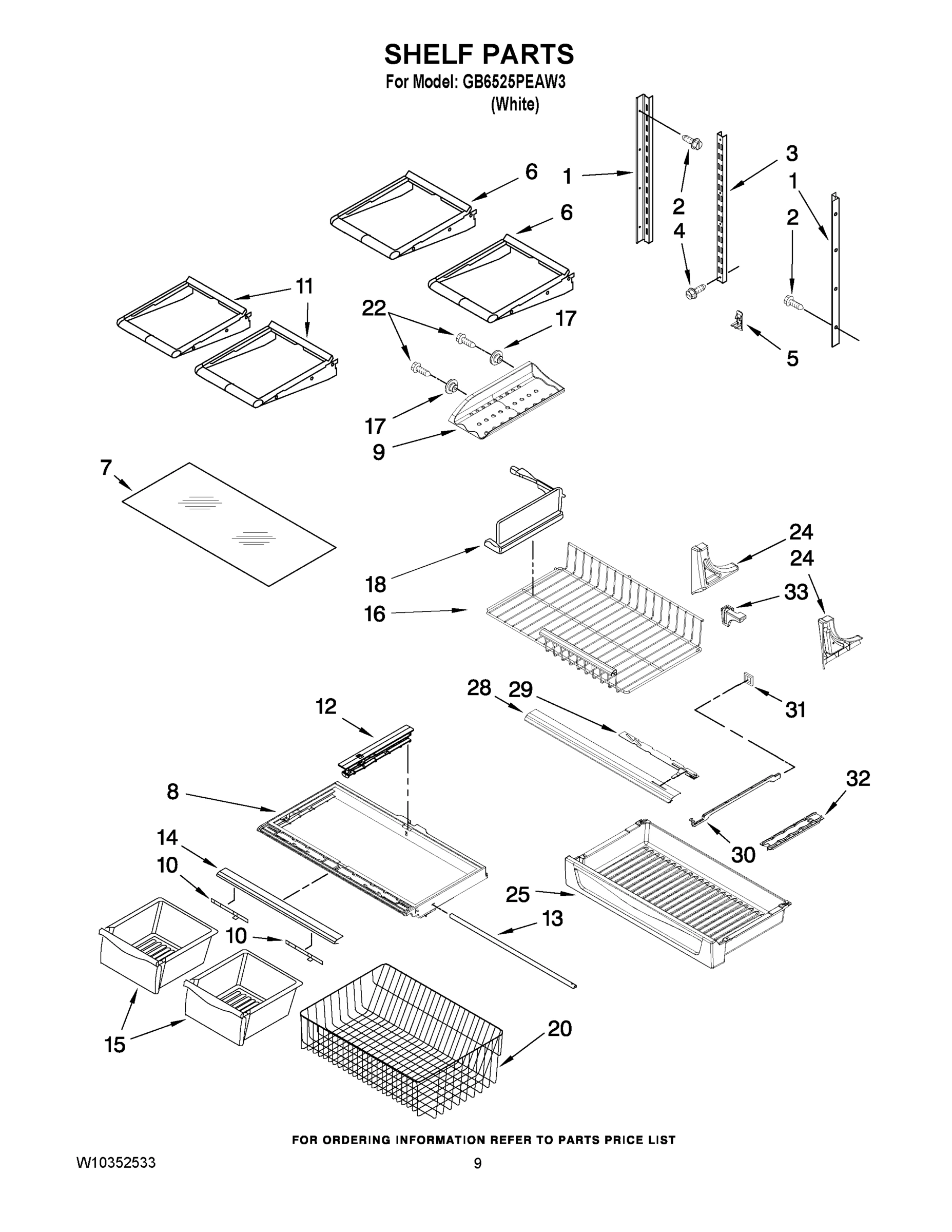

05 - SHELF PARTS

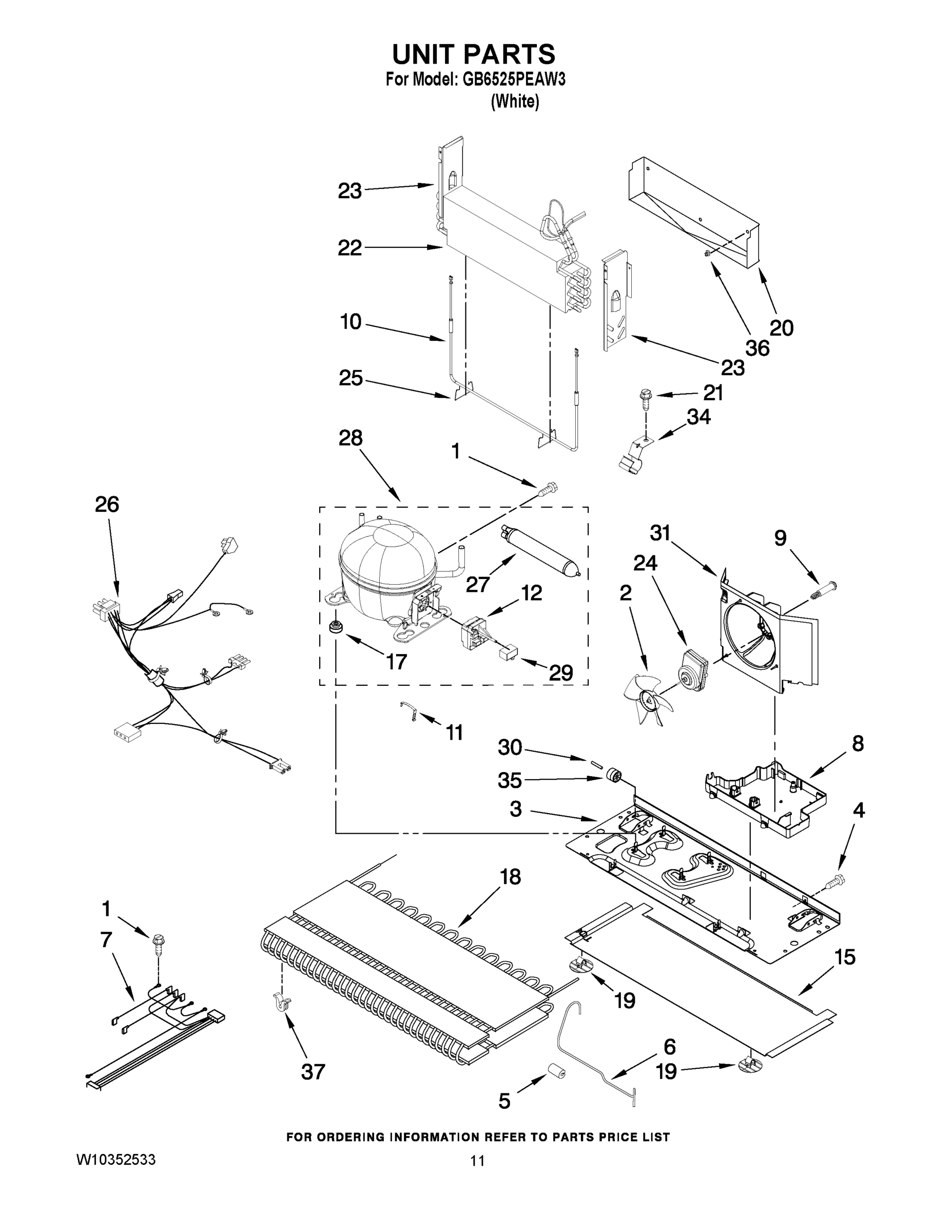

06 - UNIT PARTS

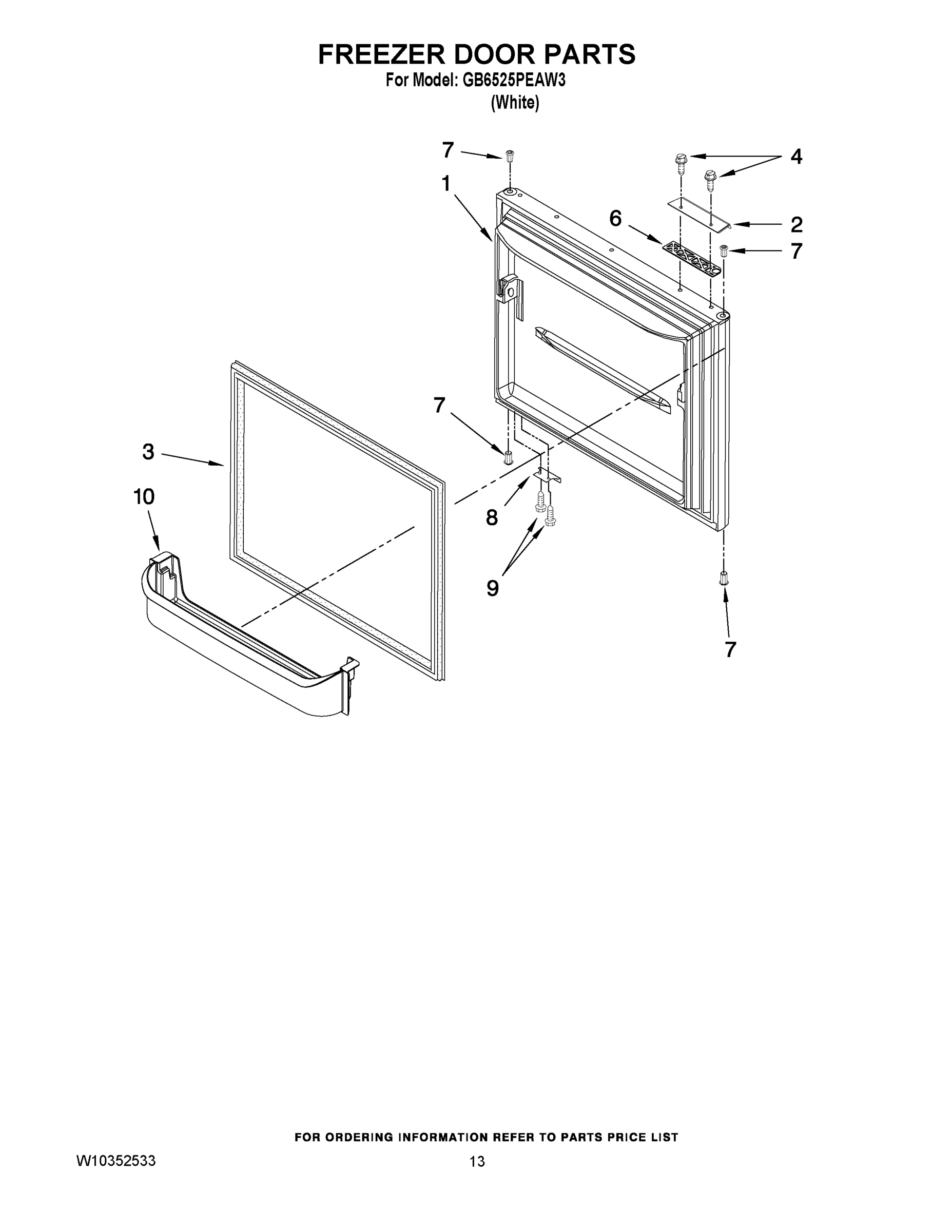

07 - FREEZER DOOR PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag GB6525PEAW3 REFRIGERATOR
1
MAY 12658530W MAY 12658530W Contact Us For Availability
1
MAY W10251969 MAY W10251969 Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY 13024225W MAY 13024225W Contact Us For Availability
2
MAY 12806301 MAY 12806301 Contact Us For Availability
2
Gasket, Foam (2) MAY A3189392 Contact Us For Availability
2
MAY 12990513 MAY 12990513 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY 12610803W MAY 12610803W Contact Us For Availability
3
MAY 12816515N MAY 12816515N Contact Us For Availability
3
MAY 12932103 MAY 12932103 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10273463 MAY W10273463 Contact Us For Availability
3
MAY W10210983 MAY W10210983 Contact Us For Availability
3
MAY W10164036 MAY W10164036 Contact Us For Availability
4
LABEL-FILL TUBE MAY 12249902 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
Housing, Electronic Control MAY 12806406 Contact Us For Availability
4
SHROUD-LIGHT MAY W10119914 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
SCREW (2) MAY W10215666 Contact Us For Availability
4
SCREW, HANDLE (WHITE) MAY 12990301 Contact Us For Availability
5
ROLLER ASSEMBLY (RIGHT) MAY W10275849 Contact Us For Availability
5
ROLLER ASSEMBLY (LEFT) MAY W10275850 Contact Us For Availability
5
MAY 12784417V MAY 12784417V Contact Us For Availability
5
BUCKET (4) (MEDIUM) MAY 12801902V Contact Us For Availability
5
HOOK-LADDER (2) MAY 12531802 Contact Us For Availability
5
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
6
SWITCH, LIGHT MAY C3680314 Contact Us For Availability
6
MAY W10134764V MAY W10134764V Contact Us For Availability
6
MAY 12463310V MAY 12463310V Contact Us For Availability
6
MAY W10306059 MAY W10306059 Contact Us For Availability
6
MAY 12647901W MAY 12647901W Contact Us For Availability
7
MAY 10351005 MAY 10351005 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY 10961006W MAY 10961006W Contact Us For Availability
7
MAY 12204822N MAY 12204822N Contact Us For Availability
7
HARNESS, EVAP (INCL.HEATER) MAY W10280429 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
GASKET, DOOR MAGNETIC (WHITE) MAY W10164034 Contact Us For Availability
8
MAY 10447111 MAY 10447111 Contact Us For Availability
8
FRAME, CRISPER MAY 12530401SP Contact Us For Availability
8
MAY W10296784 MAY W10296784 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
MAY A0282808V MAY A0282808V Contact Us For Availability
9
MAY 12781004WN MAY 12781004WN Contact Us For Availability
9
MAY 12990504 MAY 12990504 Contact Us For Availability
9
MAY 12646501N MAY 12646501N Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
10
COVER-FILL TUBE MAY 12477501 Contact Us For Availability
10
MAY W10277466 MAY W10277466 Contact Us For Availability
10
MAY 12990203SP MAY 12990203SP Contact Us For Availability
10
Slide, Humidity MAY 12530805SP Contact Us For Availability
10
MAY 12729131 MAY 12729131 Contact Us For Availability
10
RETAINER, (DOOR SHELF) MAY 12737601 Contact Us For Availability
11
MAY 12992201 MAY 12992201 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY W10308417 MAY W10308417 Contact Us For Availability
11
SHELF-GLIDE (2) MAY 12463310 Contact Us For Availability
11
STRAP, BALE MAY 2302129 Contact Us For Availability
12
Screw (2) MAY 12990604 Contact Us For Availability
12
SCREW (7) MAY 12990101 Contact Us For Availability
12
MAY 12530701N MAY 12530701N Contact Us For Availability
12
START PROTECT, COMBO (PRODUCTION) MAY 2312007 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
RETAINER, DOOR MAY 12690502 Contact Us For Availability
13
BRACE, CRISPER FRAME MAY 12227303WD Contact Us For Availability
14
Screw (3) MAY 12992403 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
MAY W10277025 MAY W10277025 Contact Us For Availability
14
MAY W10231341 MAY W10231341 Contact Us For Availability
15
MAY 12607103WD MAY 12607103WD Contact Us For Availability
15
MAY W10177399 MAY W10177399 Contact Us For Availability
15
CLIP, EVAP. MOTOR MAY 13058002 Contact Us For Availability
15
MAY 10423131SP MAY 10423131SP Contact Us For Availability
15
MAY 12530505SP MAY 12530505SP Contact Us For Availability
15
MAY W10206337 MAY W10206337 Contact Us For Availability
16
FOOT BRAKE (2) MAY W10141622 Contact Us For Availability
16
MAY 12466114 MAY 12466114 Contact Us For Availability
16
MAY 12694605 MAY 12694605 Contact Us For Availability
17
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
17
MAY 10436506S MAY 10436506S Contact Us For Availability
17
MAY 10972101 MAY 10972101 Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
18
MAY 12566606ED MAY 12566606ED Contact Us For Availability
18
MAY 10436404S MAY 10436404S Contact Us For Availability
18
MAY 12693802N MAY 12693802N Contact Us For Availability
18
MAY W10135027 MAY W10135027 Contact Us For Availability
19
FASTENER, BASEPAN EXTENSION MAY W10206339 Contact Us For Availability
20
Screw (8) MAY 12991302 Contact Us For Availability
20
Gasket, Bottom MAY 12739112 Contact Us For Availability
20
MAY 12754804 MAY 12754804 Contact Us For Availability
20
MAY W10292802 MAY W10292802 Contact Us For Availability
21
MAY 12477601W MAY 12477601W Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
22
MAY W10236195 MAY W10236195 Contact Us For Availability
22
Cover, Fan Shroud MAY 13024803 Contact Us For Availability
22
MAY 12990601N MAY 12990601N Contact Us For Availability
22
MAY W10317013 MAY W10317013 Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
24
Fan, Evaporator MAY 2169142 Contact Us For Availability
24
SUPPORT CRISPER (LEFT) MAY 12531001 Contact Us For Availability
24
SUPPORT CRISPER (RIGHT) MAY 12531002 Contact Us For Availability
24
MAY W10246191 MAY W10246191 Contact Us For Availability
25
Grommet (2) MAY W10121318 Contact Us For Availability
25
MAY W10328329 MAY W10328329 Contact Us For Availability
26
MAY W10315062 MAY W10315062 Contact Us For Availability
26
MAY 10449516 MAY 10449516 Contact Us For Availability
26
MAY W10273559 MAY W10273559 Contact Us For Availability
27
MAY W10217701 MAY W10217701 Contact Us For Availability
27
FUNNEL, DRAIN (INCL. No. 28 & 29) MAY D7753903 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
28
MAY W10212535 MAY W10212535 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
TRIM-PANTRY-FRONT MAY W10231333 Contact Us For Availability
28
COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & MAY W10120455 Contact Us For Availability
29
Insulation, Sound MAY 12820505 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
SLIDE-PANTRY MAY 12531502N Contact Us For Availability
29
CAPACITOR MAY 2321245 Contact Us For Availability
30
MAY W10210988 MAY W10210988 Contact Us For Availability
30
BAR-PANTRY MAY 12531401N Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
MAY 12531701 MAY 12531701 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
32
MAY 12531901 MAY 12531901 Contact Us For Availability
33
MAY B5759655 MAY B5759655 Contact Us For Availability
33
MAY 12531601 MAY 12531601 Contact Us For Availability
34
MAY W10281329 MAY W10281329 Contact Us For Availability
35
Roller (2) MAY 12477102 Contact Us For Availability
36
Clip, Evap (2) MAY 10623002 Contact Us For Availability
37
Grommet (4) MAY W10137529 Contact Us For Availability
NI
REFRIGERANT CHARGE (4.25 OZS. (R-134A)) MAY N/P Contact Us For Availability
NI
Harness, Controls (Refrigerator) MAY 12973503 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
Cleaner, Stainless Steel MAY 4396920 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
ICE MAKER FIELD INSTALLABLE (IC514) MAY W10261455 Contact Us For Availability
× ![]()
