Model Electrolux GAX13EF2A1 ROOM AIR CONDITIONER – Common Parts & Diagrams

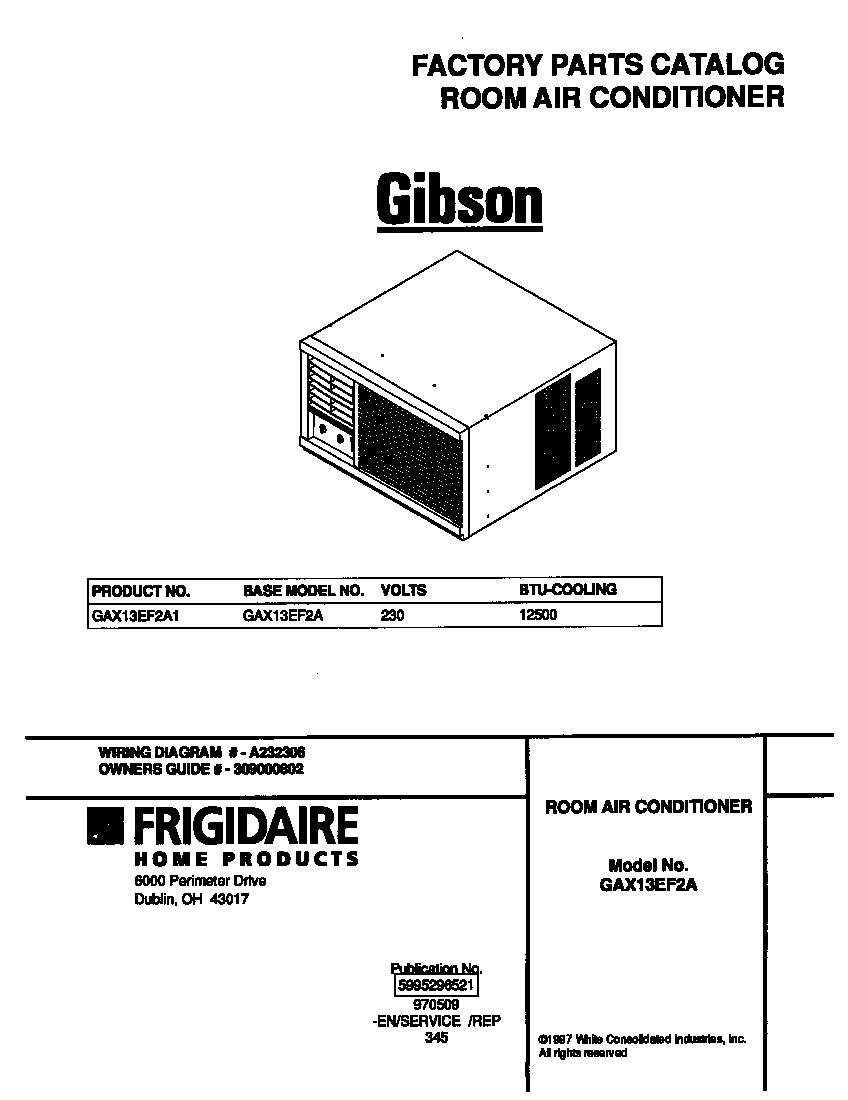

01 - COVER

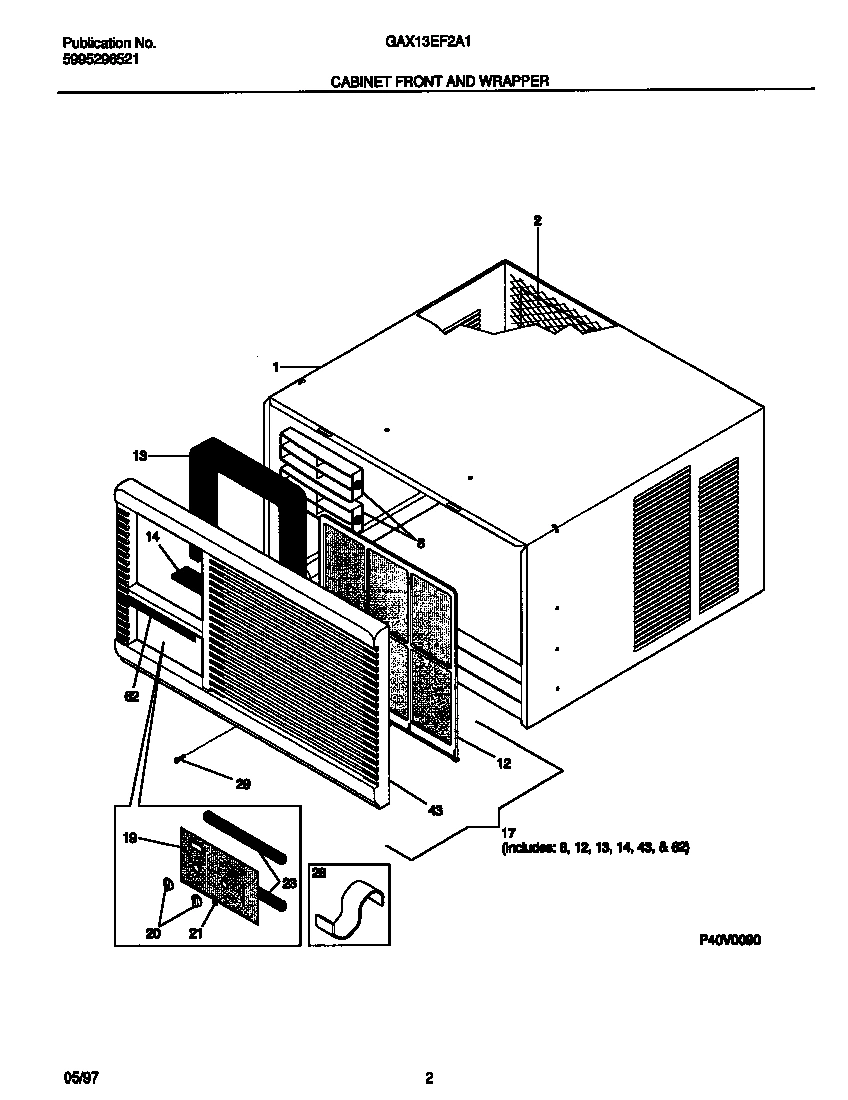

02 - CABINET FRONT AND WRAPPER

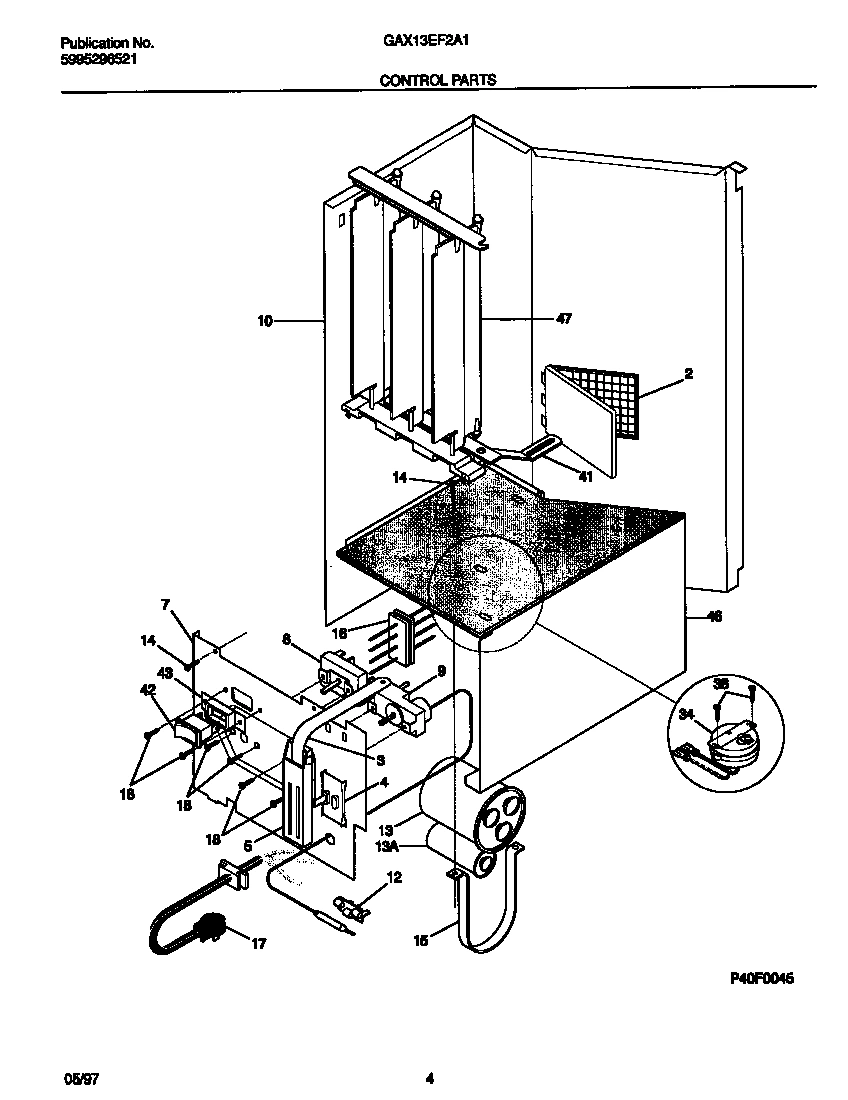

03 - CONTROL PARTS

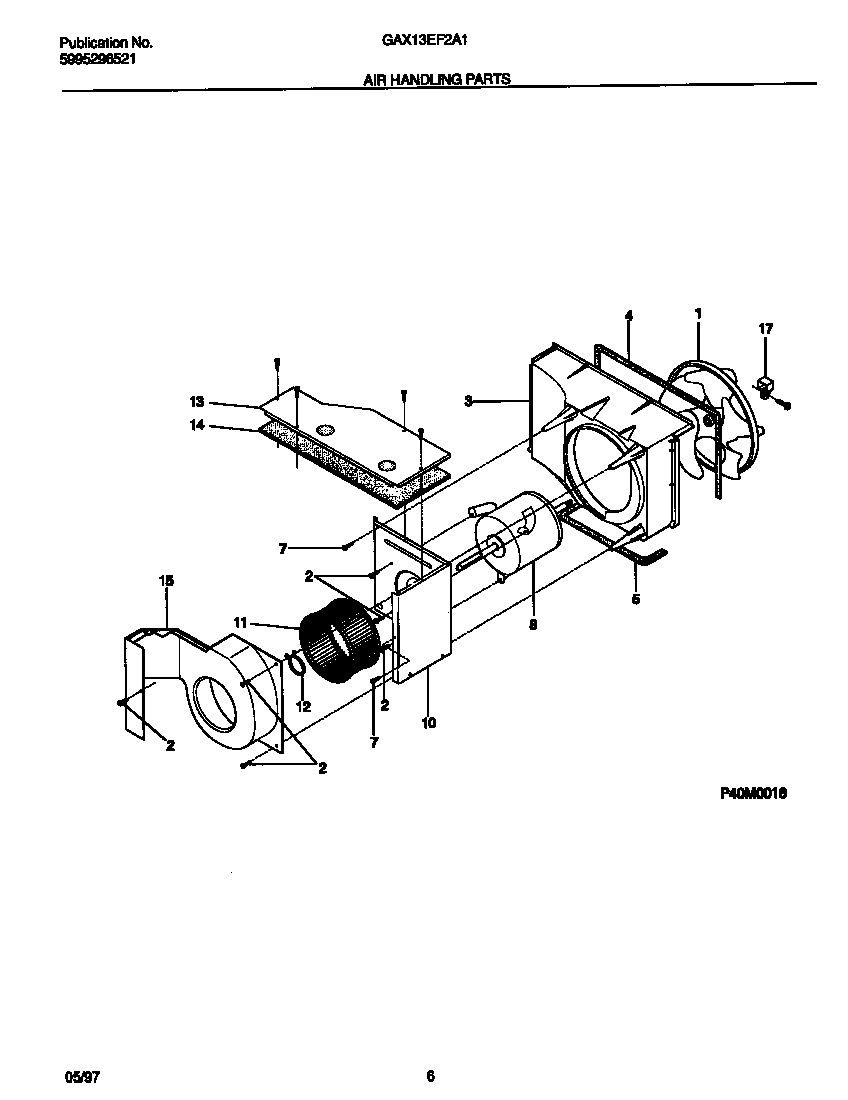

04 - AIR HANDLING PARTS

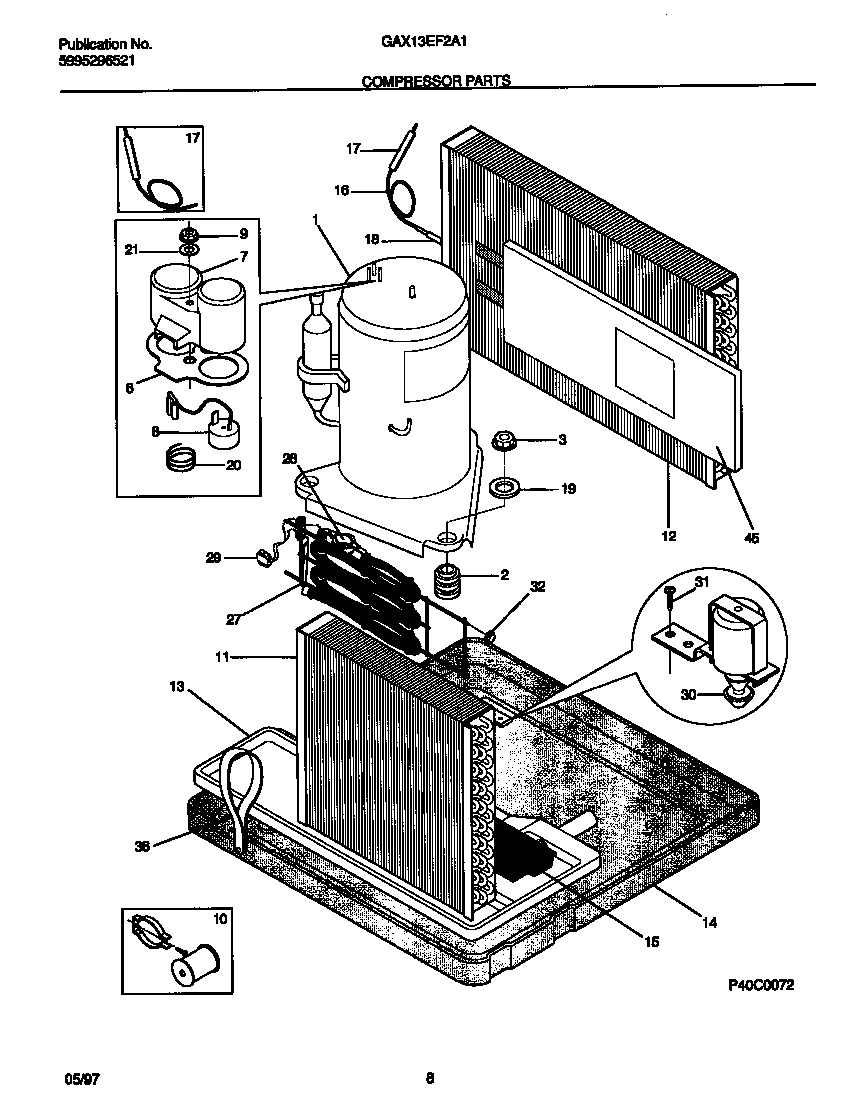

05 - COMPRESSOR PARTS

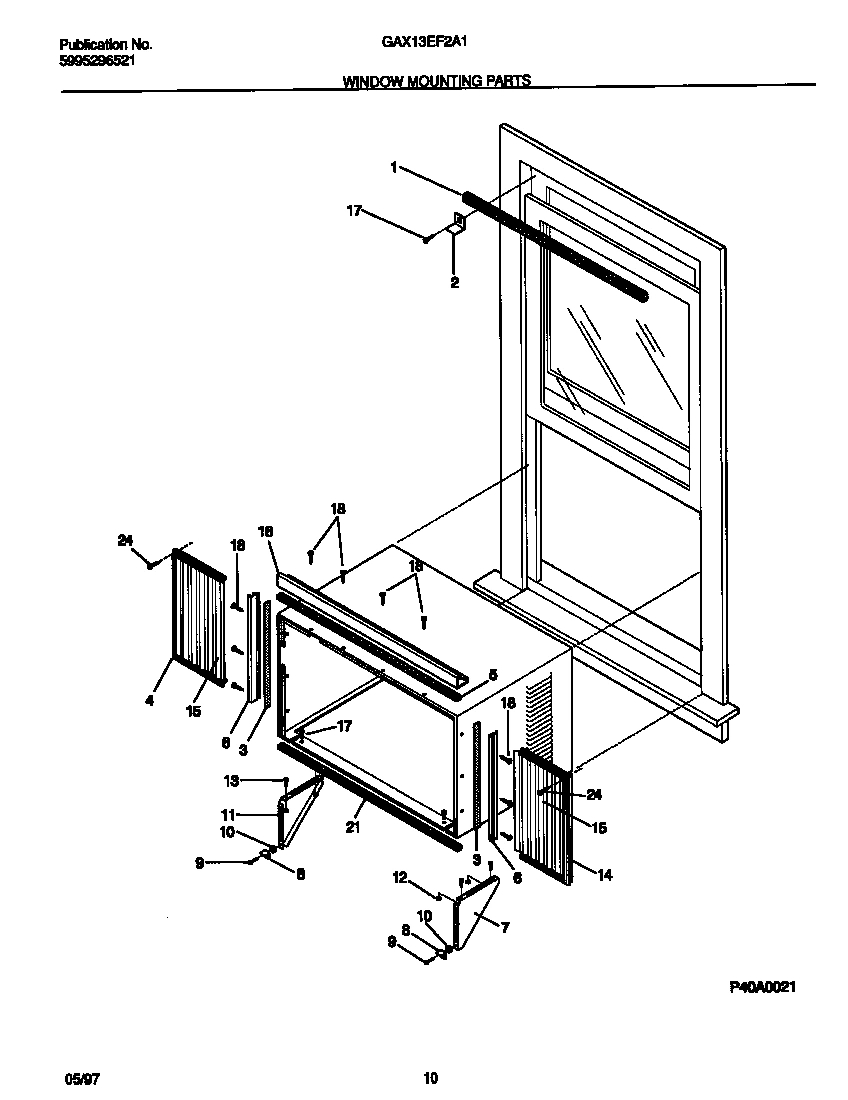

06 - WINDOW MOUNTING PARTS

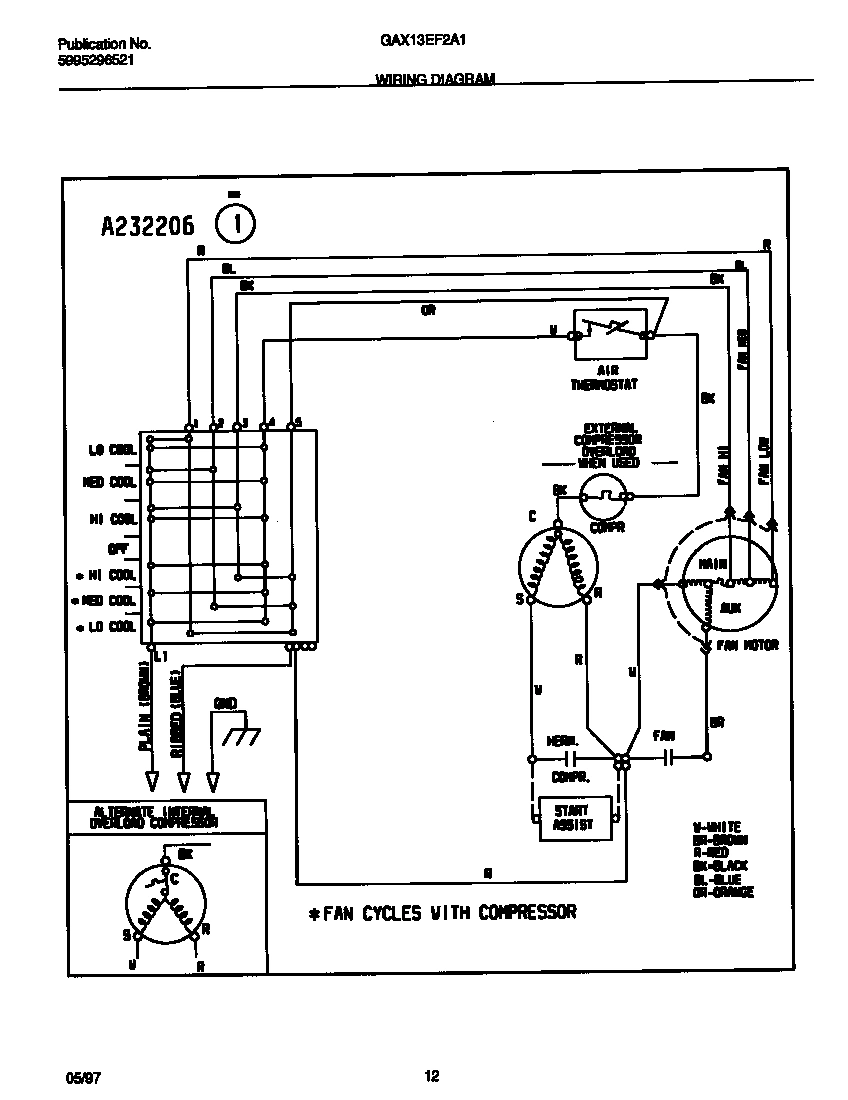

07 - WIRING DIAGRAM
Common parts from model Electrolux GAX13EF2A1 ROOM AIR CONDITIONER
1
WCI 5303322082 WCI 5303322082 Contact Us For Availability
1
WCI 5303322099 WCI 5303322099 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
DOOR-VENTILATOR WCI 5303295752 Contact Us For Availability
2
GROMMET-COMPRESSOR, 3 WCI 5303283877 Contact Us For Availability
3
WCI 5303306422 WCI 5303306422 Contact Us For Availability
3
WCI 3202950 WCI 3202950 Contact Us For Availability
3
NUT, COMPRESSOR, (3) WCI 5308006948 Contact Us For Availability
3
WCI 5303276728 WCI 5303276728 Contact Us For Availability
4
WCI 5303201821 WCI 5303201821 Contact Us For Availability
4
SEAL-SHROUD TOP WCI 3202953 Contact Us For Availability
4
FRAME, LH WCI 5303301245 Contact Us For Availability
5
WCI 5303306431 WCI 5303306431 Contact Us For Availability
5
SEAL WCI 3202951 Contact Us For Availability
5
WCI 5303207200 WCI 5303207200 Contact Us For Availability
6
WCI 5303002035 WCI 5303002035 Contact Us For Availability
6
RETAINER-ACCORDIAN WCI 5303301250 Contact Us For Availability
7
WCI 5303306451 WCI 5303306451 Contact Us For Availability
7
COVER-TERMINAL WCI 5303211011 Contact Us For Availability
7
WCI 5303301254 WCI 5303301254 Contact Us For Availability
8
WCI 5303307163 WCI 5303307163 Contact Us For Availability
8
WCI 5303307038 WCI 5303307038 Contact Us For Availability
8
WCI 5303271841 WCI 5303271841 Contact Us For Availability
8
WCI 5303322098 WCI 5303322098 Contact Us For Availability
8
BRACKET - SUPPORT WCI 3001815 Contact Us For Availability
9
WCI 5303307043 WCI 5303307043 Contact Us For Availability
9
WCI 5303301734 WCI 5303301734 Contact Us For Availability
9
SCREW - SILL SUPT WCI 3007756 Contact Us For Availability
10
WCI 5303306446 WCI 5303306446 Contact Us For Availability
10
WCI 5303307057 WCI 5303307057 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
10
NUT - BRACKET WCI 3007759 Contact Us For Availability
11
WCI 309608901 WCI 309608901 Contact Us For Availability
11
WCI 309610101 WCI 309610101 Contact Us For Availability
11
WCI 5303301255 WCI 5303301255 Contact Us For Availability
12
WCI 5303307161 WCI 5303307161 Contact Us For Availability
12
CLIP-CONTROL BULB WCI 5303211009 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
WCI 3206086 WCI 3206086 Contact Us For Availability
13
WCI 5303306435 WCI 5303306435 Contact Us For Availability
13
WCI 5303316906 WCI 5303316906 Contact Us For Availability
13
CAPACITOR, 370 V, 5 MFD WCI 5308009152 Contact Us For Availability
13
WCI 5303321514 WCI 5303321514 Contact Us For Availability
13
WCI 5303306447 WCI 5303306447 Contact Us For Availability
13
SCREW - SUPPORT, 4 WCI 5303281649 Contact Us For Availability
14
WCI 5303306434 WCI 5303306434 Contact Us For Availability
14
WCI 309608201 WCI 309608201 Contact Us For Availability
14
WCI 5303322210 WCI 5303322210 Contact Us For Availability
14
FRAME, RH WCI 5303301246 Contact Us For Availability
15
WCI 3201973 WCI 3201973 Contact Us For Availability
15
WCI 5303306450 WCI 5303306450 Contact Us For Availability
15
WCI 309612301 WCI 309612301 Contact Us For Availability
15
ACCORDIAN WCI 5303301247 Contact Us For Availability
16
WCI 5303322209 WCI 5303322209 Contact Us For Availability
16
CAPILLARY TUBE, CUT-TO-SIZE WCI 5308017253 Contact Us For Availability
16
WCI 5303301251 WCI 5303301251 Contact Us For Availability
17
WCI 309610308 WCI 309610308 Contact Us For Availability
17
CORD - ELECTRIC POWER WCI 5303301041 Contact Us For Availability
17
CLAMP - FAN BLADE WCI 5308011040 Contact Us For Availability
17
SCREW-WOOD WCI 3002803 Contact Us For Availability
18
SCREW, .138-32 X .188 WCI 5303007754 Contact Us For Availability
18
WCI 5303290357 WCI 5303290357 Contact Us For Availability
19
WCI 309608117 WCI 309608117 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
WCI 5303017300 WCI 5303017300 Contact Us For Availability
20
SPRING-OVERLOAD WCI 5303002036 Contact Us For Availability
21
WCI 5303017340 WCI 5303017340 Contact Us For Availability
21
WCI 5303295516 WCI 5303295516 Contact Us For Availability
21
SEAL, BOTTOM WCI 5314949603 Contact Us For Availability
23
SEAL,PLATE WCI 5303307039 Contact Us For Availability
24
WCI 3002801 WCI 3002801 Contact Us For Availability
27
WCI 309611802 WCI 309611802 Contact Us For Availability
28
THERMOSTAT-HEATER WCI 5303016865 Contact Us For Availability
28
WCI 309100401 WCI 309100401 Contact Us For Availability
29
WCI 5303322208 WCI 5303322208 Contact Us For Availability
30
WCI 3017804 WCI 3017804 Contact Us For Availability
31
WCI 5303209503 WCI 5303209503 Contact Us For Availability
32
NUT-HEATER WCI 3018695 Contact Us For Availability
34
WCI 5303272099 WCI 5303272099 Contact Us For Availability
36
WCI 5303303558 WCI 5303303558 Contact Us For Availability
38
SCREW, MOTOR DRIVE WCI 5308009156 Contact Us For Availability
41
LINK-LOUVER VERTICAL WCI 5303306426 Contact Us For Availability
42
WCI 309321001 WCI 309321001 Contact Us For Availability
43
WCI 5303307162 WCI 5303307162 Contact Us For Availability
43
BRACKET-SWITCH WCI 5303201835 Contact Us For Availability
45
WCI 5303311100 WCI 5303311100 Contact Us For Availability
46
WCI 5303306449 WCI 5303306449 Contact Us For Availability
47
WCI 5303306456 WCI 5303306456 Contact Us For Availability
62
WCI 309609008 WCI 309609008 Contact Us For Availability
× ![]()
