Model Whirlpool GAWG28KDYG00 GEARBOX – Common Parts & Diagrams

Common parts from model Whirlpool GAWG28KDYG00 GEARBOX

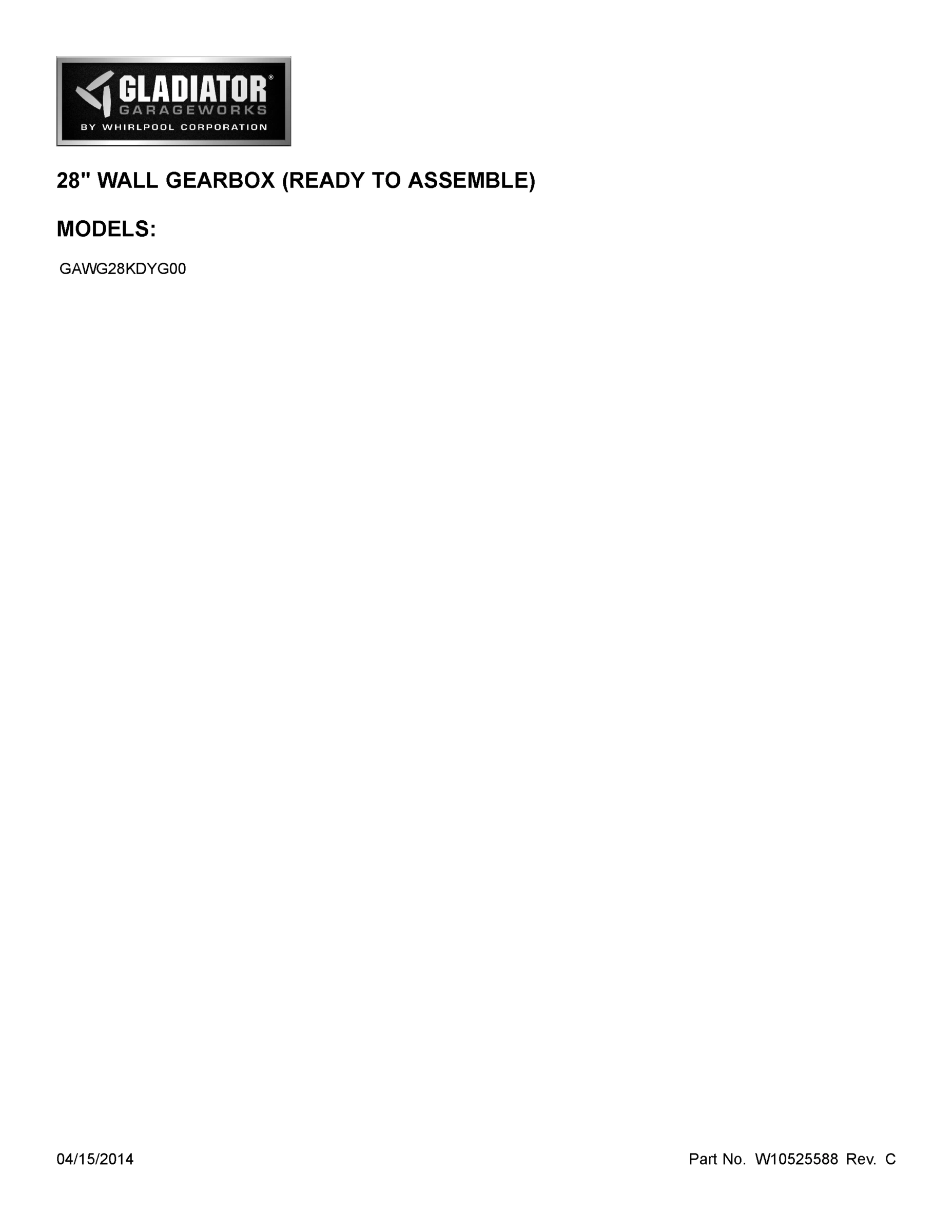

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

1

PANEL, TOP WPL W10294204 Contact Us For Availability

View on Model

2

PANEL, BOTTOM (INCLUDES ITEMS 8 & 12) WPL W10524977 Contact Us For Availability

View on Model

3

PANEL, SIDE WPL W10524980 Contact Us For Availability

View on Model

4

SHELF Backorder WPL W10294210 View Details $52.25

View on Model

5

PANEL Backorder WPL W10524982 View Details $63.24

View on Model

6

PANEL Backorder WPL W10524979 View Details $64.76

View on Model

7

W11676534 Whirlpool Bracket Backorder WPL W11676534 View Details $27.60

View on Model

8

NAMEPLATE, GLADIATOR WPL 8204633 Contact Us For Availability

View on Model

9

DOOR ASSMEBLY (LEFT) WPL W10524975 Contact Us For Availability

View on Model

9

DOOR ASSMEBLY (RIGHT) WPL W10524976 Contact Us For Availability

View on Model

10

SHELF Backorder WPL W10524978 View Details $72.65

View on Model

11

WPW10294218 Whirlpool Magnet Assembly Backorder WPL WPW10294218 View Details $25.22

View on Model

12

Grommet Assembly WPL 8211342 Contact Us For Availability

View on Model

NI

W10524984 Whirlpool Miscellaneous Parts Assem Backorder WPL W10524984 View Details $15.32

View on Model

NI

FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability

View on Model

×
