Model Whirlpool GAWG28FDESG00 GARAGEWORKS – Common Parts & Diagrams

Common parts from model Whirlpool GAWG28FDESG00 GARAGEWORKS

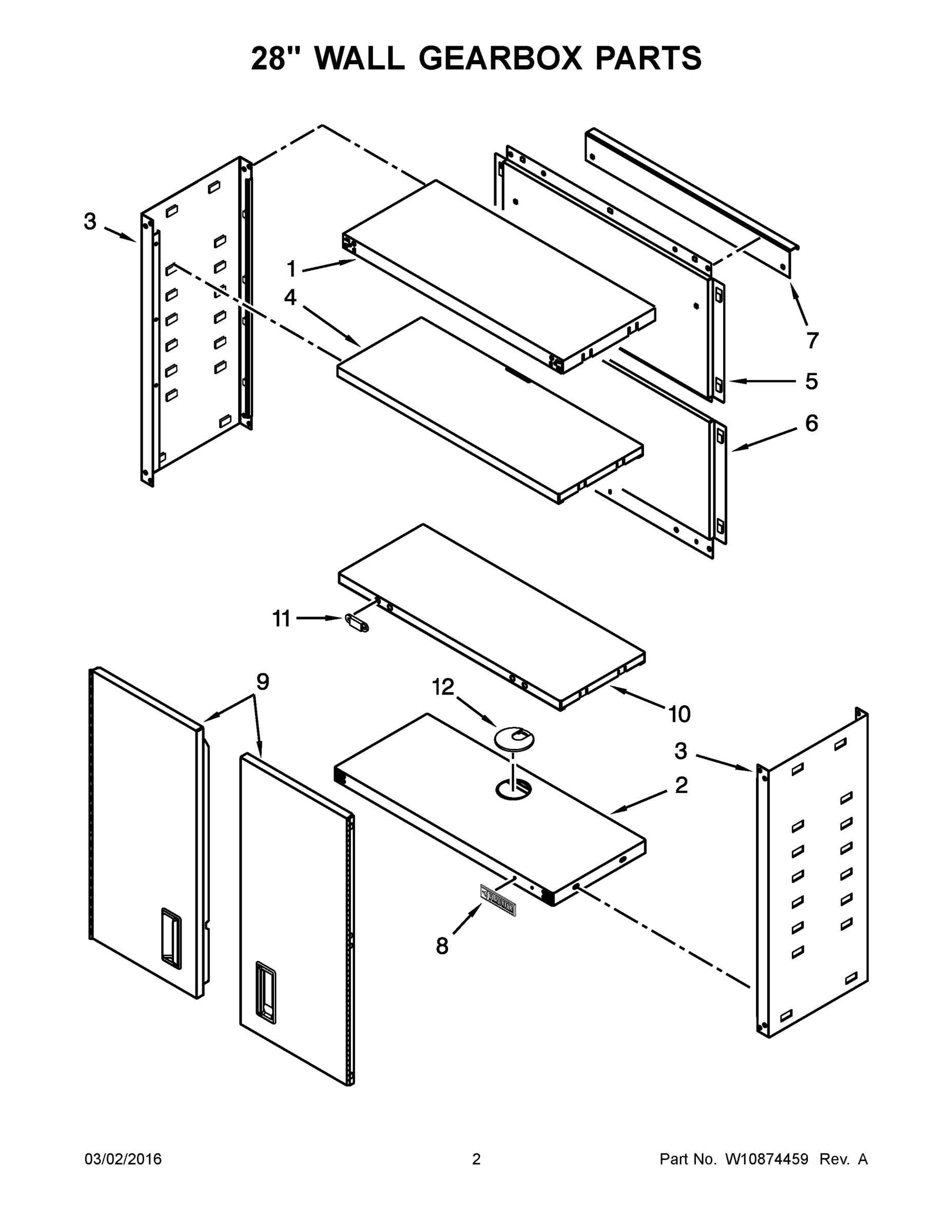

02 - 28 INCH WALL GEARBOX PARTS

Print

• This Diagram
• All Diagrams

1

PANEL, TOP WPL W10294204 Contact Us For Availability

View on Model

2

PANEL, BOTTOM (INCLUDES ITEMS 8 & 12) WPL W10524977 Contact Us For Availability

View on Model

3

PANEL, SIDE WPL W10524980 Contact Us For Availability

View on Model

4

SHELF WPL W10294210 Contact Us For Availability

View on Model

5

PANEL, BACK (UPPER) WPL W10524982 Contact Us For Availability

View on Model

6

PANEL, BACK (LOWER) WPL W10524979 Contact Us For Availability

View on Model

7

W11676534 Whirlpool Bracket Backorder WPL W11676534 View Details $27.60

View on Model

8

NAMEPLATE, GLADIATOR WPL 8204633 Contact Us For Availability

View on Model

9

DOOR W/HANDLE (LEFT HAND) WPL W10789821 Contact Us For Availability

View on Model

9A

DOOR W/HANDLE (RIGHT HAND) WPL W10789822 Contact Us For Availability

View on Model

10

SHELF W/MAGNET WPL W10524978 Contact Us For Availability

View on Model

11

WPW10294218 Whirlpool Magnet Assembly Backorder WPL WPW10294218 View Details $25.22

View on Model

12

GROMMET ASSEMBLY WPL 8211342 Contact Us For Availability

View on Model

NI

W10524984 Whirlpool Miscellaneous Parts Assem Backorder WPL W10524984 View Details $15.32

View on Model

NI

FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability

View on Model

×
