Model Electrolux GAV158S1A2 ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET PARTS
03 - AIR HANDLING PARTS

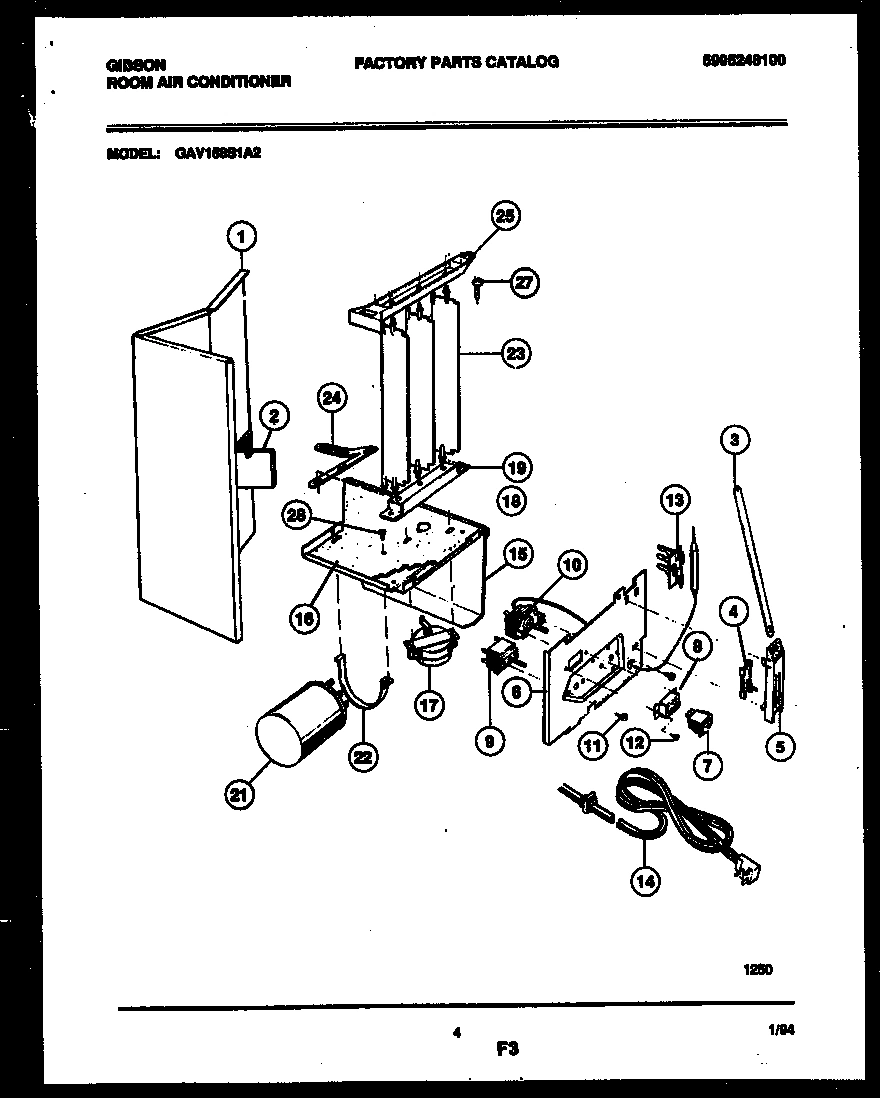

04 - ELECTRICAL PARTS

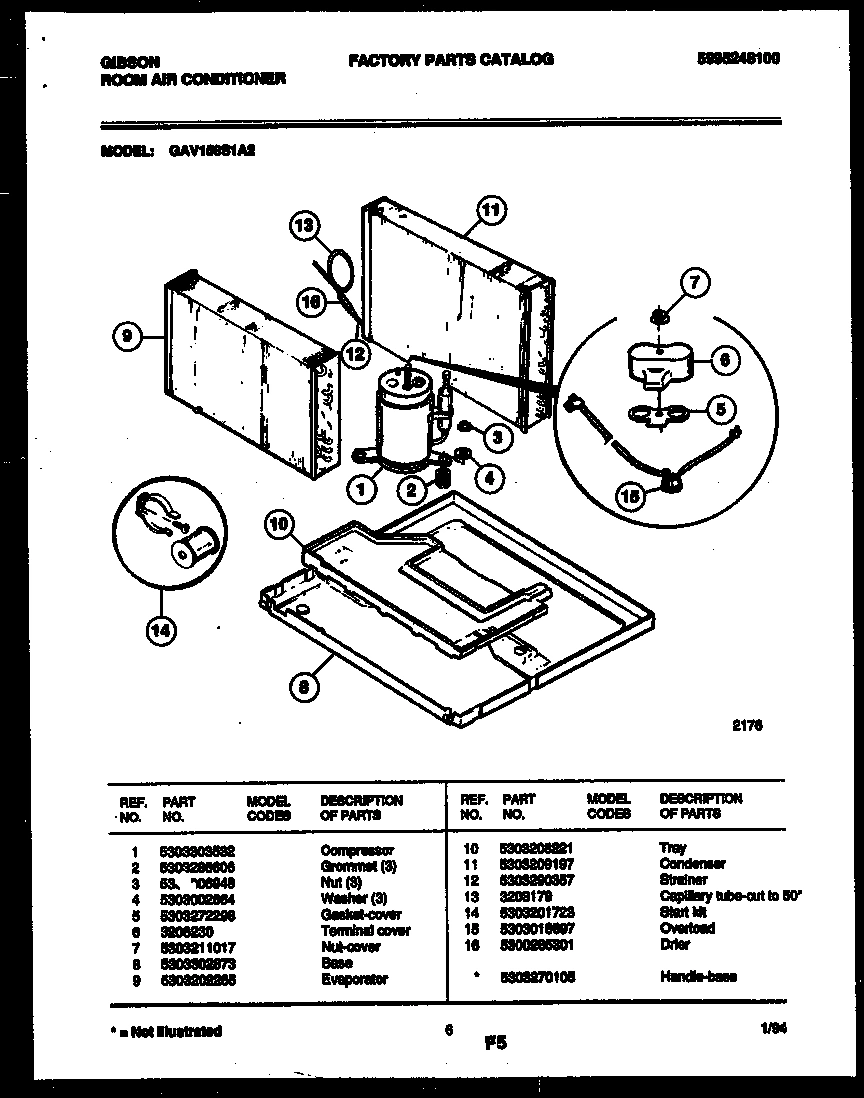

05 - SYSTEM PARTS

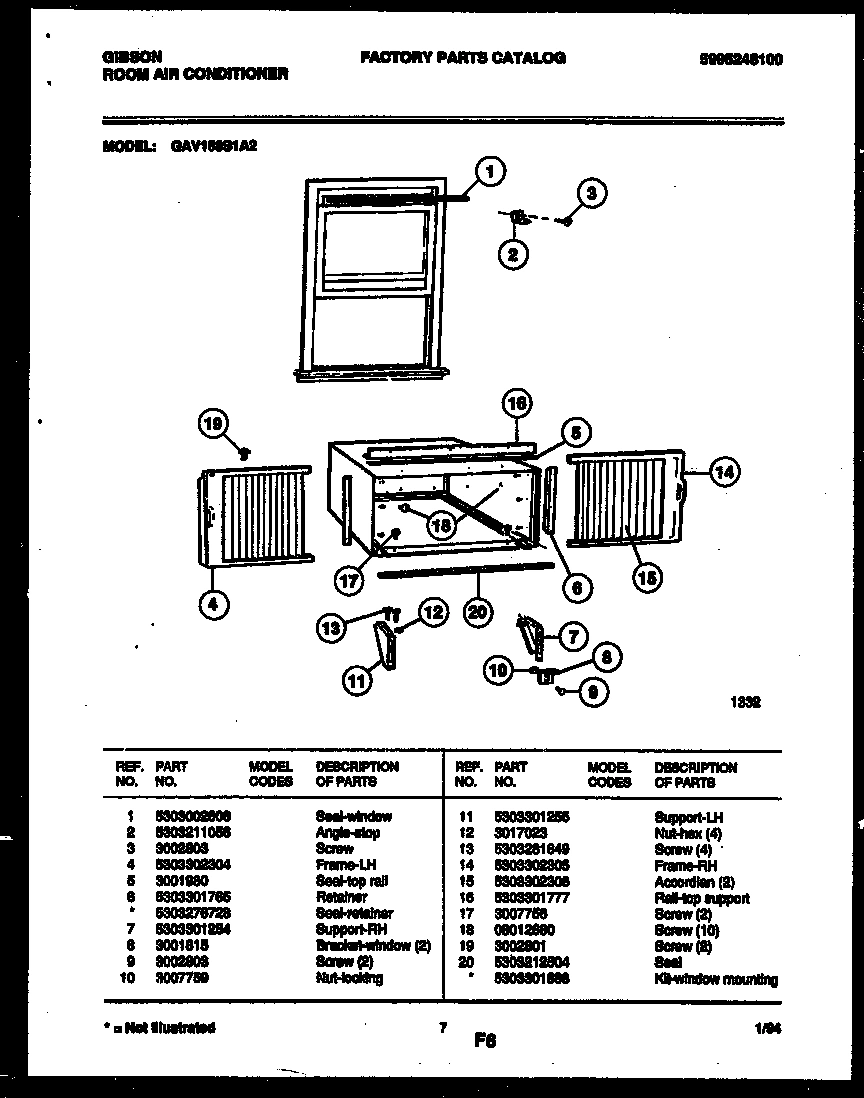

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux GAV158S1A2 ROOM AIR CONDITIONER
*68295
WCI 5303016696 WCI 5303016696 Contact Us For Availability
*68295
WCI 5303201832 WCI 5303201832 Contact Us For Availability
*68300
SPACER-LOUVERS (3) WCI 3202810 Contact Us For Availability
*68300
WCI 5303017345 WCI 5303017345 Contact Us For Availability
*68304
HANDLE-BASE WCI 5303270105 Contact Us For Availability
*68310
KIT-WINDOW MOUNTING WCI 5303301888 Contact Us For Availability
1
WRAPPER (INCLUDES REAR GRILLE) WCI 5303301790 Contact Us For Availability
1
FAN-MOTOR WCI 5303300219 Contact Us For Availability
1
BULKHEAD-CONTROL AREA WCI 5303296868 Contact Us For Availability
1
WCI 5303303532 WCI 5303303532 Contact Us For Availability
1
WCI 5303002608 WCI 5303002608 Contact Us For Availability
1A
INSULATION (NON-ILLUSTRATED) WCI 5303201825 Contact Us For Availability
1B
INSULATION-VENT DOOR (NON-ILLUSTRATED) WCI 5303201826 Contact Us For Availability
2
WCI 5303211056 WCI 5303211056 Contact Us For Availability
2
PANEL-REAR WCI 5303301510 Contact Us For Availability
2
SCREW (3) WCI 5303015294 Contact Us For Availability
2
VENT DOOR WCI 5303295752 Contact Us For Availability
2
GROMMET (3) WCI 5303286606 Contact Us For Availability
2A
NAMEPLATE-REAR PNL (NON-ILLUSTRATED) WCI 5303302608 Contact Us For Availability
3
WCI 5303302874 WCI 5303302874 Contact Us For Availability
3
WCI 5303015305 WCI 5303015305 Contact Us For Availability
3
WCI 5303201820 WCI 5303201820 Contact Us For Availability
3
NUT (3) WCI 5308006948 Contact Us For Availability
3A
WCI 5303201953 WCI 5303201953 Contact Us For Availability
4
SPACER - DIAL PLATE WCI 5303001775 Contact Us For Availability
4
WCI 5303015304 WCI 5303015304 Contact Us For Availability
4
ACTUATOR-VENT DOOR WCI 5303201821 Contact Us For Availability
4
WASHER (3) WCI 5303002664 Contact Us For Availability
4
WCI 5303302304 WCI 5303302304 Contact Us For Availability
5
WCI 5303302875 WCI 5303302875 Contact Us For Availability
5
SEAL-COND SHROUD/BASE WCI 5303015311 Contact Us For Availability
5
WCI 5303209200 WCI 5303209200 Contact Us For Availability
5
GASKET-COVER WCI 5303272298 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
6
WCI 5303202268 WCI 5303202268 Contact Us For Availability
6
BRACKET-SHROUD/BLKHD WCI 5303015306 Contact Us For Availability
6
WCI 5303201833 WCI 5303201833 Contact Us For Availability
6
TERMINAL COVER WCI 3206230 Contact Us For Availability
6
RETAINER WCI 5303301765 Contact Us For Availability
6A
SEAL-RETAINER (NON-ILLUSTRATED) WCI 5303276728 Contact Us For Availability
7
WCI 5303202269 WCI 5303202269 Contact Us For Availability
7
WCI 5303201834 WCI 5303201834 Contact Us For Availability
7
WCI 5303211017 WCI 5303211017 Contact Us For Availability
7
WCI 5303301254 WCI 5303301254 Contact Us For Availability
8
WCI 5303202811 WCI 5303202811 Contact Us For Availability
8
FAN BLADE WCI 5303017959 Contact Us For Availability
8
BRACKET-SW MTG WCI 5303201835 Contact Us For Availability
8
WCI 5303302873 WCI 5303302873 Contact Us For Availability
8
BRACKET-WINDOW (2) WCI 3001815 Contact Us For Availability
8A
CLAMP (NON-ILLUSTRATED) WCI 5308011040 Contact Us For Availability
9
SWITCH WCI 3017344 Contact Us For Availability
9
WCI 5303202274 WCI 5303202274 Contact Us For Availability
9
BULKHEAD-AIR SYS WCI 5303299319 Contact Us For Availability
9
WCI 5303202265 WCI 5303202265 Contact Us For Availability
9
SCREW (2) WCI 3002803 Contact Us For Availability
9A
WCI 5303201830 WCI 5303201830 Contact Us For Availability
10
WCI 5303201838 WCI 5303201838 Contact Us For Availability
10
SEAL-DISCHARGE AREA WCI 5303201854 Contact Us For Availability
10
BLOWER WHEEL WCI 5303016832 Contact Us For Availability
10
TRAY WCI 5303208221 Contact Us For Availability
10
NUT LOCKING WCI 3007759 Contact Us For Availability
10A
CLAMP-COMPRESSION (NON-ILLUSTRATED) WCI 5303012110 Contact Us For Availability
11
KNOB (2) WCI 5303017300 Contact Us For Availability
11
SCROLL-EVAP WCI 5303201831 Contact Us For Availability
11
SCREW (4) WCI 5303007754 Contact Us For Availability
11
WCI 5303209197 WCI 5303209197 Contact Us For Availability
11
WCI 5303301255 WCI 5303301255 Contact Us For Availability
12
WCI 5303017340 WCI 5303017340 Contact Us For Availability
12
TOP COVER WCI 5303015313 Contact Us For Availability
12
WCI 5308002955 WCI 5308002955 Contact Us For Availability
12
WCI 5303290357 WCI 5303290357 Contact Us For Availability
13
SPACER-CONT BULB WCI 5303211009 Contact Us For Availability
13
CAPILLARY TUBE, CUT TO 50`` WCI 3203179 Contact Us For Availability
13
SCREW (4) WCI 5303281649 Contact Us For Availability
14
CORD-SERVICE WCI 5303301021 Contact Us For Availability
14
WCI 5303201723 WCI 5303201723 Contact Us For Availability
14
WCI 5303302305 WCI 5303302305 Contact Us For Availability
15
RAIL-FILTER (2) WCI 5303272800 Contact Us For Availability
15
WCI 5303296858 WCI 5303296858 Contact Us For Availability
15
WCI 5303016697 WCI 5303016697 Contact Us For Availability
15
ACCORDIAN (2) WCI 5303302306 Contact Us For Availability
16
WCI 5303300229 WCI 5303300229 Contact Us For Availability
16
WCI 5303201842 WCI 5303201842 Contact Us For Availability
16
RAIL-TOP SUPPORT WCI 5303301777 Contact Us For Availability
16A
NUT-FRONT MOUNTING (NON-ILLUSTRATED) WCI 08010928 Contact Us For Availability
17
WCI 5303302878 WCI 5303302878 Contact Us For Availability
17
MOTOR-DRIVE-AIR SWEEP WCI 5303015317 Contact Us For Availability
17
SCREW (2) WCI 3007756 Contact Us For Availability
18
WCI 5303017980 WCI 5303017980 Contact Us For Availability
18
SCREW (2) WCI 5308009156 Contact Us For Availability
18
SCREW (10) WCI 08012680 Contact Us For Availability
19
RETAINER-LOUVER WCI 5303201843 Contact Us For Availability
19
SCREW (2) WCI 3002801 Contact Us For Availability
19A
SCREW-RETAINER/COVER (NON-ILLUSTRATED) WCI 5303015312 Contact Us For Availability
20
WCI 5303212504 WCI 5303212504 Contact Us For Availability
21
CAPACITOR 10-40/370 WCI 5303201951 Contact Us For Availability
22
WCI 5303201845 WCI 5303201845 Contact Us For Availability
23
LOUVER-VENT (3) WCI 5303299318 Contact Us For Availability
24
LINK-LOUVER WCI 5300517130 Contact Us For Availability
25
RETAINER-LOUVER WCI 5303201847 Contact Us For Availability
28
WCI 5303201974 WCI 5303201974 Contact Us For Availability
× ![]()
