Model Whirlpool GATL302DRG01 GLADIATOR, GARAGEWORKS, GEARBOX, TALL – Common Parts & Diagrams

Common parts from model Whirlpool GATL302DRG01 GLADIATOR, GARAGEWORKS, GEARBOX, TALL

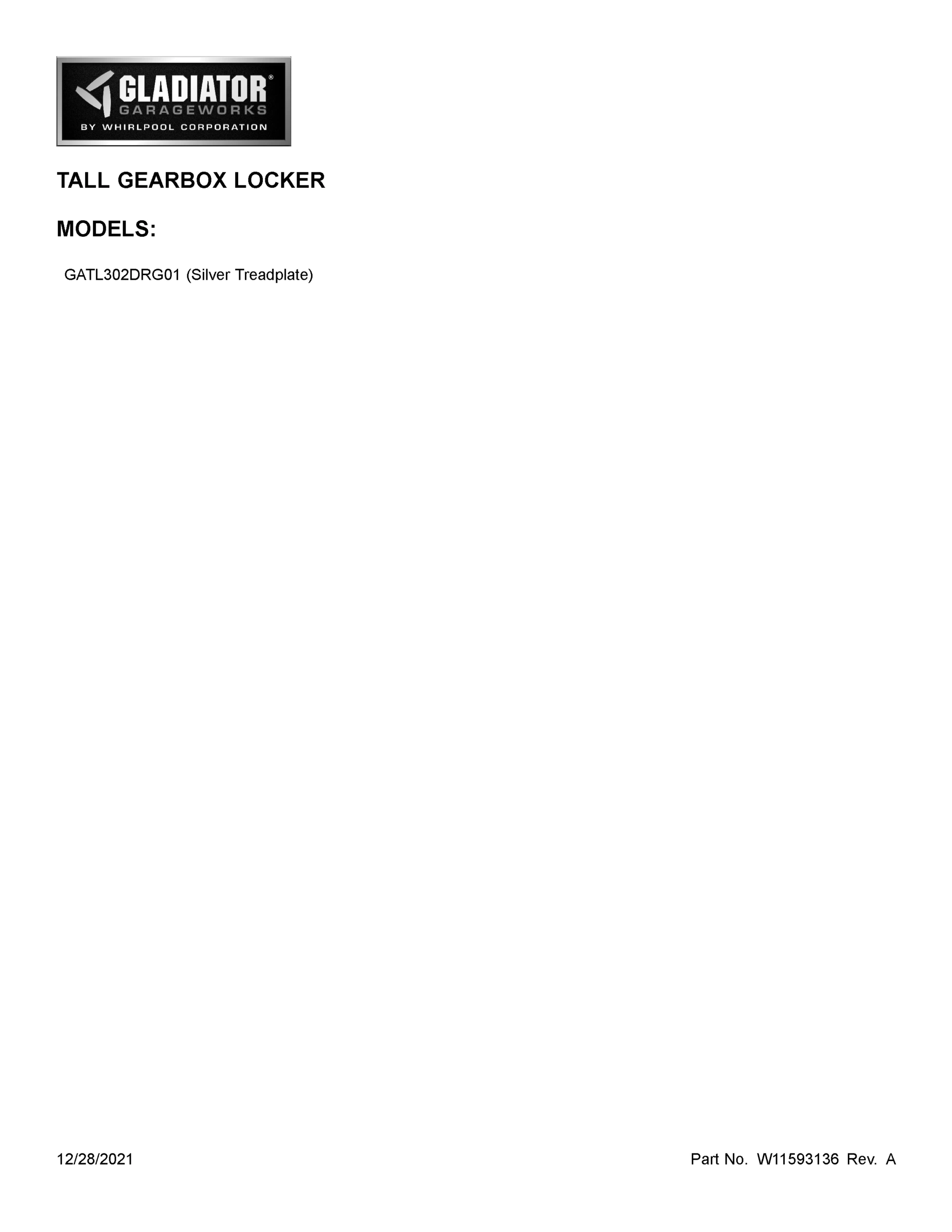

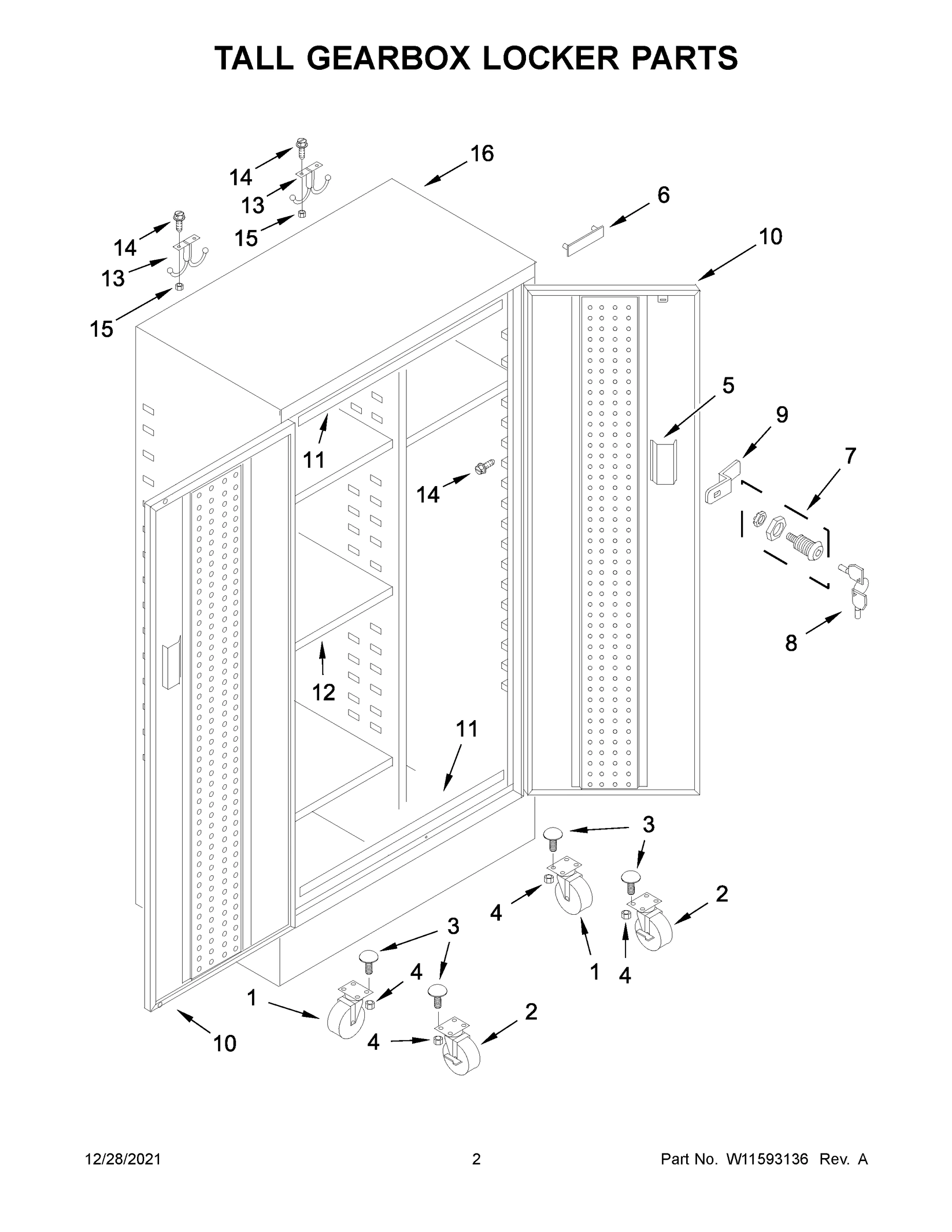

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

1

CASTER, SWIVEL 5" WPL W11538388 Contact Us For Availability

View on Model

2

CASTER, RIGID 5" WITH BRAKE (RIGHT HAND) WPL W11538387 Contact Us For Availability

View on Model

2A

CASTER, RIGID 5" WITH BRAKE (LEFT HAND) WPL W11538386 Contact Us For Availability

View on Model

3

W11558420 Whirlpool Bolt Backorder WPL W11558420 View Details $2.29

View on Model

4

NUT, NYLON WPL W11548196 Contact Us For Availability

View on Model

5

W11549424 Whirlpool Door Handle Backorder WPL W11549424 View Details $4.06

View on Model

6

NAMEPLATE, GLADIATOR WPL W11438530 Contact Us For Availability

View on Model

7

W11557659 Whirlpool Lock Backorder WPL W11557659 View Details $22.95

View on Model

8

W11557661 Whirlpool Keys Backorder WPL W11557661 View Details $2.40

View on Model

9

W11538391 Whirlpool Cam Assembly Backorder WPL W11538391 View Details $22.89

View on Model

10

DOOR (INCLUDES HANDLE) (SILVER TREADPLATE, LE WPL W11538380 Contact Us For Availability

View on Model

10A

DOOR (INCLUDES HANDLE) (SILVER TREADPLATE, RI WPL W11538383 Contact Us For Availability

View on Model

11

MAGNET WPL W11522092 Contact Us For Availability

View on Model

12

W11538392 Whirlpool Shelf Assembly Backorder WPL W11538392 View Details $68.45

View on Model

13

HOOK, DOUBLE WPL W11544382 Contact Us For Availability

View on Model

14

SCREW WPL W11542908 Contact Us For Availability

View on Model

15

NUT WPL W11548187 Contact Us For Availability

View on Model

16

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability

View on Model

×
