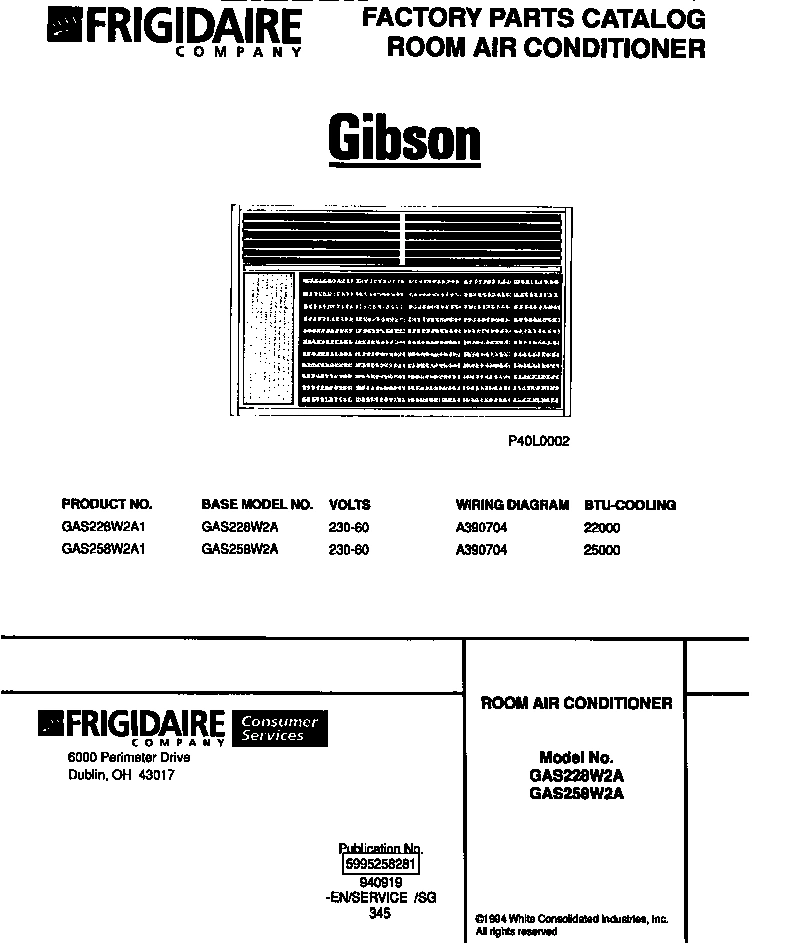

Model Electrolux GAS228W2A1 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - ROOM AIR CONDITIONER

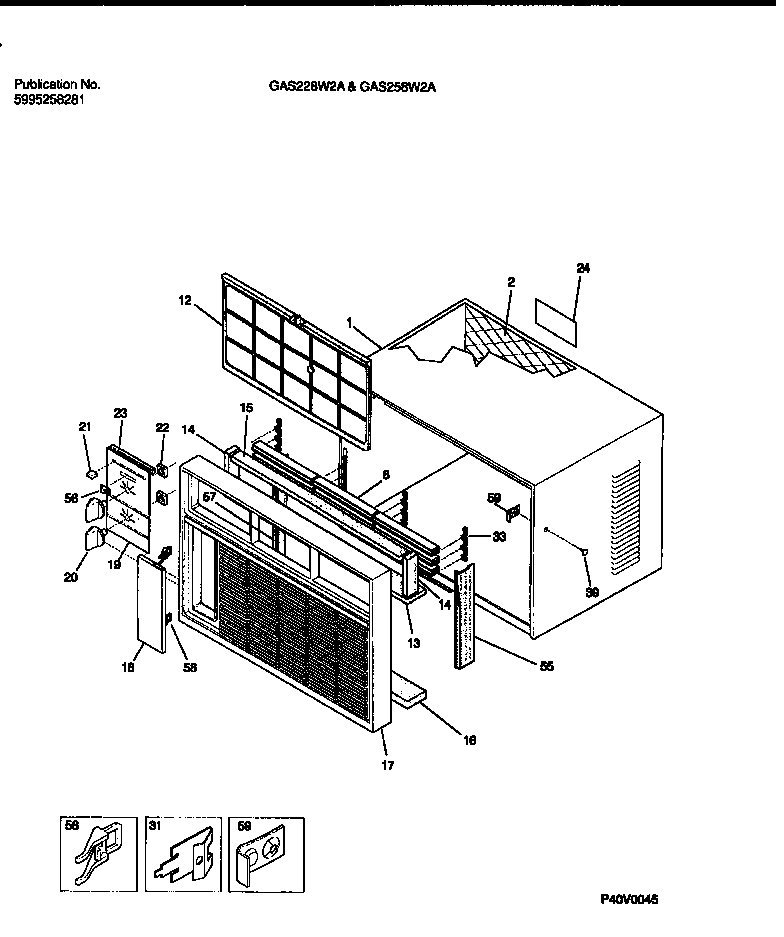

02 - CABINET FRONT AND WRAPPER
03 - CONTROLS
04 - AIR HANDLING
05 - COMPRESSOR
06 - WINDOW MOUNTS
07 - WIRING DIAGRAM
Common parts from model Electrolux GAS228W2A1 ROOM AIR CONDITIONER
*83120
INSTRUCTION FOR INSTALLATION WCI 5303284744 Contact Us For Availability
*83121
WCI 5303301888 WCI 5303301888 Contact Us For Availability
1
FAN BLADE AND CLAMP WCI 5303017959 Contact Us For Availability
1
WCI 5303203580 WCI 5303203580 Contact Us For Availability
1
WCI 5303002608 WCI 5303002608 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
WCI 5303295752 WCI 5303295752 Contact Us For Availability
2
SCREW WCI 320975 Contact Us For Availability
2
GROMMET - COMPRESSOR, 3 WCI 5303286606 Contact Us For Availability
3
CABLE - VENT DOOR WCI 5303015298 Contact Us For Availability
3
WCI 5303015305 WCI 5303015305 Contact Us For Availability
3
NUT - COMPRESSOR WCI 5308006948 Contact Us For Availability
4
RETAINER - ACTUATOR WCI 5303202999 Contact Us For Availability
4
SEAL - SHROUD UPPER WCI 3016696 Contact Us For Availability
4
WCI 5303302304 WCI 5303302304 Contact Us For Availability
5
WCI 5303015299 WCI 5303015299 Contact Us For Availability
5
SEAL - SCROLL, SHROUD WCI 5303015311 Contact Us For Availability
5
CLAMP - COVER WCI 5303002069 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
6
WCI 5303017342 WCI 5303017342 Contact Us For Availability
6
WCI 5303015304 WCI 5303015304 Contact Us For Availability
6
WCI 5303002068 WCI 5303002068 Contact Us For Availability
6
WCI 5303301765 WCI 5303301765 Contact Us For Availability
7
WCI 5303293910 WCI 5303293910 Contact Us For Availability
7
COVER, TERMINAL WCI 5303002067 Contact Us For Availability
7
WCI 5303301254 WCI 5303301254 Contact Us For Availability
8
WCI 3017344 WCI 3017344 Contact Us For Availability
8
WCI 5303017557 WCI 5303017557 Contact Us For Availability
8
BRACKET - SUPPORT WCI 3001815 Contact Us For Availability
9
WCI 5303015319 WCI 5303015319 Contact Us For Availability
9
WCI 5303015306 WCI 5303015306 Contact Us For Availability
9
SCREW - SILL SUPT WCI 3007756 Contact Us For Availability
10
PARTITION - CONTROL AREA WCI 5303295753 Contact Us For Availability
10
WCI 5303295275 WCI 5303295275 Contact Us For Availability
10
WCI 5303201723 WCI 5303201723 Contact Us For Availability
10
NUT - BRACKET WCI 3007759 Contact Us For Availability
11
DIVIDER - VERTICAL WCI 5303017807 Contact Us For Availability
11
BLOWER WHEEL WCI 5303016832 Contact Us For Availability
11
WCI 5303016182 WCI 5303016182 Contact Us For Availability
11
WCI 5303301255 WCI 5303301255 Contact Us For Availability
12
WCI 3017336 WCI 3017336 Contact Us For Availability
12
WCI 5303017914 WCI 5303017914 Contact Us For Availability
12
WCI 5303012110 WCI 5303012110 Contact Us For Availability
12
WCI 5303302596 WCI 5303302596 Contact Us For Availability
13
WCI 3017299 WCI 3017299 Contact Us For Availability
13
CAPACITOR, 370 V, 7.5 X 35 MFD WCI 5303303147 Contact Us For Availability
13
WCI 5303015313 WCI 5303015313 Contact Us For Availability
13
WCI 5303300045 WCI 5303300045 Contact Us For Availability
13
SCREW - SUPPORT, 4 WCI 5303281649 Contact Us For Availability
14
WCI 5303303148 WCI 5303303148 Contact Us For Availability
14
INSULATION - TOP COVER WCI 3015314 Contact Us For Availability
14
WCI 5303302822 WCI 5303302822 Contact Us For Availability
14
WCI 5303302305 WCI 5303302305 Contact Us For Availability
15
WCI 5303271831 WCI 5303271831 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
WCI 5303016830 WCI 5303016830 Contact Us For Availability
15
WCI 5303302306 WCI 5303302306 Contact Us For Availability
16
CAPILLARY TUBE, CUT TO 30`` WCI 5303209547 Contact Us For Availability
16
WCI 5303281623 WCI 5303281623 Contact Us For Availability
16
HARNESS WCI 5303209983 Contact Us For Availability
16
WCI 5303301777 WCI 5303301777 Contact Us For Availability
17
FRONT COMPLETE WCI 5303212503 Contact Us For Availability
17
WCI 5303302823 WCI 5303302823 Contact Us For Availability
17
CLAMP - FAN BLADE WCI 5308011040 Contact Us For Availability
17
DRIER - FILTER WCI 530026530 Contact Us For Availability
17
SCREW - SASH LOCK WCI 3002803 Contact Us For Availability
18
WCI 5303207308 WCI 5303207308 Contact Us For Availability
18
SCREW WCI 5303007754 Contact Us For Availability
18
WCI 5303290357 WCI 5303290357 Contact Us For Availability
18
WCI 08012680 WCI 08012680 Contact Us For Availability
19
DIAL PLATE WCI 5303281624 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
WCI 5303017300 WCI 5303017300 Contact Us For Availability
21
WCI 5303017340 WCI 5303017340 Contact Us For Availability
21
SEAL - CHASSIS, BOTTOM WCI 5303212504 Contact Us For Availability
21
WCI 5303303011 WCI 5303303011 Contact Us For Availability
22
SPACER - DIAL PLATE WCI 5303001775 Contact Us For Availability
23
SEAL - DIAL PLATE WCI 5303001984 Contact Us For Availability
23
WCI 5303302882 WCI 5303302882 Contact Us For Availability
24
WCI 5303207304 WCI 5303207304 Contact Us For Availability
24
NUT, PUSH-ON WCI 3202733 Contact Us For Availability
24
WCI 3002801 WCI 3002801 Contact Us For Availability
30
WCI 5303271346 WCI 5303271346 Contact Us For Availability
31
CLIP - FRONT (2) WCI 3200447 Contact Us For Availability
33
RETAINER - LOUVER, 4 WCI 3017303 Contact Us For Availability
33
SWITCH-SLIDE WCI 5303015318 Contact Us For Availability
34
MOTOR-DRIVE WCI 5303015317 Contact Us For Availability
35
WCI 3200761 WCI 3200761 Contact Us For Availability
36
INSULATION - PANEL WCI 5303015428 Contact Us For Availability
36
STRAP - BASE WCI 5303303558 Contact Us For Availability
37
WCI 5303302257 WCI 5303302257 Contact Us For Availability
38
SCREW, MOTOR DRIVE WCI 5303015294 Contact Us For Availability
55
WCI 3017335 WCI 3017335 Contact Us For Availability
56
KNOB - SLIDE, SWITCH WCI 3017341 Contact Us For Availability
57
WCI 3017363 WCI 3017363 Contact Us For Availability
58
HINGE - DOOR WCI 5303017980 Contact Us For Availability
59
NUT - FRONT LOCK WCI 08010928 Contact Us For Availability
× ![]()
