Model Electrolux GAS228P2K2 ROOM AIR CONDITIONER – Common Parts & Diagrams

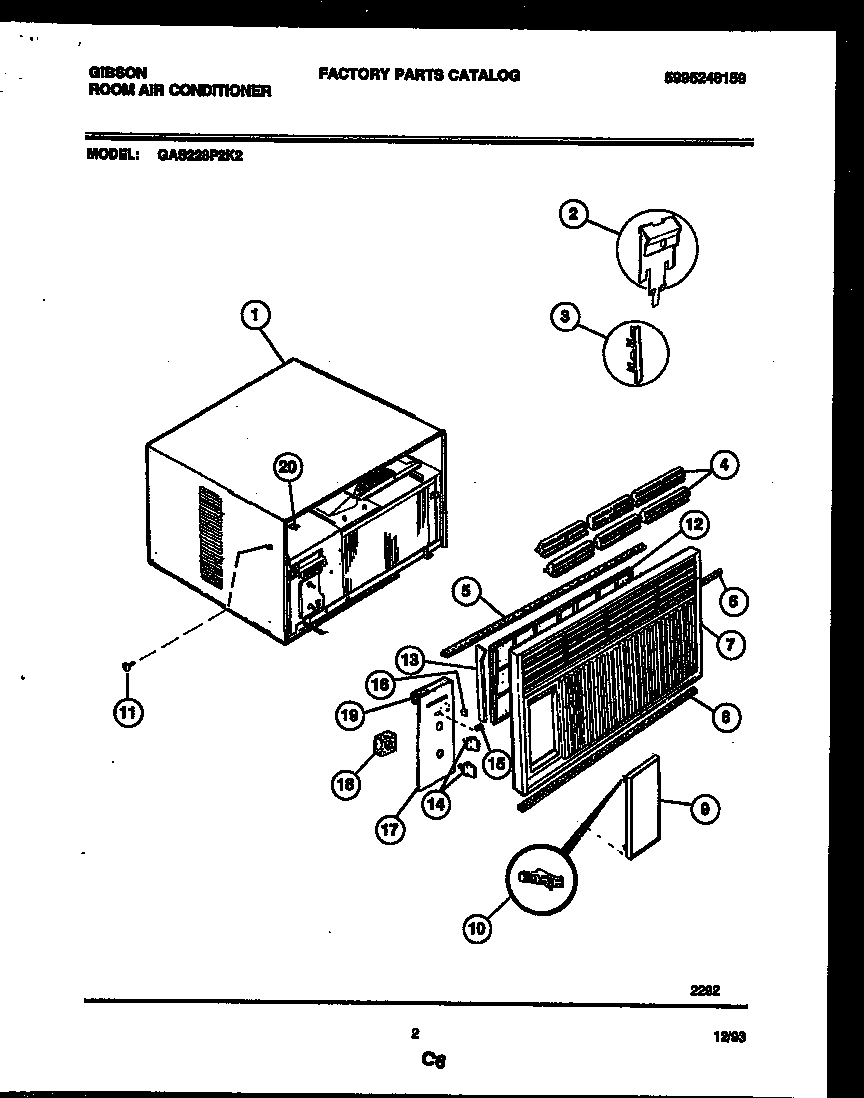

02 - CABINET PARTS

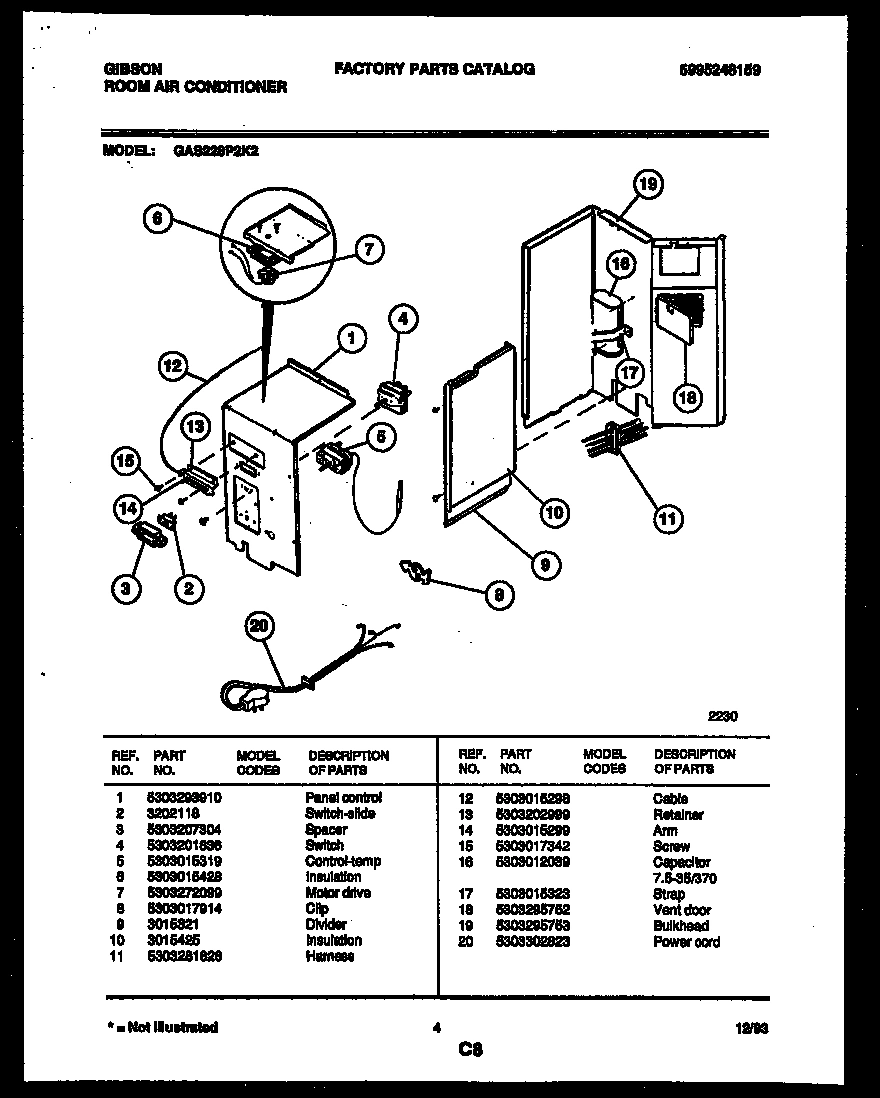

03 - ELECTRICAL PARTS

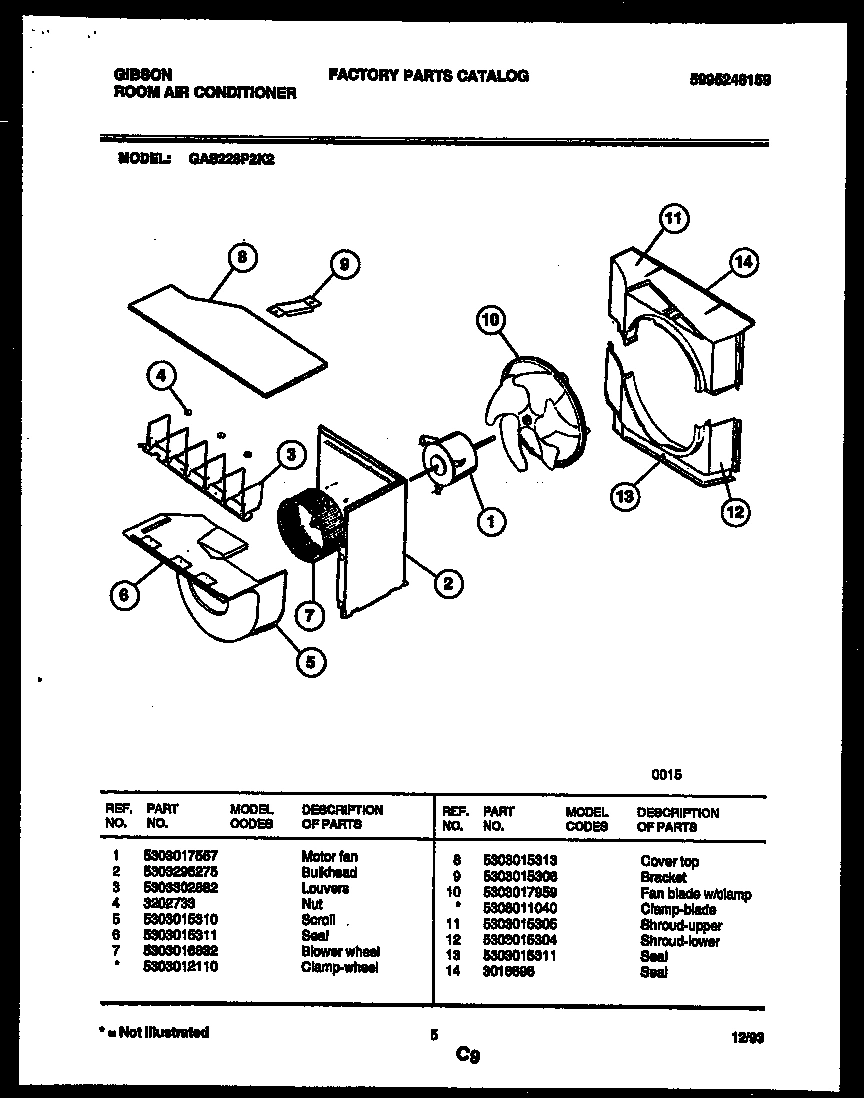

04 - AIR HANDLING PARTS

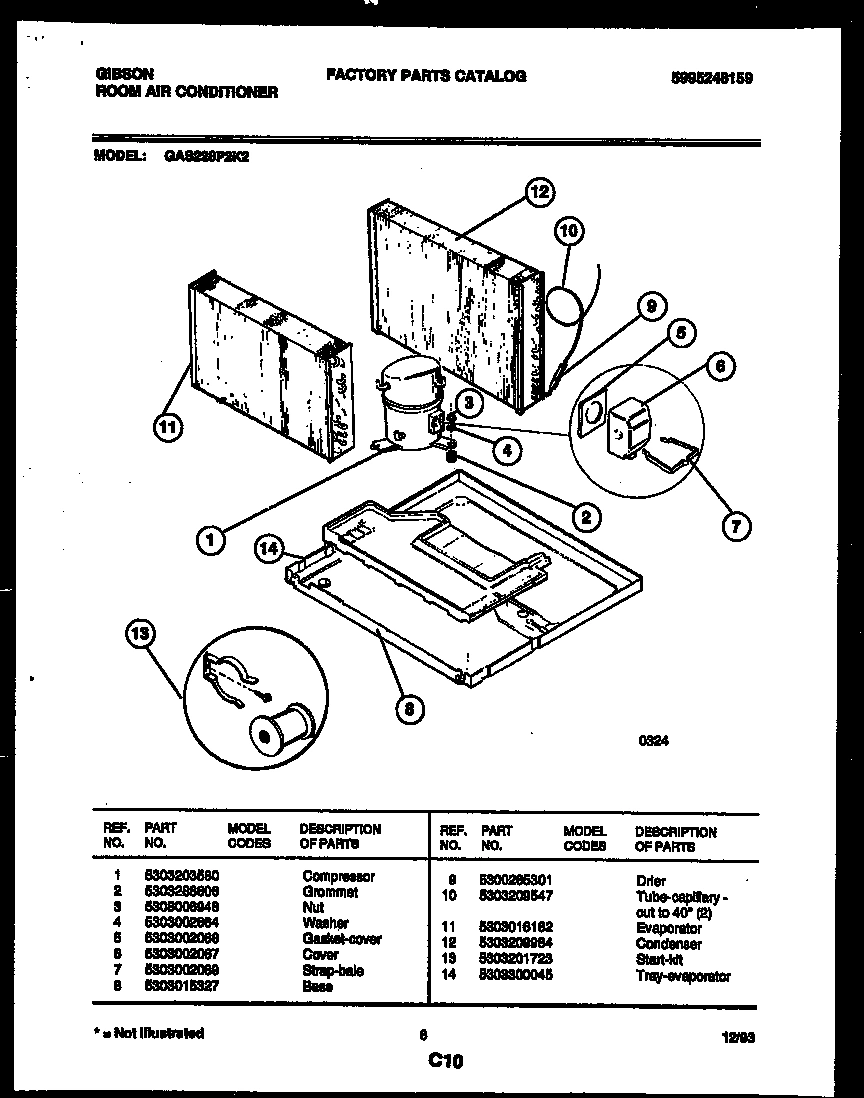

05 - SYSTEM PARTS

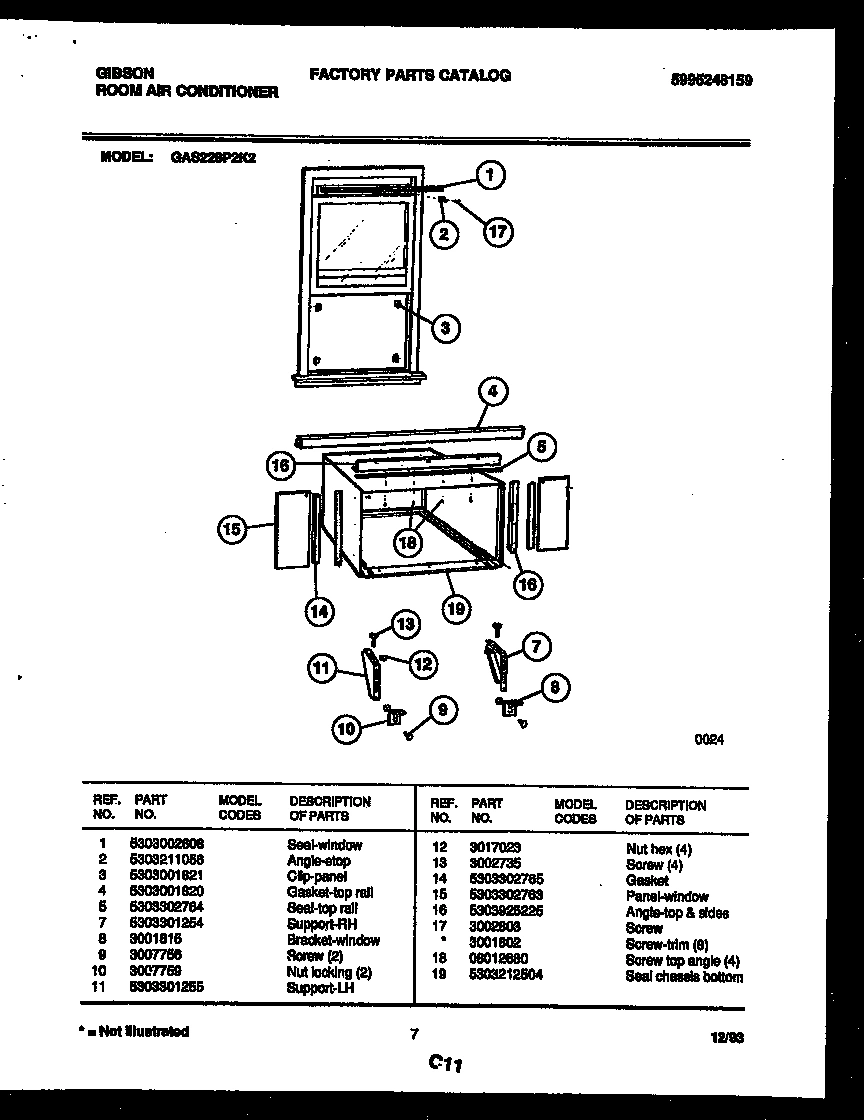

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux GAS228P2K2 ROOM AIR CONDITIONER
1
WCI 5303293910 WCI 5303293910 Contact Us For Availability
1
WCI 5303017557 WCI 5303017557 Contact Us For Availability
1
WCI 5303203580 WCI 5303203580 Contact Us For Availability
1
WCI 5303002608 WCI 5303002608 Contact Us For Availability
2
WCI 5303211056 WCI 5303211056 Contact Us For Availability
2
WCI 3200447 WCI 3200447 Contact Us For Availability
2
SWITCH - SLIDE WCI 3202118 Contact Us For Availability
2
BULKHEAD WCI 5303295275 Contact Us For Availability
2
GROMMET WCI 5303286606 Contact Us For Availability
3
RETAINER LOUVER WCI 3017303 Contact Us For Availability
3
SPACER WCI 5303207304 Contact Us For Availability
3
LOUVERS WCI 5303302882 Contact Us For Availability
3
WCI 5308006948 WCI 5308006948 Contact Us For Availability
3
CLIP-PANEL WCI 5303001821 Contact Us For Availability
4
SWITCH WCI 5303201836 Contact Us For Availability
4
LOUVER (3) WCI 3017302 Contact Us For Availability
4
WCI 3202733 WCI 3202733 Contact Us For Availability
4
WCI 5303002664 WCI 5303002664 Contact Us For Availability
4
WCI 5303001820 WCI 5303001820 Contact Us For Availability
5
SEAL TOP & SIDE WCI 5303271831 Contact Us For Availability
5
CONTROL TEMP WCI 5303015319 Contact Us For Availability
5
WCI 5303015310 WCI 5303015310 Contact Us For Availability
5
WCI 5303002068 WCI 5303002068 Contact Us For Availability
5
SEAL-TOP RAIL WCI 5303302764 Contact Us For Availability
6
WCI 3017299 WCI 3017299 Contact Us For Availability
6
INSULATION WCI 5303015428 Contact Us For Availability
6
WCI 5303002067 WCI 5303002067 Contact Us For Availability
7
FRONT COMPLETE WCI 5303212503 Contact Us For Availability
7
WCI 5303272099 WCI 5303272099 Contact Us For Availability
7
BLOWER WHEEL WCI 5303016832 Contact Us For Availability
7
WCI 5303002069 WCI 5303002069 Contact Us For Availability
7
WCI 5303301254 WCI 5303301254 Contact Us For Availability
7A
CLAMP-WHEEL (NON-ILLUSTRATED) WCI 5303012110 Contact Us For Availability
8
SEAL-BTM WCI 5303281623 Contact Us For Availability
8
CLIP WCI 5303017914 Contact Us For Availability
8
WCI 5303015313 WCI 5303015313 Contact Us For Availability
8
WCI 5303015327 WCI 5303015327 Contact Us For Availability
8
BRACKET - WINDOW WCI 3001815 Contact Us For Availability
9
DOOR WCI 5303207308 Contact Us For Availability
9
WCI 3015321 WCI 3015321 Contact Us For Availability
9
BRACKET WCI 5303015306 Contact Us For Availability
9
SCREW (2) WCI 3007756 Contact Us For Availability
10
TUBE-CAPILLARY-CUT TO 40`` (2) WCI 5303209547 Contact Us For Availability
10
WCI 5303017980 WCI 5303017980 Contact Us For Availability
10
WCI 3015425 WCI 3015425 Contact Us For Availability
10
FAN BLADE W/CLAMP WCI 5303017959 Contact Us For Availability
10
NUT-LOCKING (2) WCI 3007759 Contact Us For Availability
10A
CLAMP-BLADE (NON-ILLUSTRATED) WCI 5308011040 Contact Us For Availability
11
WCI 3017304 WCI 3017304 Contact Us For Availability
11
WCI 5303281626 WCI 5303281626 Contact Us For Availability
11
WCI 5303015305 WCI 5303015305 Contact Us For Availability
11
WCI 5303016182 WCI 5303016182 Contact Us For Availability
11
WCI 5303301255 WCI 5303301255 Contact Us For Availability
12
WCI 3017336 WCI 3017336 Contact Us For Availability
12
WCI 5303015298 WCI 5303015298 Contact Us For Availability
12
WCI 5303015304 WCI 5303015304 Contact Us For Availability
12
WCI 5303209984 WCI 5303209984 Contact Us For Availability
13
WCI 3017363 WCI 3017363 Contact Us For Availability
13
RETAINER WCI 5303202999 Contact Us For Availability
13
SEAL WCI 5303015311 Contact Us For Availability
13
WCI 5303201723 WCI 5303201723 Contact Us For Availability
13
SCREW (4) WCI 3002735 Contact Us For Availability
13A
WCI 3017335 WCI 3017335 Contact Us For Availability
14
WCI 5303017300 WCI 5303017300 Contact Us For Availability
14
ARM WCI 5303015299 Contact Us For Availability
14
SEAL WCI 3016696 Contact Us For Availability
14
WCI 5303300045 WCI 5303300045 Contact Us For Availability
14
WCI 5303302765 WCI 5303302765 Contact Us For Availability
15
KNOB - SLIDE, SWITCH WCI 3017341 Contact Us For Availability
15
WCI 5303017342 WCI 5303017342 Contact Us For Availability
15
WCI 5303302763 WCI 5303302763 Contact Us For Availability
16
KNOB-SLIDE VENT WCI 5303017340 Contact Us For Availability
16
CAPACITOR 7.5-35/370 WCI 5303012039 Contact Us For Availability
16
WCI 5303925225 WCI 5303925225 Contact Us For Availability
17
DIAL PLATE WCI 5303281624 Contact Us For Availability
17
STRAP WCI 5303015323 Contact Us For Availability
17
WCI 3002803 WCI 3002803 Contact Us For Availability
17A
SCREW-TRIM (8) (NON-ILLUSTRATED) WCI 3001802 Contact Us For Availability
18
WCI 5303001775 WCI 5303001775 Contact Us For Availability
18
VENT DOOR WCI 5303295752 Contact Us For Availability
18
SCREW-TOP ANGLE (4) WCI 08012680 Contact Us For Availability
19
WCI 5303001984 WCI 5303001984 Contact Us For Availability
19
WCI 5303295753 WCI 5303295753 Contact Us For Availability
19
SEAL - CHASSIS, BOTTOM WCI 5303212504 Contact Us For Availability
20
WCI 08010928 WCI 08010928 Contact Us For Availability
20
POWER CORD WCI 5303302823 Contact Us For Availability
× ![]()
