Model Electrolux GAS154J1A1 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - WRAPPER

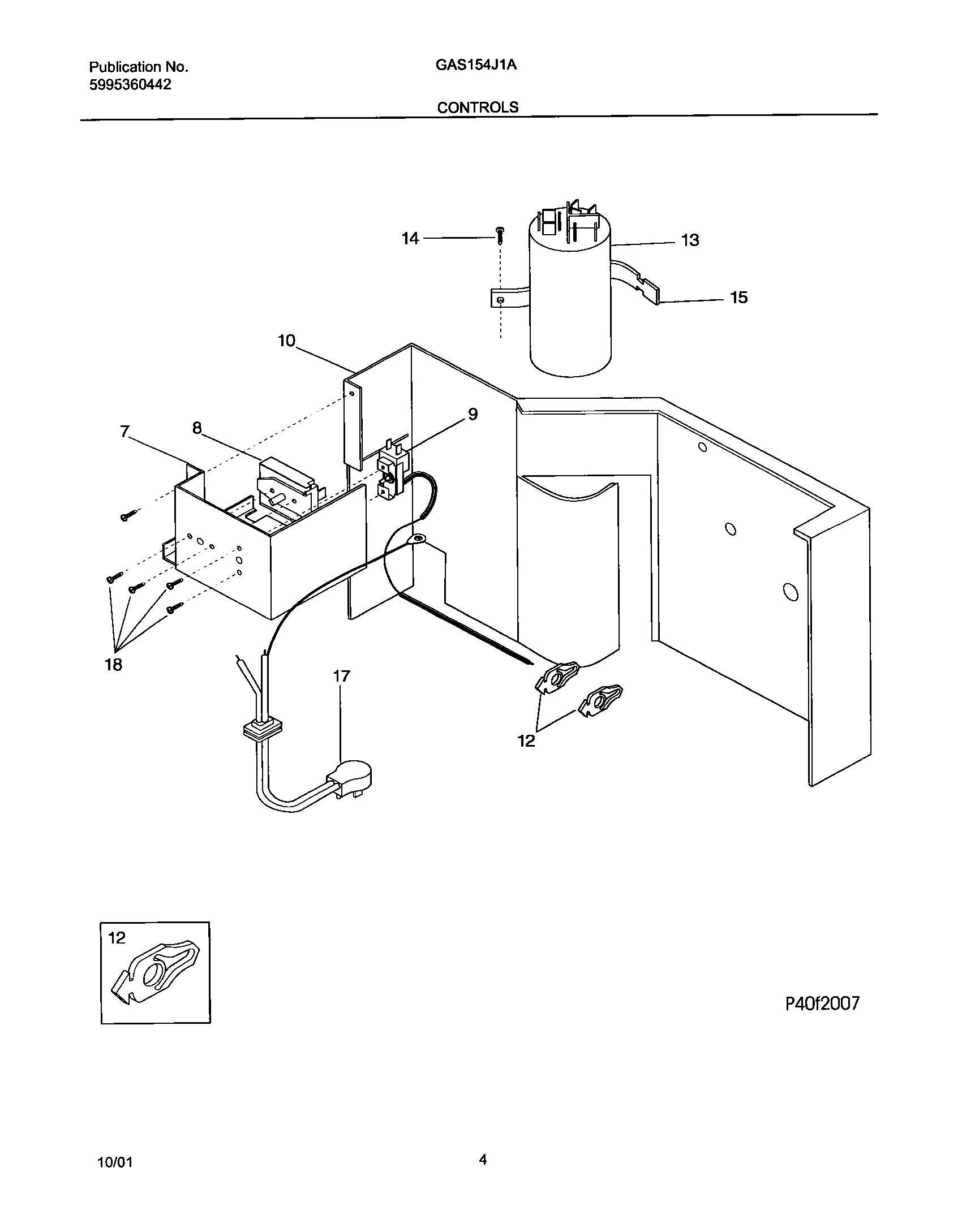

05 - CONTROLS

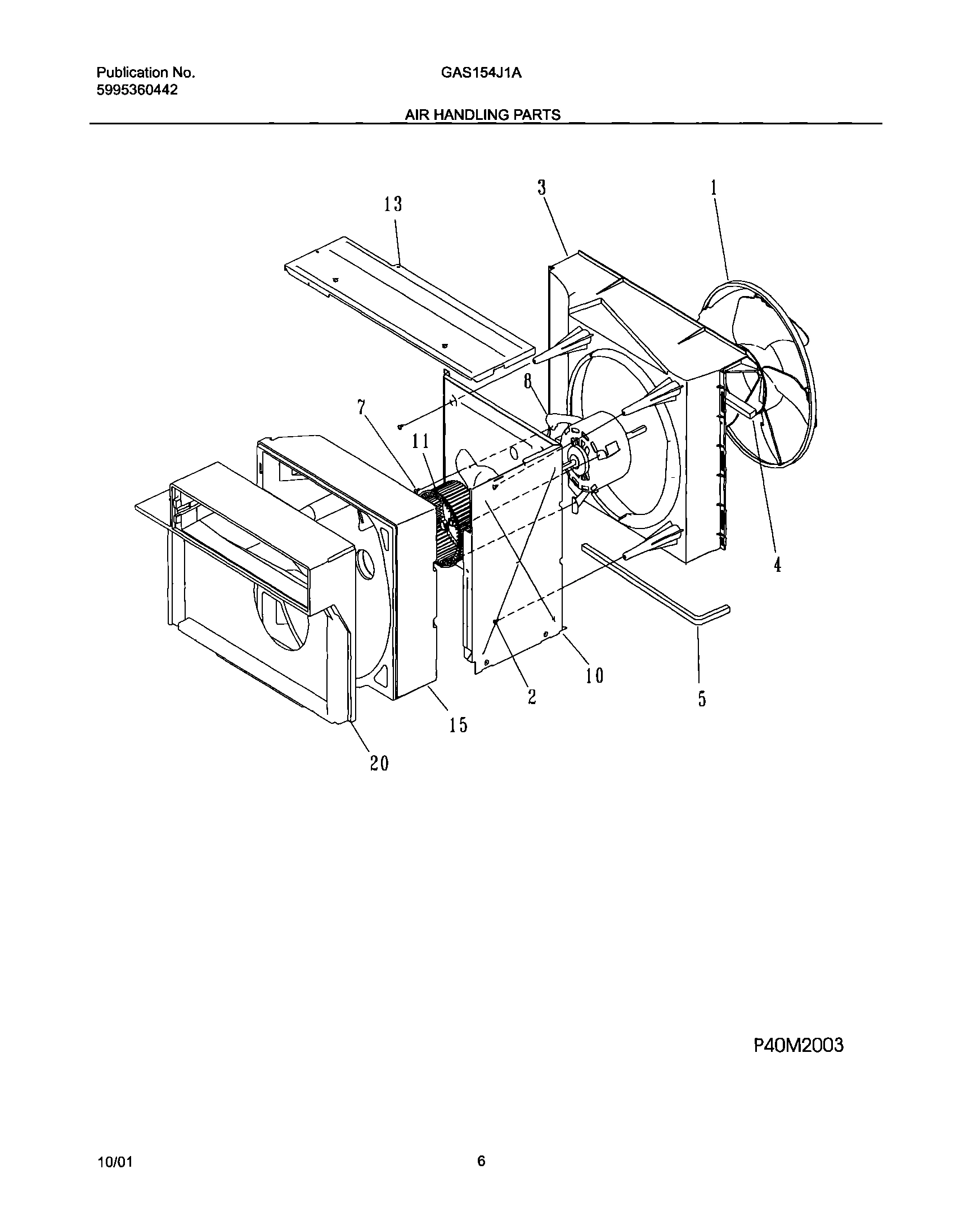

07 - AIR HANDLING

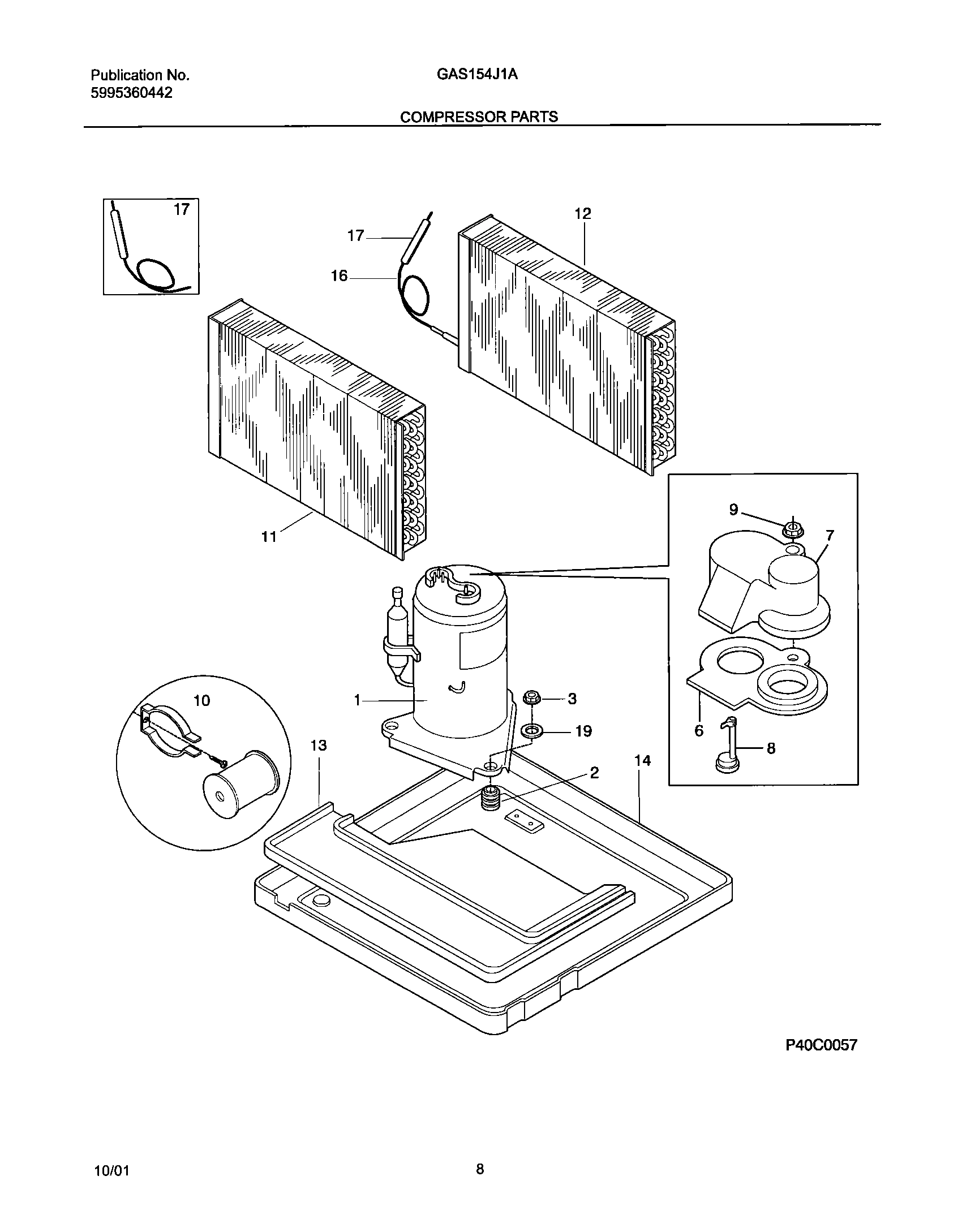

09 - SYSTEM

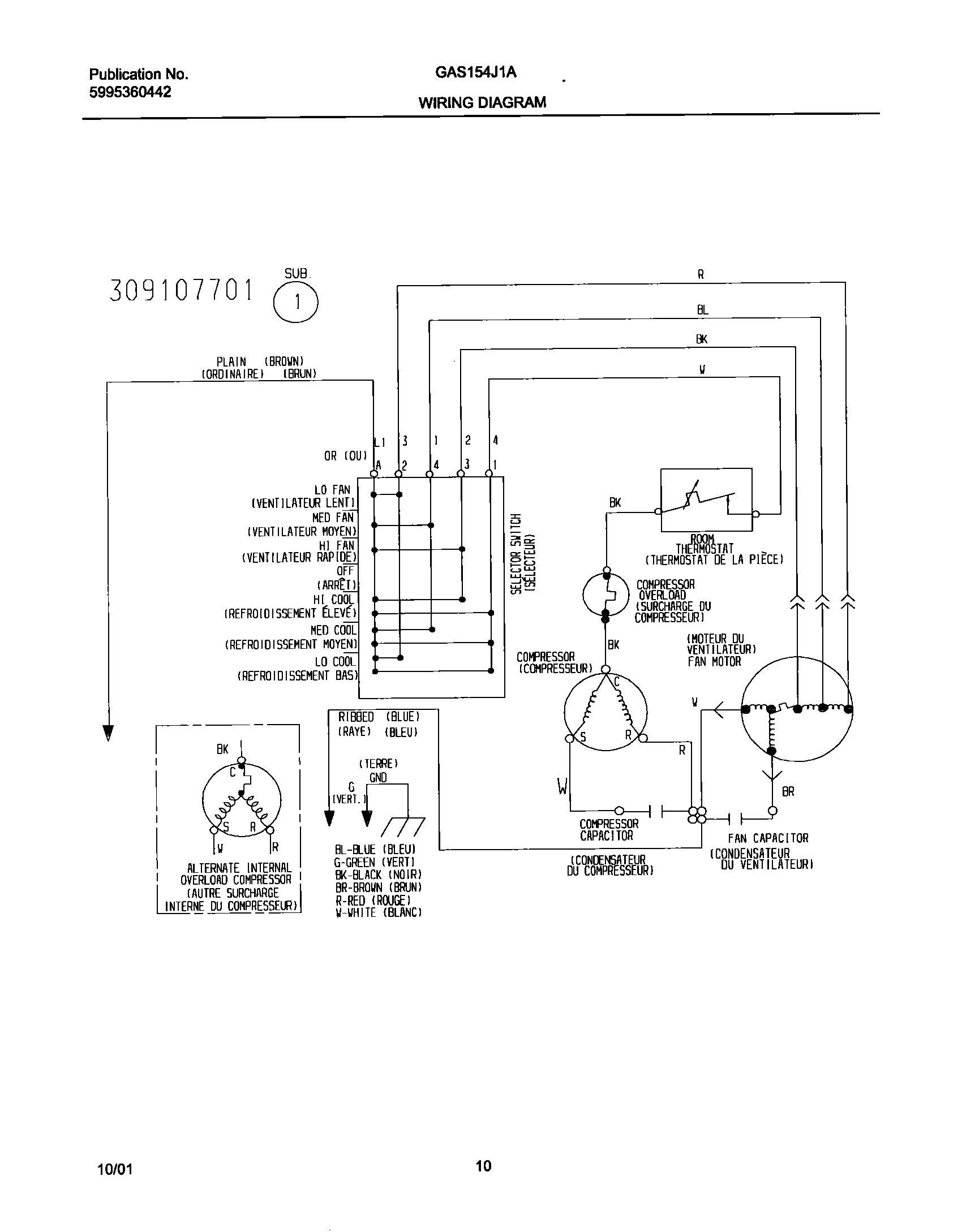

10 - WIRING DIAGRAM
Common parts from model Electrolux GAS154J1A1 ROOM AIR CONDITIONER
1
WCI 5303311048 WCI 5303311048 Contact Us For Availability
1
Compressor,SANYO ,ROT806-078-42cw WCI 5303303532 Contact Us For Availability
2
Grille,rear ,with rail WCI 309632804 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
Shroud-condenser,one piece WCI 309623201 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
Seal-sleeve/chassis,bottom WCI 5303212504 Contact Us For Availability
5
SEAL,FAN HOUSING ,LOWER WCI 5303015311 Contact Us For Availability
6
Gasket-cover,terminal WCI 5303272298 Contact Us For Availability
7
Link,vertical louver WCI 309631104 Contact Us For Availability
7
WCI 309630401 WCI 309630401 Contact Us For Availability
7
WCI 3206230 WCI 3206230 Contact Us For Availability
8
WCI 309630804 WCI 309630804 Contact Us For Availability
8
SWITCH-SELECTOR WCI 5303323284 Contact Us For Availability
8
Motor-fan,3 speed ,60 Hz ,115 V WCI 5304407974 Contact Us For Availability
8
OVERLOAD PROTECTOR WCI 5303016697 Contact Us For Availability
9
WCI 309631004 WCI 309631004 Contact Us For Availability
9
WCI 5304408295 WCI 5304408295 Contact Us For Availability
9
Nut,terminal cover WCI 5303211017 Contact Us For Availability
10
WCI 309623601 WCI 309623601 Contact Us For Availability
10
WCI 309623401 WCI 309623401 Contact Us For Availability
11
WCI 309633001 WCI 309633001 Contact Us For Availability
11
Evaporator WCI 309634103 Contact Us For Availability
12
Filter-air,molded plastic WCI 309631404 Contact Us For Availability
12
WCI 309331801 WCI 309331801 Contact Us For Availability
12
WCI 5303303600 WCI 5303303600 Contact Us For Availability
13
WCI 5303318963 WCI 5303318963 Contact Us For Availability
13
WCI 309630301 WCI 309630301 Contact Us For Availability
13
WCI 309623501 WCI 309623501 Contact Us For Availability
14
Base-compressor WCI 309632907 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
WCI 309630101 WCI 309630101 Contact Us For Availability
16
Capillary Tube,40 inch long ,cut-to-length WCI 5303289577 Contact Us For Availability
17
Front-cabinet,complete assy WCI 309633205 Contact Us For Availability
17
Cord-electric power,type A ,14 AWG WCI 309343111 Contact Us For Availability
17
Tube-process,cond. outlet WCI 5304417722 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
WCI 309633507 WCI 309633507 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
WCI 309307013 WCI 309307013 Contact Us For Availability
20
WCI 309630201 WCI 309630201 Contact Us For Availability
25
WCI 309321401 WCI 309321401 Contact Us For Availability
26
Handle-vent,gray WCI 309330404 Contact Us For Availability
26A
WCI 309330202 WCI 309330202 Contact Us For Availability
26A
Detent Assy-vent,with adhesive WCI 309330206 Contact Us For Availability
43
Panel,cabinet front WCI 309630904 Contact Us For Availability
NI
WCI 309633305 WCI 309633305 Contact Us For Availability
× ![]()
