Model Whirlpool GANF03WFMTS00 GLADIATOR, GARAGEWORKS – Common Parts & Diagrams

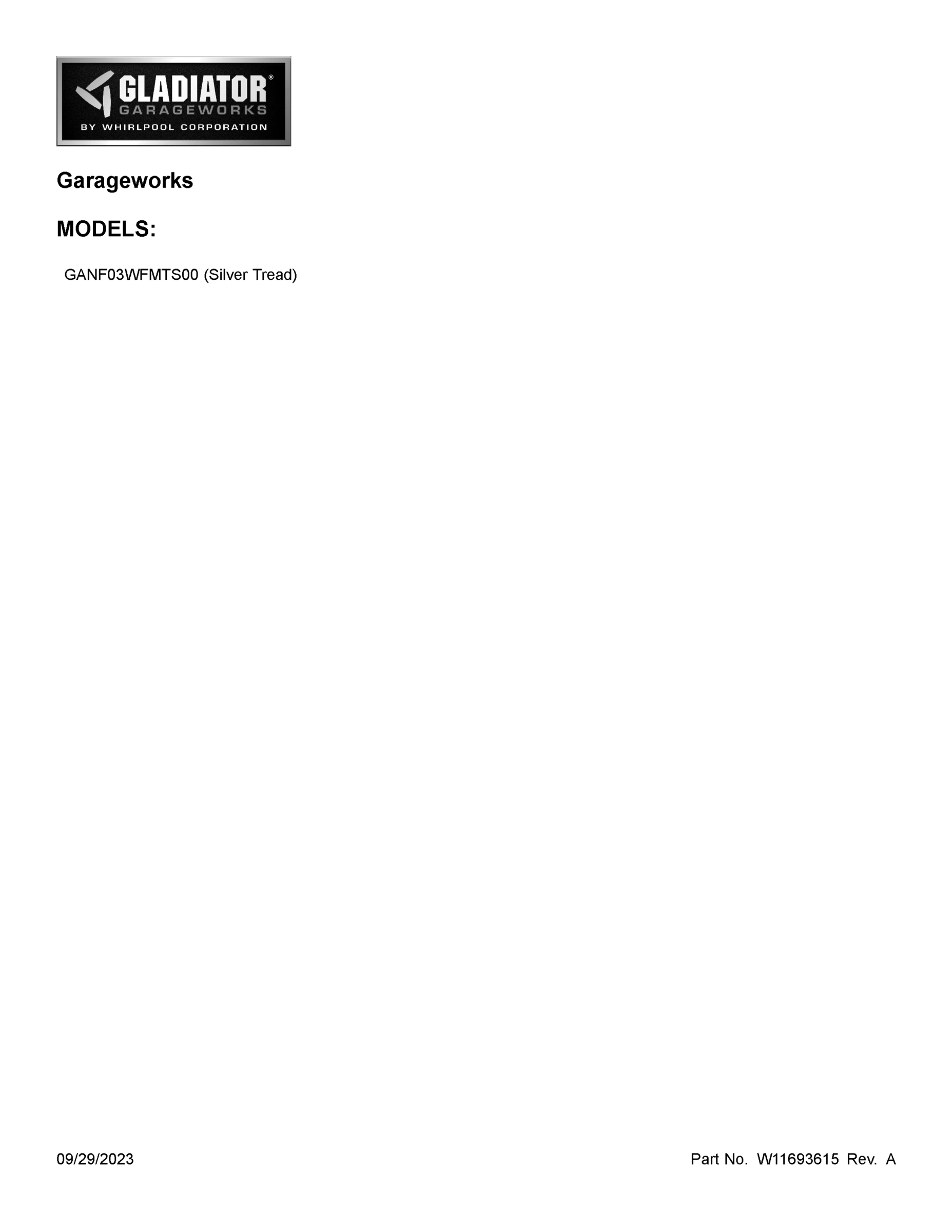

01 - COVER SHEET

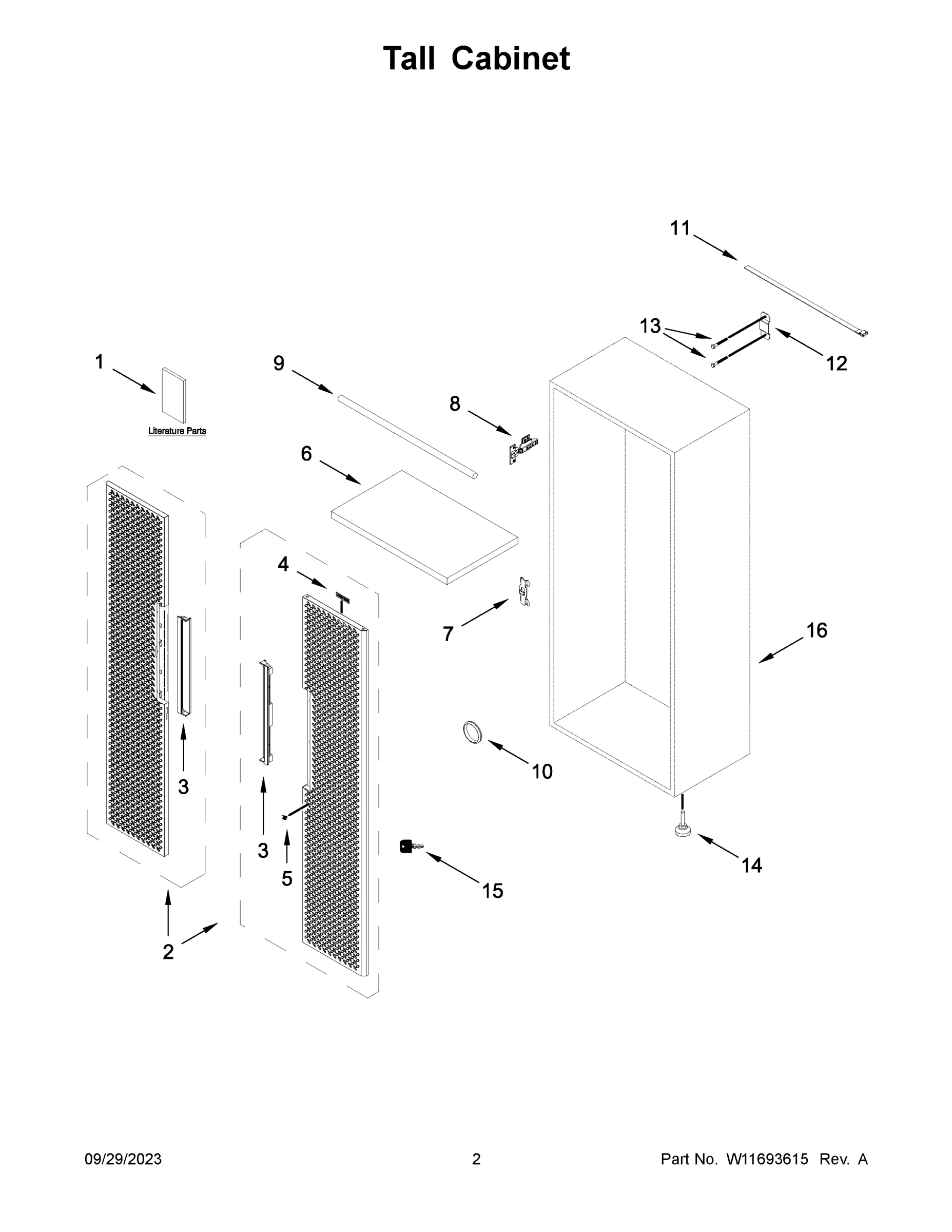

02 - TALL CABINET
03 - WALL CABINET
04 - 2 DOOR CABINET
Common parts from model Whirlpool GANF03WFMTS00 GLADIATOR, GARAGEWORKS
1
OWNER'S MANUAL WPL W11634360 Contact Us For Availability
1
BOLT WPL W11338540 Contact Us For Availability
1
SCREW WPL W11288006 Contact Us For Availability
2
DOOR ASSEMBLY (LEFT) WPL W11611858 Contact Us For Availability
2
NAMEPLATE, GLADIATOR WPL W11438530 Contact Us For Availability
2A
DOOR ASSEMBLY (RIGHT) WPL W11611857 Contact Us For Availability
3
BOLT WPL W11418914 Contact Us For Availability
4
FEET, ADJUSTABLE WPL W11611862 Contact Us For Availability
5
WASHER WPL W11470237 Contact Us For Availability
5
DOOR ASSEMBLY (LEFT) WPL W11612495 Contact Us For Availability
5A
DOOR ASSEMBLY (RIGHT) WPL W11612494 Contact Us For Availability
6
LOCK ASSY WPL W11615478 Contact Us For Availability
6
SHELF WPL W11611865 Contact Us For Availability
6
NUT WPL W11484428 Contact Us For Availability
8
HANDLE WPL W11611866 Contact Us For Availability
9
TUBE, CLOTHES HANGING WPL W11618636 Contact Us For Availability
9
DOOR ASSEMBLY (LEFT) WPL W11612493 Contact Us For Availability
9A
DOOR ASSEMBLY (RIGHT) WPL W11612492 Contact Us For Availability
10
SUPPORT, SHELF WPL W11626514 Contact Us For Availability
11
GROMMET WPL W11627381 Contact Us For Availability
12
STRAP, SAFETY WPL W11627382 Contact Us For Availability
13
BRACKET, SAFETY WPL W11627383 Contact Us For Availability
14
KEY WPL W11631461 Contact Us For Availability
15
CABINET (NOT A SERVICEABLE PART) WPL ARI0E0595B5C30868CDEDF430A9DC24D80C Contact Us For Availability
× ![]()
