Model Electrolux GAL103K1A1 ROOM AIR CONDITIONER – Common Parts & Diagrams

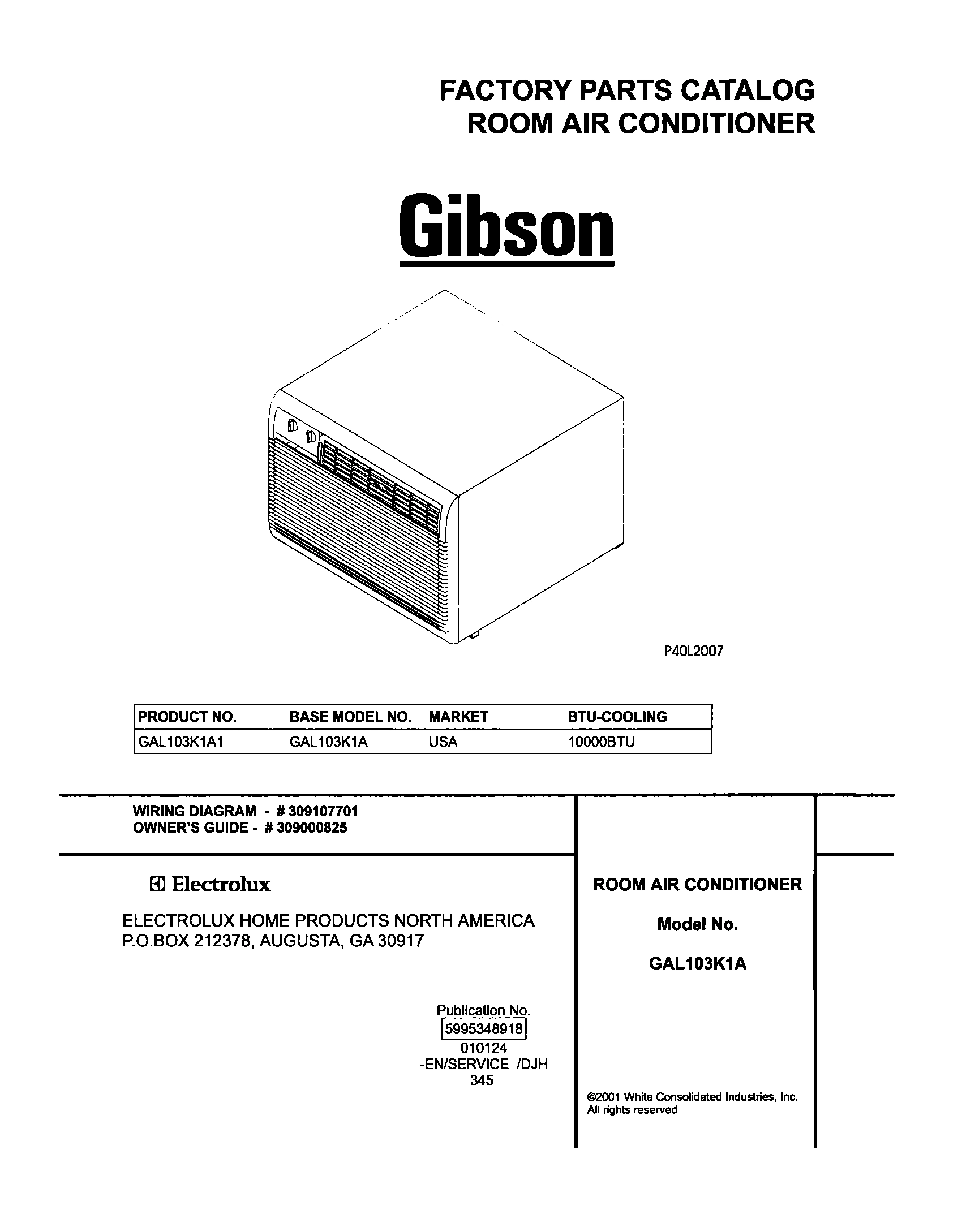

01 - COVER

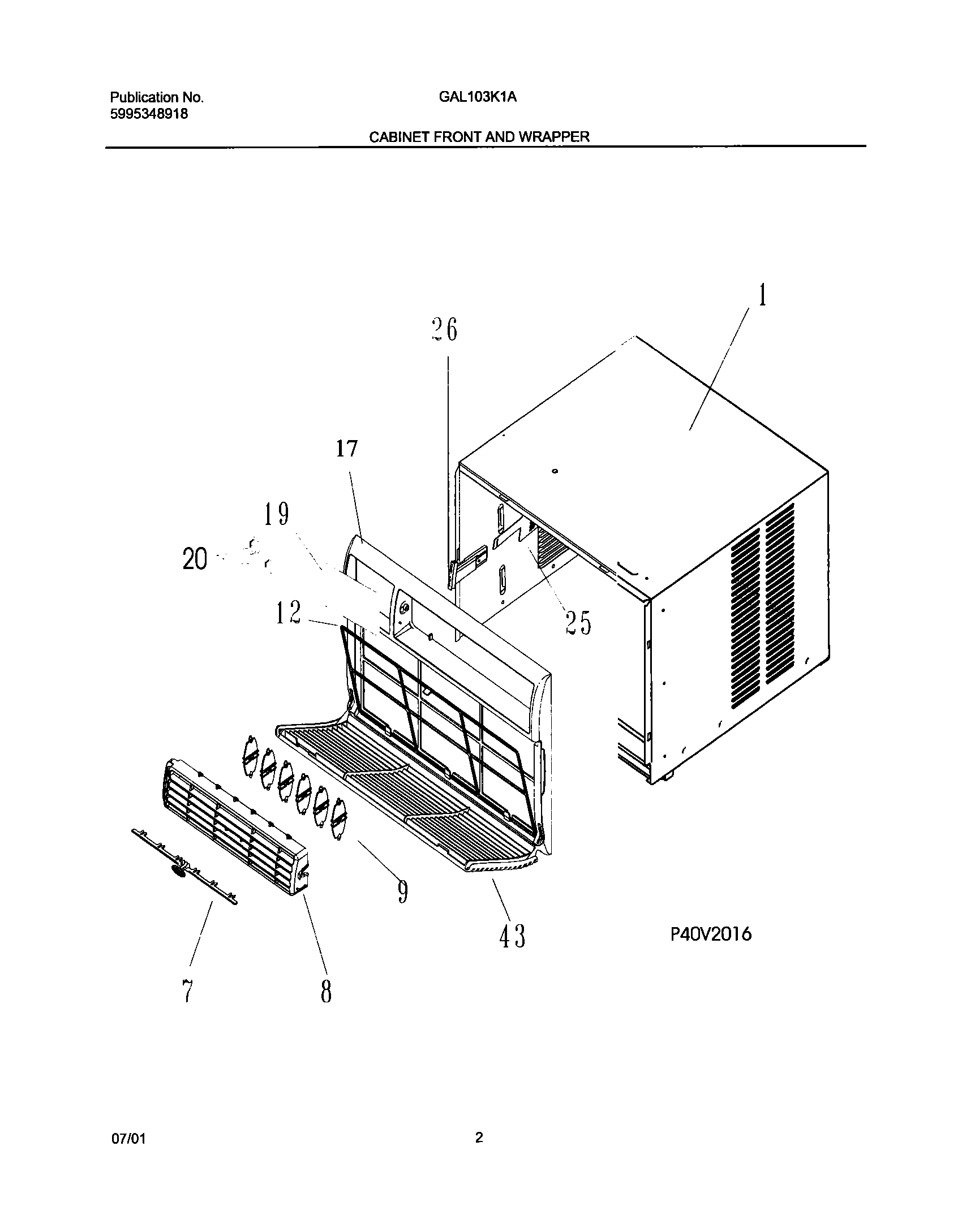

03 - WRAPPER

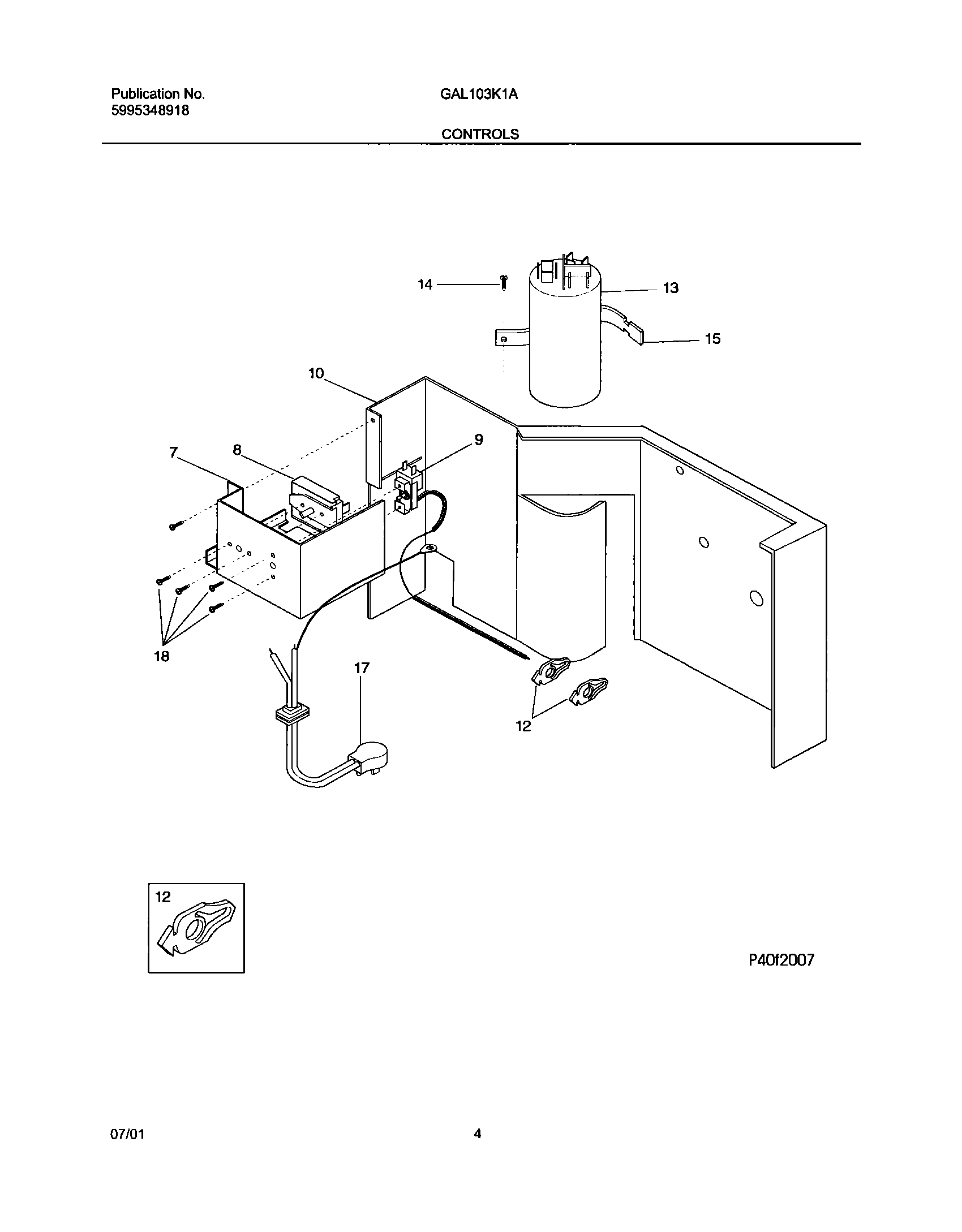

05 - CONTROLS

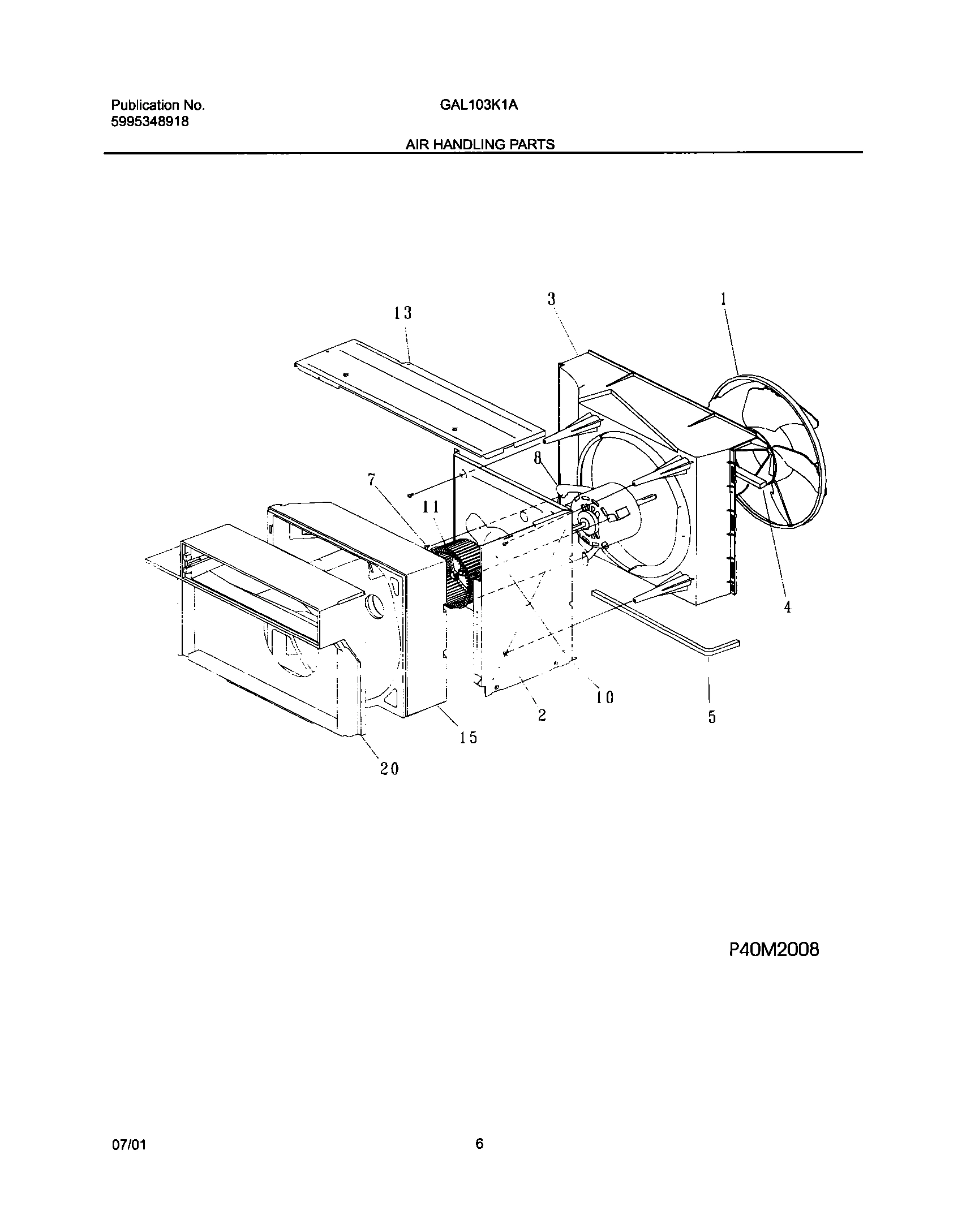

07 - AIR HANDLING

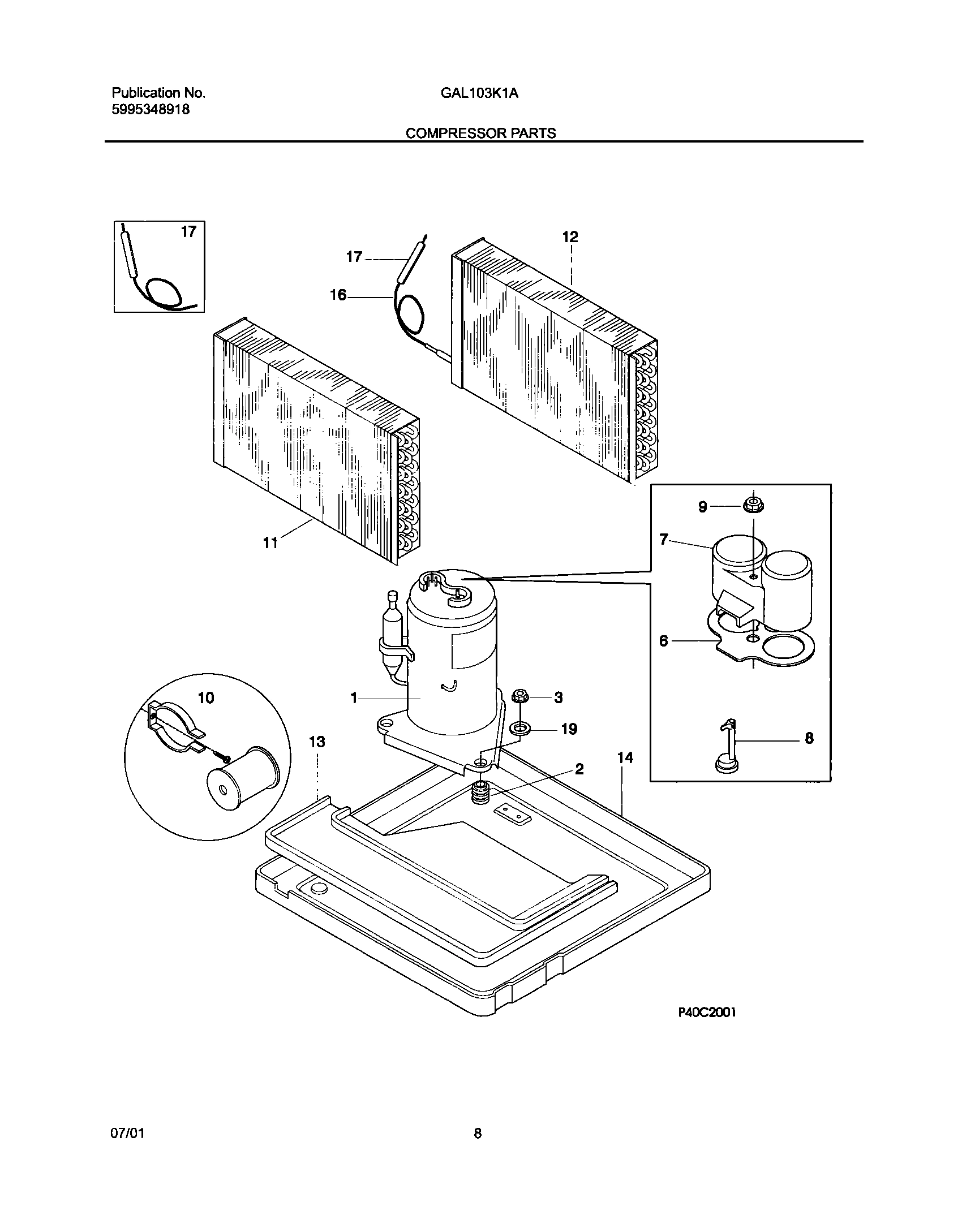

09 - SYSTEM

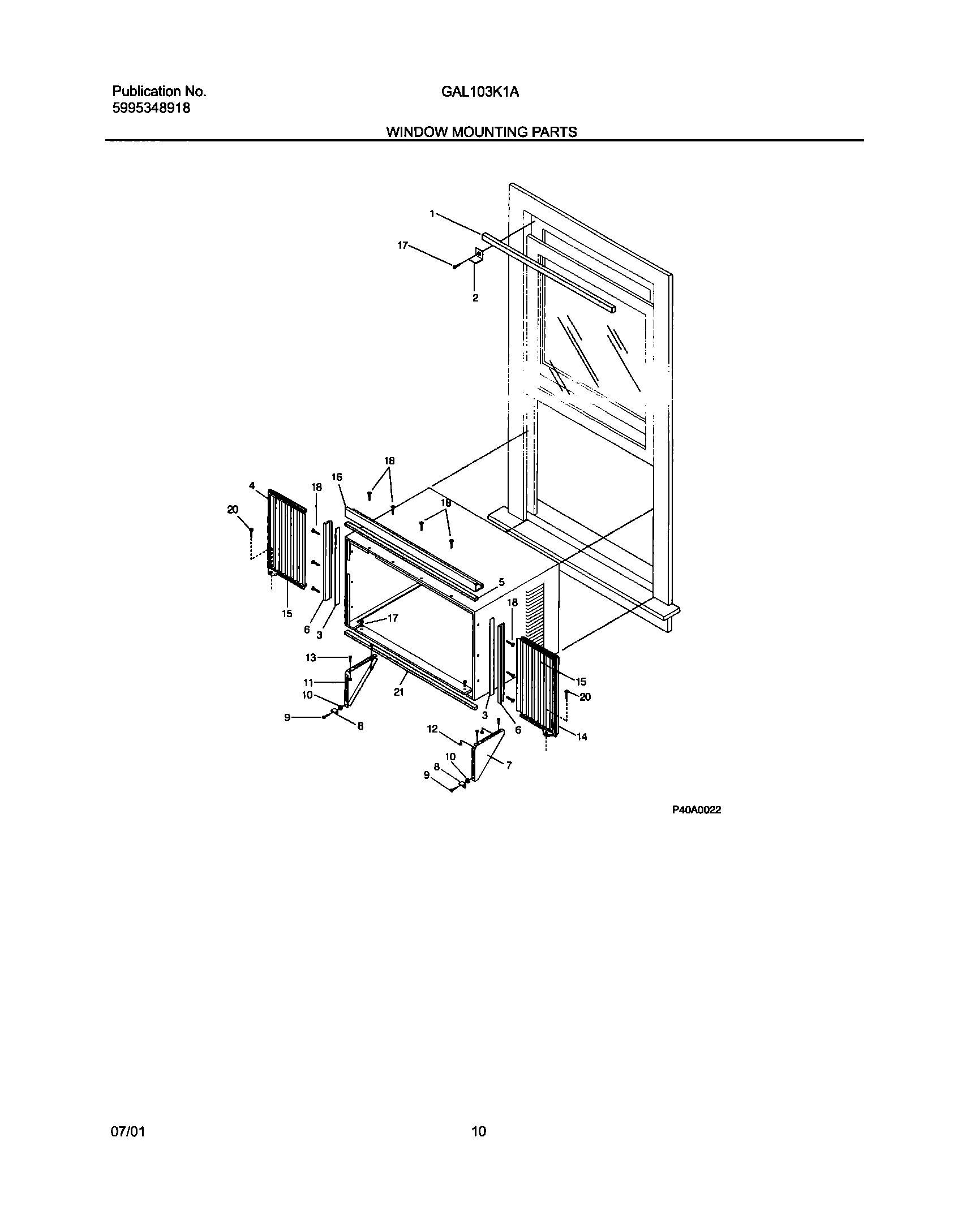

11 - WINDOW MOUNTING

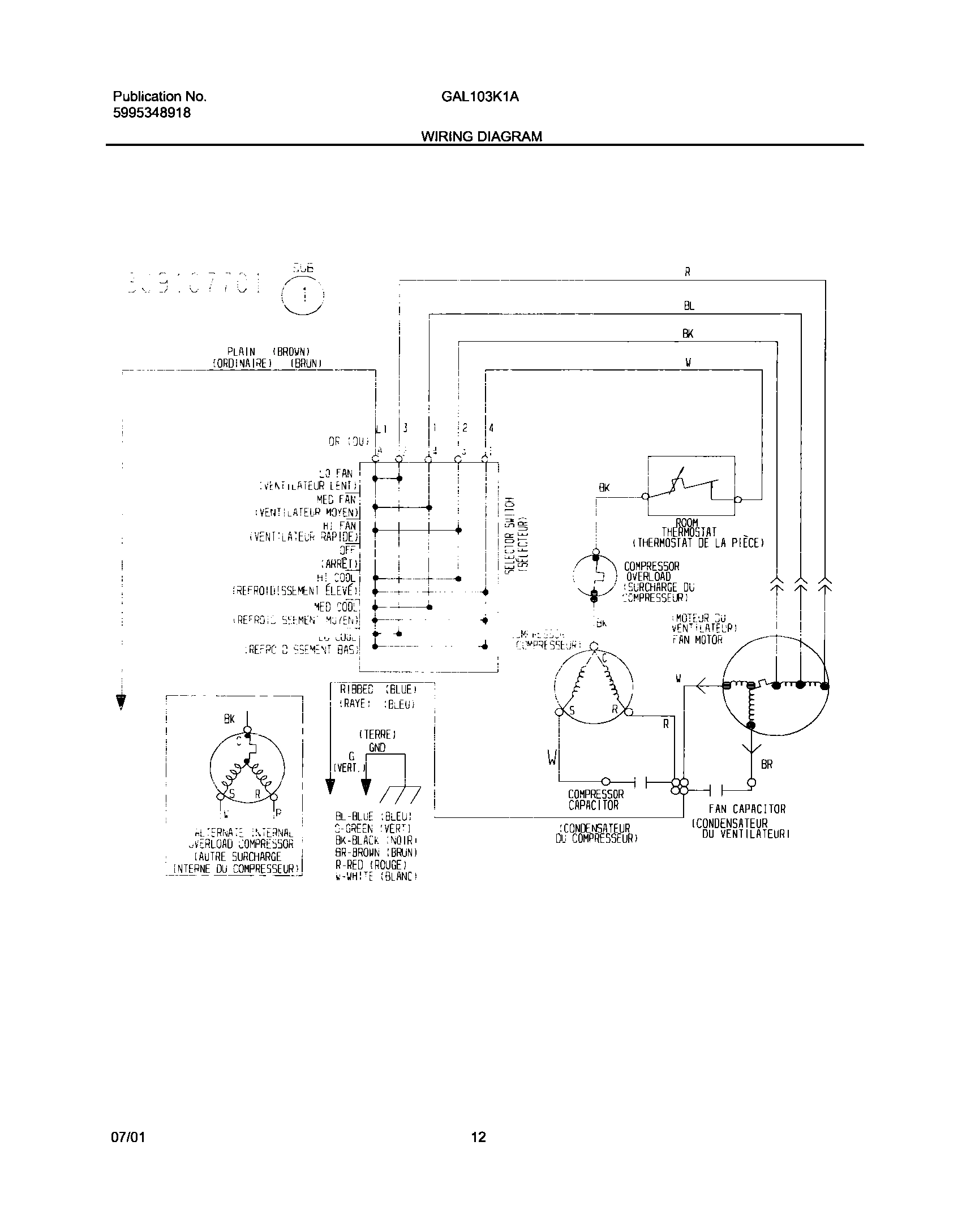

12 - WIRING DIAGRAM
Common parts from model Electrolux GAL103K1A1 ROOM AIR CONDITIONER
1
WCI 5303320769 WCI 5303320769 Contact Us For Availability
1
WCI 5304419112 WCI 5304419112 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
WCI 5304414101 WCI 5304414101 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
HOUSING-FAN WCI 3202950 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
3
WCI 5303276728 WCI 5303276728 Contact Us For Availability
4
SEAL-FAN HOUSING,TOP WCI 3202953 Contact Us For Availability
4
WCI 5304415073 WCI 5304415073 Contact Us For Availability
5
Seal-fan housing,bottom WCI 3202951 Contact Us For Availability
5
Seal,rail ,top WCI 5303207200 Contact Us For Availability
6
GASKET-COVER WCI 3200282 Contact Us For Availability
6
WCI 5304414107 WCI 5304414107 Contact Us For Availability
7
WCI 309304102 WCI 309304102 Contact Us For Availability
7
WCI 309605603 WCI 309605603 Contact Us For Availability
7
COVER-TERMINAL WCI 3200281 Contact Us For Availability
7
WCI 5304414105 WCI 5304414105 Contact Us For Availability
8
WCI 309607706 WCI 309607706 Contact Us For Availability
8
WCI 5304417447 WCI 5304417447 Contact Us For Availability
8
WCI 309630602 WCI 309630602 Contact Us For Availability
8
WCI 5303295567 WCI 5303295567 Contact Us For Availability
8
BRACKET - SUPPORT WCI 3001815 Contact Us For Availability
9
WCI 309607803 WCI 309607803 Contact Us For Availability
9
WCI 5303316597 WCI 5303316597 Contact Us For Availability
9
Nut,terminal cover WCI 5303211017 Contact Us For Availability
9
WCI 3007756 WCI 3007756 Contact Us For Availability
10
WCI 309607804 WCI 309607804 Contact Us For Availability
10
WCI 5303316617 WCI 5303316617 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
10
NUT - BRACKET WCI 3007759 Contact Us For Availability
11
WCI 309608901 WCI 309608901 Contact Us For Availability
11
WCI 309606101 WCI 309606101 Contact Us For Availability
11
WCI 5304414106 WCI 5304414106 Contact Us For Availability
12
WCI 309609505 WCI 309609505 Contact Us For Availability
12
CLIP-CONTROL BULB WCI 5303002169 Contact Us For Availability
12
WCI 309112101 WCI 309112101 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
WCI 5304419796 WCI 5304419796 Contact Us For Availability
13
WCI 5303318963 WCI 5303318963 Contact Us For Availability
13
WCI 309605902 WCI 309605902 Contact Us For Availability
13
WCI 309606001 WCI 309606001 Contact Us For Availability
13
SCREW,SUPPORT WCI 5303281649 Contact Us For Availability
14
WCI 5304419798 WCI 5304419798 Contact Us For Availability
14
WCI 5304415074 WCI 5304415074 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
WCI 309605702 WCI 309605702 Contact Us For Availability
15
WCI 5304415072 WCI 5304415072 Contact Us For Availability
16
Capillary Tube,45 inch long ,cut to length WCI 5308017120 Contact Us For Availability
16
WCI 5304414102 WCI 5304414102 Contact Us For Availability
17
WCI 309609708 WCI 309609708 Contact Us For Availability
17
Cord-service WCI 309343104 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
WCI 309614625 WCI 309614625 Contact Us For Availability
19
WCI 309112501 WCI 309112501 Contact Us For Availability
20
WCI 309307013 WCI 309307013 Contact Us For Availability
20
SLEEVE, CONTROL WCI 5303002600 Contact Us For Availability
20
WCI 309605802 WCI 309605802 Contact Us For Availability
21
Seal-chassis,bottom WCI 5314949603 Contact Us For Availability
22
SPACER, PLATE WCI 5303001775 Contact Us For Availability
24
SCREW,8-18B X 0.500 WCI 3002801 Contact Us For Availability
25
WCI 309328602 WCI 309328602 Contact Us For Availability
26
WCI 309328710 WCI 309328710 Contact Us For Availability
28
WCI 309100401 WCI 309100401 Contact Us For Availability
36
WCI 5303303558 WCI 5303303558 Contact Us For Availability
NI
WCI 309330201 WCI 309330201 Contact Us For Availability
NI
WCI 309607305 WCI 309607305 Contact Us For Availability
NI
WCI 309111201 WCI 309111201 Contact Us For Availability
NI
WCI 309608902 WCI 309608902 Contact Us For Availability
NI
WCI 309352301 WCI 309352301 Contact Us For Availability
NI
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
NI
Kit-mounting support WCI 309313203 Contact Us For Availability
NI
Kit-window mtg WCI 309313302 Contact Us For Availability
× ![]()
