Model Electrolux GAH11EP2A1 ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET PARTS
03 - ELECTRICAL PARTS

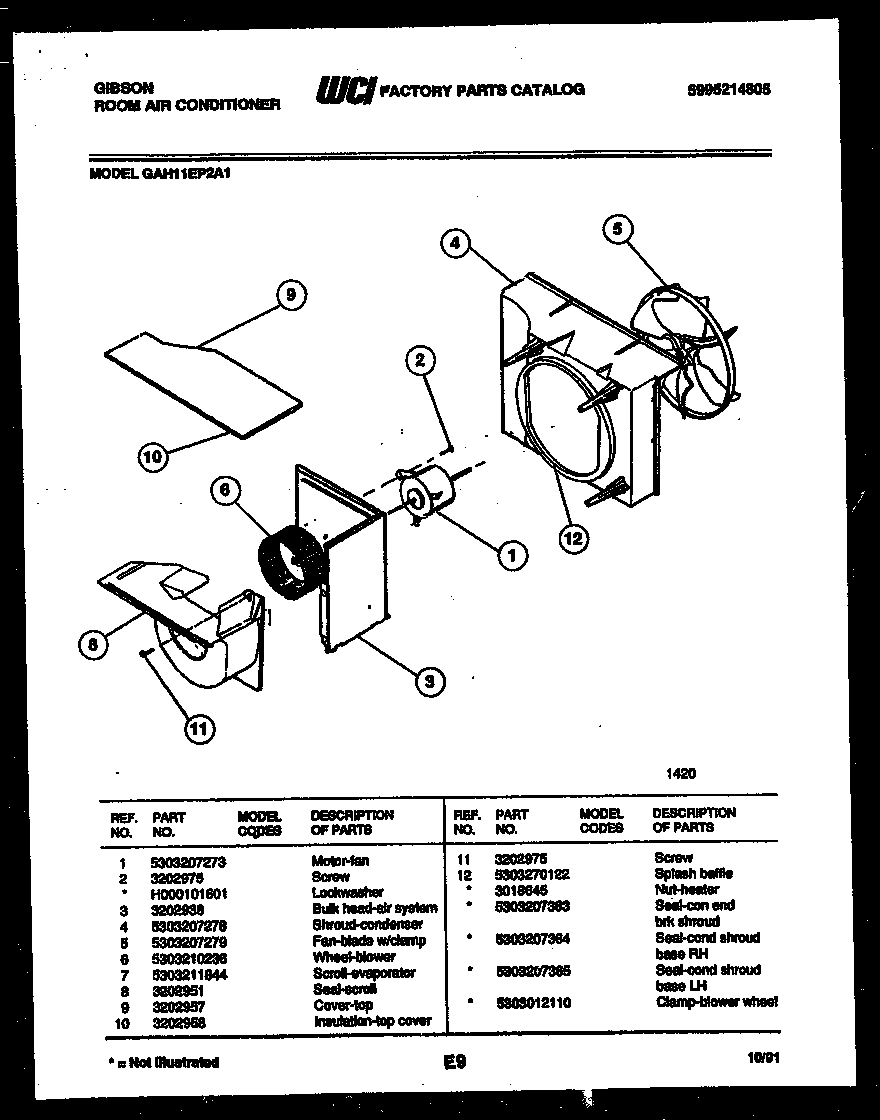

04 - AIR HANDLING PARTS

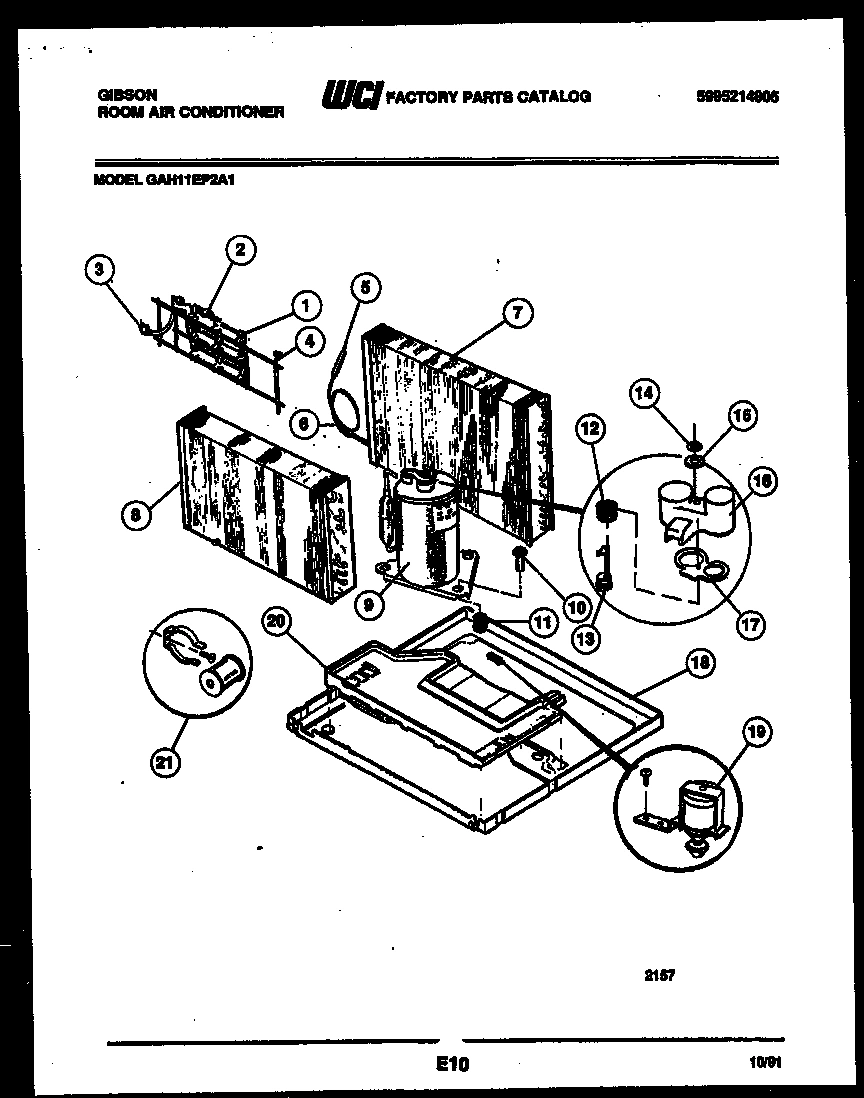

05 - SYSTEM PARTS

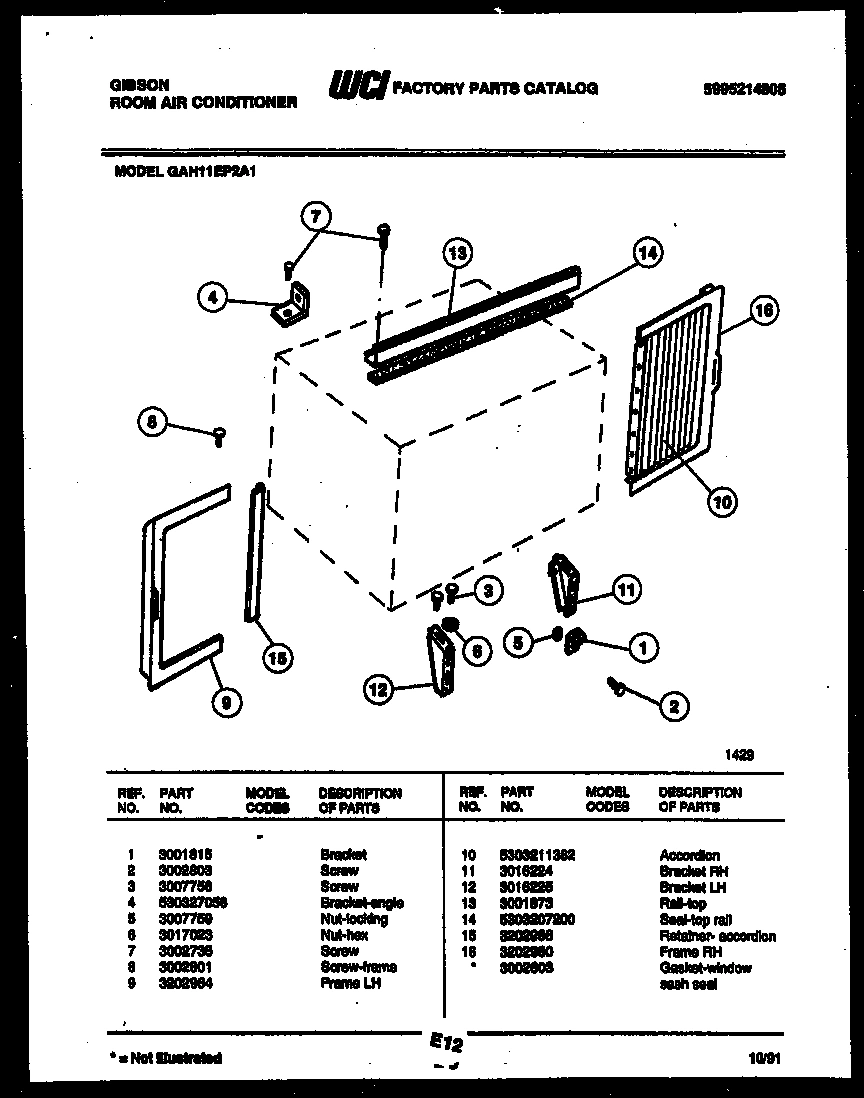

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux GAH11EP2A1 ROOM AIR CONDITIONER
*44713
SEAL-CON END BRK SHROUD WCI 5303207363 Contact Us For Availability
*44713
SEAL-COND SHROUD BASE (RH) WCI 5303207364 Contact Us For Availability
*44714
WCI 5303012110 WCI 5303012110 Contact Us For Availability
*44714
SEAL-COND SHROUD BASE (LH) WCI 5303207365 Contact Us For Availability
1
WCI 3001815 WCI 3001815 Contact Us For Availability
1
WCI 5303210984 WCI 5303210984 Contact Us For Availability
1
WCI 5303207273 WCI 5303207273 Contact Us For Availability
1
WCI 5303210241 WCI 5303210241 Contact Us For Availability
1B
NAMEPLATE (NON-ILLUSTRATED) WCI 3018409 Contact Us For Availability
2
WCI 5303016865 WCI 5303016865 Contact Us For Availability
2
WCI 3002803 WCI 3002803 Contact Us For Availability
2
PLUG WCI 5303210367 Contact Us For Availability
2A
WCI H000101601 WCI H000101601 Contact Us For Availability
3
BRACKET WCI 5303211056 Contact Us For Availability
3
WCI 3007756 WCI 3007756 Contact Us For Availability
3
BULKHEAD-AIR SYSTEM WCI 3202938 Contact Us For Availability
3
WCI 3203548 WCI 3203548 Contact Us For Availability
4
WCI 5303207278 WCI 5303207278 Contact Us For Availability
4
WCI 530327056 WCI 530327056 Contact Us For Availability
5
WCI 5303271238 WCI 5303271238 Contact Us For Availability
5
NUT LOCKING WCI 3007759 Contact Us For Availability
5
FAN-BLADE-W/ CLAMP WCI 5303207279 Contact Us For Availability
6
WCI 5303210236 WCI 5303210236 Contact Us For Availability
6
WCI 5308017253 WCI 5308017253 Contact Us For Availability
7
FRAME EXTENSION LH WCI 3202495 Contact Us For Availability
7
WCI 3202959 WCI 3202959 Contact Us For Availability
7
WCI 5303211844 WCI 5303211844 Contact Us For Availability
7
WCI 5303207277 WCI 5303207277 Contact Us For Availability
7
WCI 3002735 WCI 3002735 Contact Us For Availability
8
SCREW-FRAME WCI 3002801 Contact Us For Availability
8
FRAME EXTENSION RH WCI 3202497 Contact Us For Availability
8
WCI 5300326502 WCI 5300326502 Contact Us For Availability
8
WCI 3202951 WCI 3202951 Contact Us For Availability
8
WCI 5303207276 WCI 5303207276 Contact Us For Availability
9
WCI 5303002176 WCI 5303002176 Contact Us For Availability
9
WCI 3202957 WCI 3202957 Contact Us For Availability
9
WCI 5303271790 WCI 5303271790 Contact Us For Availability
9
WCI 3202964 WCI 3202964 Contact Us For Availability
10
SCREW-CONTROL & SWITCH WCI 3007754 Contact Us For Availability
10
WCI 3202958 WCI 3202958 Contact Us For Availability
10
NUT WCI 5303015946 Contact Us For Availability
10
WCI 5303211382 WCI 5303211382 Contact Us For Availability
11
WCI 3016224 WCI 3016224 Contact Us For Availability
11
WCI 5303203112 WCI 5303203112 Contact Us For Availability
11
GROMMET WCI 5303015945 Contact Us For Availability
12
WCI 3016225 WCI 3016225 Contact Us For Availability
12
WCI 5303210243 WCI 5303210243 Contact Us For Availability
12
WCI 5303270122 WCI 5303270122 Contact Us For Availability
12
WCI 5303002036 WCI 5303002036 Contact Us For Availability
13
WCI 3001873 WCI 3001873 Contact Us For Availability
13
WCI 5303276728 WCI 5303276728 Contact Us For Availability
13
WCI 5303207275 WCI 5303207275 Contact Us For Availability
14
WCI 5303207200 WCI 5303207200 Contact Us For Availability
14
WCI 5314949603 WCI 5314949603 Contact Us For Availability
14
RETAINER-CONTROL BULB WCI 5303211009 Contact Us For Availability
14
NUT WCI 5303002038 Contact Us For Availability
15
RETAINER, ACCORDION WCI 3202966 Contact Us For Availability
15
WCI 5303212753 WCI 5303212753 Contact Us For Availability
15
GASKET WCI 5303002037 Contact Us For Availability
16
FRAME RH WCI 3202960 Contact Us For Availability
16
WCI 5303211040 WCI 5303211040 Contact Us For Availability
16
WCI 5303211011 WCI 5303211011 Contact Us For Availability
17
WCI 5308009152 WCI 5308009152 Contact Us For Availability
17
WCI 5303002035 WCI 5303002035 Contact Us For Availability
18
STRAP-CAPACITOR WCI 5303016835 Contact Us For Availability
18
WCI 5303211097 WCI 5303211097 Contact Us For Availability
19
HARNESS-HEATER CONTROL WCI 3017076 Contact Us For Availability
19
DRAIN-VALVE WCI 3017804 Contact Us For Availability
20
TRAY-EVAP WCI 5303210203 Contact Us For Availability
20A
HEAT SHIELD EVAP TRAY (NON-ILLUSTRATED) WCI 5303210249 Contact Us For Availability
21
CLIP-LOUVERS WCI 3200446 Contact Us For Availability
21
WCI 5303201723 WCI 5303201723 Contact Us For Availability
22
WCI 3018406 WCI 3018406 Contact Us For Availability
23
LOUVERS & LINK WCI 5303002458 Contact Us For Availability
24
LINK RH WCI 5303002165 Contact Us For Availability
25
LINK LH WCI 5303002164 Contact Us For Availability
26
CLIP (2) WCI 5303001844 Contact Us For Availability
27
LOUVERS WCI 3018412 Contact Us For Availability
28
WCI 3018547 WCI 3018547 Contact Us For Availability
28A
WCI 3018548 WCI 3018548 Contact Us For Availability
29
FILTER WCI 3018657 Contact Us For Availability
30
WCI 3018407 WCI 3018407 Contact Us For Availability
31
WCI 3018413 WCI 3018413 Contact Us For Availability
32
WCI 5303278922 WCI 5303278922 Contact Us For Availability
33
WCI 5303278925 WCI 5303278925 Contact Us For Availability
34
WCI 3018403 WCI 3018403 Contact Us For Availability
35
WCI 5303017300 WCI 5303017300 Contact Us For Availability
36
WCI 5303001775 WCI 5303001775 Contact Us For Availability
37
WCI 5303001984 WCI 5303001984 Contact Us For Availability
38
WCI 3017304 WCI 3017304 Contact Us For Availability
× ![]()
