Model Whirlpool GAGD277DKR00 GLADIATOR, GARAGEWORKS, GEAR DRAWER – Common Parts & Diagrams

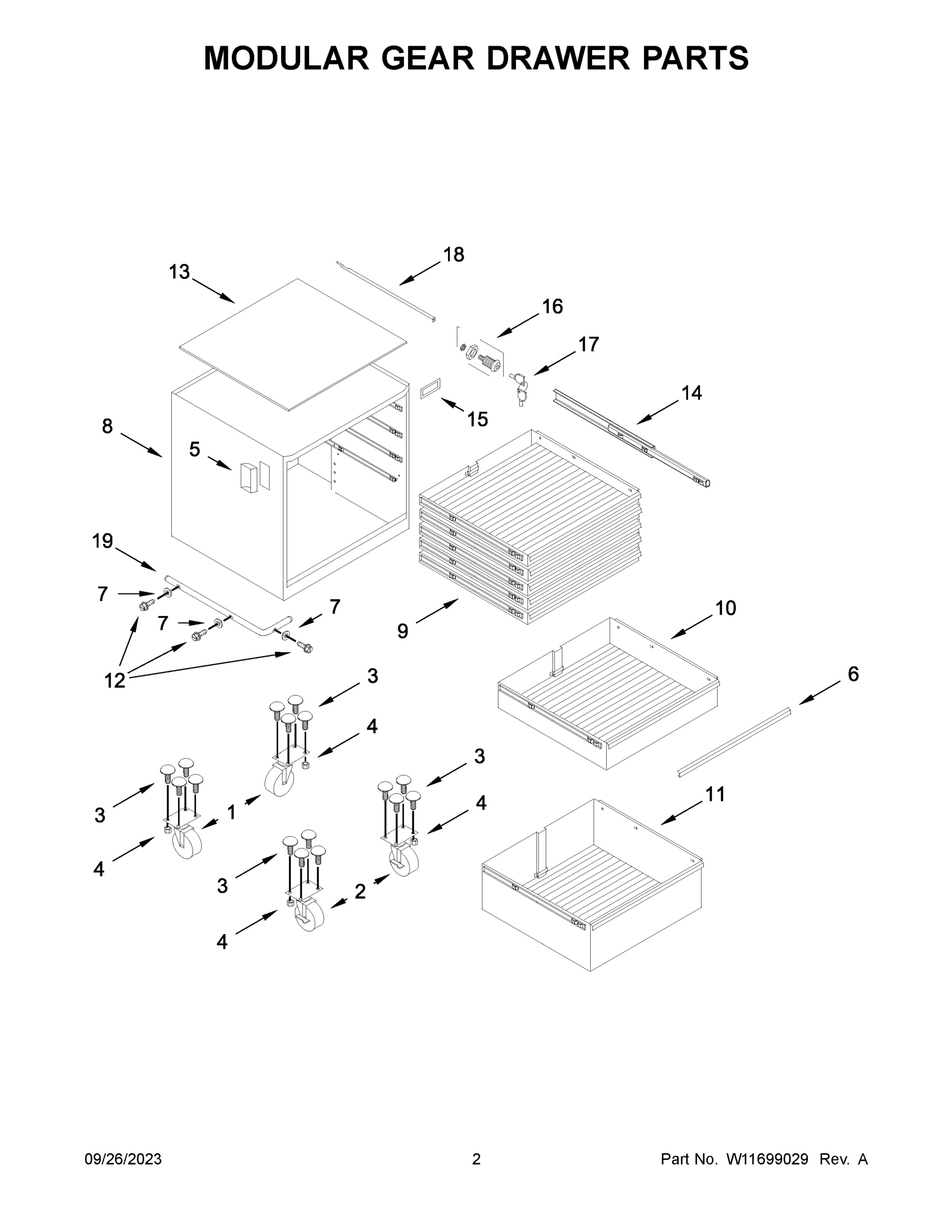

Common parts from model Whirlpool GAGD277DKR00 GLADIATOR, GARAGEWORKS, GEAR DRAWER

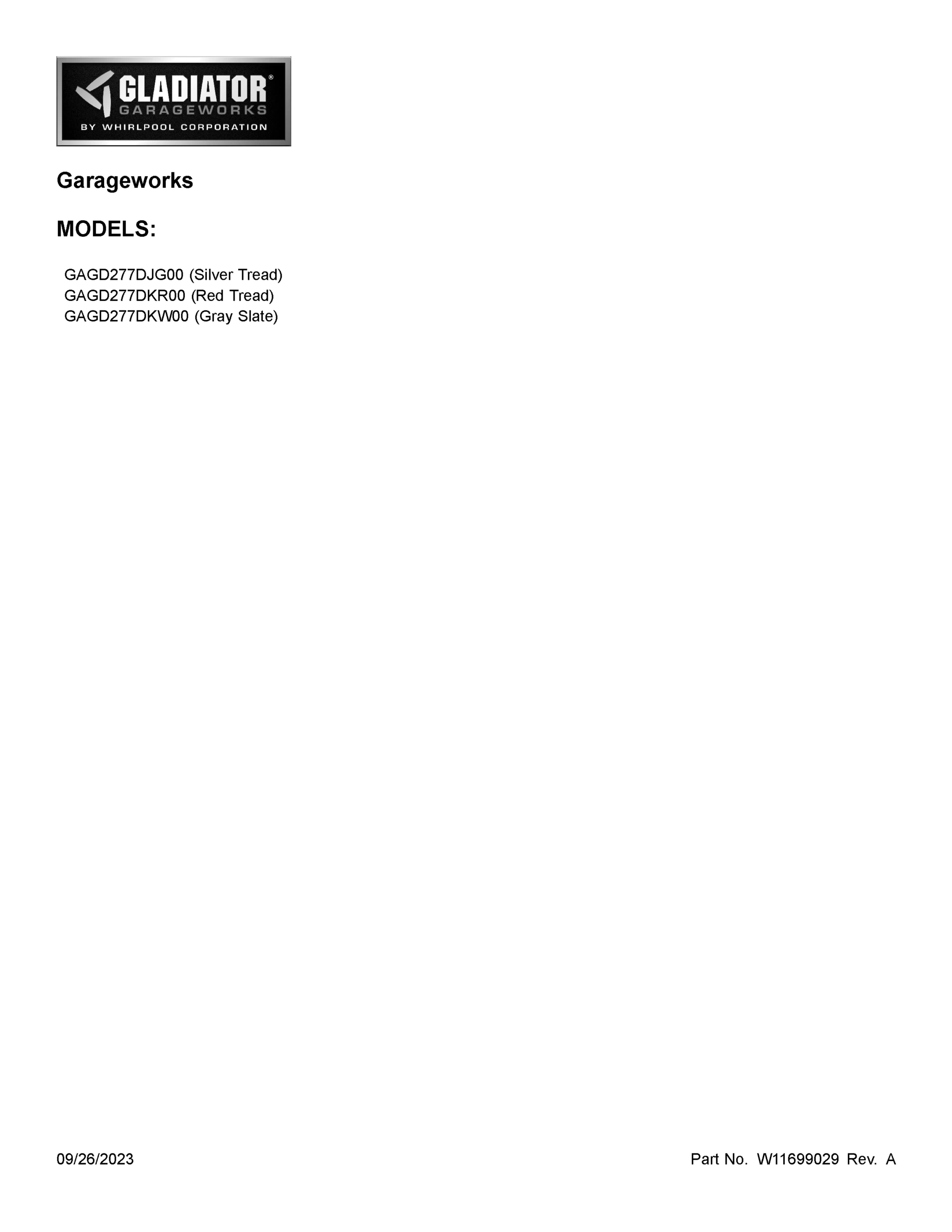

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

1

CASTER, SWIVEL 5" WPL W11538388 Contact Us For Availability

View on Model

2

CASTER, RIGID 5" WITH BRAKE (LEFT HAND) WPL W11538386 Contact Us For Availability

View on Model

2A

CASTER, RIGID 5" WITH BRAKE (RIGHT HAND) WPL W11538387 Contact Us For Availability

View on Model

3

W11558420 Whirlpool Bolt Backorder WPL W11558420 View Details $2.29

View on Model

4

NUT, NYLON WPL W11548196 Contact Us For Availability

View on Model

5

HANDLE - SMOKE WPL W11522075 Contact Us For Availability

View on Model

5A

W11549424 Whirlpool Door Handle Backorder WPL W11549424 View Details $4.26

View on Model

6

TRIM, DRAWER - BLACK WPL W11540342 Contact Us For Availability

View on Model

6A

TRIM, DRAWER - SMOKE WPL W11540343 Contact Us For Availability

View on Model

7

WASHER WPL W11547728 Contact Us For Availability

View on Model

8

CABINET (NOT A SERVICEABLE PART) WPL ARI0E0595B5C30868CDEDF430A9DC24D80C Contact Us For Availability

View on Model

9

DRAWER Backorder WPL W11540344 View Details $137.97

View on Model

9A

TRAY AND GUIDE, 2" DRAWER (RED TREAD) WPL W11540345 Contact Us For Availability

View on Model

9B

TRAY AND GUIDE, 2" DRAWER (GRAY SLATE) WPL W11540346 Contact Us For Availability

View on Model

10

DRAWER Backorder WPL W11540347 View Details $169.71

View on Model

10A

TRAY AND GUIDE, 4" DRAWER (RED TREAD) WPL W11540348 Contact Us For Availability

View on Model

10B

TRAY AND GUIDE, 4" DRAWER (GRAY SLATE) WPL W11540349 Contact Us For Availability

View on Model

11

TRAY AND GUIDE, 8" DRAWER (SILVER TREAD) WPL W11540350 Contact Us For Availability

View on Model

11A

DRAWER Backorder WPL W11540351 View Details $176.56

View on Model

11B

TRAY AND GUIDE, 8" DRAWER (GRAY SLATE) WPL W11540352 Contact Us For Availability

View on Model

12

SCREW WPL W11548229 Contact Us For Availability

View on Model

13

MAT, TOP WPL W11540466 Contact Us For Availability

View on Model

14

SLIDE, DRAWER WPL W11540465 Contact Us For Availability

View on Model

15

NAMEPLATE, GLADIATOR WPL W11438530 Contact Us For Availability

View on Model

16

W11557659 Whirlpool Lock Backorder WPL W11557659 View Details $22.95

View on Model

17

W11557661 Whirlpool Keys Backorder WPL W11557661 View Details $2.40

View on Model

18

KEY BAR WPL W11540354 Contact Us For Availability

View on Model

19

BUMPER - SMOKE WPL W11547096 Contact Us For Availability

View on Model

19A

BUMPER - GUN METAL (GRAY) WPL W11547095 Contact Us For Availability

View on Model

×
