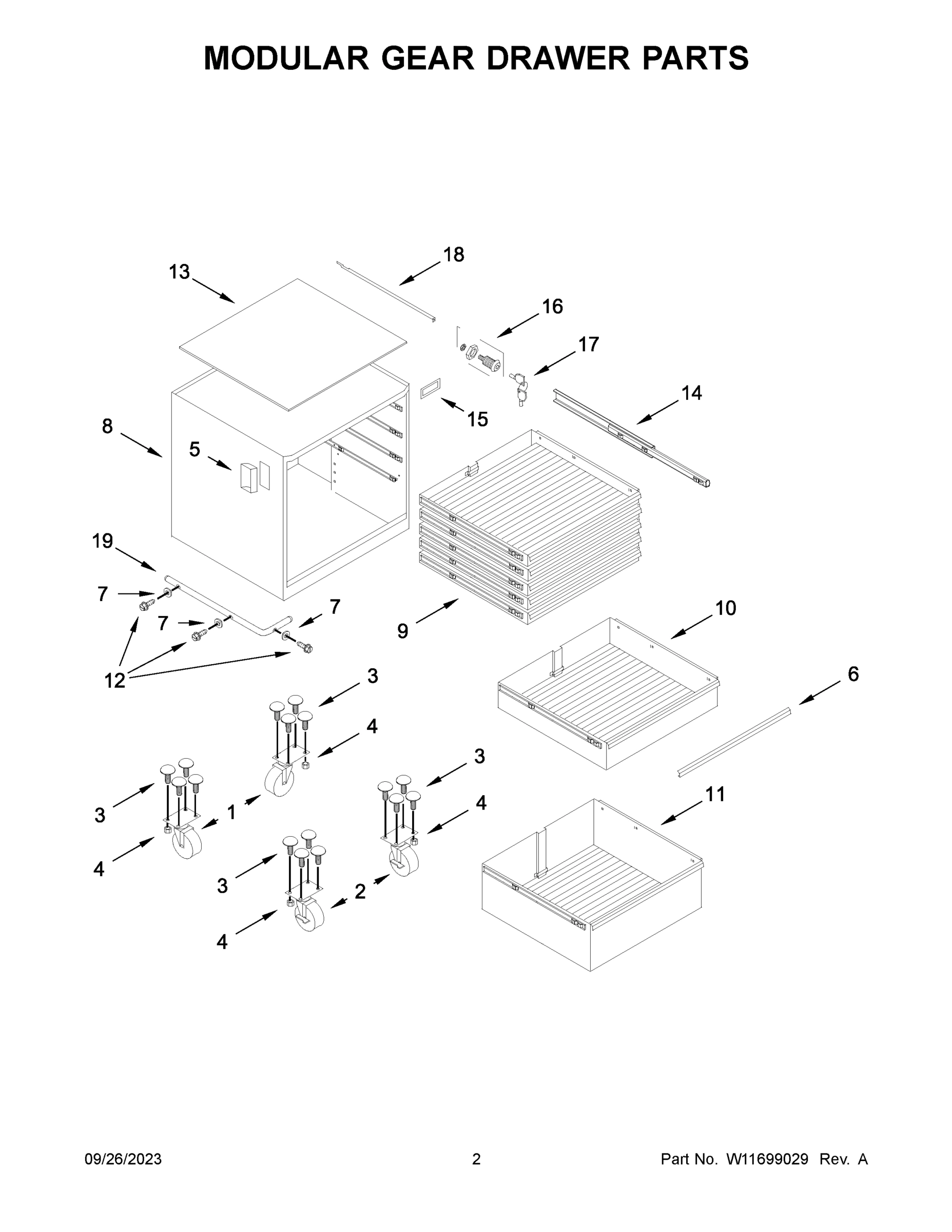

Model Whirlpool GAGD277DKR00 GLADIATOR, GARAGEWORKS, GEAR DRAWER – Common Parts & Diagrams

1
CASTER, SWIVEL 5"
CASTER, SWIVEL 5" WPL W11538388 Contact Us For Availability
View on Model
2
CASTER, RIGID 5" WITH BRAKE (LEFT HAND)
CASTER, RIGID 5" WITH BRAKE (LEFT HAND) WPL W11538386 Contact Us For Availability
View on Model
2A
CASTER, RIGID 5" WITH BRAKE (RIGHT HAND)
CASTER, RIGID 5" WITH BRAKE (RIGHT HAND) WPL W11538387 Contact Us For Availability
View on Model
4
NUT, NYLON
NUT, NYLON WPL W11548196 Contact Us For Availability
View on Model
5
HANDLE - SMOKE
HANDLE - SMOKE WPL W11522075 Contact Us For Availability
View on Model
6
TRIM, DRAWER - BLACK
TRIM, DRAWER - BLACK WPL W11540342 Contact Us For Availability
View on Model
6A
TRIM, DRAWER - SMOKE
TRIM, DRAWER - SMOKE WPL W11540343 Contact Us For Availability
View on Model
7
WASHER
WASHER WPL W11547728 Contact Us For Availability
View on Model
8
CABINET (NOT A SERVICEABLE PART)
CABINET (NOT A SERVICEABLE PART) WPL ARI0E0595B5C30868CDEDF430A9DC24D80C Contact Us For Availability
View on Model
9A
TRAY AND GUIDE, 2" DRAWER (RED TREAD)
TRAY AND GUIDE, 2" DRAWER (RED TREAD) WPL W11540345 Contact Us For Availability
View on Model
9B
TRAY AND GUIDE, 2" DRAWER (GRAY SLATE)
TRAY AND GUIDE, 2" DRAWER (GRAY SLATE) WPL W11540346 Contact Us For Availability
View on Model
10A
TRAY AND GUIDE, 4" DRAWER (RED TREAD)
TRAY AND GUIDE, 4" DRAWER (RED TREAD) WPL W11540348 Contact Us For Availability
View on Model
10B
TRAY AND GUIDE, 4" DRAWER (GRAY SLATE)
TRAY AND GUIDE, 4" DRAWER (GRAY SLATE) WPL W11540349 Contact Us For Availability
View on Model
11
TRAY AND GUIDE, 8" DRAWER (SILVER TREAD)
TRAY AND GUIDE, 8" DRAWER (SILVER TREAD) WPL W11540350 Contact Us For Availability
View on Model
11A
TRAY AND GUIDE, 8" DRAWER (RED TREAD)
TRAY AND GUIDE, 8" DRAWER (RED TREAD) WPL W11540351 Contact Us For Availability
View on Model
11B
TRAY AND GUIDE, 8" DRAWER (GRAY SLATE)
TRAY AND GUIDE, 8" DRAWER (GRAY SLATE) WPL W11540352 Contact Us For Availability
View on Model
12
SCREW
SCREW WPL W11548229 Contact Us For Availability
View on Model
13
MAT, TOP
MAT, TOP WPL W11540466 Contact Us For Availability
View on Model
14
SLIDE, DRAWER
SLIDE, DRAWER WPL W11540465 Contact Us For Availability
View on Model
15
NAMEPLATE, GLADIATOR
NAMEPLATE, GLADIATOR WPL W11438530 Contact Us For Availability
View on Model
18
KEY BAR
KEY BAR WPL W11540354 Contact Us For Availability
View on Model
19
BUMPER - SMOKE
BUMPER - SMOKE WPL W11547096 Contact Us For Availability
View on Model
19A
BUMPER - GUN METAL (GRAY)
BUMPER - GUN METAL (GRAY) WPL W11547095 Contact Us For Availability
View on Model
