Model Whirlpool GAGB27PLVG00 PRO-LINE GARAGEWORKS – Common Parts & Diagrams

Common parts from model Whirlpool GAGB27PLVG00 PRO-LINE GARAGEWORKS

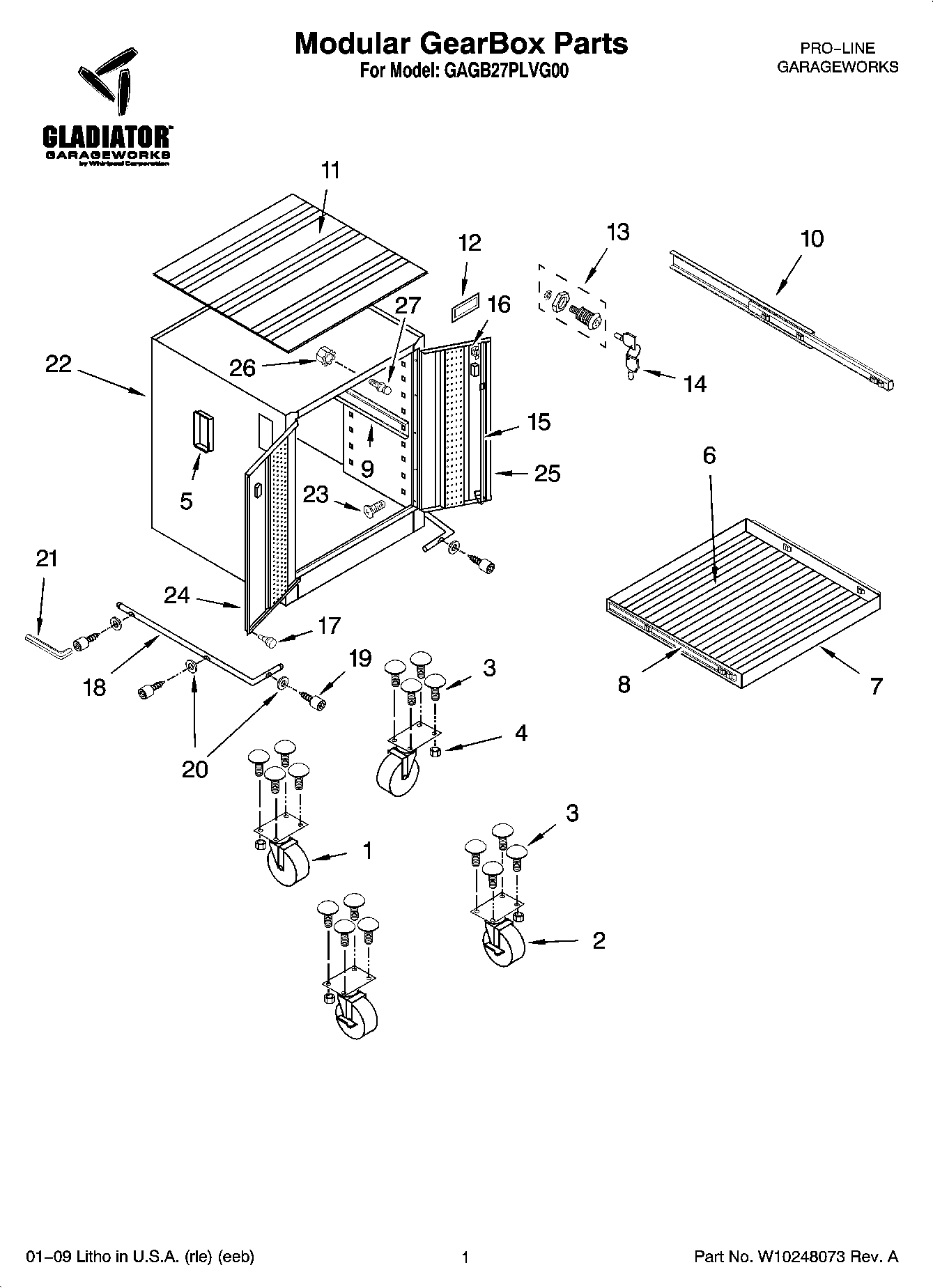

01 - Modular GearBox Parts

Print

• This Diagram
• All Diagrams

Optional Parts Not Included WPL ARI58045A1 Contact Us For Availability

View on Model

Miscellaneous WPL ARI58046A2 Contact Us For Availability

View on Model

1

WP8204601 Whirlpool Caster Assembly Backorder WPL WP8204601 View Details $38.45

View on Model

2

8211250 Whirlpool Caster Assembly Backorder WPL 8211250 View Details $24.27

View on Model

3

WP8204609 Whirlpool Bolt Backorder WPL WP8204609 View Details $26.21

View on Model

4

WP8204610 Whirlpool Nut Backorder WPL WP8204610 View Details $9.13

View on Model

5

W10914558 Whirlpool Door Handle Backorder WPL W10914558 View Details $2.51

View on Model

6

WP8204604 Whirlpool Liner Assembly Backorder WPL WP8204604 View Details $28.80

View on Model

7

Tray WPL 8211210 Contact Us For Availability

View on Model

8

Guide WPL 8211211 Contact Us For Availability

View on Model

9

Slide, Cabinet Tray & Guide Assy WPL 8211212 Contact Us For Availability

View on Model

10

Slide, Ball Bearing 21`` WPL 8204606 Contact Us For Availability

View on Model

11

8204605 Whirlpool Mat Backorder WPL 8204605 View Details $54.39

View on Model

12

Nameplate, Gladiator WPL W10238957 Contact Us For Availability

View on Model

13

Lock, 90 Degree w/2 Keys WPL 8204615 Contact Us For Availability

View on Model

14

W11383363 Whirlpool Keys Backorder WPL W11383363 View Details $2.40

View on Model

15

Cam Flat w/Door Rods WPL 8211213 Contact Us For Availability

View on Model

16

W11369680 Whirlpool Catch Stud Backorder WPL W11369680 View Details $24.43

View on Model

17

Grommet, Rubber WPL 8204636 Contact Us For Availability

View on Model

18

8204634 Whirlpool Bumper Backorder WPL 8204634 View Details $59.48

View on Model

19

Screw WPL 8204611 Contact Us For Availability

View on Model

20

WP8211254 Whirlpool Washer Backorder WPL WP8211254 View Details $2.51

View on Model

21

Key-Hex WPL 8204613 Contact Us For Availability

View on Model

22

Cabinet Assy WPL 8211214 Contact Us For Availability

View on Model

23

Screw WPL 8211202 Contact Us For Availability

View on Model

24

Door & Handle Assembly (Left) WPL 8211215 Contact Us For Availability

View on Model

25

Door & Handle Assembly (Right) WPL 8211216 Contact Us For Availability

View on Model

26

Nut, Keps WPL 8204650 Contact Us For Availability

View on Model

×
