Model Electrolux G32BCW2 RANGE – Common Parts & Diagrams

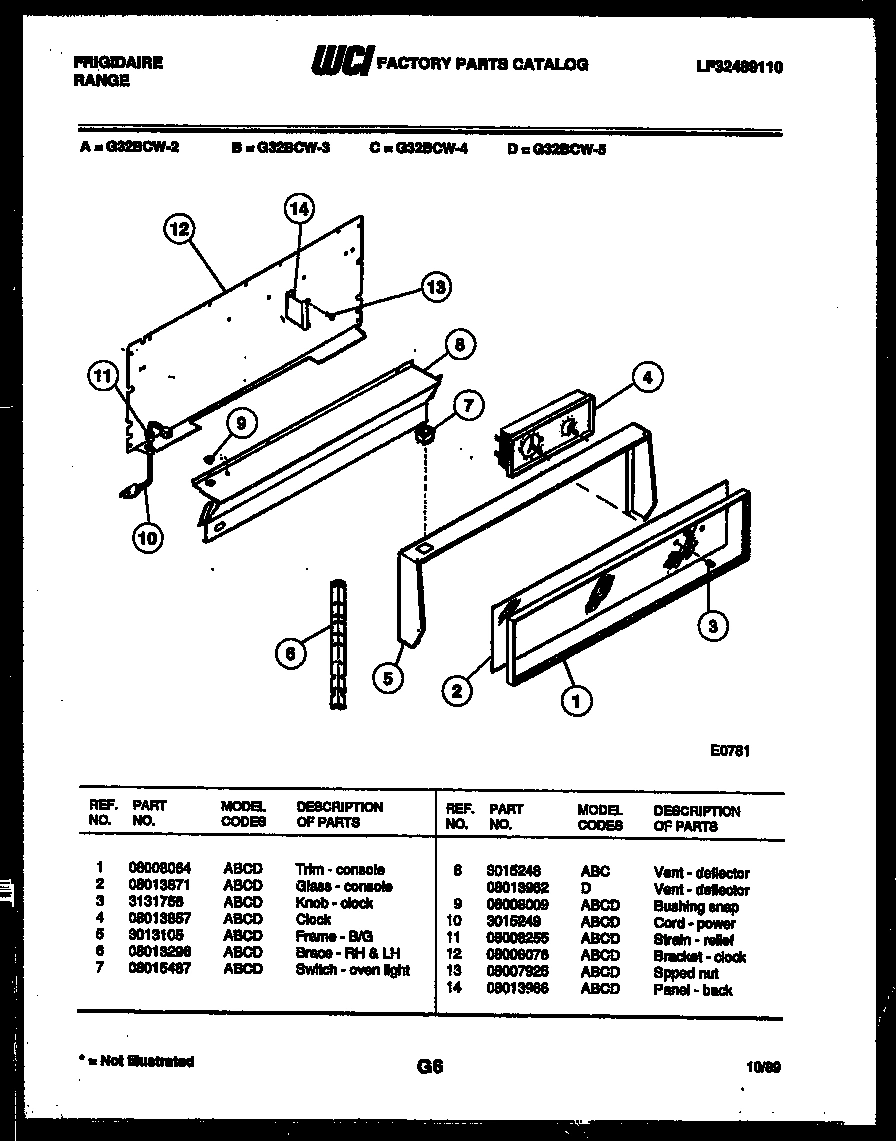

02 - CONTROL PANEL

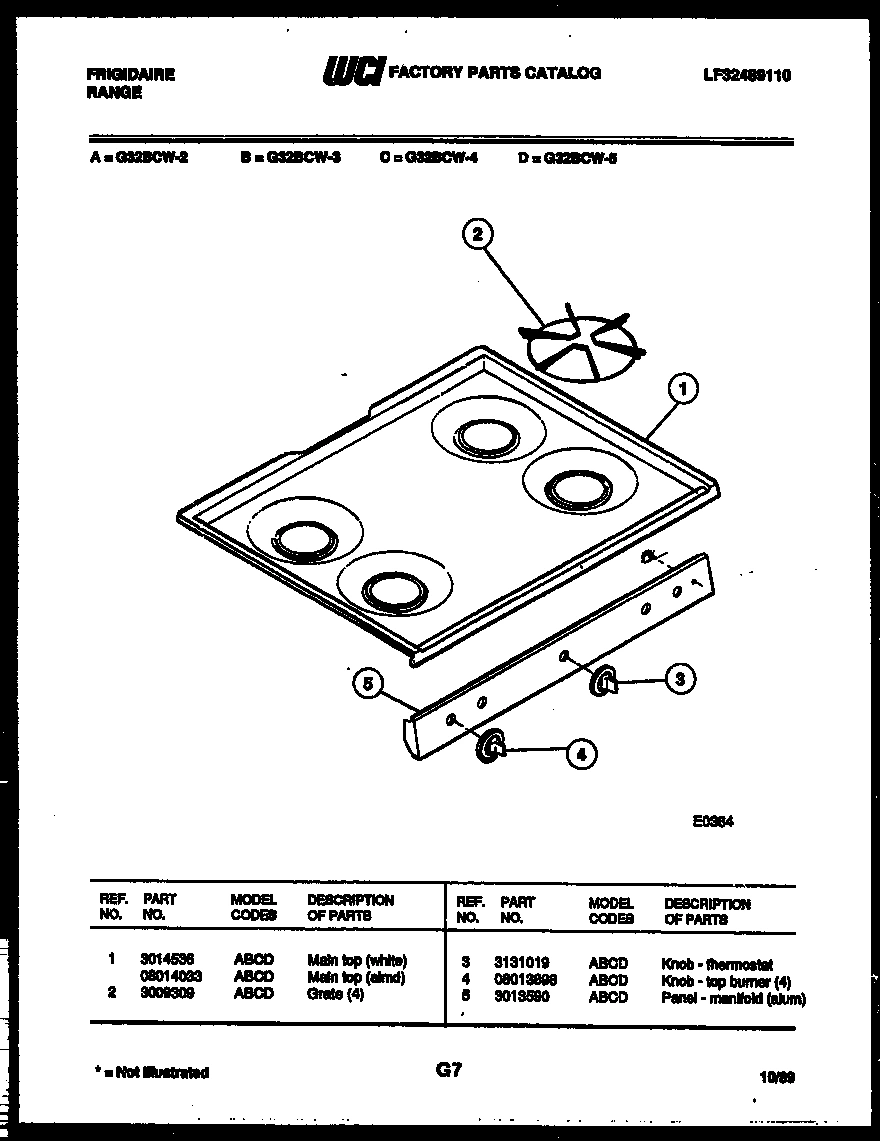

03 - COOKTOP PARTS

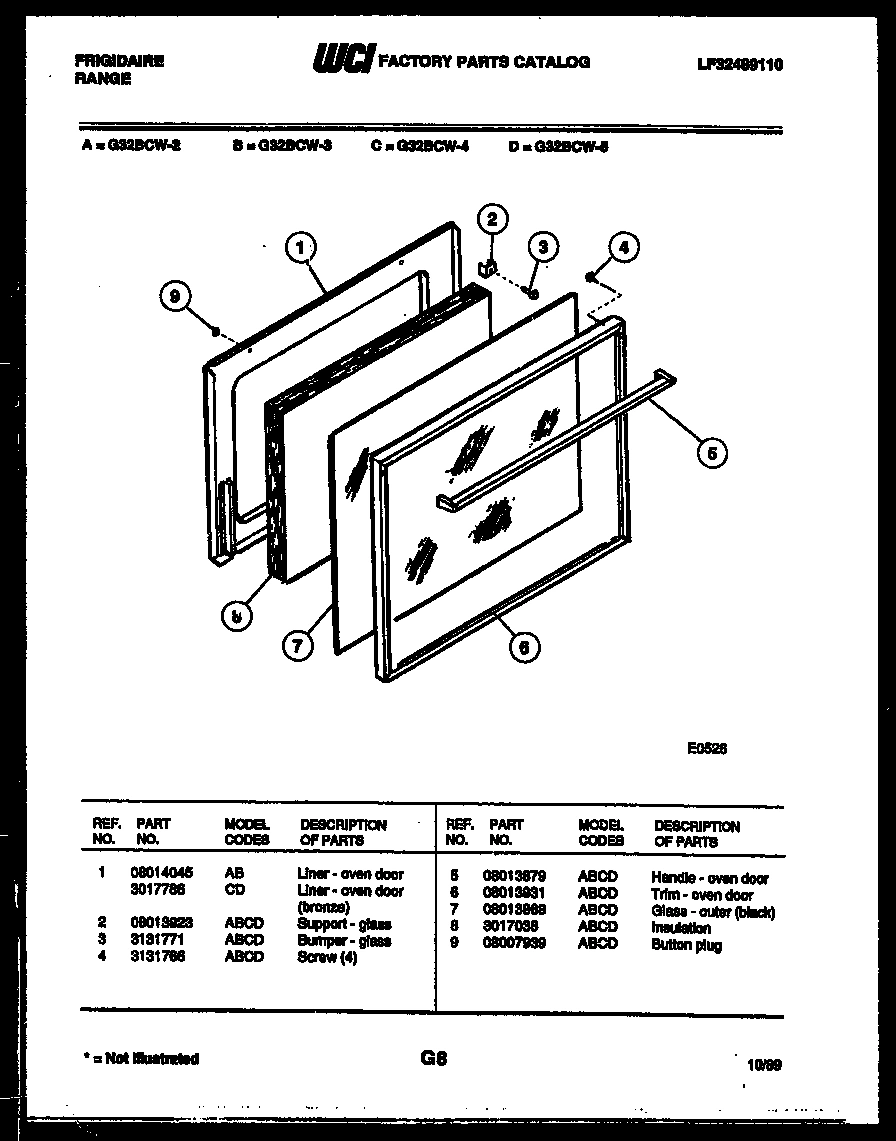

04 - DOOR PARTS

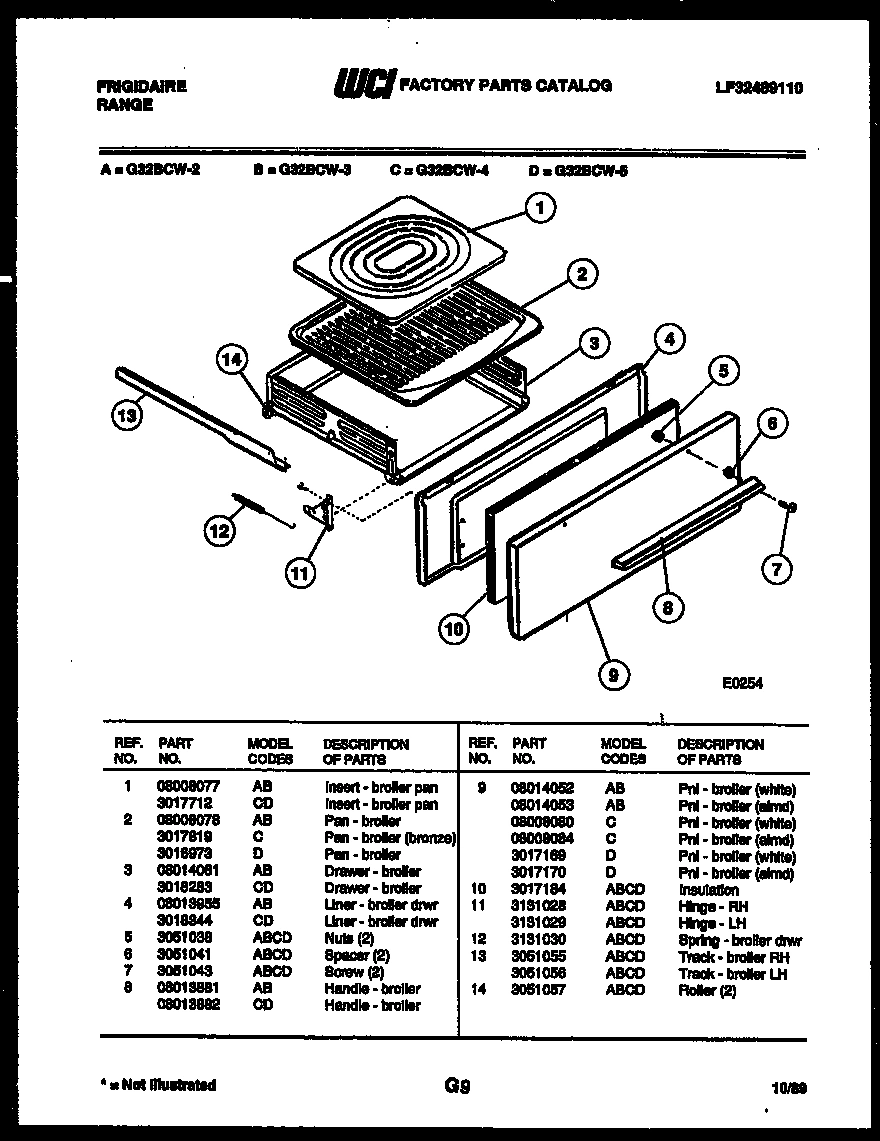

05 - BROILER DRAWER PARTS

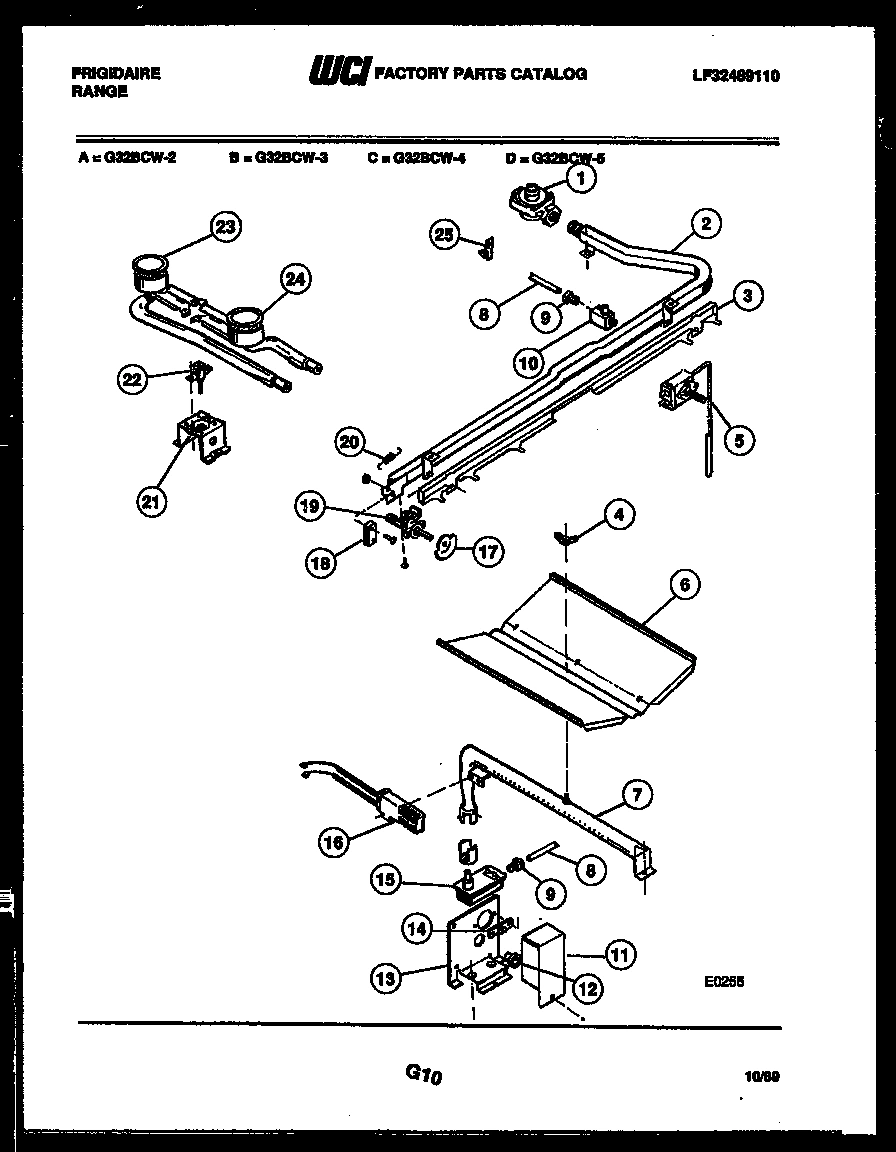

06 - BURNER, MANIFOLD AND GAS CONTROL

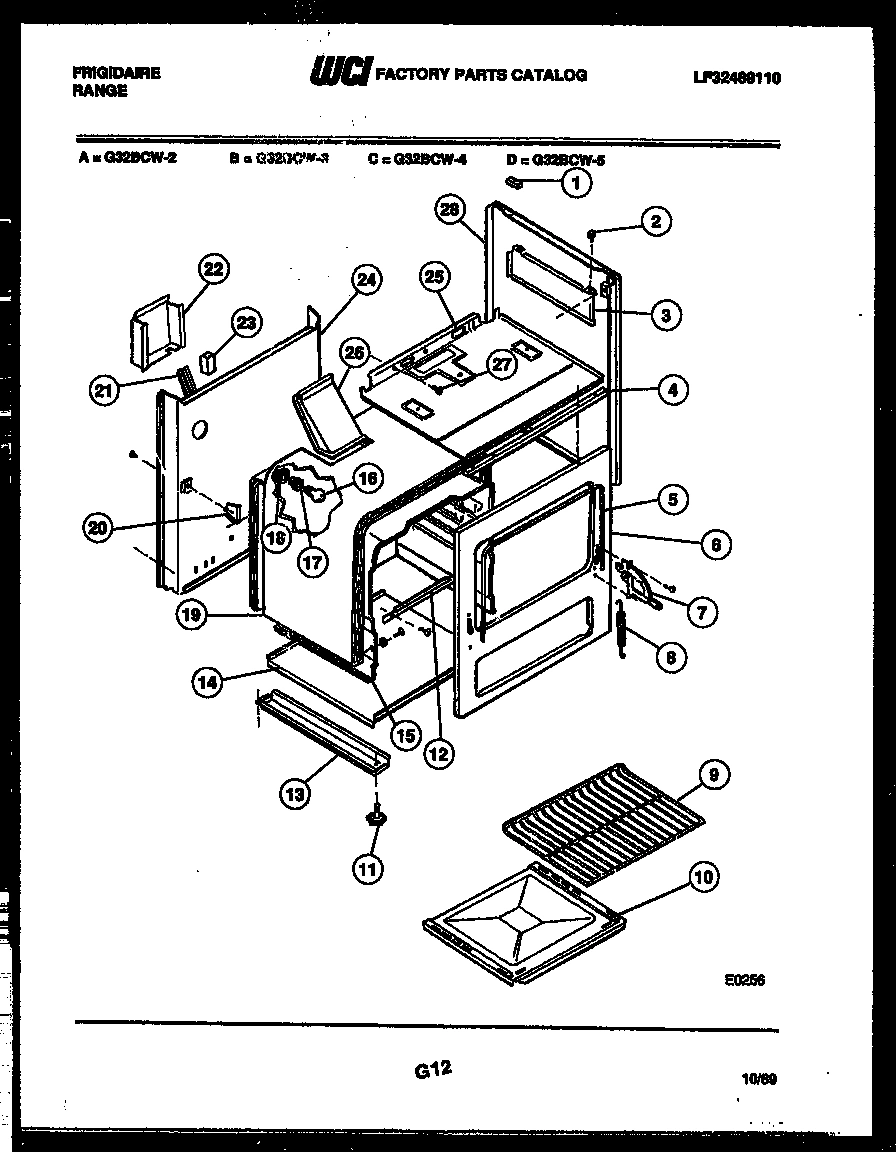

07 - BODY PARTS
Common parts from model Electrolux G32BCW2 RANGE
1
TRIM - CONSOLE WCI 08008064 Contact Us For Availability
1
WCI 3014536 WCI 3014536 Contact Us For Availability
1
WCI 08014045 WCI 08014045 Contact Us For Availability
1
INSERT - BROILER PAN WCI 08008077 Contact Us For Availability
1
INSERT-BROILER PAN WCI 3017712 Contact Us For Availability
1
WCI 08013878 WCI 08013878 Contact Us For Availability
2
WCI 08013871 WCI 08013871 Contact Us For Availability
2
GRATE (4) WCI 3009309 Contact Us For Availability
2
WCI 08013923 WCI 08013923 Contact Us For Availability
2
PAN - BROILER (BRONZE) WCI 3017819 Contact Us For Availability
2
WCI 08013906 WCI 08013906 Contact Us For Availability
2
GROMMET MN TOP FRNT. WCI 3051063 Contact Us For Availability
3
WCI 3131756 WCI 3131756 Contact Us For Availability
3
WCI 3131019 WCI 3131019 Contact Us For Availability
3
BUMPER - GLASS WCI 3131771 Contact Us For Availability
3
WCI 08014021 WCI 08014021 Contact Us For Availability
3
SHIELD-HEAT LEFT SIDE WCI 3131053 Contact Us For Availability
3A
SHIELD-HEAT RIGHT SIDE WCI 3131054 Contact Us For Availability
4
WCI 08013857 WCI 08013857 Contact Us For Availability
4
KNOB - TOP BURNER (4) WCI 08013898 Contact Us For Availability
4
SCREW (4) WCI 3131766 Contact Us For Availability
4
LINER - BROILER DRWR WCI 3018344 Contact Us For Availability
4
NUT - WING WCI 08007979 Contact Us For Availability
4
SUPT-CONTROL PANEL WCI 3131811 Contact Us For Availability
5
FRAME - B/G WCI 3013105 Contact Us For Availability
5
WCI 3013590 WCI 3013590 Contact Us For Availability
5
WCI 08013879 WCI 08013879 Contact Us For Availability
5
THERMOSTAT WCI 08013926 Contact Us For Availability
5
SEAL-OVEN DOOR WCI 08008022 Contact Us For Availability
6
BRACE - RH & LH WCI 08013296 Contact Us For Availability
6
TRIM - OVEN DOOR WCI 08013931 Contact Us For Availability
6
WCI 3051041 WCI 3051041 Contact Us For Availability
6
WCI 08014051 WCI 08014051 Contact Us For Availability
7
GLASS - OUTER (BLACK) WCI 08013868 Contact Us For Availability
7
WCI 3202752 WCI 3202752 Contact Us For Availability
7
HINGE - OVEN DR RT WCI 3204670 Contact Us For Availability
8
WCI 3015248 WCI 3015248 Contact Us For Availability
8
INSULATION WCI 3017038 Contact Us For Availability
8
HANDLE - BROILER WCI 08013881 Contact Us For Availability
8
TUBE - OVEN FEED WCI 08013937 Contact Us For Availability
8
SPRING - OVEN DOOR WCI 3009435 Contact Us For Availability
9
WCI 08008009 WCI 08008009 Contact Us For Availability
9
WCI 08007939 WCI 08007939 Contact Us For Availability
9
PNL - BROILER (WHITE) WCI 08014052 Contact Us For Availability
9
LOXIT - NUT (2) WCI 08008363 Contact Us For Availability
9
WCI 3015714 WCI 3015714 Contact Us For Availability
10
CORD - POWER WCI 3015249 Contact Us For Availability
10
WCI 3017184 WCI 3017184 Contact Us For Availability
10
WCI 3131099 WCI 3131099 Contact Us For Availability
10
PNL - OVEN BTTM (BZ) WCI 3018282 Contact Us For Availability
11
WCI 08008255 WCI 08008255 Contact Us For Availability
11
HINGE - RH WCI 3131028 Contact Us For Availability
11
WCI 3131088 WCI 3131088 Contact Us For Availability
11
WCI 08008041 WCI 08008041 Contact Us For Availability
11A
HINGE - LH WCI 3131029 Contact Us For Availability
12
WCI 08008076 WCI 08008076 Contact Us For Availability
12
SPRING - BROILER DRWR WCI 3131030 Contact Us For Availability
12
WCI 3131038 WCI 3131038 Contact Us For Availability
13
WCI 08007925 WCI 08007925 Contact Us For Availability
13
TRACK - BROILER RH WCI 3051055 Contact Us For Availability
13
TRACK - BROILER LH WCI 3051056 Contact Us For Availability
13
SUPPORT - OVEN VALVE WCI 3131069 Contact Us For Availability
13
RAIL - BASE WCI 08068047 Contact Us For Availability
14
PANEL - BACK WCI 08013966 Contact Us For Availability
14
WCI 3051057 WCI 3051057 Contact Us For Availability
14
TERMINAL BOARD WCI 08007985 Contact Us For Availability
14
BOTTOM - MAIN WCI 3011645 Contact Us For Availability
15
VALVE - OVEN SAFETY WCI 08009419 Contact Us For Availability
15
OVEN LINER RT WCI 08013975 Contact Us For Availability
15A
OVEN LINER LT WCI 08013976 Contact Us For Availability
15B
OVEN LINER TOP WCI 08013985 Contact Us For Availability
15C
OVEN LINER BACK WCI 08014566 Contact Us For Availability
17
WCI 08008002 WCI 08008002 Contact Us For Availability
18
WCI 3131094 WCI 3131094 Contact Us For Availability
18
WCI 08014577 WCI 08014577 Contact Us For Availability
19
WCI 3131057 WCI 3131057 Contact Us For Availability
19
WCI 3017171 WCI 3017171 Contact Us For Availability
19
WCI 3017172 WCI 3017172 Contact Us For Availability
20
WCI 3131096 WCI 3131096 Contact Us For Availability
20
Support,oven rear WCI 3051096 Contact Us For Availability
21
SUPPORT - TOP BURNER WCI 3016870 Contact Us For Availability
21
CHANNEL - WIRE WCI 3131046 Contact Us For Availability
22
IGNITER - TOP (2) WCI 3015196 Contact Us For Availability
22
COVER - WIRE WCI 08013953 Contact Us For Availability
23
WCI 3131079 WCI 3131079 Contact Us For Availability
24
WCI 3131080 WCI 3131080 Contact Us For Availability
24
MAIN BACK WCI 3013340 Contact Us For Availability
25
WCI 9126 WCI 9126 Contact Us For Availability
25
WCI 08014064 WCI 08014064 Contact Us For Availability
26
WCI 08011651 WCI 08011651 Contact Us For Availability
27
WCI 08008051 WCI 08008051 Contact Us For Availability
28
PANEL - B/S (WHITE) WCI 3131061 Contact Us For Availability
× ![]()
