Model Electrolux G31BFL1 RANGE – Common Parts & Diagrams
02 - BACKGUARD AND COOKTOP PARTS
03 - BROILER DRAWER PARTS

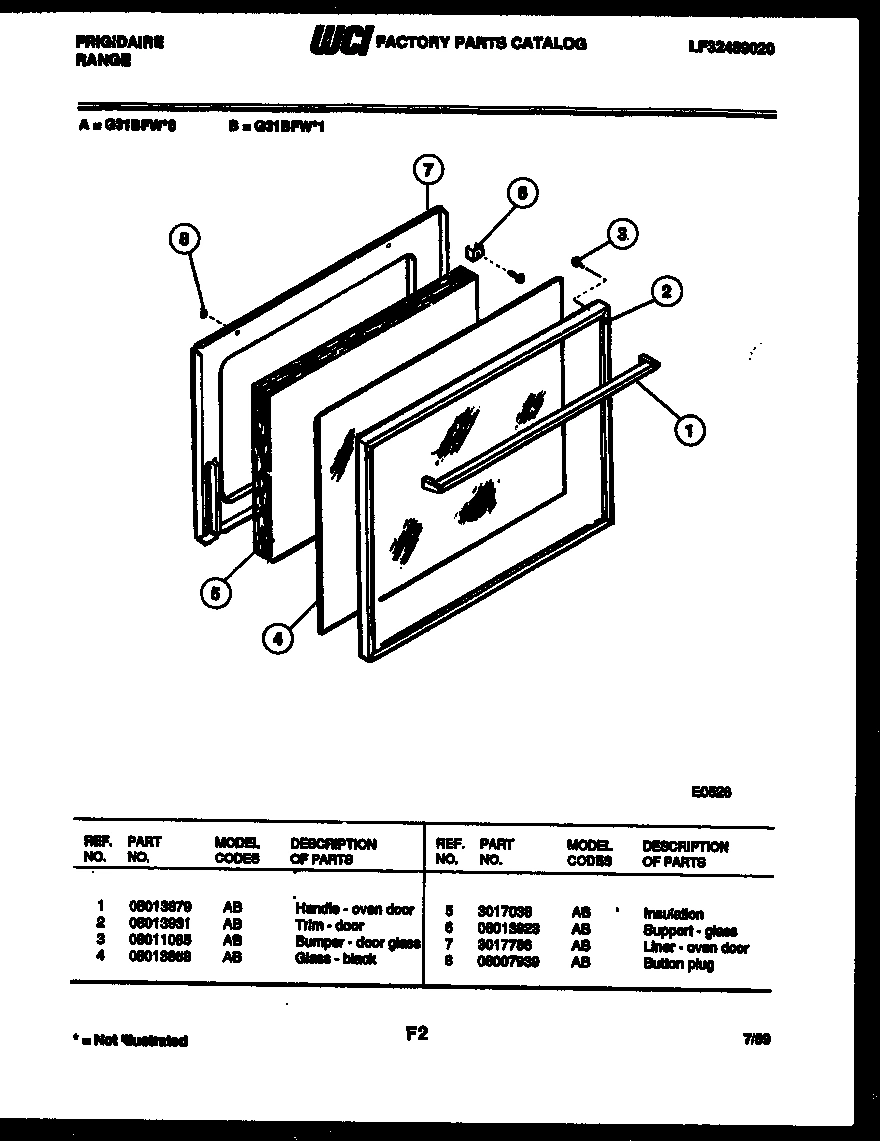

04 - DOOR PARTS

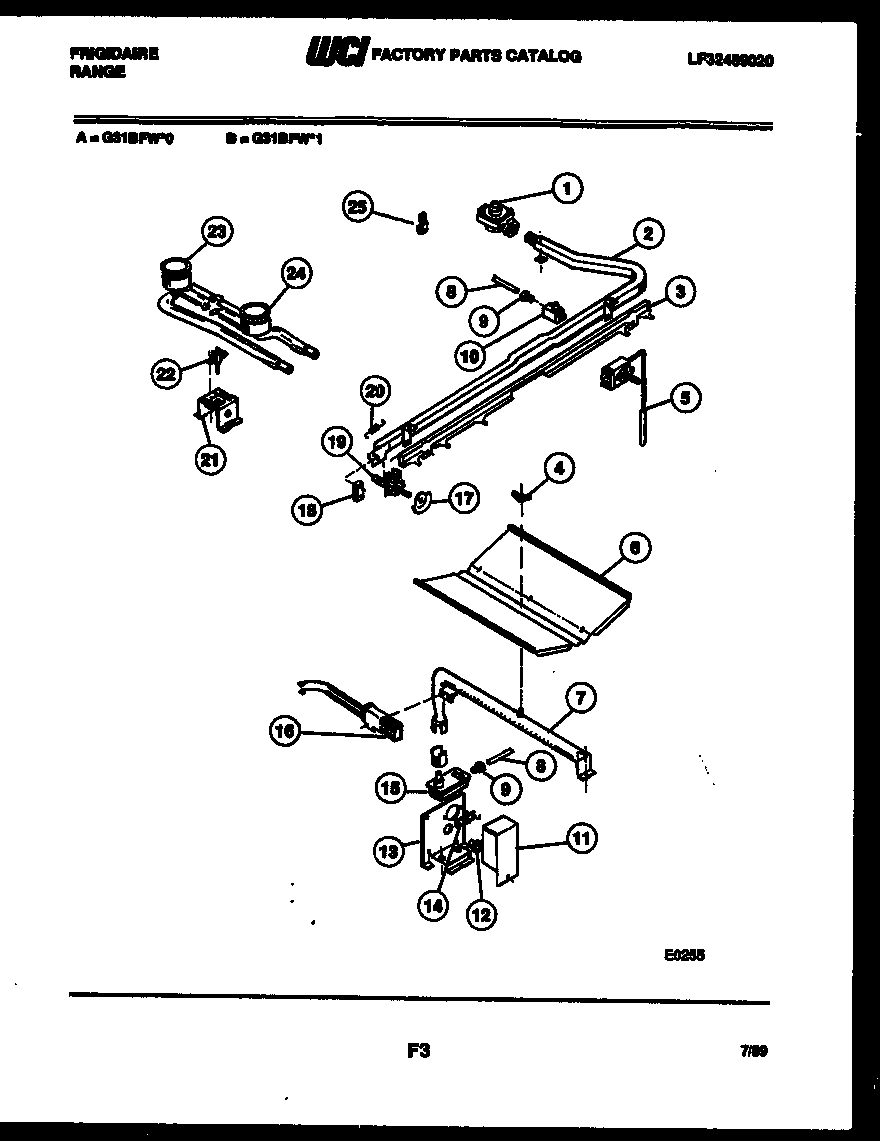

05 - BURNER, MANIFOLD AND GAS CONTROL

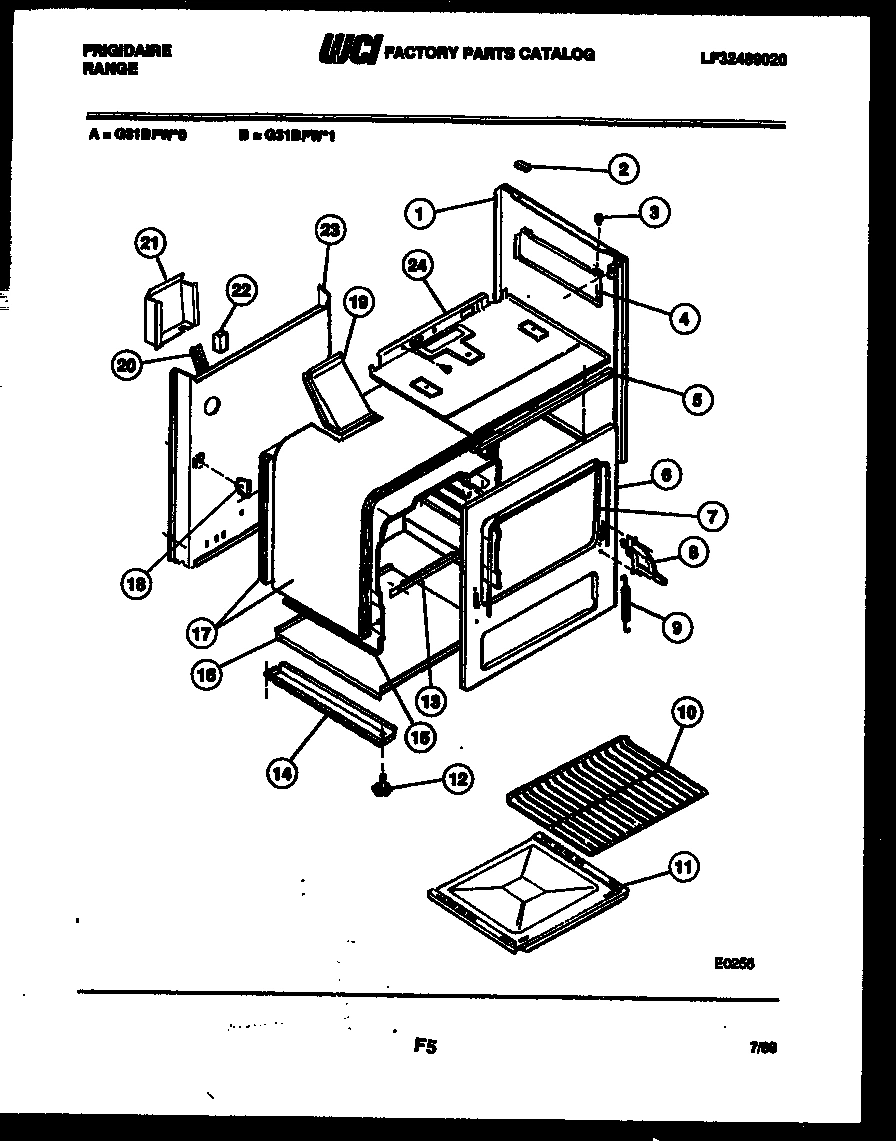

06 - BODY PARTS
Common parts from model Electrolux G31BFL1 RANGE
*37438
CLIP - BODYSIDE (2) WCI 3131791 Contact Us For Availability
*37438
WCI 3934059 WCI 3934059 Contact Us For Availability
*37439
WCI 3015241 WCI 3015241 Contact Us For Availability
1
WCI 3131019 WCI 3131019 Contact Us For Availability
1
INSERT-BROILER WCI 3017712 Contact Us For Availability
1
WCI 08013879 WCI 08013879 Contact Us For Availability
1
WCI 08014019 WCI 08014019 Contact Us For Availability
2
KNOB - TOP BURNER WCI 08013898 Contact Us For Availability
2
PAN-BROILER WCI 3016973 Contact Us For Availability
2
TRIM - DOOR WCI 08013931 Contact Us For Availability
2
WCI 08013906 WCI 08013906 Contact Us For Availability
2
GROMMET-TOP REAR (4) WCI 08068052 Contact Us For Availability
3
WCI 08014003 WCI 08014003 Contact Us For Availability
3
WCI 08014021 WCI 08014021 Contact Us For Availability
3
GROMMET-TOP FRONT (2) WCI 08008012 Contact Us For Availability
4
WCI 08014033 WCI 08014033 Contact Us For Availability
4
WCI 3018344 WCI 3018344 Contact Us For Availability
4
GLASS - BLACK WCI 08013868 Contact Us For Availability
4
NUT - WING WCI 08007979 Contact Us For Availability
4
SHIELD - HEAT RH WCI 08008018 Contact Us For Availability
4A
WCI 08011552 WCI 08011552 Contact Us For Availability
5
GRATE (4) WCI 3009309 Contact Us For Availability
5
INSULATION WCI 3017038 Contact Us For Availability
5
THERMOSTAT WCI 08013926 Contact Us For Availability
5
SUPPORT - CONT PNL WCI 08014027 Contact Us For Availability
6
PANEL - BOTTOM WCI 3131740 Contact Us For Availability
6
SPACER (2) WCI 08007963 Contact Us For Availability
6
WCI 08013923 WCI 08013923 Contact Us For Availability
6
WCI 3131061 WCI 3131061 Contact Us For Availability
6
WCI 08008022 WCI 08008022 Contact Us For Availability
7
WCI 08007902 WCI 08007902 Contact Us For Availability
7
LINER - OVEN DOOR WCI 3017786 Contact Us For Availability
7
WCI 3202752 WCI 3202752 Contact Us For Availability
7
FRAME - FRONT WCI 3205578 Contact Us For Availability
8
WCI 3051012 WCI 3051012 Contact Us For Availability
8
WCI 08013881 WCI 08013881 Contact Us For Availability
8
WCI 08007939 WCI 08007939 Contact Us For Availability
8
WCI 3009495 WCI 3009495 Contact Us For Availability
8
HINGE - DOOR RH WCI 3204670 Contact Us For Availability
9
WCI 3205563 WCI 3205563 Contact Us For Availability
9
WCI 08008084 WCI 08008084 Contact Us For Availability
9
WCI 08008363 WCI 08008363 Contact Us For Availability
9
SPRING - DOOR (2) WCI 08011484 Contact Us For Availability
10
WCI 3051014 WCI 3051014 Contact Us For Availability
10
WCI 3017184 WCI 3017184 Contact Us For Availability
10
WCI 3131099 WCI 3131099 Contact Us For Availability
10
RACK (2) WCI 3015714 Contact Us For Availability
11
WCI 08013296 WCI 08013296 Contact Us For Availability
11
WCI 08012594 WCI 08012594 Contact Us For Availability
11
COVER - OVEN VALVE WCI 08007986 Contact Us For Availability
11
LINER-OVEN-BOTTOM WCI 3018282 Contact Us For Availability
11A
WCI 08012595 WCI 08012595 Contact Us For Availability
12
WCI 08008255 WCI 08008255 Contact Us For Availability
12
WCI 08007969 WCI 08007969 Contact Us For Availability
12
WCI 3051101 WCI 3051101 Contact Us For Availability
12
WCI 08068019 WCI 08068019 Contact Us For Availability
13
CORD - POWER WCI 3015249 Contact Us For Availability
13
TRACK RH WCI 3051055 Contact Us For Availability
13
WCI 3131069 WCI 3131069 Contact Us For Availability
13
SUPPORT - OVEN BTTM WCI 3131080 Contact Us For Availability
13A
TRACK LH WCI 3051056 Contact Us For Availability
14
WCI 08007973 WCI 08007973 Contact Us For Availability
14
BOARD - TERMINAL WCI 08007985 Contact Us For Availability
14
RAIL - BASE (2) WCI 08068047 Contact Us For Availability
15
WCI 08009419 WCI 08009419 Contact Us For Availability
15
WCI 3018284 WCI 3018284 Contact Us For Availability
15A
WCI 3018285 WCI 3018285 Contact Us For Availability
15B
WCI 3018347 WCI 3018347 Contact Us For Availability
15C
WCI 3018995 WCI 3018995 Contact Us For Availability
16
BOTTOM - OVEN WCI 08011515 Contact Us For Availability
17
WCI 08008002 WCI 08008002 Contact Us For Availability
17
WCI 3017171 WCI 3017171 Contact Us For Availability
17A
WCI 3017172 WCI 3017172 Contact Us For Availability
18
WCI 08013925 WCI 08013925 Contact Us For Availability
18
SUPPORT-OVEN REAR (2) WCI 3051096 Contact Us For Availability
19
VALVE - TOP BURNER WCI 3131057 Contact Us For Availability
19
WCI 3017173 WCI 3017173 Contact Us For Availability
20
WCI 3131096 WCI 3131096 Contact Us For Availability
20
CHANNEL - WIRE WCI 3131046 Contact Us For Availability
21
SPRT - TOP BURNER (2) WCI 3203964 Contact Us For Availability
21
WCI 08008357 WCI 08008357 Contact Us For Availability
22
IGNITOR - TOP (2) WCI 3203970 Contact Us For Availability
23
WCI 3131079 WCI 3131079 Contact Us For Availability
23
WCI 08012600 WCI 08012600 Contact Us For Availability
24
BURNER BOX BOTTOM WCI 3017174 Contact Us For Availability
× ![]()
