Model Electrolux G30NW1 RANGE – Common Parts & Diagrams

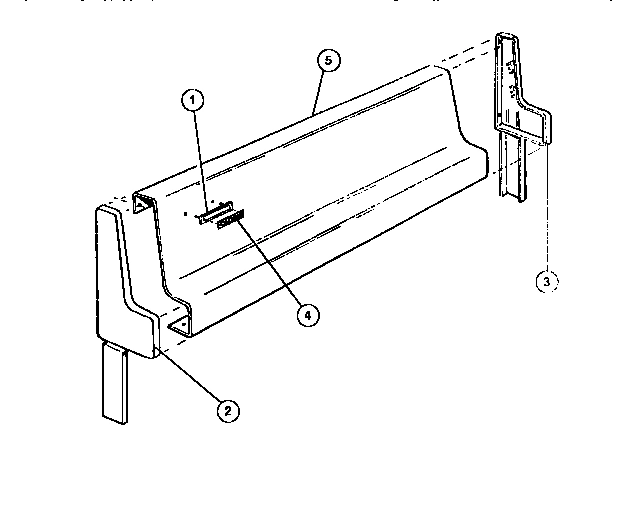

02 - BACKGUARD

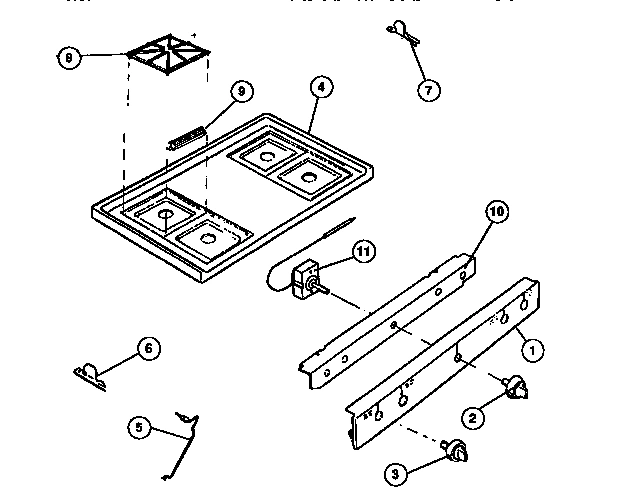

03 - TOP

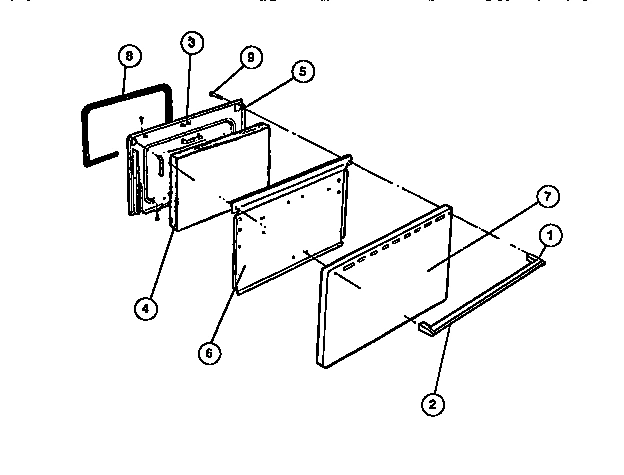

04 - DOOR

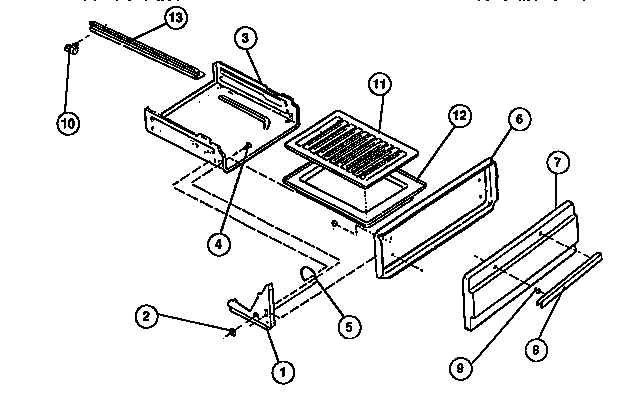

05 - DRAWER

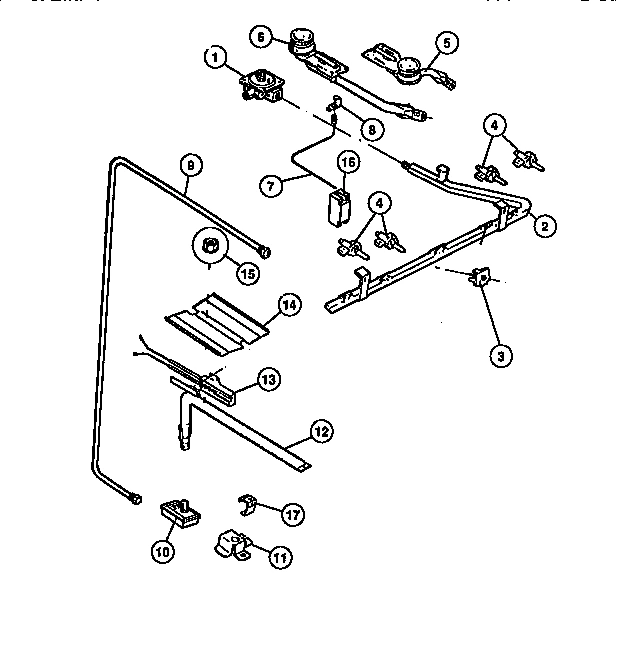

06 - BURNER

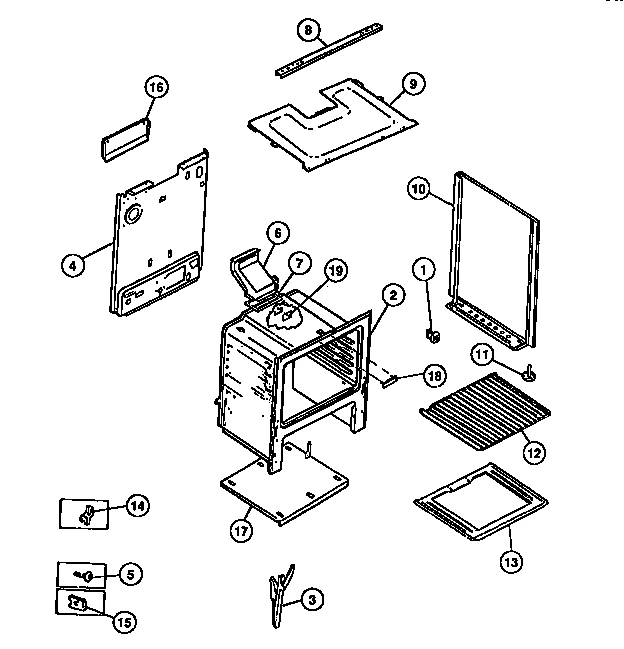

07 - BODY
Common parts from model Electrolux G30NW1 RANGE
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
WCI 3200673 WCI 3200673 Contact Us For Availability
1
CONTROL REGUL WCI 5303208384 Contact Us For Availability
1A
WCI 3018860 WCI 3018860 Contact Us For Availability
2
HANDLE, DOOR WCI 3200887 Contact Us For Availability
2
FASTENER, PUSH NUT WCI 3131386 Contact Us For Availability
2
WCI 3205046 WCI 3205046 Contact Us For Availability
2
OVEN LINER WCI N/A Contact Us For Availability
3
WCI 5303210280 WCI 5303210280 Contact Us For Availability
3
WCI 3202802 WCI 3202802 Contact Us For Availability
3
WCI 5303015373 WCI 5303015373 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
SWITCH, IGNITER (4) WCI 5303208397 Contact Us For Availability
3
CHANNEL, DOOR HINGE WCI 5303131569 Contact Us For Availability
4
INSULATION, DOOR WCI 3205524 Contact Us For Availability
4
WCI 3018614 WCI 3018614 Contact Us For Availability
4
WCI 3202796 WCI 3202796 Contact Us For Availability
4
WCI 3203082 WCI 3203082 Contact Us For Availability
4B
SCREW, VALVE MTG (NON-ILLUSTRATED) WCI 3204499 Contact Us For Availability
5
WCI 3201692 WCI 3201692 Contact Us For Availability
5
WCI 3018618 WCI 3018618 Contact Us For Availability
5A
WCI 3018619 WCI 3018619 Contact Us For Availability
6
BRACKET, MAIN TOP, LH WCI 08067746 Contact Us For Availability
6
WCI 3201963 WCI 3201963 Contact Us For Availability
6
WCI 3202803 WCI 3202803 Contact Us For Availability
7
WCI 3202315 WCI 3202315 Contact Us For Availability
7
WCI 3131117 WCI 3131117 Contact Us For Availability
7
WCI 3200276 WCI 3200276 Contact Us For Availability
8
WCI 3201268 WCI 3201268 Contact Us For Availability
8
WCI 3203441 WCI 3203441 Contact Us For Availability
9
WCI 3016420 WCI 3016420 Contact Us For Availability
9
FASTENER, SPACER WCI 3131387 Contact Us For Availability
9
WCI 3203458 WCI 3203458 Contact Us For Availability
9
WCI 3204962 WCI 3204962 Contact Us For Availability
9A
SCREW (3) (NON-ILLUSTRATED) WCI 3131573 Contact Us For Availability
9B
SCREW (2) (NON-ILLUSTRATED) WCI 3131236 Contact Us For Availability
9C
PLATE, DOOR WEIGHT (NON-ILLUSTRATED) WCI 3204584 Contact Us For Availability
10
GLIDE-BROILER WCI 3018610 Contact Us For Availability
10
PANEL-B/S-RH-WHITE WCI 5303269518 Contact Us For Availability
10B
PANEL-B/S-LH-WHITE WCI 5303269519 Contact Us For Availability
11
SCREW, LEVELER (4) WCI 5303203397 Contact Us For Availability
11
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 3131438 WCI 3131438 Contact Us For Availability
12
WCI 3131439 WCI 3131439 Contact Us For Availability
12
PAN-BROILER WCI 5303013568 Contact Us For Availability
12A
INSULATION, BROILER DRAWER (NON-ILLUSTRATED) WCI 5303131258 Contact Us For Availability
12C
SCREW (2) (NON-ILLUSTRATED) WCI 3013964 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
13
WCI 5303212540 WCI 5303212540 Contact Us For Availability
13A
BUTTON, GLIDE (NON-ILLUSTRATED) WCI 3206216 Contact Us For Availability
13A
WCI 3203541 WCI 3203541 Contact Us For Availability
13B
INSULATION, WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
14
WCI 3203265 WCI 3203265 Contact Us For Availability
16
WCI 3131191 WCI 3131191 Contact Us For Availability
17
BRKT, OVEN BURNER SUPL WCI 3018603 Contact Us For Availability
17
WCI 3131180 WCI 3131180 Contact Us For Availability
18
WCI 5303015372 WCI 5303015372 Contact Us For Availability
18A
ANTI TIP, BRACKETS (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
18B
SHIELD-FLUE, (NON-ILLUSTRATED) WCI 3202799 Contact Us For Availability
19
WCI 3018607 WCI 3018607 Contact Us For Availability
19B
WCI 08067961 WCI 08067961 Contact Us For Availability
19C
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
19D
COVER, REAR WALL (NON-ILLUSTRATED) WCI 3131192 Contact Us For Availability
19E
COVER, VENT (NON-ILLUSTRATED) WCI 3131190 Contact Us For Availability
19F
SHIELD, REAR WALL (NON-ILLUSTRATED) WCI 3131660 Contact Us For Availability
19G
DIAGRAM, WIRING, (NOT FOR PURCHASE) (NON-ILLU WCI 19100180225 Contact Us For Availability
× ![]()
