Model Electrolux G30LPNL3 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

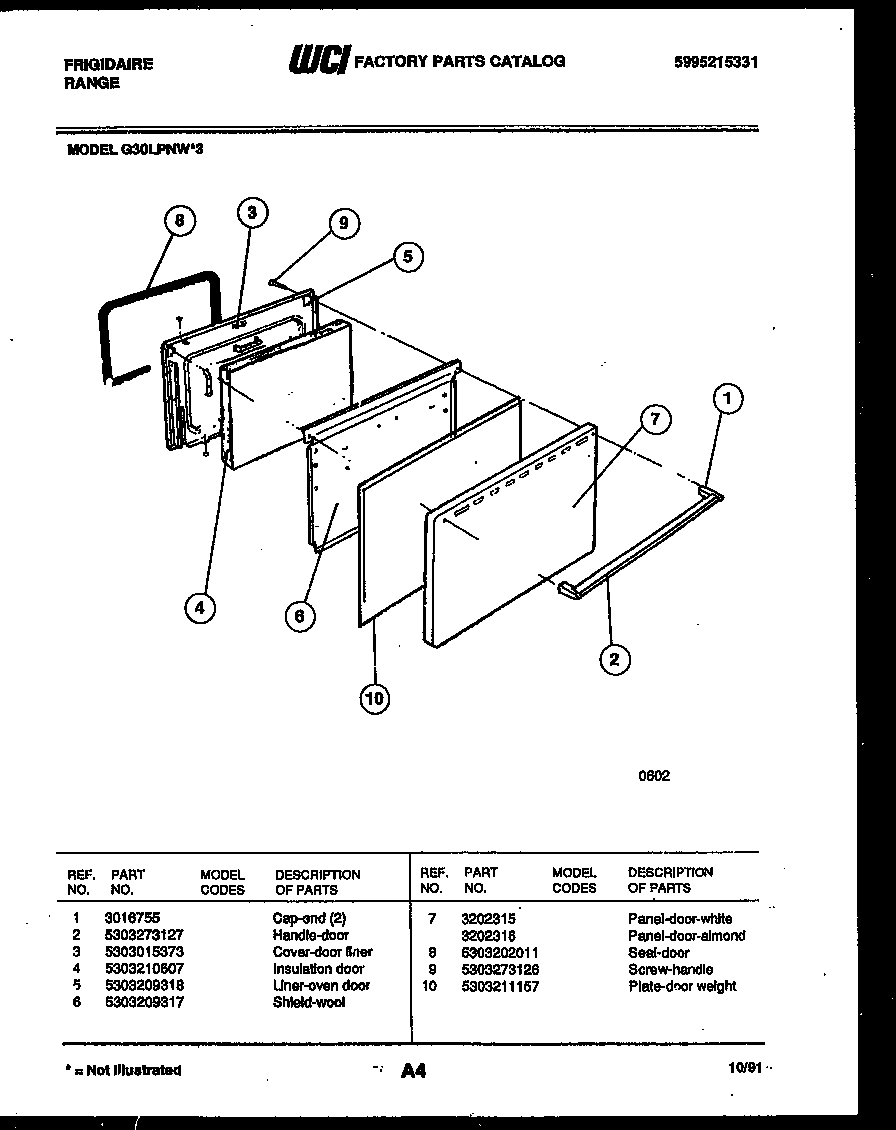

04 - DOOR PARTS

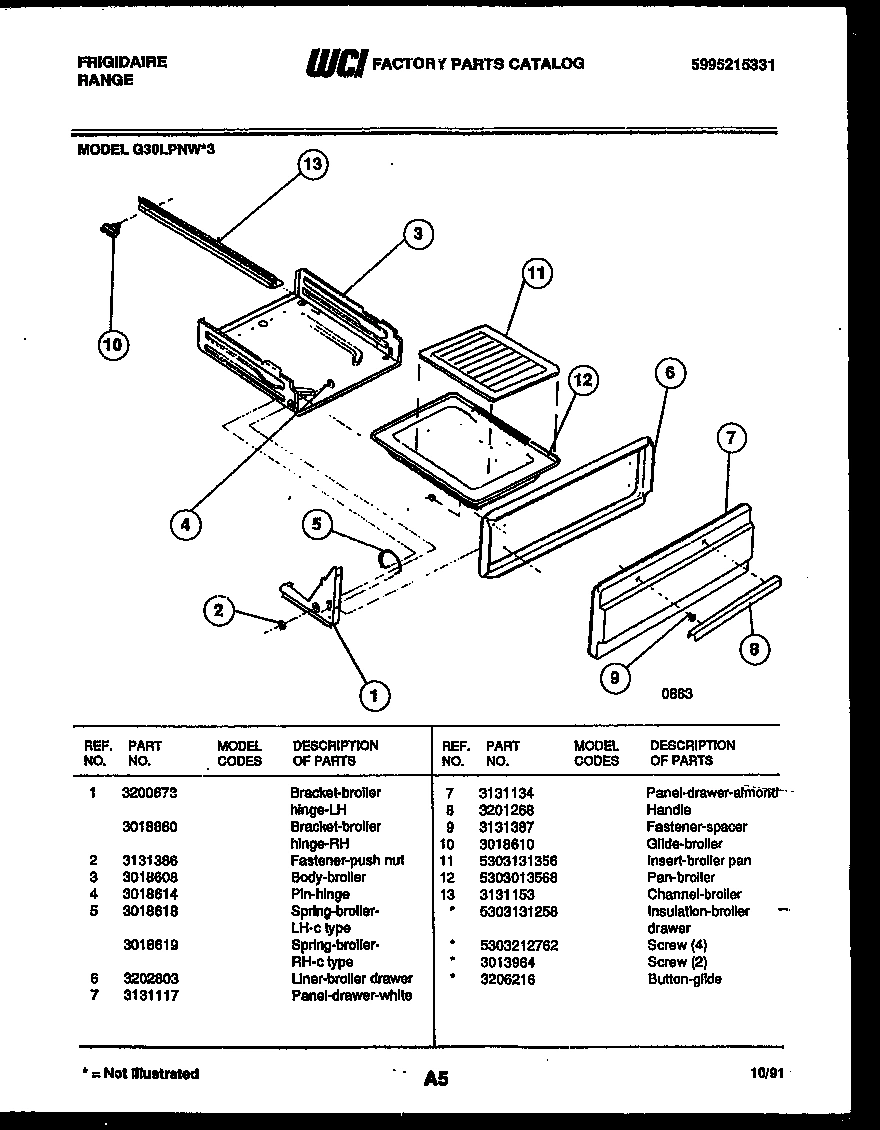

05 - BROILER DRAWER PARTS

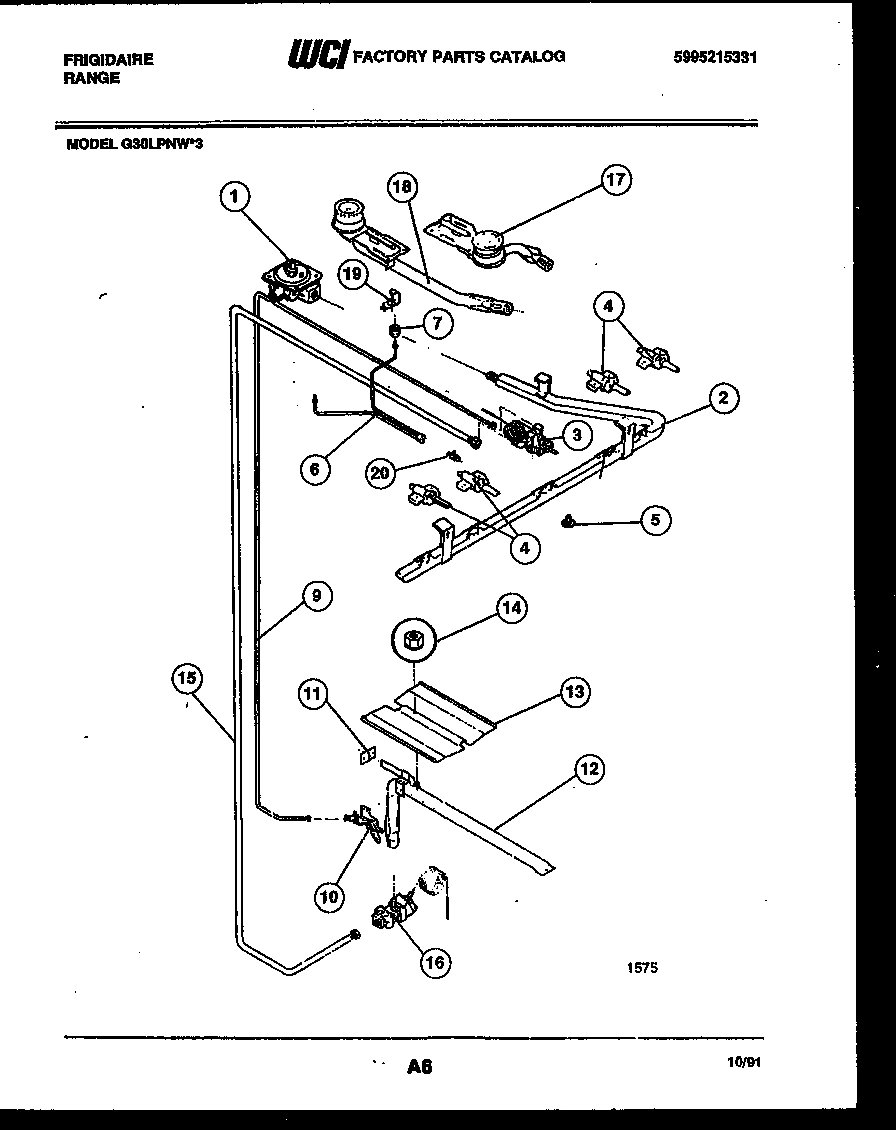

06 - BURNER, MANIFOLD AND GAS CONTROL

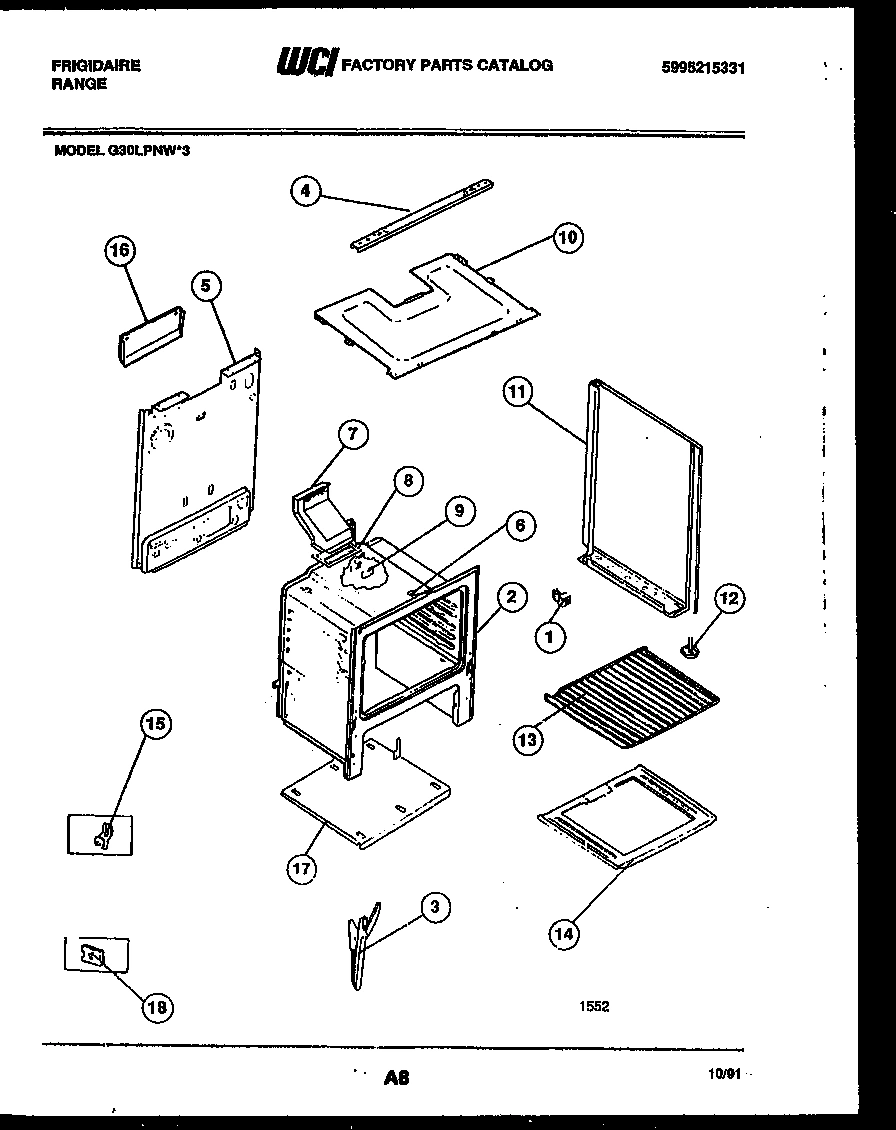

07 - BODY PARTS
Common parts from model Electrolux G30LPNL3 RANGE
*54543
WCI 3206216 WCI 3206216 Contact Us For Availability
*54543
WCI 3013964 WCI 3013964 Contact Us For Availability
*54543
INSULATION, BROILER DRAWER WCI 5303131258 Contact Us For Availability
*54545
THERMO. MTG BOLT (2) WCI 5303280590 Contact Us For Availability
*54549
WCI 3202799 WCI 3202799 Contact Us For Availability
*54549
WCI 3934056 WCI 3934056 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 3200673 WCI 3200673 Contact Us For Availability
1
WCI 5303271248 WCI 5303271248 Contact Us For Availability
1A
WCI 3018860 WCI 3018860 Contact Us For Availability
2
CP-B/G END LH WCI 3202801 Contact Us For Availability
2
WCI 08067746 WCI 08067746 Contact Us For Availability
2
FASTENER, PUSH NUT WCI 3131386 Contact Us For Availability
2
WCI 5303280588 WCI 5303280588 Contact Us For Availability
3
CP-B/G END RH WCI 3202802 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
THERMOSTAT WCI 5303280591 Contact Us For Availability
3
CHANNEL-DOOR HINGE WCI 316007000 Contact Us For Availability
4
INSULATION, DOOR WCI 5303210607 Contact Us For Availability
4
WCI 3018614 WCI 3018614 Contact Us For Availability
4
CHANNEL-BURNER SUPPORT WCI 3203394 Contact Us For Availability
5
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
5
WCI 3018618 WCI 3018618 Contact Us For Availability
5
WCI 5303264845 WCI 5303264845 Contact Us For Availability
5
WCI 3203082 WCI 3203082 Contact Us For Availability
5A
WCI 3018619 WCI 3018619 Contact Us For Availability
6
WCI 5303210280 WCI 5303210280 Contact Us For Availability
6
TUBE-TOP PILOT-DUAL WCI 5303211133 Contact Us For Availability
6
WCI 5303209317 WCI 5303209317 Contact Us For Availability
6
WCI 3202803 WCI 3202803 Contact Us For Availability
6
WCI 5303015372 WCI 5303015372 Contact Us For Availability
7
PANEL, DOOR (ALMOND) WCI 3202316 Contact Us For Availability
7
WCI 3131134 WCI 3131134 Contact Us For Availability
7
WCI 5303211191 WCI 5303211191 Contact Us For Availability
8
WCI 3201268 WCI 3201268 Contact Us For Availability
9
WCI 3018607 WCI 3018607 Contact Us For Availability
9
WCI 3203398 WCI 3203398 Contact Us For Availability
9
WCI 5303273126 WCI 5303273126 Contact Us For Availability
9
FASTENER, SPACER WCI 3131387 Contact Us For Availability
10
WCI 5303280589 WCI 5303280589 Contact Us For Availability
10
WCI 5303211157 WCI 5303211157 Contact Us For Availability
10
GLIDE-BROILER WCI 3018610 Contact Us For Availability
10
WCI 3204962 WCI 3204962 Contact Us For Availability
11
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 3018603 WCI 3018603 Contact Us For Availability
11
WCI 5303269543 WCI 5303269543 Contact Us For Availability
11A
WCI 5303269545 WCI 5303269545 Contact Us For Availability
12
WCI 5303280585 WCI 5303280585 Contact Us For Availability
12
PAN-BROILER WCI 5303013568 Contact Us For Availability
12
SCREW-LEVELER (4) WCI 3206285 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
13
WCI 3203265 WCI 3203265 Contact Us For Availability
14
WCI 5303212540 WCI 5303212540 Contact Us For Availability
14A
WCI 3203541 WCI 3203541 Contact Us For Availability
14B
INSULATION, WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
15
WCI 5303280592 WCI 5303280592 Contact Us For Availability
15
WCI 5303280586 WCI 5303280586 Contact Us For Availability
16
WCI 5303281930 WCI 5303281930 Contact Us For Availability
16
WCI 3131191 WCI 3131191 Contact Us For Availability
17
WCI 5303270160 WCI 5303270160 Contact Us For Availability
19
SHIELD-PILOT (2) WCI 3202798 Contact Us For Availability
× ![]()
