Model Electrolux G24PCL3 RANGE – Common Parts & Diagrams
02 - BACKGUARD AND COOKTOP PARTS
03 - DOOR PARTS

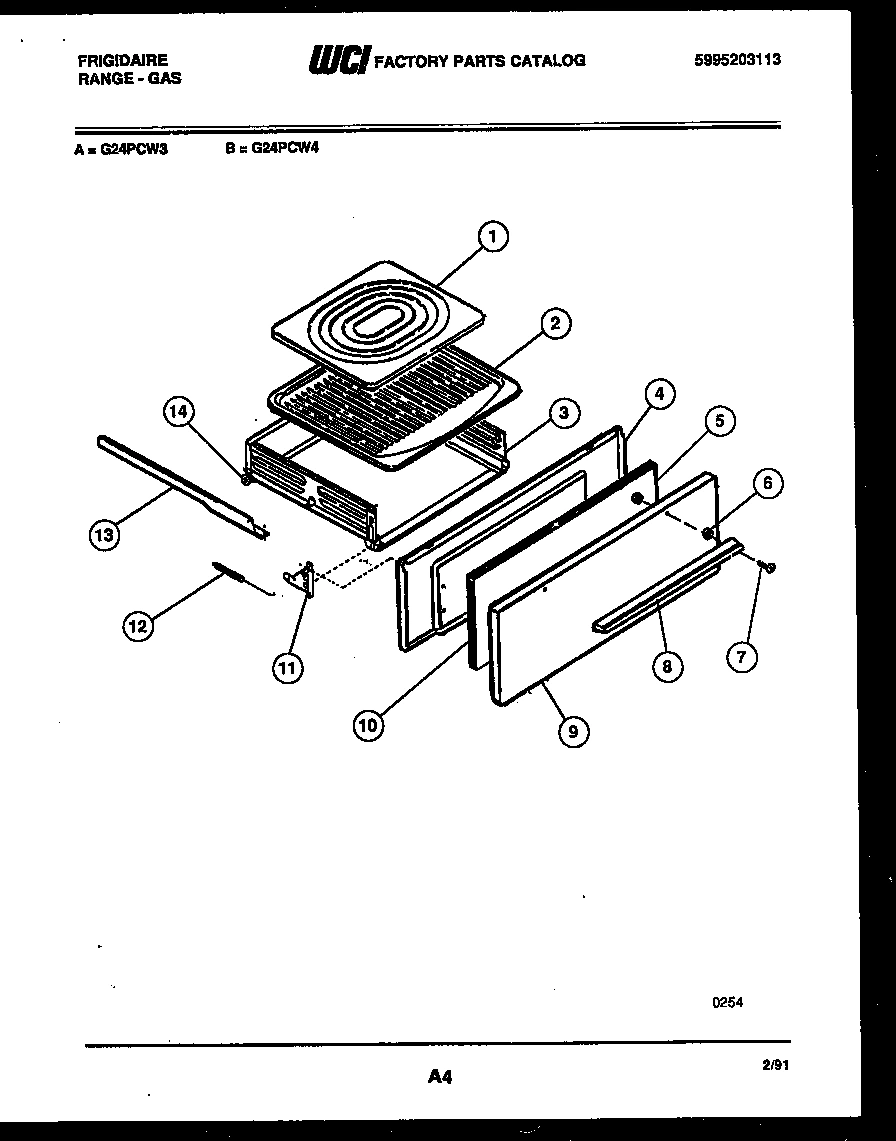

04 - BROILER DRAWER PARTS

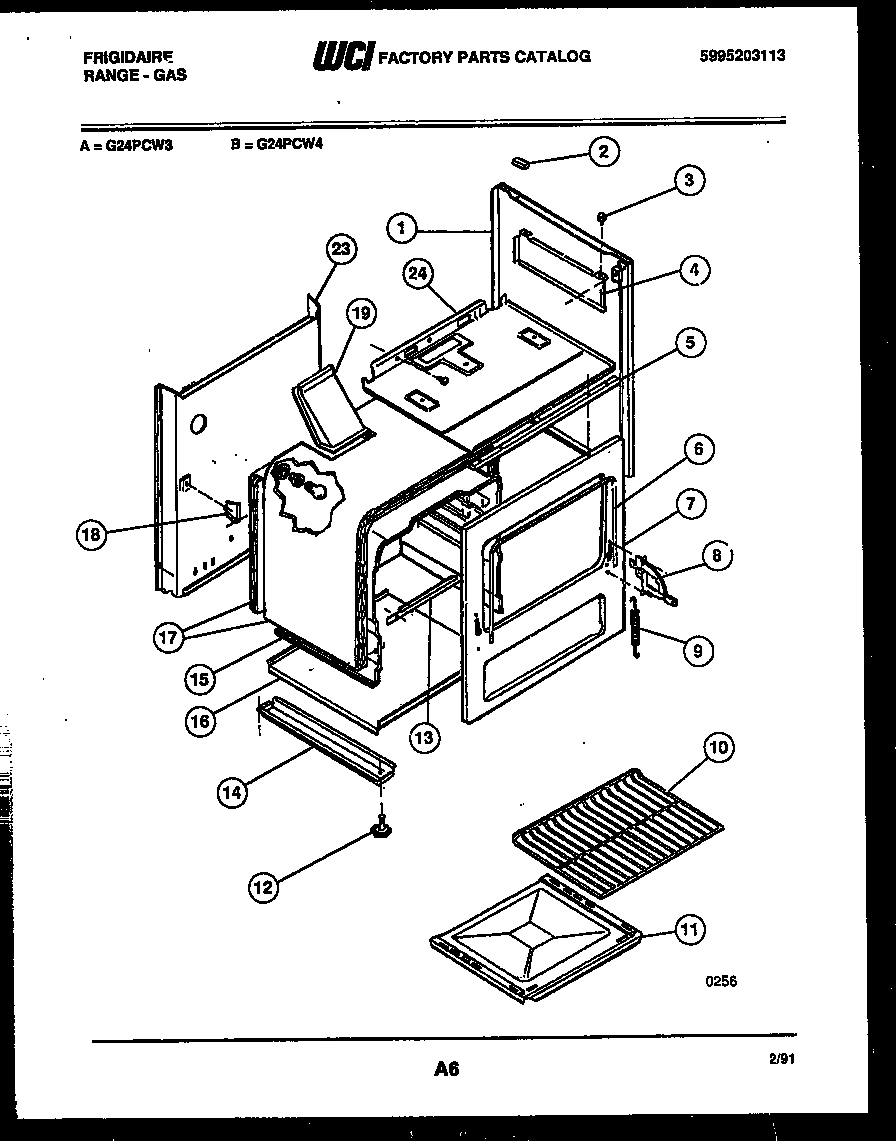

05 - BODY PARTS

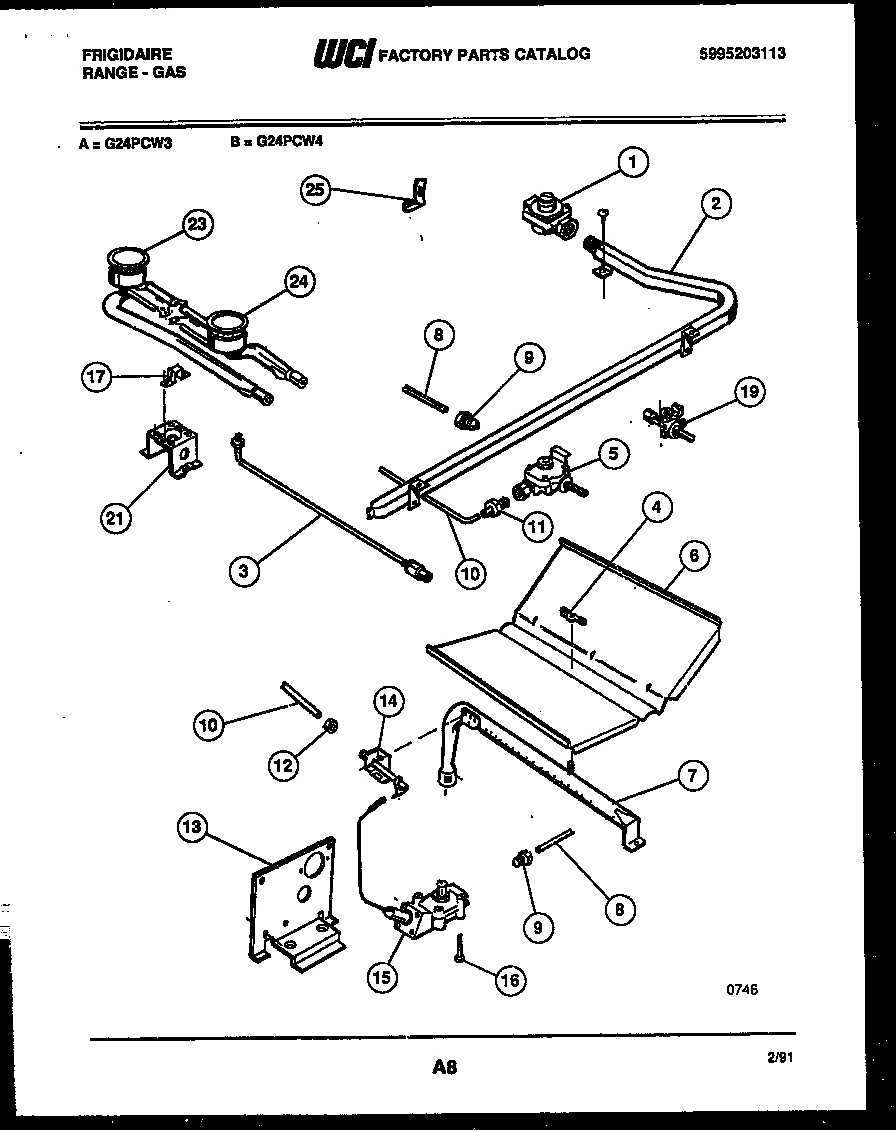

06 - BURNER, MANIFOLD AND GAS CONTROL
Common parts from model Electrolux G24PCL3 RANGE
*13654
ANTI-TIP BRKT WCI 3934059 Contact Us For Availability
1
LINER-DOOR WCI 3017596 Contact Us For Availability
1
WCI 5303017712 WCI 5303017712 Contact Us For Availability
1
WCI 5303051061 WCI 5303051061 Contact Us For Availability
1
PANEL-SIDE-ALMOND (2) WCI 5308014019 Contact Us For Availability
2
INSULATION WCI 3016955 Contact Us For Availability
2
WCI 5303016973 WCI 5303016973 Contact Us For Availability
2
GROMMET-MAIN TOP WCI 08068052 Contact Us For Availability
2
WCI 08014560 WCI 08014560 Contact Us For Availability
3
DRAWER-BROILER WCI 3018263 Contact Us For Availability
3
GROMMET-TOP FRONT (2) WCI 3051063 Contact Us For Availability
3
WCI 5303131075 WCI 5303131075 Contact Us For Availability
4
WCI 3018816 WCI 3018816 Contact Us For Availability
4
WCI 5303131053 WCI 5303131053 Contact Us For Availability
4
NUT - WING WCI 08007979 Contact Us For Availability
4A
WCI 5303131054 WCI 5303131054 Contact Us For Availability
5
WCI 3016950 WCI 3016950 Contact Us For Availability
5
WCI 5308013927 WCI 5308013927 Contact Us For Availability
6
SPACER (2) WCI 5303051041 Contact Us For Availability
6
WCI 5308008085 WCI 5308008085 Contact Us For Availability
6
WCI 5308013916 WCI 5308013916 Contact Us For Availability
6
WCI 5303131061 WCI 5303131061 Contact Us For Availability
7
PANEL-OUTER-ALMOND WCI 08014268 Contact Us For Availability
7
WCI 3017601 WCI 3017601 Contact Us For Availability
7
WCI 5308013855 WCI 5308013855 Contact Us For Availability
8
GRATE-BURNER (4) WCI 08016291 Contact Us For Availability
8
GRATE-BURNER WCI 3131011 Contact Us For Availability
8
WCI 08013881 WCI 08013881 Contact Us For Availability
8
HINGE-OVEN DOOR RH WCI 5303204670 Contact Us For Availability
8
WCI 5303131063 WCI 5303131063 Contact Us For Availability
9
KNBO-THERMOSTAT WCI 5303131018 Contact Us For Availability
9
PANEL-OUTER-ALMOND WCI 08014053 Contact Us For Availability
9
PANEL - OUTER (WHITE) WCI 3204669 Contact Us For Availability
9
SPRING-DOOR (2) WCI 5303051079 Contact Us For Availability
9
WCI 08008363 WCI 08008363 Contact Us For Availability
10
KNOB-TOP VALVE WCI 5308013898 Contact Us For Availability
10
WCI 3017184 WCI 3017184 Contact Us For Availability
10
RACK (2) WCI 5303016128 Contact Us For Availability
10
WCI 5303009490 WCI 5303009490 Contact Us For Availability
11
WCI 3017443 WCI 3017443 Contact Us For Availability
11
HINGE - RH WCI 3131028 Contact Us For Availability
11
PANEL-BOTTOM WCI 3018815 Contact Us For Availability
11
LOXIT-NUT WCI 08008372 Contact Us For Availability
11A
HINGE - LH WCI 5303131029 Contact Us For Availability
12
SPRING (2) WCI 5303131030 Contact Us For Availability
12
SCREW - LEVELING (4) WCI 08068019 Contact Us For Availability
12
NUT WCI 08013910 Contact Us For Availability
13
TRACK - BROILER RH WCI 5303051055 Contact Us For Availability
13
SUPPORT-OVEN BOTTOM WCI 3131038 Contact Us For Availability
13
WCI 3131069 WCI 3131069 Contact Us For Availability
13A
TRACK - BROILER LH WCI 5303051056 Contact Us For Availability
14
WCI 5303051057 WCI 5303051057 Contact Us For Availability
14
RAIL - BASE (2) WCI 3051081 Contact Us For Availability
14
PILOT-OVEN WCI 08013911 Contact Us For Availability
15
WCI 3018284 WCI 3018284 Contact Us For Availability
15
WCI 3018817 WCI 3018817 Contact Us For Availability
15
WCI 3018818 WCI 3018818 Contact Us For Availability
15
WCI 5308013942 WCI 5308013942 Contact Us For Availability
15A
WCI 3018285 WCI 3018285 Contact Us For Availability
16
WCI 3017748 WCI 3017748 Contact Us For Availability
16
WCI 08008361 WCI 08008361 Contact Us For Availability
17
WCI 3017171 WCI 3017171 Contact Us For Availability
17
SHIELD-PILOT WCI 3131078 Contact Us For Availability
17A
WCI 3917172 WCI 3917172 Contact Us For Availability
18
SUPPORT - REAR (2) WCI 08008042 Contact Us For Availability
19
WCI 3017173 WCI 3017173 Contact Us For Availability
19
WCI 5303131057 WCI 5303131057 Contact Us For Availability
21
WCI 5303016870 WCI 5303016870 Contact Us For Availability
23
WCI 5303131079 WCI 5303131079 Contact Us For Availability
23
BACK-MAIN WCI 3017449 Contact Us For Availability
24
WCI 5303131080 WCI 5303131080 Contact Us For Availability
24
BURNER - BOX BOTTOM WCI 3017450 Contact Us For Availability
25
WCI 5300009126 WCI 5300009126 Contact Us For Availability
× ![]()
