Model Electrolux FWX645NBT0 WASHER – Common Parts & Diagrams

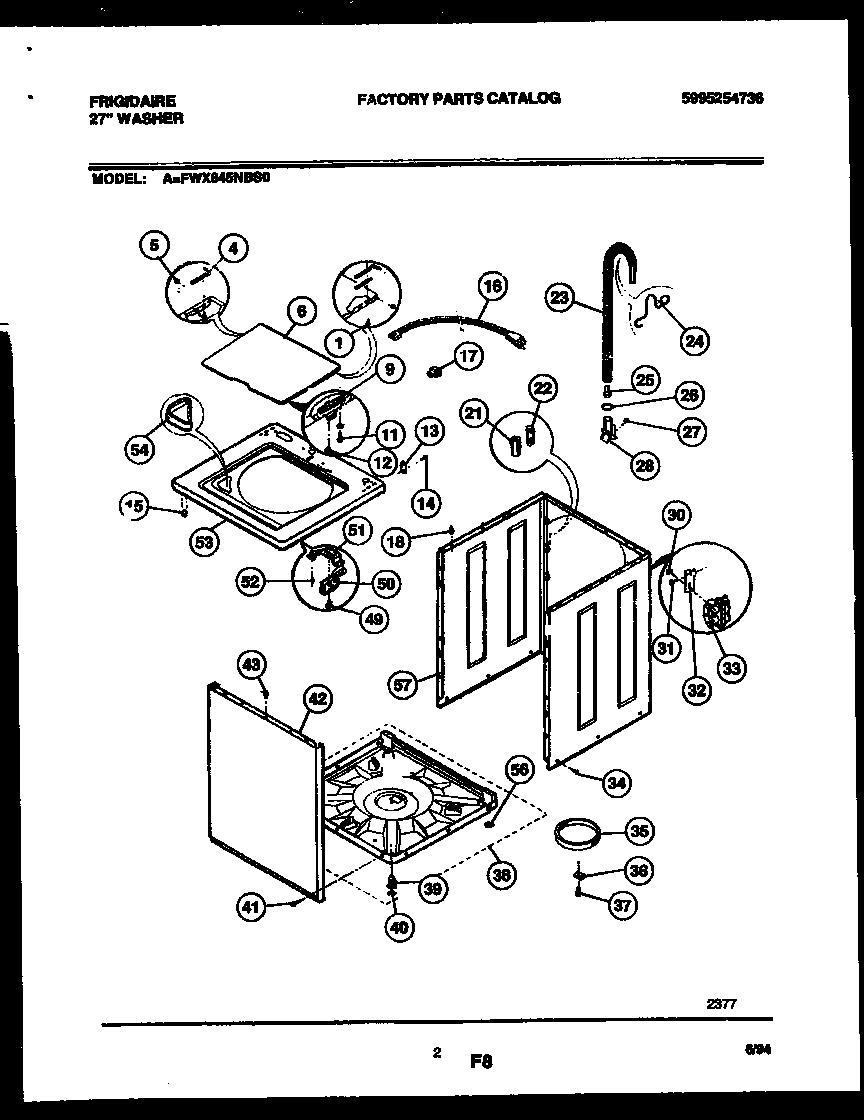

02 - CABINET PARTS

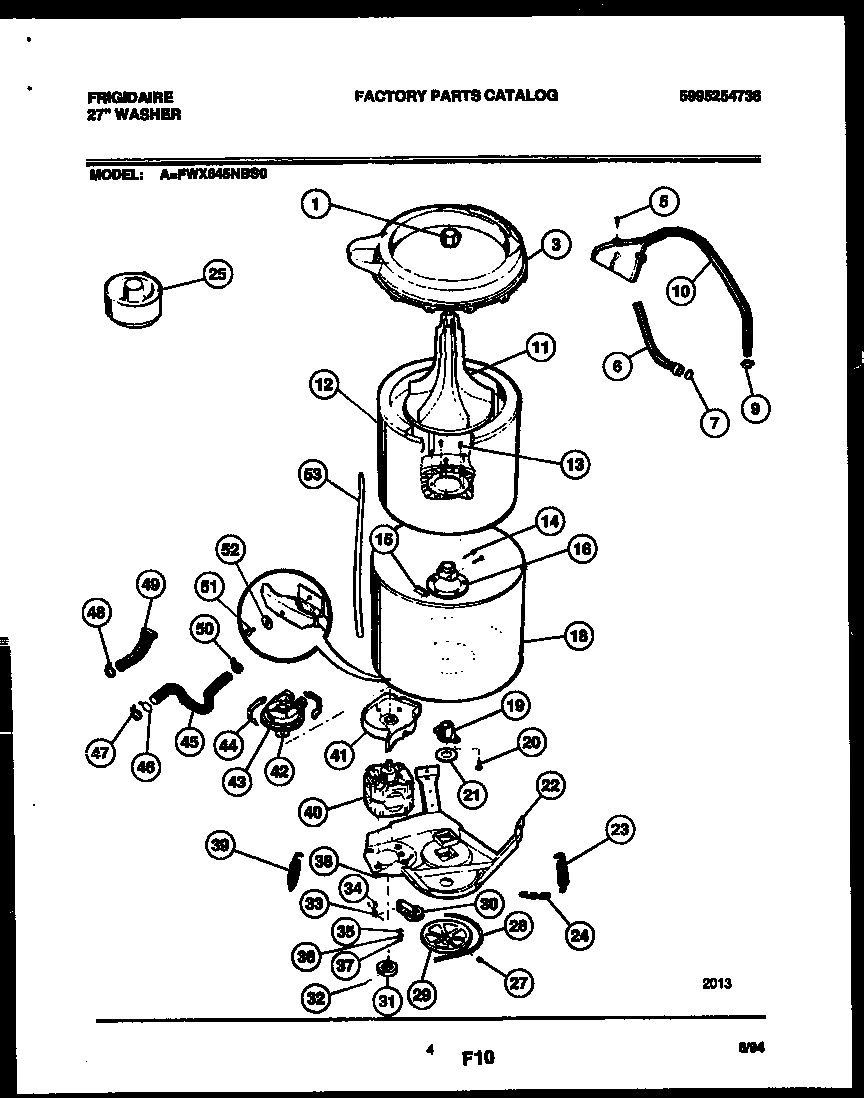

03 - TUB DETAIL

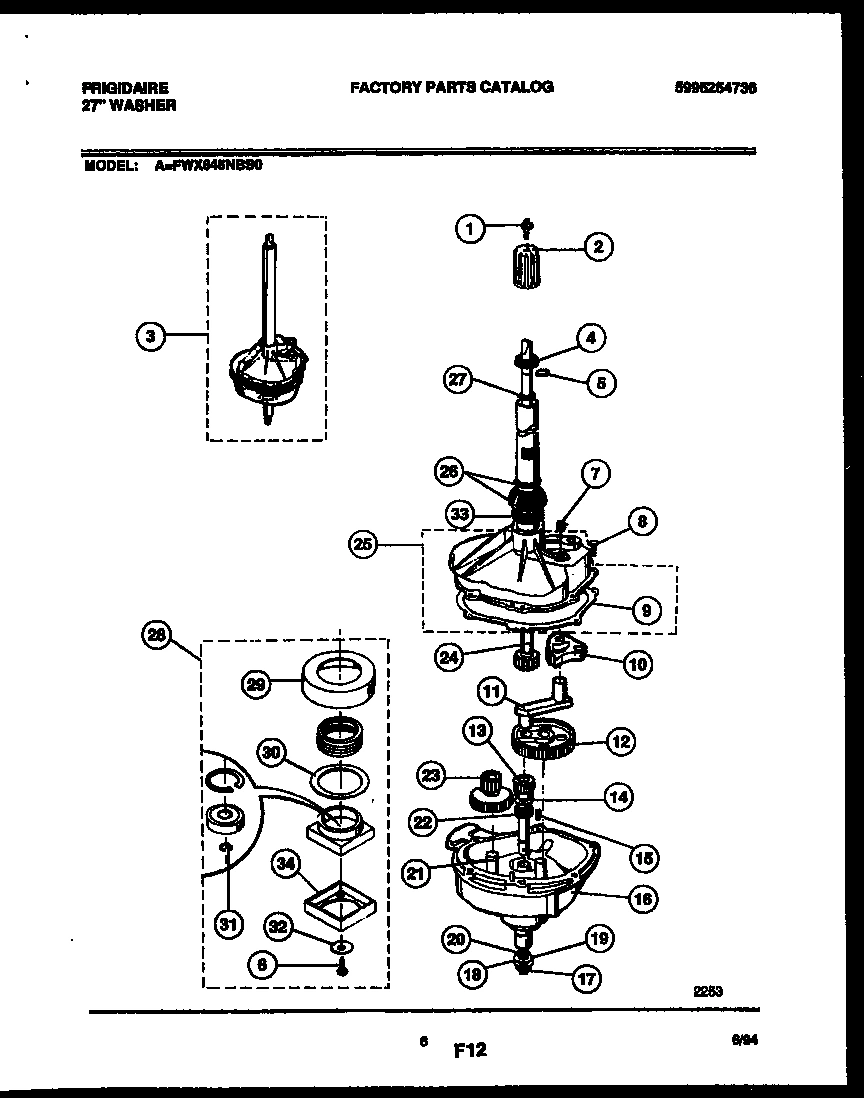

04 - TRANSMISSION PARTS

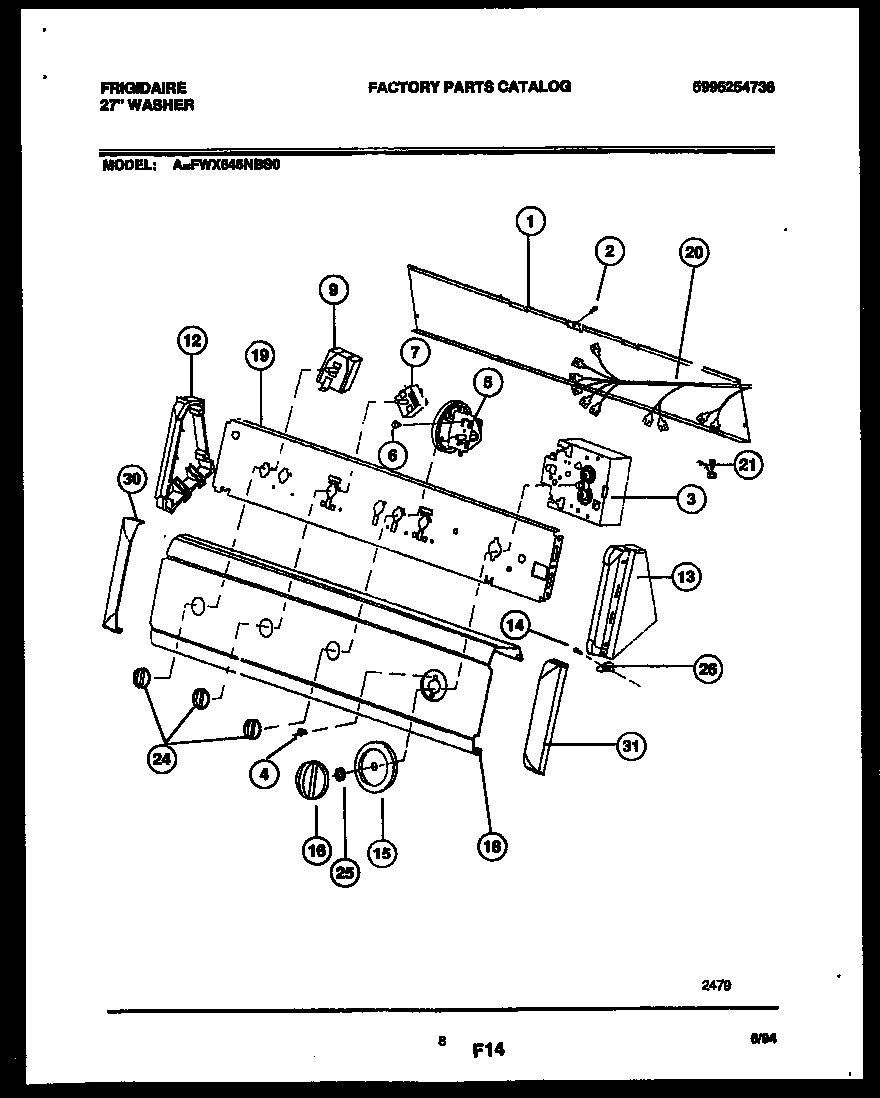

05 - CONSOLE AND CONTROL PARTS
Common parts from model Electrolux FWX645NBT0 WASHER
*10021
WCI 5303212877 WCI 5303212877 Contact Us For Availability
*10022
SWITCH-ROTARY ON/OFF WCI 131243200 Contact Us For Availability
1
WCI 3204395 No Longer Available
1
WCI 3204461 WCI 3204461 Contact Us For Availability
1
BACKSHEET WCI 131141701 Contact Us For Availability
3
WCI 5308057580 WCI 5308057580 Contact Us For Availability
3
WCI 131238300 WCI 131238300 Contact Us For Availability
4
SCREW WCI 3161188 Contact Us For Availability
5
WCI 5303208743 WCI 5303208743 Contact Us For Availability
5
WCI 131047700 WCI 131047700 Contact Us For Availability
6
WCI 5308027582 WCI 5308027582 Contact Us For Availability
7
WCI 5303161224 WCI 5303161224 Contact Us For Availability
7
WCI 131157900 WCI 131157900 Contact Us For Availability
8
SCREW WCI 08002804 Contact Us For Availability
9
GASKET WCI 5308015778 Contact Us For Availability
9
SWITCH-TEMPERATURE WCI 131081200 Contact Us For Availability
10
WCI 5308011268 WCI 5308011268 Contact Us For Availability
11
WCI 3204401 WCI 3204401 Contact Us For Availability
11
WCI 5303161169 WCI 5303161169 Contact Us For Availability
12
WCI 5308015496 WCI 5308015496 Contact Us For Availability
12
WCI 131122712 WCI 131122712 Contact Us For Availability
13
WCI 5303208751 WCI 5303208751 Contact Us For Availability
13
LOWER SHAFT ASSEMBLY WCI 5308014905 Contact Us For Availability
13
WCI 131122702 WCI 131122702 Contact Us For Availability
14
WCI 5303289526 WCI 5303289526 Contact Us For Availability
15
WCI 5303161227 WCI 5303161227 Contact Us For Availability
15
WCI 131140702 WCI 131140702 Contact Us For Availability
16
HOUSING-LOWER WCI 5303912535 Contact Us For Availability
16
WCI 131140602 WCI 131140602 Contact Us For Availability
17
WCI 5303161223 WCI 5303161223 Contact Us For Availability
18
WCI 5308002475 WCI 5308002475 Contact Us For Availability
18
WCI 131347400 WCI 131347400 Contact Us For Availability
19
WCI 5303161226 WCI 5303161226 Contact Us For Availability
19
WCI 131297306 WCI 131297306 Contact Us For Availability
20
WCI 131254200 WCI 131254200 Contact Us For Availability
21
OIL-TRANSMISSION (1 QT) WCI 3005242 Contact Us For Availability
21A
SCREW-GRD-BODY (NON-ILLUSTRATED) WCI 5303281035 Contact Us For Availability
22
SPRING-SMALL L.G.S. WCI 5303161174 Contact Us For Availability
23
DRAIN HOSE WCI 131210200 Contact Us For Availability
23
WCI 5303161175 WCI 5303161175 Contact Us For Availability
24
RETAINER WCI 5303204987 Contact Us For Availability
24
WCI 5308015507 WCI 5308015507 Contact Us For Availability
24
WCI 131141102 WCI 131141102 Contact Us For Availability
25
WCI 5308015493 WCI 5308015493 Contact Us For Availability
25
WCI 3204375 WCI 3204375 Contact Us For Availability
25
FABRIC DISPENSER WCI 3205405 Contact Us For Availability
25
WCI 5303205527 WCI 5303205527 Contact Us For Availability
26
WCI 5303279394 WCI 5303279394 Contact Us For Availability
26
CLIP WCI 131197000 Contact Us For Availability
27
THRUST WASHER WCI 5303161232 Contact Us For Availability
28
HOUSING-BEARING WCI 5308950058 Contact Us For Availability
29
WCI 5303272070 WCI 5303272070 Contact Us For Availability
29
WCI 5303161182 WCI 5303161182 Contact Us For Availability
30
WCI 131312800 WCI 131312800 Contact Us For Availability
30
WCI 5308057430 WCI 5308057430 Contact Us For Availability
30
COVER-L.H.-ALMOND WCI 131122612 Contact Us For Availability
31
WCI 3204423 WCI 3204423 Contact Us For Availability
31
WCI 5308015536 WCI 5308015536 Contact Us For Availability
31
COVER-R.H-ALMOND WCI 131122602 Contact Us For Availability
32
WCI 3204424 WCI 3204424 Contact Us For Availability
32
WCI 5303207426 WCI 5303207426 Contact Us For Availability
33
WCI 3204425 WCI 3204425 Contact Us For Availability
33
SLINGER WCI 5303272073 Contact Us For Availability
34
WCI 3204426 WCI 3204426 Contact Us For Availability
34
WCI 5377009100 WCI 5377009100 Contact Us For Availability
35
SNUBBER RING WCI 5308002385 Contact Us For Availability
36
WCI 5303261031 WCI 5303261031 Contact Us For Availability
37
SPRING WASHER WCI 5303161306 Contact Us For Availability
38
HEX NUT (4) WCI 5303283079 Contact Us For Availability
40
WCI 5303284905 WCI 5303284905 Contact Us For Availability
40A
WCI 5303293588 WCI 5303293588 Contact Us For Availability
41
WCI 131081700 WCI 131081700 Contact Us For Availability
42
WCI 3204451 WCI 3204451 Contact Us For Availability
43
WCI 131208500 WCI 131208500 Contact Us For Availability
44
WCI 3204453 WCI 3204453 Contact Us For Availability
45
WCI 3204454 WCI 3204454 Contact Us For Availability
46
CLIP-HOSE TO LEG WCI 3204455 Contact Us For Availability
49
WCI 5303931759 WCI 5303931759 Contact Us For Availability
50
CLAMP WCI 3204456 Contact Us For Availability
51
WCI 3204459 WCI 3204459 Contact Us For Availability
52
WASHER WCI 131315800 Contact Us For Availability
54
BLEACH DISPENSER WCI 5303208778 Contact Us For Availability
× ![]()
