Model Electrolux FWS545NBT0 WASHER – Common Parts & Diagrams

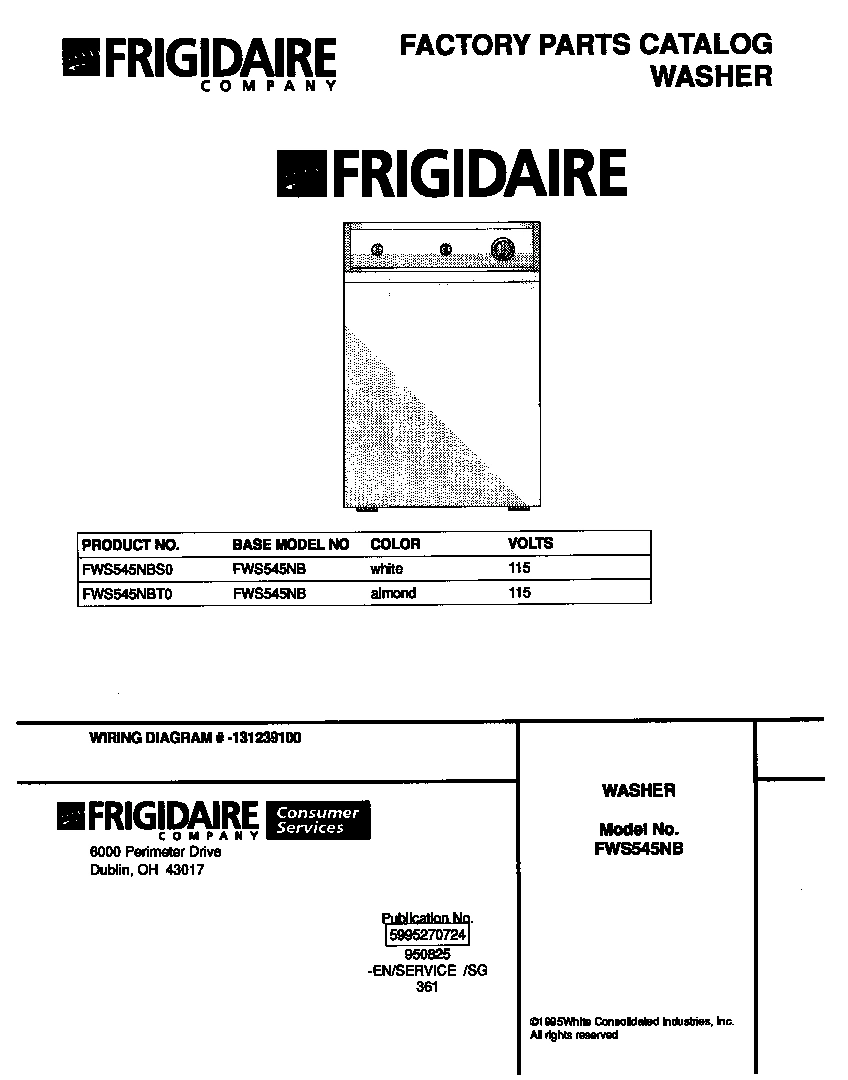

01 - COVER

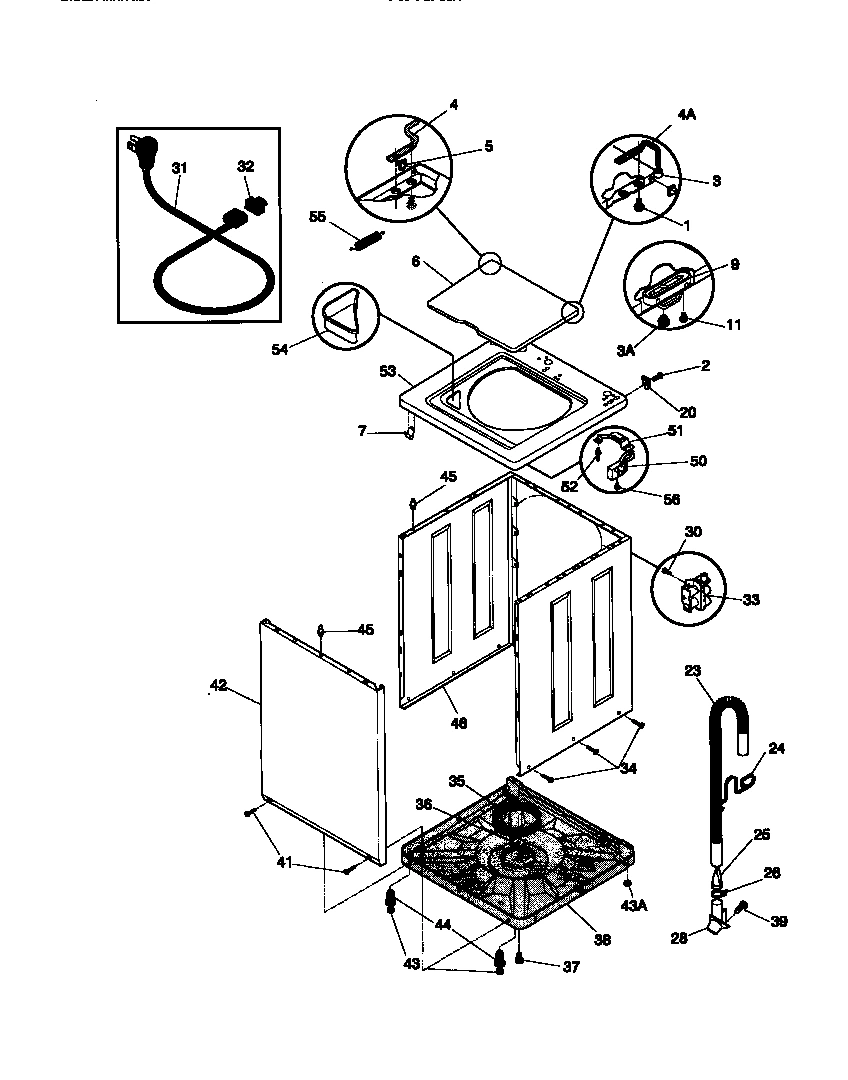

02 - CABINET/TOP

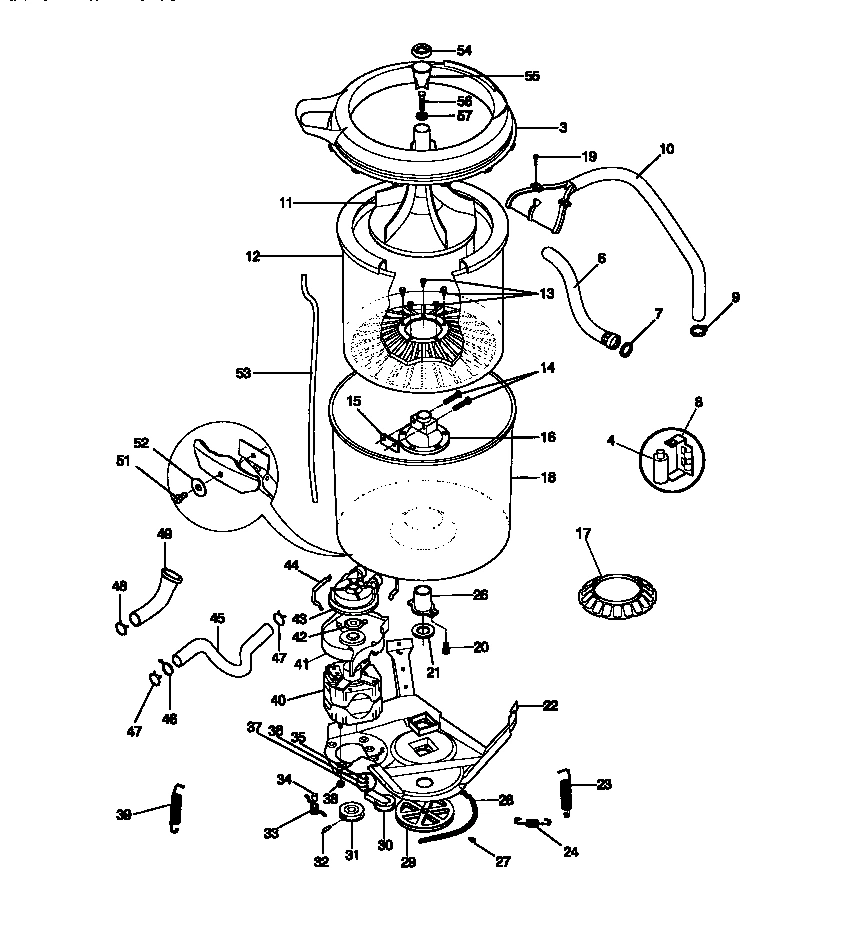

03 - MOTOR/TUB

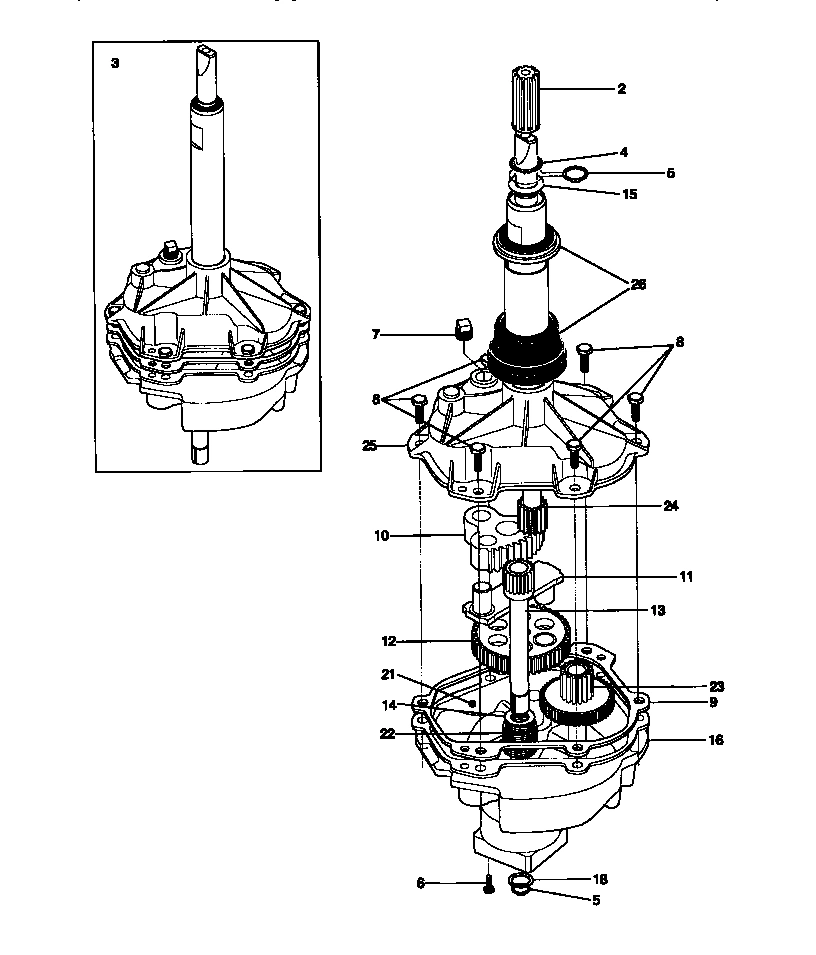

04 - TRANSMISSION

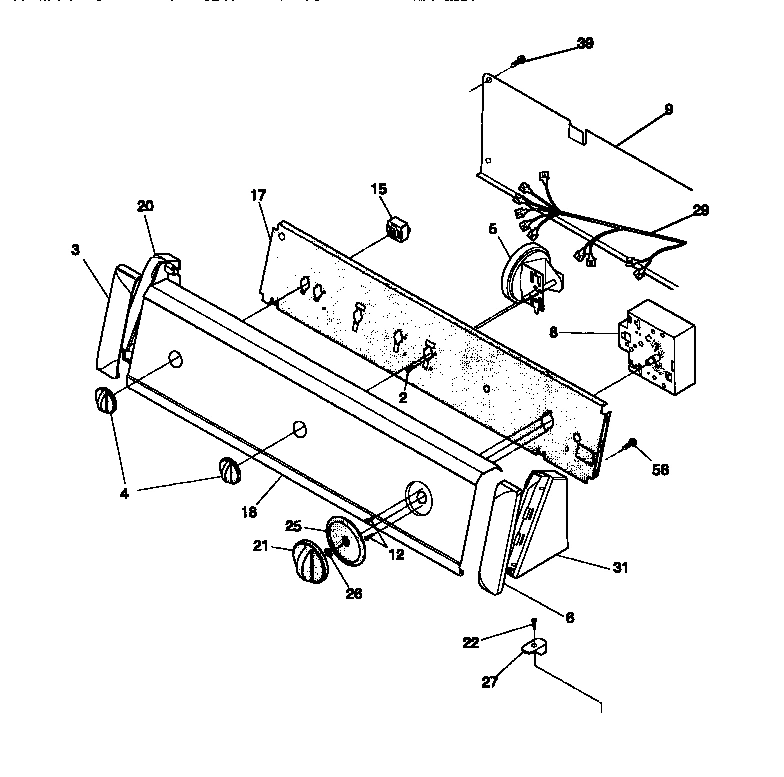

05 - CONTROL PANEL

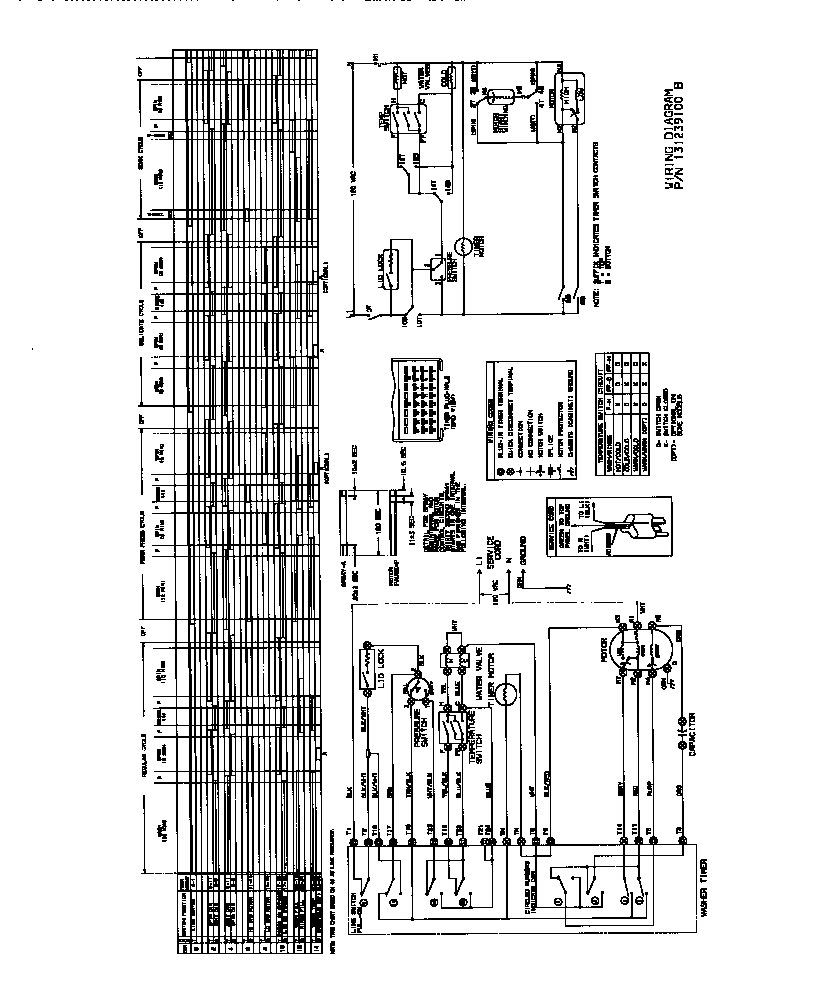

06 - WIRING DIAGRAM
Common parts from model Electrolux FWS545NBT0 WASHER
*16641
INSERT-SPRING ADJ WCI 5303212877 Contact Us For Availability
*16642
WCI 131239100 WCI 131239100 Contact Us For Availability
3
COVER-END CAP, ALMOND, LH WCI 131122612 Contact Us For Availability
4
WCI 131385910 WCI 131385910 Contact Us For Availability
4
WCI 131141102 WCI 131141102 Contact Us For Availability
5
GROMMET-LID WCI 5303208743 Contact Us For Availability
5
RING-RETAINING WCI 5303161223 Contact Us For Availability
6
COVER-END CAP, ALMOND, RH WCI 131122602 Contact Us For Availability
8
WCI 5308002804 WCI 5308002804 Contact Us For Availability
8
WCI 131238100 WCI 131238100 Contact Us For Availability
9
GASKET WCI 5308015778 Contact Us For Availability
9
WCI 131141701 WCI 131141701 Contact Us For Availability
10
GEAR-SECTOR WCI 5308011268 Contact Us For Availability
11
ROD-CONNECTING WCI 5303161169 Contact Us For Availability
12
GEAR-CRANK WCI 5308015496 Contact Us For Availability
12
SCREW-TIMER, PTH ST, 8-32NC-2A X .25 WCI 3161188 Contact Us For Availability
13
SHAFT-LOWER WCI 5308014905 Contact Us For Availability
14
WASHER-THRUST WCI 5303161226 Contact Us For Availability
15
WASHER WCI 5303161232 Contact Us For Availability
15
SWITCH-TEMPERATURE WCI 131081200 Contact Us For Availability
16
WCI 131362000 WCI 131362000 Contact Us For Availability
17
WCI 131297306 WCI 131297306 Contact Us For Availability
18
WASHER-SPACER WCI 5308002475 Contact Us For Availability
18
WCI 131288800 WCI 131288800 Contact Us For Availability
20
HINGE-REAR CABINET WCI 5303208751 Contact Us For Availability
20
END CAP, ALMOND, LH WCI 131122712 Contact Us For Availability
21
OIL-TRANSMISSION (1 QT) WCI 3005242 Contact Us For Availability
21
WCI 131140602 WCI 131140602 Contact Us For Availability
22
WCI 131373610 WCI 131373610 Contact Us For Availability
22
WCI 131417600 WCI 131417600 Contact Us For Availability
22
WCI 131266300 WCI 131266300 Contact Us For Availability
23
WCI 131210200 WCI 131210200 Contact Us For Availability
23
GEAR-IDLER WCI 5303161175 Contact Us For Availability
24
WCI 131373900 WCI 131373900 Contact Us For Availability
24
RETAINER-DRAIN HOSE WCI 5303204987 Contact Us For Availability
25
VALVE CHECK WCI 3204375 Contact Us For Availability
25
WCI 5303294437 WCI 5303294437 Contact Us For Availability
25
WCI 131140702 WCI 131140702 Contact Us For Availability
26
SEAL-TUB WCI 5303279394 Contact Us For Availability
26
WCI 5308015493 WCI 5308015493 Contact Us For Availability
27
WCI 131197000 WCI 131197000 Contact Us For Availability
29
HARNESS-WIRING, WASHER WCI 131166100 Contact Us For Availability
31
WCI 3204423 WCI 3204423 Contact Us For Availability
31
END CAP, ALMOND, RH WCI 131122702 Contact Us For Availability
32
PIN-ROLL WCI 3204424 Contact Us For Availability
33
WCI 3204425 WCI 3204425 Contact Us For Availability
35
WCI 5308002385 WCI 5308002385 Contact Us For Availability
36
WCI 5303261031 WCI 5303261031 Contact Us For Availability
37
WASHER-SPRING WCI 5303161306 Contact Us For Availability
43
WCI 131422100 WCI 131422100 Contact Us For Availability
45
WCI 131346400 WCI 131346400 Contact Us For Availability
45
HOSE-PMP TO COUPLER WCI 3204454 Contact Us For Availability
49
WCI 3204458 WCI 3204458 Contact Us For Availability
54
WCI 131266800 WCI 131266800 Contact Us For Availability
54
WCI 5303208778 WCI 5303208778 Contact Us For Availability
55
WCI 131206100 WCI 131206100 Contact Us For Availability
56A
WCI 131468900 WCI 131468900 Contact Us For Availability
× ![]()
