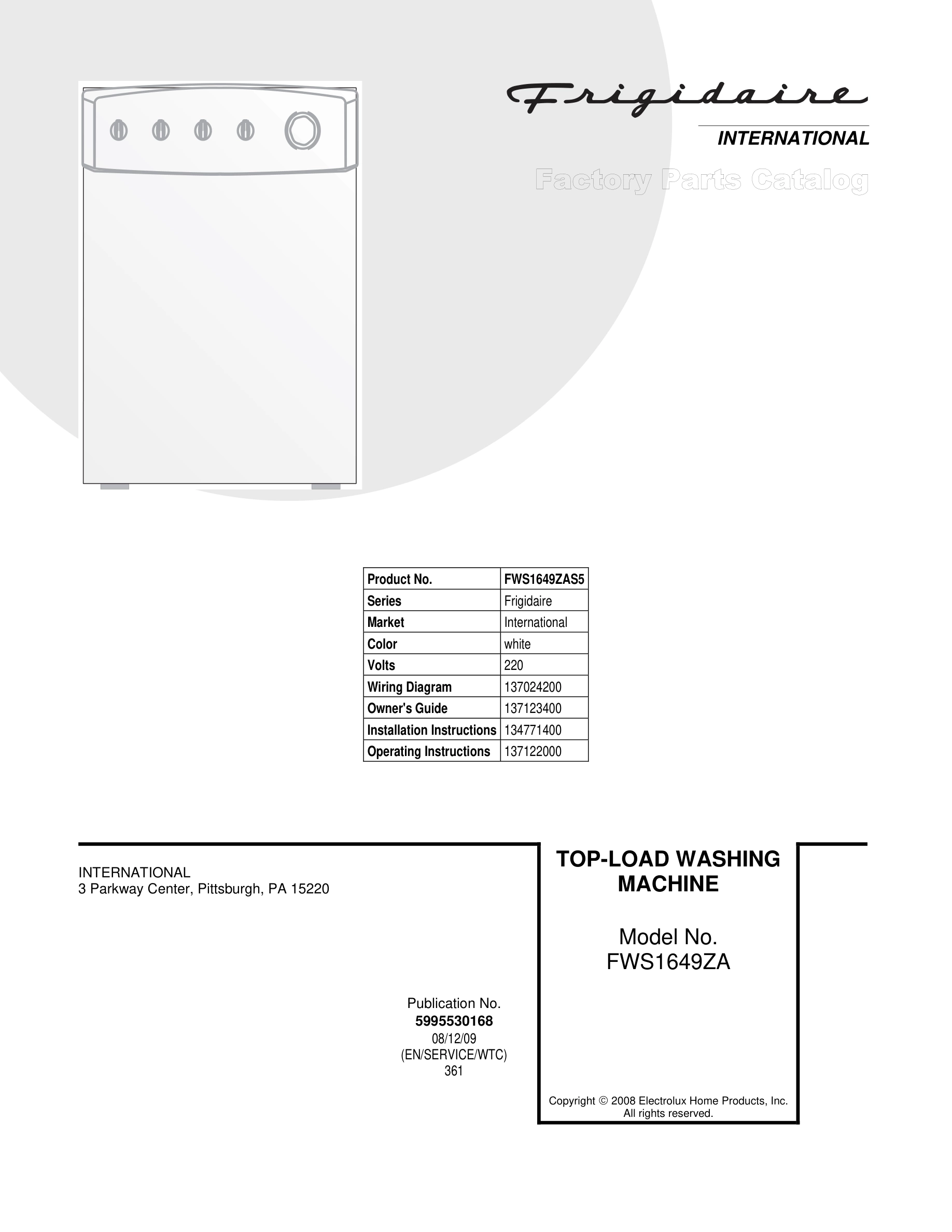

Model Frigidaire FWS1649ZAS5 WASHER – Common Parts & Diagrams
01 - COVER

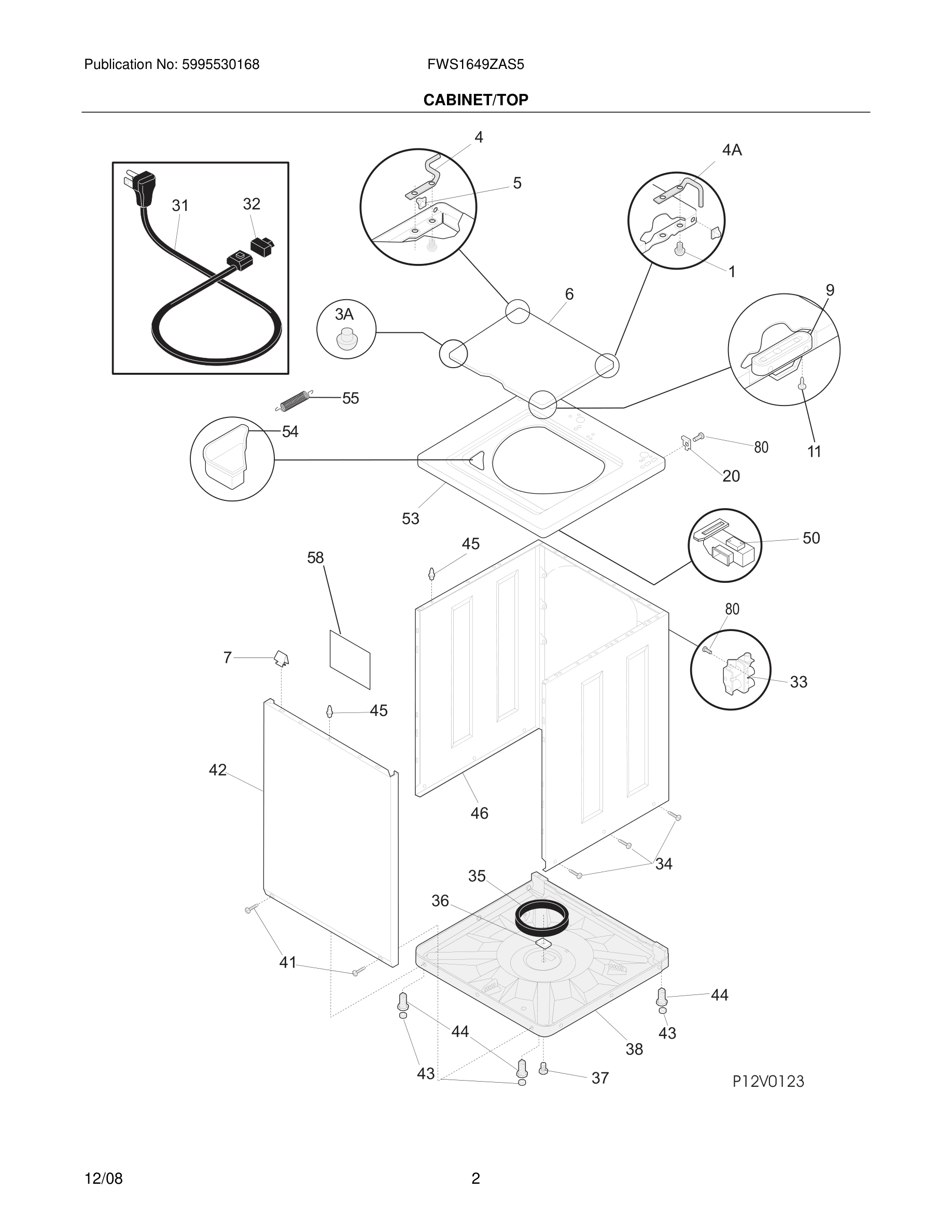

03 - CABINET/TOP
05 - MOTOR/TUB
07 - TRANSMISSION
09 - CONTROL/PANEL
10 - WIRING DIAGRAM
11 - WIRING DIAGRAM
Common parts from model Frigidaire FWS1649ZAS5 WASHER
2#
Hub, drive, agitator WCI 134418700 Contact Us For Availability
3#
Transmission, service kit WCI 134737100 Contact Us For Availability
4
Hinge Bar, LH WCI 131385910 Contact Us For Availability
5
Grommet, hinge WCI 5303208743 Contact Us For Availability
6
Screw, hex washer head, 1/4-20 x 0.437 WCI 134197900 Contact Us For Availability
11
Closure, console trim, white, front WCI 134019900 Contact Us For Availability
15#
Switch, temperature, 4 posn rotary WCI 134409000 Contact Us For Availability
16
Trunnion WCI 131545101 Contact Us For Availability
17
Bracket, control mtg. WCI 131993040 Contact Us For Availability
18
Tub, splash, w/air dome, brg WCI 131557201 Contact Us For Availability
20
Hinge, top panel, cabinet rear WCI 5303208751 Contact Us For Availability
21
Knob, timer, white, assy WCI 134035200 Contact Us For Availability
22
Leg & Dome Assy WCI 131373610 Contact Us For Availability
22
Screw, 8-18 x 1.250 WCI 131266330 Contact Us For Availability
23*
Insert, spring adjuster, vertical WCI 5303212877 Contact Us For Availability
24
Spring, horizontal WCI 131373900 Contact Us For Availability
25
Pointer, timer knob, white, dark gray ind WCI 134035100 Contact Us For Availability
26#
Seal Assy, tub, transmission WCI 5303279394 Contact Us For Availability
27
Clip, console mtg WCI 131197000 Contact Us For Availability
29#
Pulley, xmsn drive WCI 131498301 Contact Us For Availability
30#
Idler Arm Assy, VAW, with pulley WCI 131862900 Contact Us For Availability
33
Spring, torsional WCI 3204425 Contact Us For Availability
33#
Valve, water, 230 V, low pressure WCI 131461300 Contact Us For Availability
35
Snubber Ring WCI 5308002385 Contact Us For Availability
36
Washer, pivot shaft WCI 5303261031 Contact Us For Availability
37
Washer, spring type WCI 5303161306 Contact Us For Availability
38
Nut, hex flange, motor mounting WCI 5303318708 Contact Us For Availability
38
Base Assembly WCI 134773500 Contact Us For Availability
40#
Motor, 3/4 hp, 2 speed, with pulley WCI 134157100 Contact Us For Availability
42
Panel, front, white WCI 131104303 Contact Us For Availability
43
Pad, leveling leg WCI 131422100 Contact Us For Availability
43#
Pump, drain, 50 Hz WCI 134051300 Contact Us For Availability
45
Pin, panel locator WCI 131346400 Contact Us For Availability
45*
Cushion, drain hose, base WCI 131663500 Contact Us For Availability
51
Screw, hex washer head, 5/16-18 x 0.625 WCI 134164400 No Longer Available
54
Dispenser, bleach WCI 5303208778 Contact Us For Availability
56
Screw, agitator mtg, 5/16-18 x 1.250 WCI 131468900 Contact Us For Availability
66
Agitator Cap Assy, dispenser cup, dual action WCI 131624500 Contact Us For Availability
67
Mechanism, disp cap assy, dual action WCI 131606210 Contact Us For Availability
× ![]()
