Model Frigidaire FWS1649ZAS5 WASHER – Common Parts & Diagrams

2#
Hub, drive, agitator
Hub, drive, agitator WCI 134418700 Contact Us For Availability
View on Model
3#

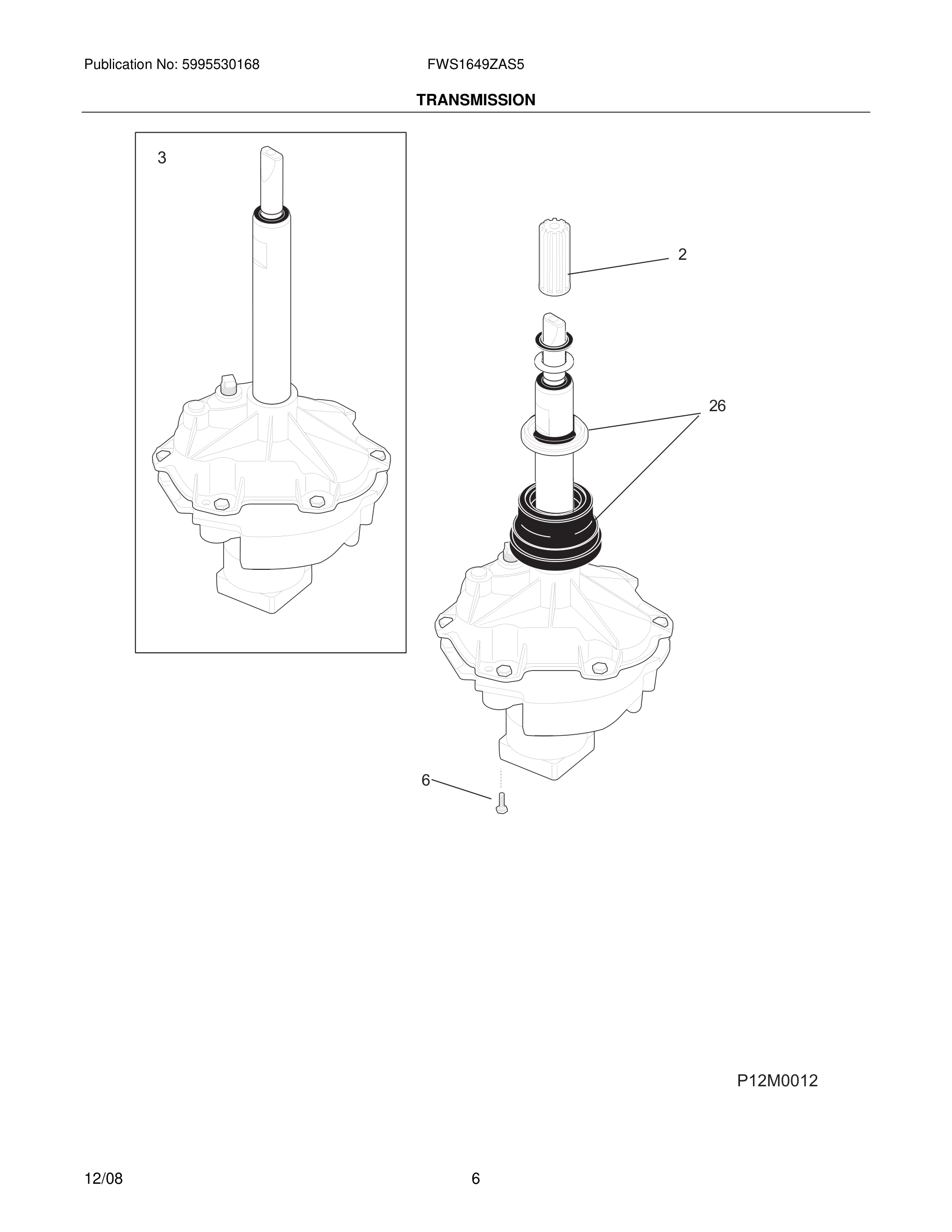

Transmission, service kit
Transmission, service kit WCI 134737100 No Longer Available
View on Model
4
Hinge Bar, LH
Hinge Bar, LH WCI 131385910 Contact Us For Availability
View on Model
6
Screw, hex washer head, 1/4-20 x 0.437
Screw, hex washer head, 1/4-20 x 0.437 WCI 134197900 Contact Us For Availability
View on Model
11

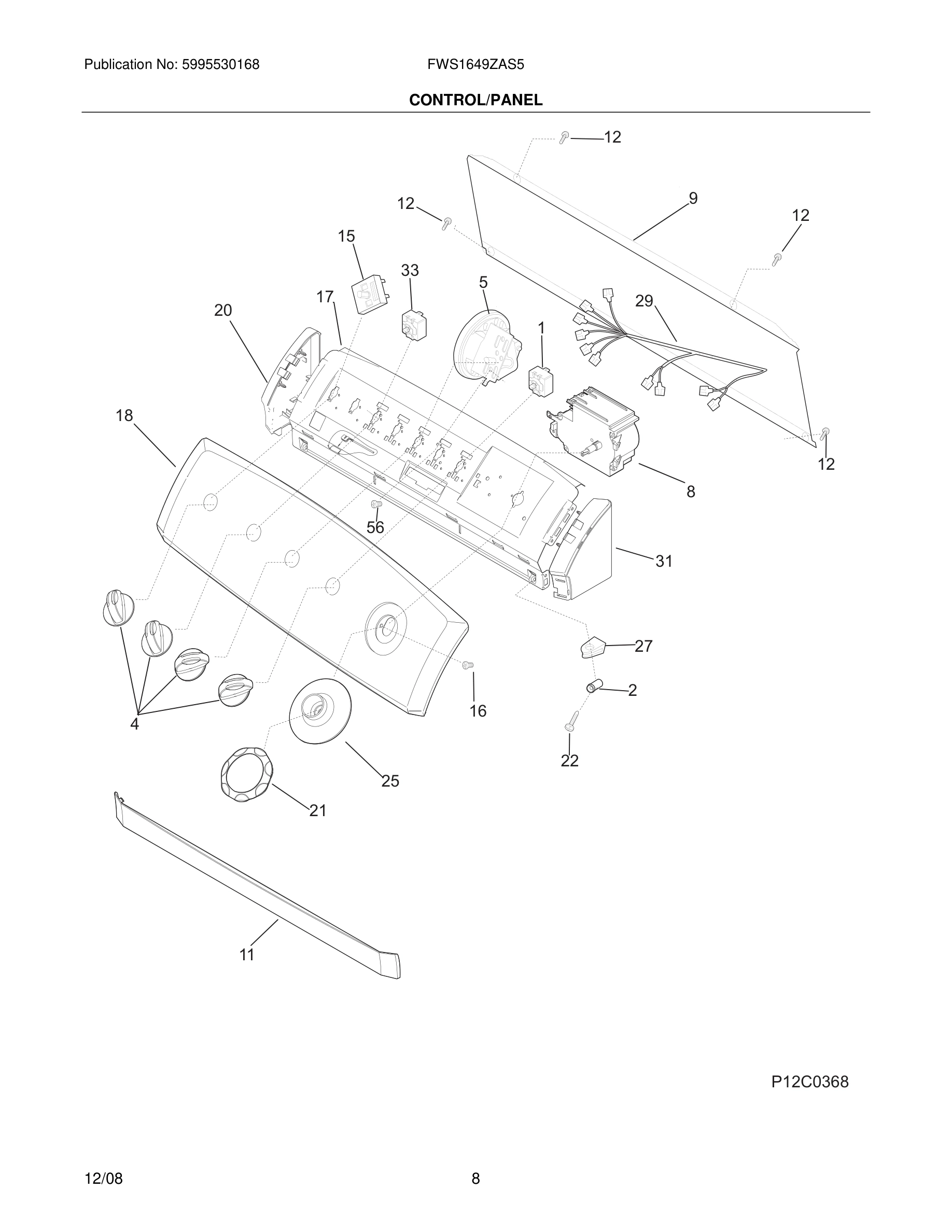

Closure, console trim, white, front
Closure, console trim, white, front WCI 134019900 Contact Us For Availability
View on Model
15#
Switch, temperature, 4 posn rotary
Switch, temperature, 4 posn rotary WCI 134409000 Contact Us For Availability
View on Model
17
Bracket, control mtg.
Bracket, control mtg. WCI 131993040 Contact Us For Availability
View on Model
18
Tub, splash, w/air dome, brg
Tub, splash, w/air dome, brg WCI 131557201 Contact Us For Availability
View on Model
20
Hinge, top panel, cabinet rear
Hinge, top panel, cabinet rear WCI 5303208751 Contact Us For Availability
View on Model
21
Knob, timer, white, assy
Knob, timer, white, assy WCI 134035200 Contact Us For Availability
View on Model
22
Leg & Dome Assy
Leg & Dome Assy WCI 131373610 Contact Us For Availability
View on Model
22
Screw, 8-18 x 1.250
Screw, 8-18 x 1.250 WCI 131266330 Contact Us For Availability
View on Model
23*
Insert, spring adjuster, vertical
Insert, spring adjuster, vertical WCI 5303212877 Contact Us For Availability
View on Model
24
Spring, horizontal
Spring, horizontal WCI 131373900 Contact Us For Availability
View on Model
25
Pointer, timer knob, white, dark gray ind
Pointer, timer knob, white, dark gray ind WCI 134035100 Contact Us For Availability
View on Model
26#
Seal Assy, tub, transmission
Seal Assy, tub, transmission WCI 5303279394 Contact Us For Availability
View on Model
27
Clip, console mtg
Clip, console mtg WCI 131197000 Contact Us For Availability
View on Model
29#
Pulley, xmsn drive
Pulley, xmsn drive WCI 131498301 Contact Us For Availability
View on Model
30#
Idler Arm Assy, VAW, with pulley
Idler Arm Assy, VAW, with pulley WCI 131862900 Contact Us For Availability
View on Model
33
Spring, torsional
Spring, torsional WCI 3204425 No Longer Available
View on Model
33#
Valve, water, 230 V, low pressure
Valve, water, 230 V, low pressure WCI 131461300 Contact Us For Availability
View on Model
35
Snubber Ring
Snubber Ring WCI 5308002385 Contact Us For Availability
View on Model
36
Washer, pivot shaft
Washer, pivot shaft WCI 5303261031 Contact Us For Availability
View on Model
37
Washer, spring type
Washer, spring type WCI 5303161306 Contact Us For Availability
View on Model
38
Nut, hex flange, motor mounting
Nut, hex flange, motor mounting WCI 5303318708 Contact Us For Availability
View on Model
38
Base Assembly
Base Assembly WCI 134773500 Contact Us For Availability
View on Model
40#

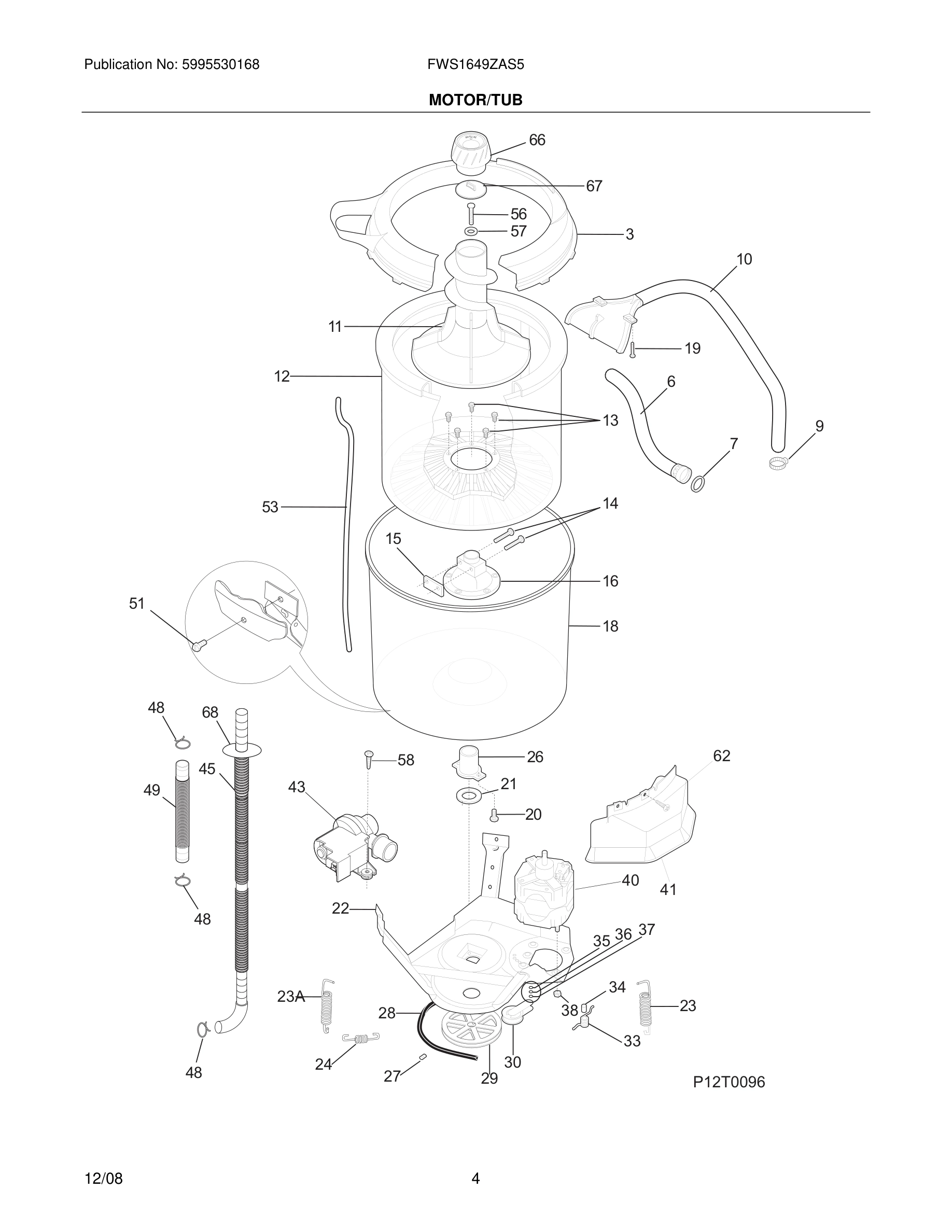

Motor, 3/4 hp, 2 speed, with pulley
Motor, 3/4 hp, 2 speed, with pulley WCI 134157100 Contact Us For Availability
View on Model
42
Panel, front, white
Panel, front, white WCI 131104303 Contact Us For Availability
View on Model
43
Pad, leveling leg
Pad, leveling leg WCI 131422100 Contact Us For Availability
View on Model
43#
Pump, drain, 50 Hz
Pump, drain, 50 Hz WCI 134051300 Contact Us For Availability
View on Model
45
Pin, panel locator
Pin, panel locator WCI 131346400 Contact Us For Availability
View on Model
45*
Cushion, drain hose, base
Cushion, drain hose, base WCI 131663500 Contact Us For Availability
View on Model
51
Screw, hex washer head, 5/16-18 x 0.625
Screw, hex washer head, 5/16-18 x 0.625 WCI 134164400 No Longer Available
View on Model
54
Dispenser, bleach
Dispenser, bleach WCI 5303208778 Contact Us For Availability
View on Model
56
Screw, agitator mtg, 5/16-18 x 1.250
Screw, agitator mtg, 5/16-18 x 1.250 WCI 131468900 Contact Us For Availability
View on Model
66
Agitator Cap Assy, dispenser cup, dual action
Agitator Cap Assy, dispenser cup, dual action WCI 131624500 Contact Us For Availability
View on Model
67
Mechanism, disp cap assy, dual action
Mechanism, disp cap assy, dual action WCI 131606210 Contact Us For Availability
View on Model
