Model Whirlpool FV8100XS0 UPRIGHT VACUUM CLEANER – Common Parts & Diagrams

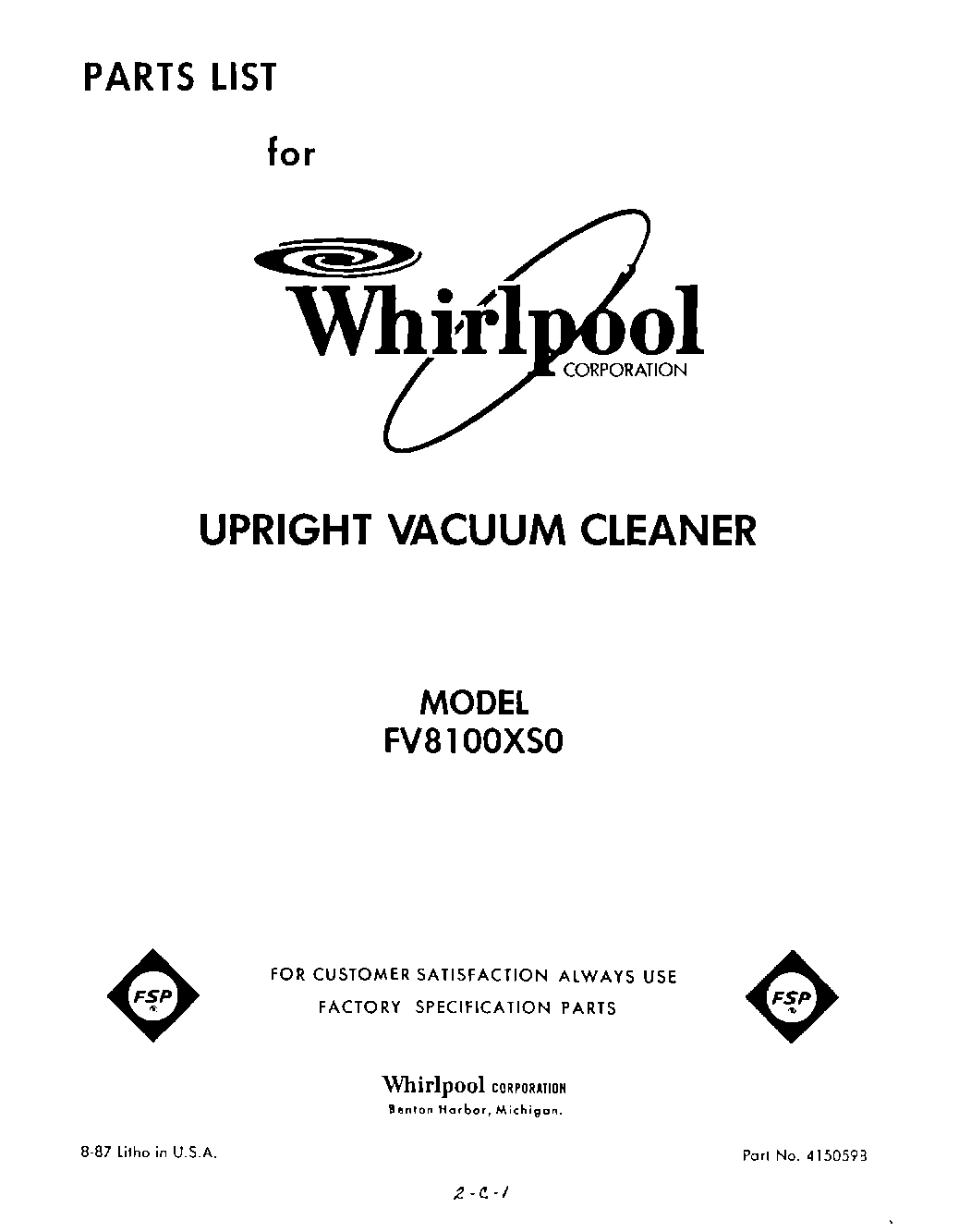

01 - SECTION

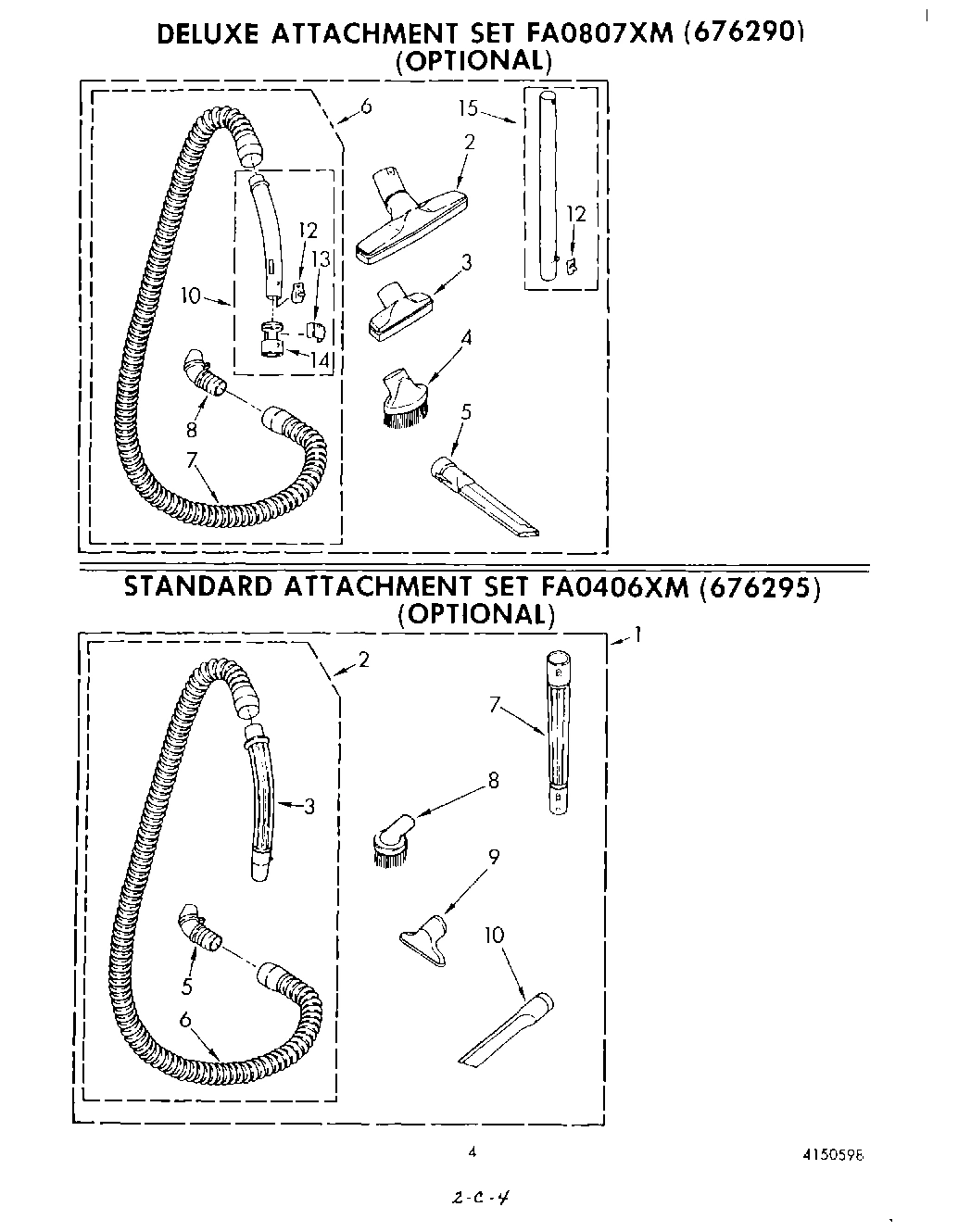

03 - SECTION

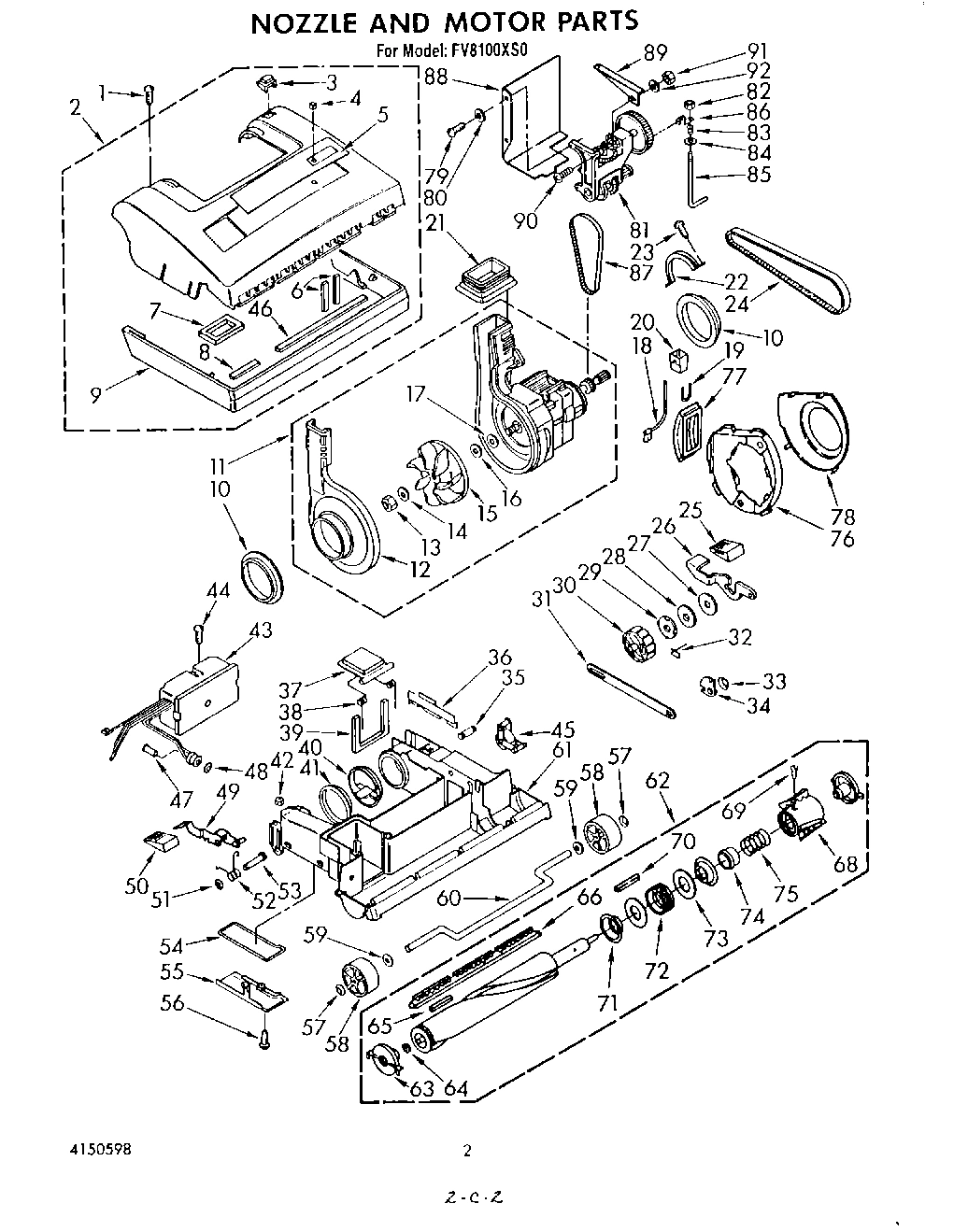

02 - SECTION

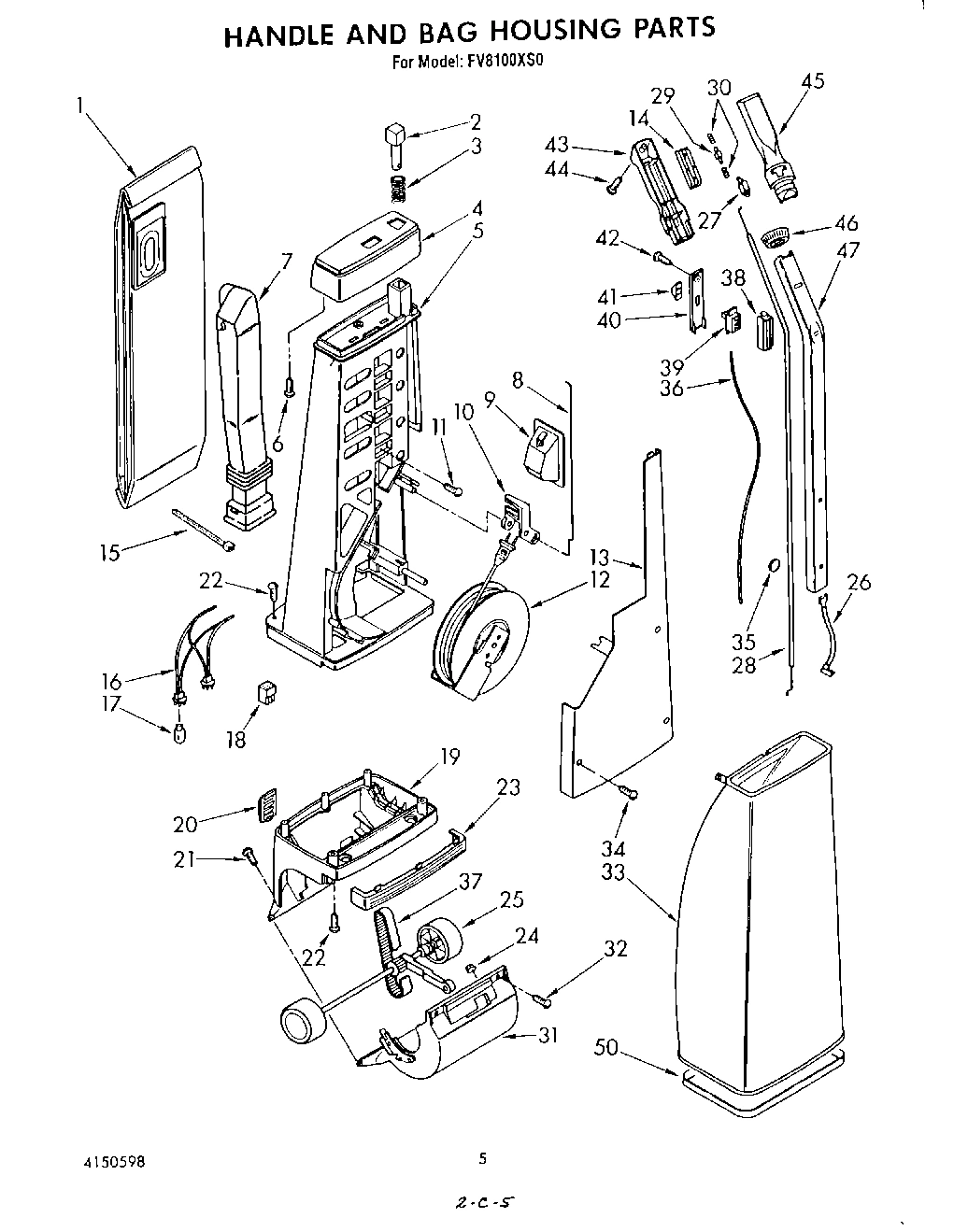

04 - SECTION
Common parts from model Whirlpool FV8100XS0 UPRIGHT VACUUM CLEANER
1
Attachment Set, Deluxe WPL ARI57860A4 Contact Us For Availability
1
Attachment Set, Standard WPL ARI57861A6 Contact Us For Availability
1
Bag, Dust (Pkg. of 3) WPL 4148400 Contact Us For Availability
1
bag, dust (pkg. of 12) WPL 676377 Contact Us For Availability
2
Brush, Floor WPL 744141 Contact Us For Availability
2
Hose Assembly WPL 745115 Contact Us For Availability
2
hood assembly WPL 4147878 Contact Us For Availability
2
Button, Cord Release WPL 4147860 Contact Us For Availability
3
Nozzle, Upholstery WPL 744144 Contact Us For Availability
3
Handle, Curved Plastic WPL 745116 Contact Us For Availability
3
Lens, Height Adjust WPL 744614 Contact Us For Availability
3
Spring, Button WPL 744683 Contact Us For Availability
4
Brush, Dusting WPL 744146 Contact Us For Availability
4
Lens, Solid State WPL 744825 Contact Us For Availability
4
Top, Bag WPL 4147867 Contact Us For Availability
5
tool, crevice WPL 74140 Contact Us For Availability
5
nameplate WPL 4147879 Contact Us For Availability
5
Frame, Bag (See Note) WPL 4147353 Contact Us For Availability
6
Hose WPL 744234 Contact Us For Availability
6
Hose Assembly WPL 745109 Contact Us For Availability
6
Gasket, 1-5/8`` (2) WPL 744615 Contact Us For Availability
7
Hose WPL 744788 Contact Us For Availability
7
Wand, Plastic (2) WPL 745114 Contact Us For Availability
7
Gasket WPL 745338 Contact Us For Availability
7
Tube, Filler WPL 4147968 Contact Us For Availability
8
Terminal WPL 745107 Contact Us For Availability
8
Brush, Dusting WPL 745113 Contact Us For Availability
8
Gasket, 4`` WPL 745337 Contact Us For Availability
8
Rod, Actuator (See Note) WPL 744681 Contact Us For Availability
9
Tool, Fabric WPL 745112 Contact Us For Availability
9
Bumper WPL 4147813 Contact Us For Availability
9
Trim, Power Cord WPL 4147862 Contact Us For Availability
10
Tool, Crevice WPL 744140 Contact Us For Availability
10
Curved Handle Assembly WPL 744222 Contact Us For Availability
10
Ring, Rubber (2) WPL 744584 Contact Us For Availability
10
Lock, Cord (See Note) WPL 744682 Contact Us For Availability
11
motor WPL 705334 Contact Us For Availability
11
Screw, 8x 3/8 (2) WPL 681663 Contact Us For Availability
12
Spring, Wandlock WPL 725419 Contact Us For Availability
12
Cover, Impeller WPL 744572 Contact Us For Availability
12
Reel, Cord (See Note) WPL 4147940 Contact Us For Availability
13
Band, Suction Control WPL 744224 Contact Us For Availability
13
Nut, 5/16-24 WPL 681664 Contact Us For Availability
13
Cover, Cord Reel (See Note) WPL 744674 Contact Us For Availability
14
Holder, Control Band WPL 744228 Contact Us For Availability
14
holder, spring WPL 745212 Contact Us For Availability
15
Wand (2) WPL 742489 Contact Us For Availability
15
Impeller WPL 4147666 Contact Us For Availability
16
Washer, Fiber WPL 681660 Contact Us For Availability
16
socket, bulk WPL 4147392 Contact Us For Availability
17
Washer, Metal WPL 681659 Contact Us For Availability
17
bulk, light (pkg. of 2) WPL 745362 Contact Us For Availability
18
lead, wire (blue) WPL 4147285 Contact Us For Availability
18
Lead, Wire (Orange) WPL 745102 Contact Us For Availability
18
Cap, Insulator WPL 596819 Contact Us For Availability
19
Jumper, Wire (Red) WPL 745104 Contact Us For Availability
19
Housing, Rear WPL 4147851 Contact Us For Availability
20
Plug, Insulator WPL 596818 Contact Us For Availability
20
Door, Vent WPL 4147821 Contact Us For Availability
21
Boot, Tube WPL 744588 Contact Us For Availability
22
Bracket, Motor WPL 744659 Contact Us For Availability
23
Lens, Light WPL 744641 Contact Us For Availability
24
Belt (Pkg. of 1) WPL 744634 Contact Us For Availability
25
Pad, Height Adjust WPL 4147815 Contact Us For Availability
25
axle, rear WPL 4147872 Contact Us For Availability
26
Lever, Height Adjust WPL 744531 Contact Us For Availability
26
Lead, Wire (Black) WPL 4148248 Contact Us For Availability
27
Washer, Thrust WPL 722909 Contact Us For Availability
27
lock, button WPL 744818 Contact Us For Availability
28
Washer, Foam WPL 725635 Contact Us For Availability
28
cable WPL 745211 Contact Us For Availability
29
Catch, Indexing WPL 722955 Contact Us For Availability
29
piston, spring WPL 745210 Contact Us For Availability
30
Indicator Cam WPL 744536 Contact Us For Availability
30
spring, handle WPL 745182 Contact Us For Availability
31
Push Rod WPL 744539 Contact Us For Availability
31
Housing, Front (Includes Illus. 24) WPL 4147806 Contact Us For Availability
32
Spring, Assist WPL 725775 Contact Us For Availability
33
Bag, Outer (Includes Illus 50) WPL 4147861 Contact Us For Availability
34
Rocker WPL 744648 Contact Us For Availability
35
Bar, Tie WPL 745137 Contact Us For Availability
35
Plug, Hole (2) WPL 596793 Contact Us For Availability
36
Guard, Belt WPL 744877 Contact Us For Availability
36
lead, wire (blue) WPL 4147286 Contact Us For Availability
36
lead, wire (orange) WPL 4147287 Contact Us For Availability
36
Lead, Wire (Red) WPL 744597 Contact Us For Availability
37
Door, Attachment WPL 4147817 Contact Us For Availability
37
belt, output WPL 744698 Contact Us For Availability
38
Spring, Door WPL 744777 Contact Us For Availability
38
Holder, Switch WPL 744781 Contact Us For Availability
39
Gasket, Door WPL 744748 Contact Us For Availability
39
Switch WPL 744785 Contact Us For Availability
40
Ring, Pivot Shield WPL 745111 Contact Us For Availability
40
Plate, Switch WPL 4147853 Contact Us For Availability
41
Ring, Pivot WPL 744583 Contact Us For Availability
41
Topper, Switch WPL 744741 Contact Us For Availability
42
On-Sert WPL 681445 Contact Us For Availability
43
Sensor WPL 745131 Contact Us For Availability
43
Grip, Lower WPL 4147855 Contact Us For Availability
45
Idler, Belt WPL 745444 Contact Us For Availability
45
grip, upper WPL 4147876 Contact Us For Availability
46
Gasket, 12`` WPL 745336 Contact Us For Availability
46
Ring, Grip WPL 4147854 Contact Us For Availability
47
Stud, Sensor WPL 745138 Contact Us For Availability
47
tube, handle (see note) WPL 4148351 Contact Us For Availability
48
Nut, Push-On WPL 681636 Contact Us For Availability
49
Lever, Handle Release WPL 4148188 Contact Us For Availability
50
Pad, Handle Release WPL 4147816 Contact Us For Availability
50
Strap, Retainer WPL 702561 Contact Us For Availability
51
Nut, Push-On WPL 4147995 Contact Us For Availability
52
Spring, Handle Release WPL 4147993 Contact Us For Availability
53
Pin, Handle Release WPL 4148207 Contact Us For Availability
54
Seal, Cleanout Cover WPL 745354 Contact Us For Availability
55
Cover, Cleanout (Includes Illus. 54) WPL 744816 Contact Us For Availability
57
Nut, Push-On (2) WPL 681689 Contact Us For Availability
58
Wheel, Front (2) WPL 4147805 Contact Us For Availability
60
Axle, Front WPL 744505 Contact Us For Availability
61
base (includes illus. 42) WPL 4148218 Contact Us For Availability
62
Brush Assembly WPL 745386 Contact Us For Availability
63
Bearing & Housing Assembly (2) WPL 743395 Contact Us For Availability
64
Washer WPL 681424 Contact Us For Availability
65
Magnet WPL 745127 Contact Us For Availability
66
Brush & Bar, Be WPL 745391 Contact Us For Availability
68
WPL 745389 WPL 745389 Contact Us For Availability
69
WPL 681701 WPL 681701 Contact Us For Availability
70
WPL 745173 WPL 745173 Contact Us For Availability
71
WPL 745159 WPL 745159 Contact Us For Availability
72
WPL 745157 WPL 745157 Contact Us For Availability
73
WPL 745158 WPL 745158 Contact Us For Availability
74
WPL 745160 WPL 745160 Contact Us For Availability
75
WPL 745156 WPL 745156 Contact Us For Availability
76
WPL 745217 WPL 745217 Contact Us For Availability
77
WPL 745221 WPL 745221 Contact Us For Availability
78
WPL 745218 WPL 745218 Contact Us For Availability
79
WPL 595295 WPL 595295 Contact Us For Availability
80
WPL 680347 WPL 680347 Contact Us For Availability
81
WPL 745202 WPL 745202 Contact Us For Availability
82
WPL 681702 WPL 681702 Contact Us For Availability
83
WPL 745213 WPL 745213 Contact Us For Availability
84
WPL 681703 WPL 681703 Contact Us For Availability
85
WPL 745208 WPL 745208 Contact Us For Availability
86
WPL 745209 WPL 745209 Contact Us For Availability
87
WPL 744697 WPL 744697 Contact Us For Availability
88
WPL 4150432 WPL 4150432 Contact Us For Availability
89
WPL 4150404 WPL 4150404 Contact Us For Availability
90
WPL 4148994 WPL 4148994 Contact Us For Availability
91
WPL 4148995 WPL 4148995 Contact Us For Availability
92
WPL 665705 WPL 665705 Contact Us For Availability
× ![]()
