Model Whirlpool FV6040XS0 UPRIGHT VACUUM CLEANER – Common Parts & Diagrams
03 - SECTION
01 - SECTION
04 - SECTION
02 - SECTION

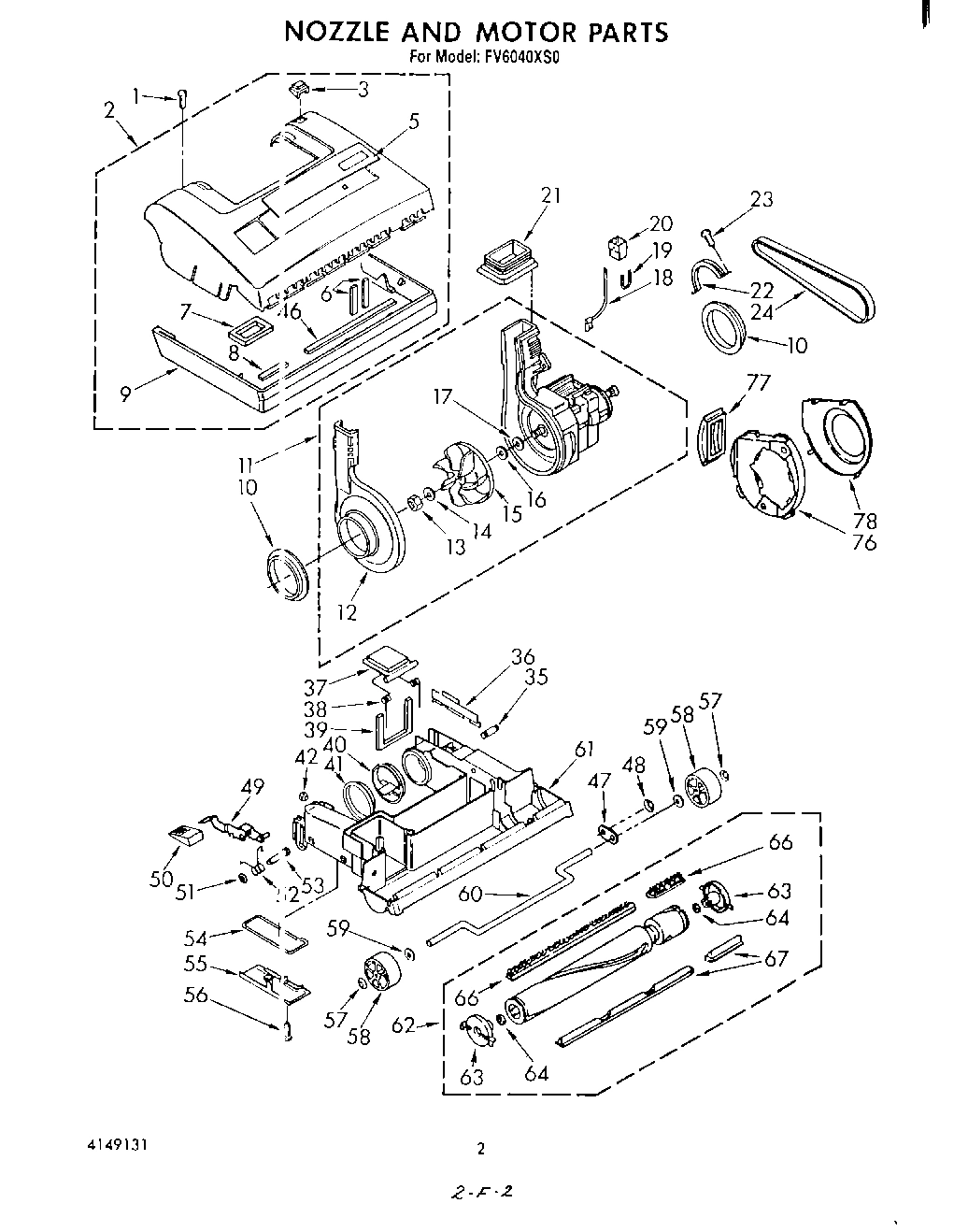

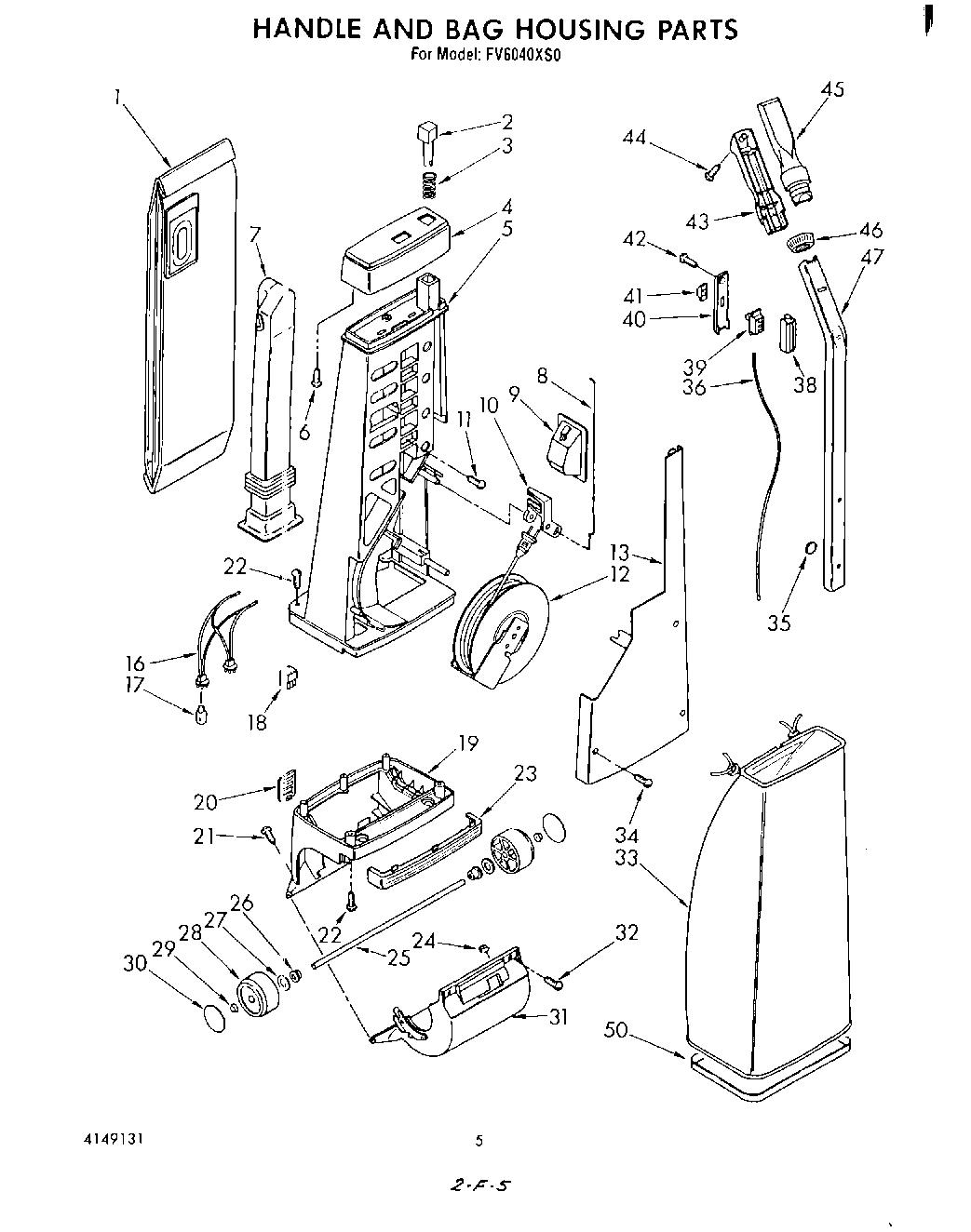

Common parts from model Whirlpool FV6040XS0 UPRIGHT VACUUM CLEANER
Repair Parts List WPL LIT4149131 Contact Us For Availability
Owner`s Manual WPL LIT4149132 Contact Us For Availability
Label, Wiring Diagram WPL LIT4149138 Contact Us For Availability
1
Attachment Set, Deluxe WPL ARI57856A7 Contact Us For Availability
1
Attachment Set, Standard WPL ARI57857A2 Contact Us For Availability
1
Bag, Dust (Pkg. of 3) WPL 4148400 Contact Us For Availability
1
bag, dust (pkg. of 12) WPL 676377 Contact Us For Availability
2
Brush, Floor WPL 744141 Contact Us For Availability
2
Hose Assembly WPL 745115 Contact Us For Availability
2
Button, Cord Release WPL 744680 Contact Us For Availability
2
Hood Assembly WPL 4149134 Contact Us For Availability
3
Nozzle, Upholstery WPL 744144 Contact Us For Availability
3
Handle, Curved Plastic WPL 745116 Contact Us For Availability
3
Spring, Button WPL 744683 Contact Us For Availability
3
Lens, Height Adjust WPL 4148921 Contact Us For Availability
4
Brush, Dusting WPL 744146 Contact Us For Availability
4
Top, Bag WPL 744868 Contact Us For Availability
5
Frame, Bag (See Note) WPL 4147353 Contact Us For Availability
5
Nameplate WPL 4149135 Contact Us For Availability
6
Hose WPL 744234 Contact Us For Availability
6
Hose Assembly WPL 745109 Contact Us For Availability
6
Gasket, 1-5/8`` (2) WPL 744615 Contact Us For Availability
7
Hose WPL 744788 Contact Us For Availability
7
Wand, Plastic (2) WPL 745114 Contact Us For Availability
7
Tube, Filler WPL 4147968 Contact Us For Availability
7
Gasket WPL 745338 Contact Us For Availability
8
Terminal WPL 745107 Contact Us For Availability
8
Brush, Dusting WPL 745113 Contact Us For Availability
8
Rod, Actuator (See Note) WPL 744681 Contact Us For Availability
8
Gasket, 4`` WPL 745337 Contact Us For Availability
9
Tool, Fabric WPL 745112 Contact Us For Availability
9
Trim, Power Cord WPL 744684 Contact Us For Availability
9
Bumper WPL 745307 Contact Us For Availability
10
Tool, Crevice WPL 744140 Contact Us For Availability
10
Curved Handle Assembly WPL 744222 Contact Us For Availability
10
Lock, Cord (See Note) WPL 744682 Contact Us For Availability
10
Ring, Rubber (2) WPL 744584 Contact Us For Availability
11
Screw, 8x 3/8 (2) WPL 681663 Contact Us For Availability
11
Motor WPL 705332 Contact Us For Availability
12
Spring, Wandlock WPL 725419 Contact Us For Availability
12
Reel, Cord (See Note) WPL 744930 Contact Us For Availability
12
Cover, Impeller WPL 744572 Contact Us For Availability
13
Band, Suction Control WPL 744224 Contact Us For Availability
13
Cover, Cord Reel (See Note) WPL 744674 Contact Us For Availability
13
Nut, 5/16-24 WPL 681664 Contact Us For Availability
14
Holder, Control Band WPL 744228 Contact Us For Availability
15
Wand (2) WPL 742489 Contact Us For Availability
15
Impeller WPL 4148405 Contact Us For Availability
16
Socket, Bulb WPL 745132 Contact Us For Availability
16
Washer, Fiber WPL 681660 Contact Us For Availability
17
Bulb, Light (Pkg. Of 2) WPL 745362 Contact Us For Availability
17
Washer, Metal WPL 681659 Contact Us For Availability
18
Cap, Insulator WPL 596819 Contact Us For Availability
18
Lead, Wire (Black) WPL 744567 Contact Us For Availability
18
Lead, Wire (Orange) WPL 744575 Contact Us For Availability
18
Lead, Wire (Blue) WPL 744732 Contact Us For Availability
19
Housing, Rear WPL 744636 Contact Us For Availability
19
Jumper, Wire (Red) WPL 745104 Contact Us For Availability
20
Door, Vent WPL 744839 Contact Us For Availability
20
Plug, Insulator WPL 596818 Contact Us For Availability
21
Boot, Tube WPL 744588 Contact Us For Availability
22
Bracket, Motor WPL 744659 Contact Us For Availability
23
Lens, Light WPL 744641 Contact Us For Availability
24
On-Sert WPL 681673 Contact Us For Availability
24
Belt (Pkg. of 2) WPL 744518 Contact Us For Availability
25
Axle, Rear WPL 744585 Contact Us For Availability
26
Bearing (2) WPL 744643 Contact Us For Availability
28
Wheel, Rear (2) WPL 744586 Contact Us For Availability
30
Label, Wheel (2) WPL 744721 Contact Us For Availability
31
Housing, Front (Includes Illus. 24) WPL 745341 Contact Us For Availability
33
Bag, Outer (Includes Illus 50) WPL 744720 Contact Us For Availability
35
Plug, Hole (2) WPL 596793 Contact Us For Availability
35
Bar, Tie WPL 745137 Contact Us For Availability
36
Lead, Wire (Red) WPL 744597 Contact Us For Availability
36
Lead, Wire (Orange) WPL 745101 Contact Us For Availability
36
Lead, Wire (Blue) WPL 745106 Contact Us For Availability
36
Guard, Belt WPL 744877 Contact Us For Availability
37
Door, Attachment WPL 744742 Contact Us For Availability
38
Holder, Switch WPL 744781 Contact Us For Availability
38
Spring, Door WPL 744777 Contact Us For Availability
39
Switch WPL 744785 Contact Us For Availability
39
Gasket, Door WPL 744748 Contact Us For Availability
40
Plate, Switch WPL 745319 Contact Us For Availability
40
Ring, Pivot Shield WPL 745111 Contact Us For Availability
41
Topper, Switch WPL 744741 Contact Us For Availability
41
Ring, Pivot WPL 744583 Contact Us For Availability
42
On-Sert WPL 681445 Contact Us For Availability
43
Grip, Lower WPL 744736 Contact Us For Availability
45
Grip, Upper WPL 744848 Contact Us For Availability
46
Ring, Grip WPL 744646 Contact Us For Availability
46
Gasket, 12`` WPL 745336 Contact Us For Availability
47
Tube, Handle (See Note) WPL 4149141 Contact Us For Availability
47
Bracket, Axle WPL 4148893 Contact Us For Availability
48
Nut, Push-On WPL 681393 Contact Us For Availability
49
Lever, Handle Release WPL 4148188 Contact Us For Availability
50
Strap, Retainer WPL 702561 Contact Us For Availability
50
Pad, Handle Release WPL 744529 Contact Us For Availability
51
Nut, Push-On WPL 4147995 Contact Us For Availability
52
Spring, Handle Release WPL 4147993 Contact Us For Availability
53
Pin, Handle Release WPL 4148207 Contact Us For Availability
54
Seal, Cleanout Cover WPL 745354 Contact Us For Availability
55
Cover, Cleanout (Includes Illus. 54) WPL 744816 Contact Us For Availability
57
Nut, Push-On (2) WPL 681689 Contact Us For Availability
58
Wheel, Front (2) WPL 745280 Contact Us For Availability
60
Axle, Front WPL 744505 Contact Us For Availability
61
base (includes illus. 42) WPL 4148218 Contact Us For Availability
62
Brush Assembly WPL 4147945 Contact Us For Availability
63
Bearing & Housing Assembly (2) WPL 743395 Contact Us For Availability
64
Washer WPL 681424 Contact Us For Availability
66
Brush, Beater Set of (1) 2`` And (1) 10-1/4`` WPL 676316 Contact Us For Availability
67
Bar, Beater Set of (1) 2`` and (1) 10-1/4`` WPL 676299 Contact Us For Availability
76
Diffuser, Exhaust WPL 745217 Contact Us For Availability
77
Seal, Diffuser WPL 745221 Contact Us For Availability
78
Cover, Diffuser WPL 745218 Contact Us For Availability
× ![]()
