Model Whirlpool FV4100XR0 UPRIGHT VACUUM CLEANER – Common Parts & Diagrams
03 - SECTION
04 - SECTION

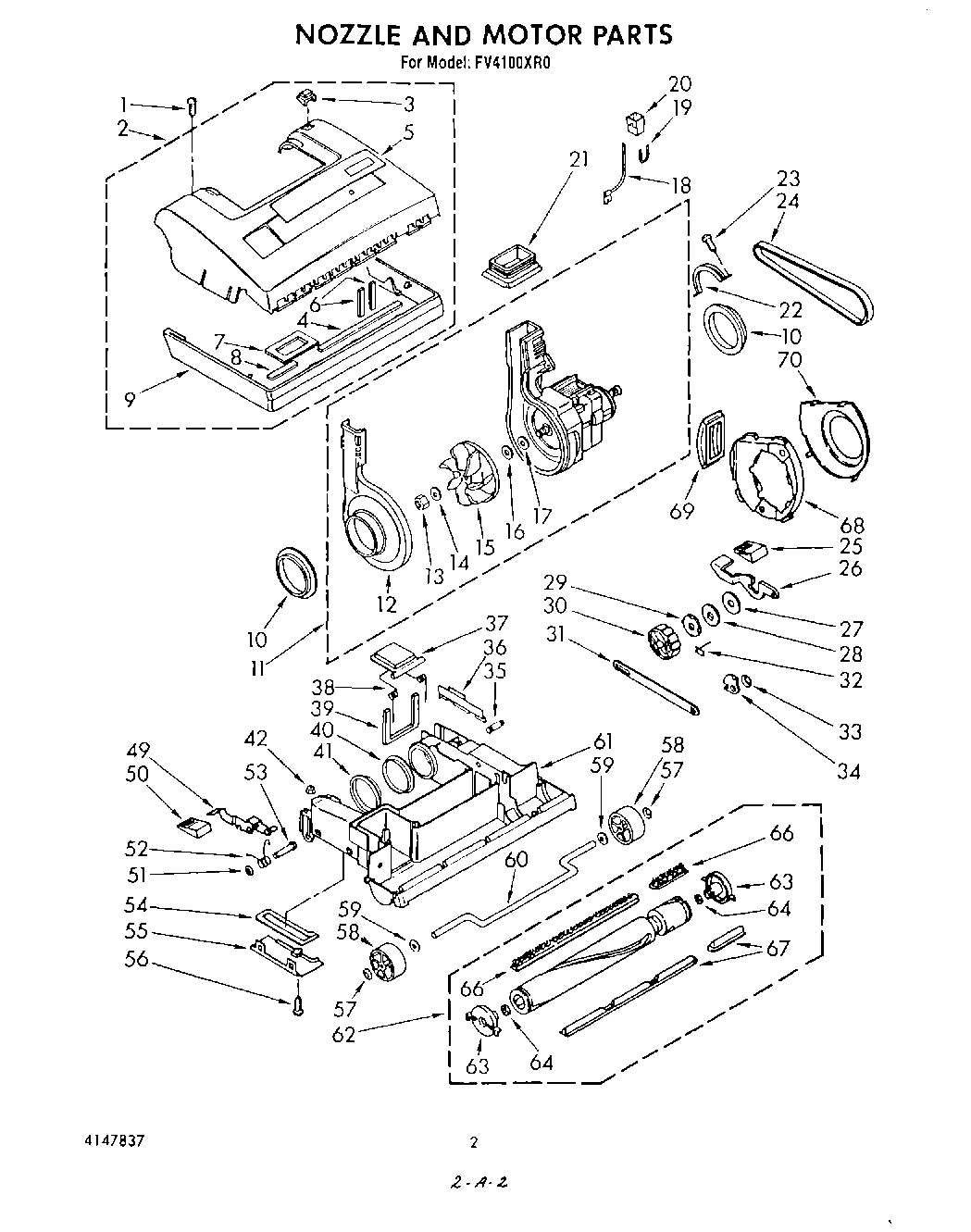

02 - SECTION

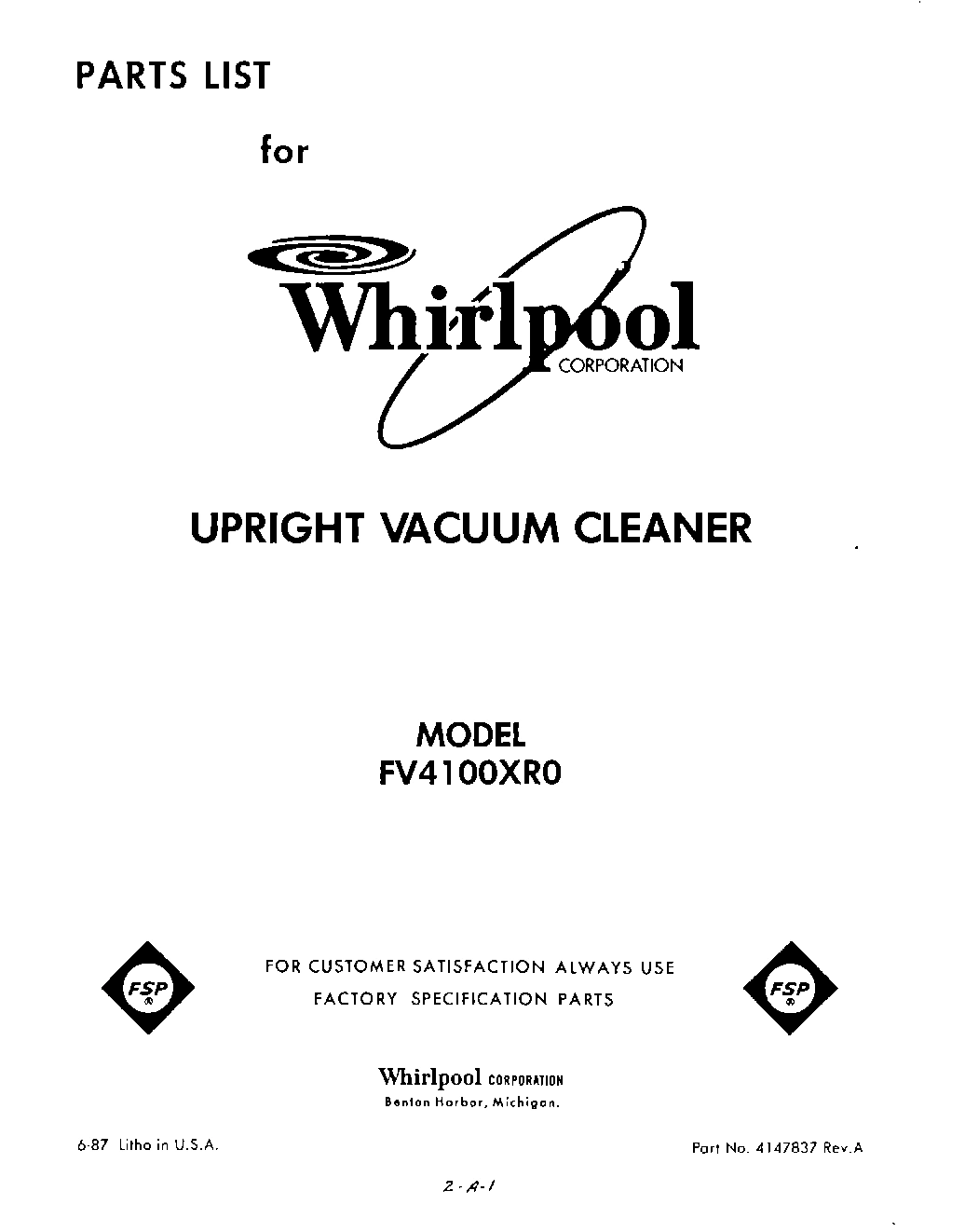

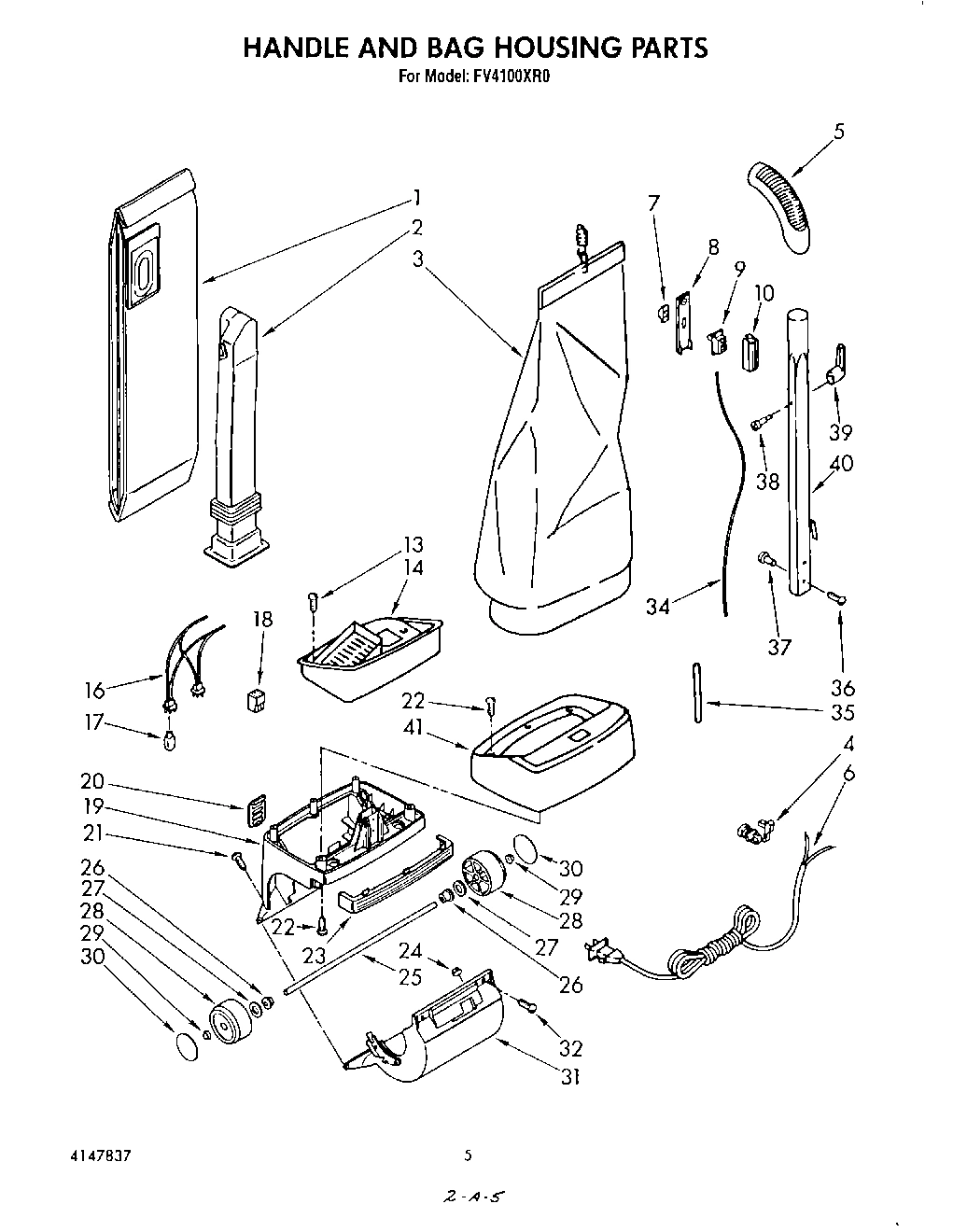

01 - SECTION
Common parts from model Whirlpool FV4100XR0 UPRIGHT VACUUM CLEANER
xIncludes Illus. 36 & 37 WPL ARI57851A7 Contact Us For Availability
Owner`s Manual WPL LIT4147836 Contact Us For Availability
Repair Parts List WPL LIT4147837 Contact Us For Availability
Label, Wiring Diagram WPL LIT744667 Contact Us For Availability
1
Attachment Set, Deluxe WPL 676290 Contact Us For Availability
1
Attachment Set, Standard WPL 676295 Contact Us For Availability
1
Bag, Dust (Pkg. of 3) WPL 4148400 Contact Us For Availability
1
bag, dust (pkg. of 12) WPL 676377 Contact Us For Availability
2
Brush, Floor WPL 744141 Contact Us For Availability
2
Hose Assembly WPL 745115 Contact Us For Availability
2
Tube, Filler WPL 4147968 Contact Us For Availability
2
Hood Assembly WPL 4147828 Contact Us For Availability
3
Nozzle, Upholstery WPL 744144 Contact Us For Availability
3
Handle, Curved Plastic WPL 745116 Contact Us For Availability
3
Bag, Outer WPL 4147868 Contact Us For Availability
3
Lens, Height Adjust WPL 744614 Contact Us For Availability
4
Brush, Dusting WPL 744146 Contact Us For Availability
4
Relief, Strain WPL 681675 Contact Us For Availability
4
Gasket, 12`` WPL 745336 Contact Us For Availability
5
Grip, Handle WPL 4147819 Contact Us For Availability
5
Nameplate WPL 4147835 Contact Us For Availability
6
Hose WPL 744234 Contact Us For Availability
6
Hose Assembly WPL 745109 Contact Us For Availability
6
Cord, Power WPL 4147833 Contact Us For Availability
6
Gasket, 1-5/8`` (2) WPL 744615 Contact Us For Availability
7
Hose WPL 744788 Contact Us For Availability
7
Wand, Plastic (2) WPL 745114 Contact Us For Availability
7
Topper, Switch WPL 744741 Contact Us For Availability
7
Gasket WPL 745338 Contact Us For Availability
8
Terminal WPL 745107 Contact Us For Availability
8
Brush, Dusting WPL 745113 Contact Us For Availability
8
Plate, Switch WPL 4147834 Contact Us For Availability
8
Gasket, 4`` WPL 745337 Contact Us For Availability
9
Tool, Fabric WPL 745112 Contact Us For Availability
9
Switch WPL 744785 Contact Us For Availability
9
Bumper WPL 4147813 Contact Us For Availability
10
Tool, Crevice WPL 744140 Contact Us For Availability
10
Curved Handle Assembly WPL 744222 Contact Us For Availability
10
Holder, Switch WPL 744781 Contact Us For Availability
10
Ring, Rubber (2) WPL 744584 Contact Us For Availability
11
Motor WPL 705332 Contact Us For Availability
12
Spring, Wandlock WPL 725419 Contact Us For Availability
12
Cover, Impeller WPL 744572 Contact Us For Availability
13
Band, Suction Control WPL 744224 Contact Us For Availability
13
Nut, 5/16-24 WPL 681664 Contact Us For Availability
14
Holder, Control Band WPL 744228 Contact Us For Availability
14
Retainer, Bag WPL 4147969 Contact Us For Availability
15
Wand (2) WPL 742489 Contact Us For Availability
15
Impeller WPL 4147666 Contact Us For Availability
16
Socket, Bulb WPL 745132 Contact Us For Availability
16
Washer, Fiber WPL 681660 Contact Us For Availability
17
Bulb, Light (Pkg. Of 2) WPL 745362 Contact Us For Availability
17
Washer, Metal WPL 681659 Contact Us For Availability
18
Cap, Insulator WPL 596819 Contact Us For Availability
18
Lead, Wire (Black) WPL 744567 Contact Us For Availability
18
Lead, Wire (Orange) WPL 744575 Contact Us For Availability
18
Lead, Wire (Blue) WPL 744732 Contact Us For Availability
19
xHousing, Rear WPL 4147814 Contact Us For Availability
19
Jumper, Wire (White) WPL 745105 Contact Us For Availability
20
Door, Vent WPL 4147821 Contact Us For Availability
20
Plug, Insulator WPL 596818 Contact Us For Availability
21
Boot, Tube WPL 744588 Contact Us For Availability
22
Bracket, Motor WPL 744659 Contact Us For Availability
23
Lens, Light WPL 744641 Contact Us For Availability
24
On-Sert WPL 681673 Contact Us For Availability
24
Belt (Pkg. of 2) WPL 744518 Contact Us For Availability
25
Axle, Rear WPL 744585 Contact Us For Availability
25
Pad, Height Adjust WPL 4147815 Contact Us For Availability
26
Bearing (2) WPL 744643 Contact Us For Availability
26
Lever, Height Adjust WPL 744531 Contact Us For Availability
27
Washer, Thrust WPL 722909 Contact Us For Availability
28
Wheel, Rear (2) WPL 4147809 Contact Us For Availability
28
Washer, Foam WPL 725635 Contact Us For Availability
29
Catch, Indexing WPL 722955 Contact Us For Availability
30
Label, Wheel (2) WPL 744721 Contact Us For Availability
30
Indicator Cam WPL 744536 Contact Us For Availability
31
Housing, Front (Includes Illus. 24) WPL 4147806 Contact Us For Availability
31
Push Rod WPL 744539 Contact Us For Availability
32
Spring, Assist WPL 725775 Contact Us For Availability
34
Lead, Wire (White) WPL 744599 Contact Us For Availability
34
Lead, Wire (Orange) WPL 745101 Contact Us For Availability
34
Lead, Wire (Blue) WPL 745106 Contact Us For Availability
34
Rocker WPL 744648 Contact Us For Availability
35
Sleeve, Wiring WPL 745224 Contact Us For Availability
35
Bar, Tie WPL 745137 Contact Us For Availability
36
Screw, Handle (2) WPL 724363 Contact Us For Availability
36
Guard, Belt WPL 744877 Contact Us For Availability
37
Nut, Post (2) WPL 744846 Contact Us For Availability
37
Door, Attachment WPL 4147817 Contact Us For Availability
38
Screw, Shoulder WPL 590380 Contact Us For Availability
38
Spring, Door WPL 744777 Contact Us For Availability
39
Cord Hook WPL 4147820 Contact Us For Availability
39
Gasket, Door WPL 744748 Contact Us For Availability
40
Tube, Handle WPL 744878 Contact Us For Availability
40
Ring, Pivot Shield WPL 745111 Contact Us For Availability
41
xSupport, Bag Bottom WPL 4147823 Contact Us For Availability
41
Ring, Pivot WPL 744583 Contact Us For Availability
42
On-Sert WPL 681445 Contact Us For Availability
49
Lever, Handle Release WPL 4148188 Contact Us For Availability
50
Pad, Handle Release WPL 4147816 Contact Us For Availability
51
Nut, Push-On WPL 4147995 Contact Us For Availability
52
Spring, Handle Release WPL 4147993 Contact Us For Availability
53
Pin, Handle Release WPL 4148207 Contact Us For Availability
54
Seal, Cleanout Cover WPL 745354 Contact Us For Availability
55
Cover, Cleanout (Includes Illus. 54) WPL 744816 Contact Us For Availability
57
Nut, Push-On (2) WPL 681689 Contact Us For Availability
58
Wheel, Front (2) WPL 4147805 Contact Us For Availability
60
Axle, Front WPL 744505 Contact Us For Availability
61
Base (Includes Illus. 42) WPL 745321 Contact Us For Availability
62
Brush Assembly WPL 4147945 Contact Us For Availability
63
Bearing & Housing Assembly (2) WPL 743395 Contact Us For Availability
64
Washer (2) WPL 681424 Contact Us For Availability
66
Brush, Beater Set of (1) 2`` And (1) 10-1/4`` WPL 676316 Contact Us For Availability
67
Bar, Beater Set of (1) 2`` and ( WPL 676299 Contact Us For Availability
68
WPL 745217 WPL 745217 Contact Us For Availability
69
WPL 745221 WPL 745221 Contact Us For Availability
70
WPL 745218 WPL 745218 Contact Us For Availability
× ![]()
