Model Hotpoint FV21CCC Freezer – Common Parts & Diagrams
0
1
2

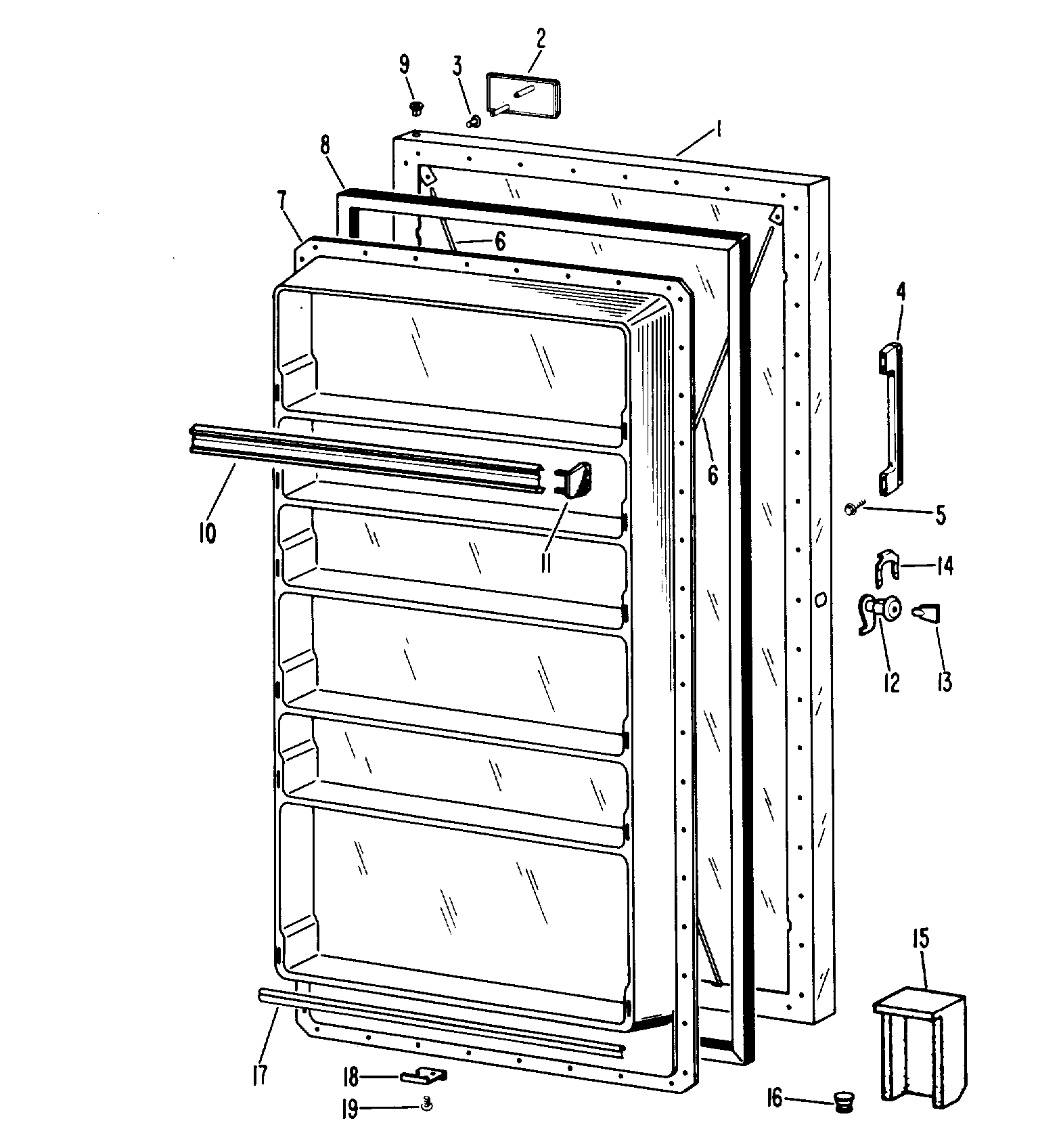

Common parts from model Hotpoint FV21CCC Freezer
1
O.D. PANEL (WH) GEN WR78X7346 Contact Us For Availability
2
GEN WR04X5064 GEN WR04X5064 Contact Us For Availability
3
FASTENER NAMEPLATE GEN WR02X3757 Contact Us For Availability
4
HANDLE DOOR GEN WR12X5116 Contact Us For Availability
5
WASHER GEN WR01X1530 Contact Us For Availability
5
SCREW HANDLE GEN WZ06X0112 Contact Us For Availability
6
GEN WR01X5101 GEN WR01X5101 Contact Us For Availability
6
GEN WR01X5115 GEN WR01X5115 Contact Us For Availability
6
GEN WR02X5385 GEN WR02X5385 Contact Us For Availability
6
ADJUSTING WIRE O.D. PANEL GEN WR30X5045 Contact Us For Availability
7
SCREW I.D. PANEL GEN WR01X5405 Contact Us For Availability
7
I.D. PANEL GEN WR77X5597 Contact Us For Availability
8
GEN WR24X5144 GEN WR24X5144 Contact Us For Availability
9
BUSHING DOOR (FOR HINGE TOP & BTM.) GEN WR13X5102 Contact Us For Availability
10
GEN WR71X5763 GEN WR71X5763 Contact Us For Availability
11
END CAP SHELF FRONT R/SIDE GEN WR02X6052 Contact Us For Availability
11
END CAP SHELF FRONT L/SIDE GEN WR02X6053 Contact Us For Availability
12
GEN WR05X5028 GEN WR05X5028 Contact Us For Availability
13
GEN WR05X0065 GEN WR05X0065 Contact Us For Availability
14
GEN WR05X0066 GEN WR05X0066 Contact Us For Availability
15
DUCT AIR GEN WR02X6054 Contact Us For Availability
16
GEN WR17X5719 GEN WR17X5719 Contact Us For Availability
17
RIVET GASKET TO DOOR GEN WR01X5406 Contact Us For Availability
17
GASKET I.D. PANEL GEN WR14X5097 Contact Us For Availability
18
GEN WR02X5637 GEN WR02X5637 Contact Us For Availability
18
REINFORCEMENT DOOR STOP GEN WR13X5013 Contact Us For Availability
19
SCREW STOP GEN WR01X5485 Contact Us For Availability
30
GEN WR13X5115 GEN WR13X5115 Contact Us For Availability
31
SHIM-HINGE GEN WR24X5095 Contact Us For Availability
32
SCREW-HINGE-FRONT GEN WR01X5451 Contact Us For Availability
33
HINGE-BOTTOM GEN WR13X5100 Contact Us For Availability
33
TAPPING-PLATE GEN WR17X5361 Contact Us For Availability
34
GEN WR02X6354 GEN WR02X6354 Contact Us For Availability
35
GEN WR01X5098 GEN WR01X5098 Contact Us For Availability
36
WASHER TOP BTM HINGE GEN WR13X5101 Contact Us For Availability
37
SPACER BREAKER GEN WR01X5482 Contact Us For Availability
37
GEN WR40X5336 GEN WR40X5336 Contact Us For Availability
38
GEN WR40X5399 GEN WR40X5399 Contact Us For Availability
39
GEN WR01X5340 GEN WR01X5340 Contact Us For Availability
39
GEN WR40X5408 GEN WR40X5408 Contact Us For Availability
40
GEN WR40X5339 GEN WR40X5339 Contact Us For Availability
41
SWITCH LIGHT GEN WR23X0136 Contact Us For Availability
43
CONTROL, TEMPERATURE GEN WR09X5198 Contact Us For Availability
44
GEN WR02X6311 GEN WR02X6311 Contact Us For Availability
45
SCREW HSG. GEN WR01X5187 Contact Us For Availability
47
SCREW-KNOB GEN WR01X5483 Contact Us For Availability
47
GEN WR02X6310 GEN WR02X6310 Contact Us For Availability
48
GEN WR23X5123 GEN WR23X5123 Contact Us For Availability
50
GEN WR02X6312 GEN WR02X6312 Contact Us For Availability
52
GEN WR17X5367 GEN WR17X5367 Contact Us For Availability
53
GEN WR02X6353 GEN WR02X6353 Contact Us For Availability
54
GEN WR02X5648 GEN WR02X5648 Contact Us For Availability
55
GEN WR02X6884 GEN WR02X6884 Contact Us For Availability
56
GEN WR71X5917 GEN WR71X5917 Contact Us For Availability
57
GEN WR02X6400 GEN WR02X6400 Contact Us For Availability
58
GEN WR21X5107 GEN WR21X5107 Contact Us For Availability
60
GEN WR02X6171 GEN WR02X6171 Contact Us For Availability
61
GEN WR02X5523 GEN WR02X5523 Contact Us For Availability
62
GEN WR02X6271 GEN WR02X6271 Contact Us For Availability
62
GEN WR79X5153 GEN WR79X5153 Contact Us For Availability
63
GEN WR02X6270 GEN WR02X6270 Contact Us For Availability
66
GEN WR02X6249 GEN WR02X6249 Contact Us For Availability
104
SHELF TOP GEN WR85X0078 Contact Us For Availability
105
GEN WR01X5142 GEN WR01X5142 Contact Us For Availability
105
GEN WR01X5259 GEN WR01X5259 Contact Us For Availability
106
GEN WR01X5400 GEN WR01X5400 Contact Us For Availability
107
GEN WR85X0067 GEN WR85X0067 Contact Us For Availability
108
GEN WR85X0150 GEN WR85X0150 Contact Us For Availability
109
GEN WR85X0079 GEN WR85X0079 Contact Us For Availability
110
GEN WR85X0070 GEN WR85X0070 Contact Us For Availability
111
GEN WR38X5290 GEN WR38X5290 Contact Us For Availability
114
GEN WR49X5104 GEN WR49X5104 Contact Us For Availability
114
HI-SIDE GEN WR87X0033 Contact Us For Availability
114
GEN WR97X0105 GEN WR97X0105 Contact Us For Availability
115
GEN WR01X5060 GEN WR01X5060 Contact Us For Availability
116
GEN WR02X5642 GEN WR02X5642 Contact Us For Availability
117
GEN WR01X5134 GEN WR01X5134 Contact Us For Availability
118
GEN WR07X5066 GEN WR07X5066 Contact Us For Availability
119
GEN WR08X5122 GEN WR08X5122 Contact Us For Availability
120
GEN WR02X5641 GEN WR02X5641 Contact Us For Availability
124
GEN WR86X0068 GEN WR86X0068 Contact Us For Availability
125
GEN WR02X6250 GEN WR02X6250 Contact Us For Availability
126
GEN WR02X6251 GEN WR02X6251 Contact Us For Availability
127
GEN 39-6177 GEN 39-6177 Contact Us For Availability
127
GEN WR02X6252 GEN WR02X6252 Contact Us For Availability
× ![]()
