Model Electrolux FV19M2WVFB FREEZER – Common Parts & Diagrams

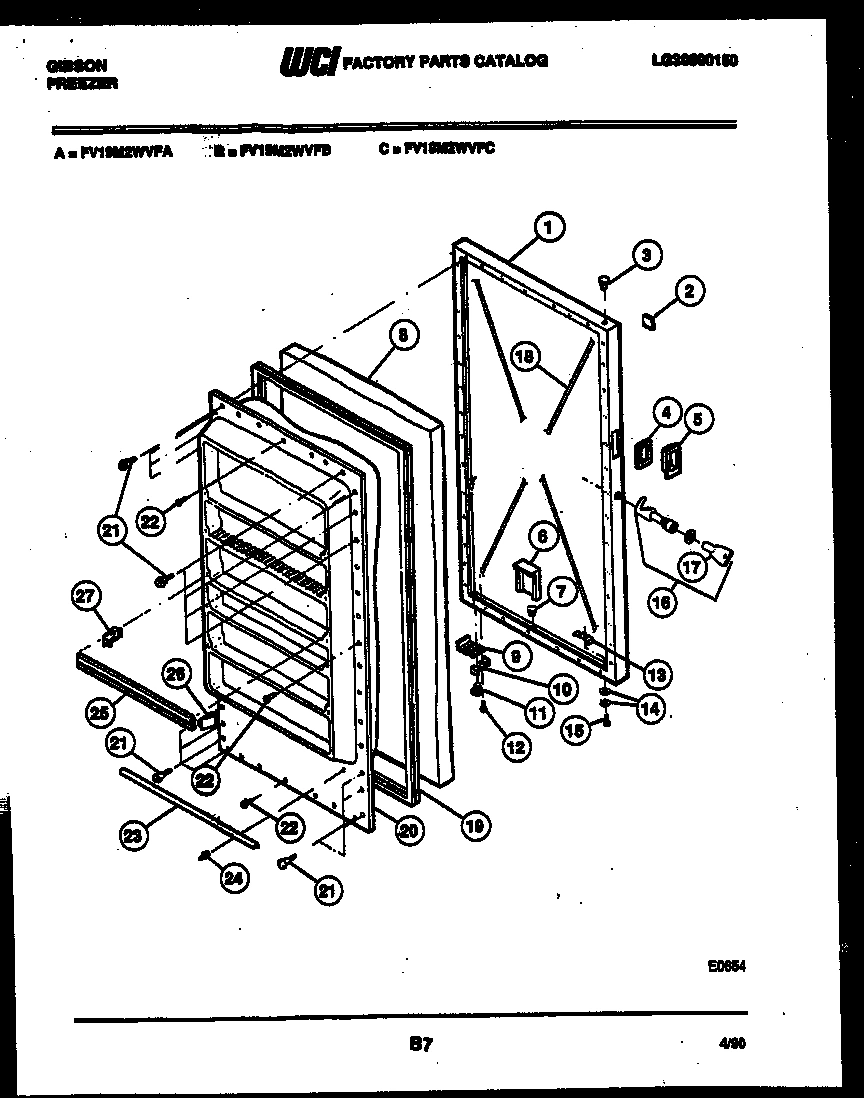

02 - DOOR PARTS

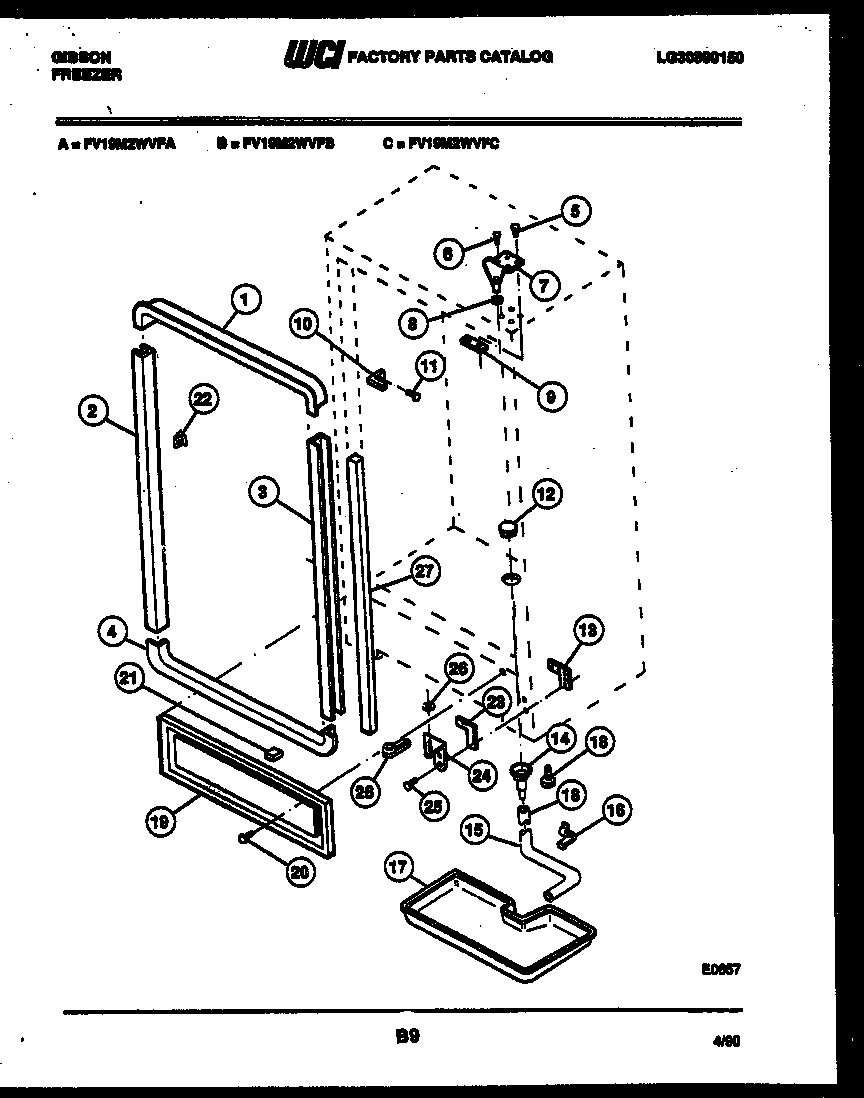

03 - CABINET PARTS

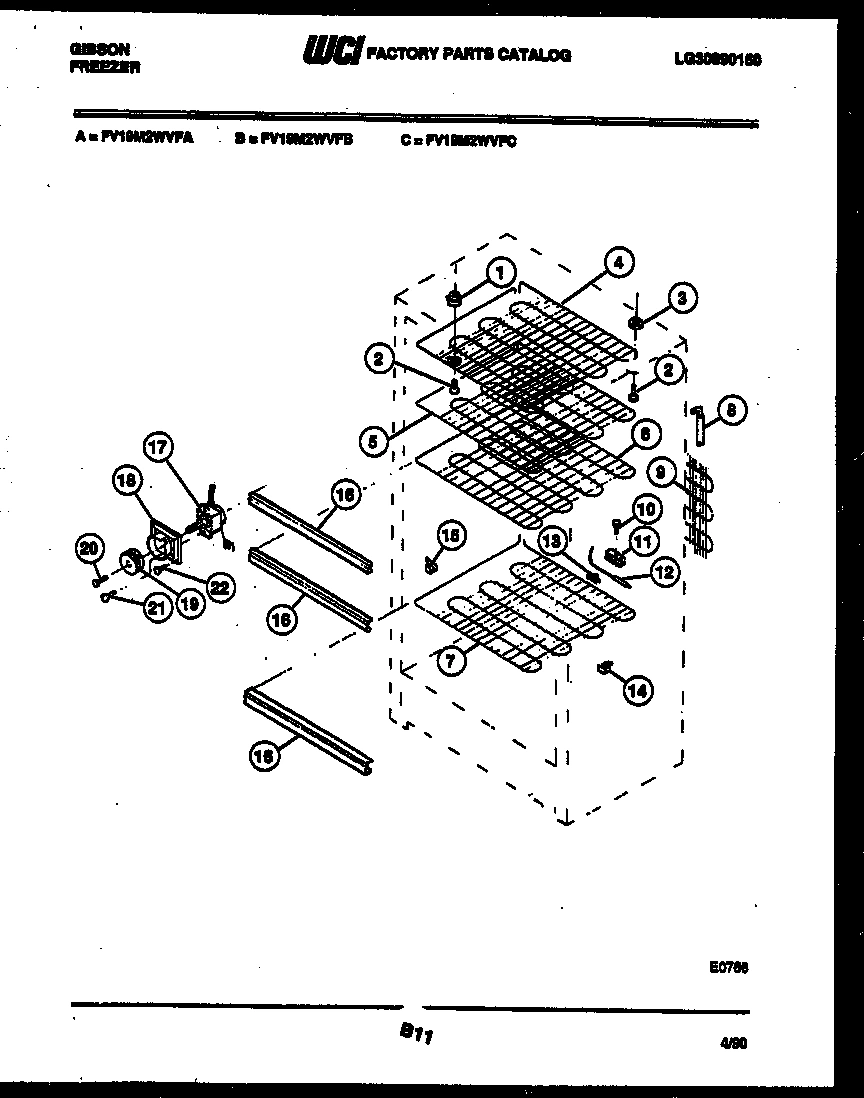

04 - SHELVES AND SUPPORTS

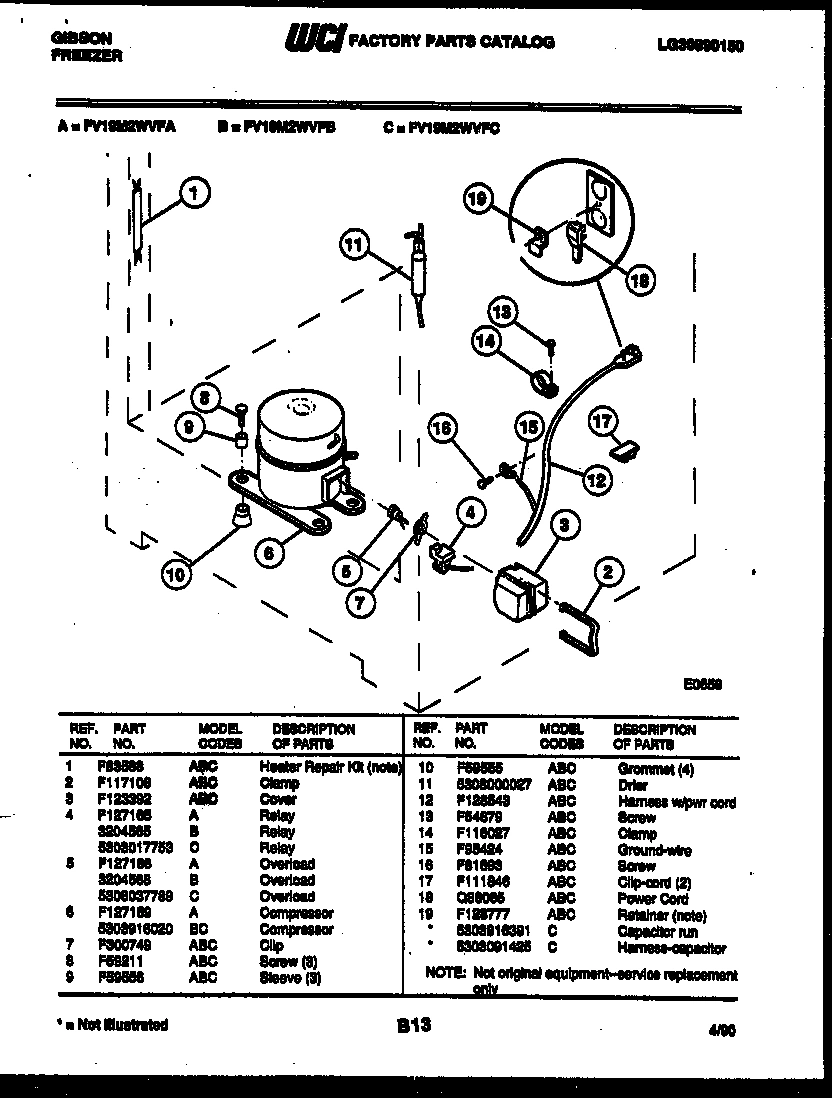

05 - COMPRESSOR AND ELECTRICAL PARTS
Common parts from model Electrolux FV19M2WVFB FREEZER
*28452
WCI 08037937 WCI 08037937 Contact Us For Availability
1
WCI F129477-S WCI F129477-S Contact Us For Availability
1
WCI F85126-64 WCI F85126-64 Contact Us For Availability
1
SPACER (2) WCI F81445 Contact Us For Availability
1
WCI F83588 WCI F83588 Contact Us For Availability
2
NAMEPLATE WCI F128767 Contact Us For Availability
2
BREAKER LH WCI F113764-64 Contact Us For Availability
2
SCREW WCI F126260 Contact Us For Availability
2A
INSERT WCI F300246 Contact Us For Availability
3
BEARING, TOP WCI F84893 Contact Us For Availability
3
WCI F85479-64 WCI F85479-64 Contact Us For Availability
3
SPACER-REAR (1) WCI F56640 Contact Us For Availability
4
WCI F112637 WCI F112637 Contact Us For Availability
4
WCI F85127-64 WCI F85127-64 Contact Us For Availability
4
TOP GRID WCI F129767 Contact Us For Availability
5
GASKET WCI F112639 Contact Us For Availability
5
WCI F300459 WCI F300459 Contact Us For Availability
5
WCI F300036 WCI F300036 Contact Us For Availability
5
WCI 3204568 WCI 3204568 Contact Us For Availability
6
DUCT AIR WCI F128421 Contact Us For Availability
6
SCREW, FRONT WCI F94110 Contact Us For Availability
6
SECOND SHELF WCI F125241 Contact Us For Availability
6
COMPRESSOR WCI 5303916020 Contact Us For Availability
7
WCI G190387 WCI G190387 Contact Us For Availability
7
WCI F300037 WCI F300037 Contact Us For Availability
7
CLIP WCI F300749 Contact Us For Availability
8
INSULATION WCI F116277 Contact Us For Availability
8
BEARING, HINGE (3) WCI F57523 Contact Us For Availability
8
WCI F125249 WCI F125249 Contact Us For Availability
8
WCI F59211 WCI F59211 Contact Us For Availability
9
WCI F91170 WCI F91170 Contact Us For Availability
9
WCI F59556 WCI F59556 Contact Us For Availability
10
DOOR STOP WCI F124623 Contact Us For Availability
10
LATCH WCI F117634 Contact Us For Availability
10
WCI F92943 WCI F92943 Contact Us For Availability
11
CLAMP WCI F96850 Contact Us For Availability
12
SCREW WCI F121387 Contact Us For Availability
12
HARNESS W/PWR CORD WCI F128543 Contact Us For Availability
13
WCI F57880 WCI F57880 Contact Us For Availability
13
PLATE-HINGE BOTTOM WCI F84948 Contact Us For Availability
13
WCI F117447 WCI F117447 Contact Us For Availability
14
WASHER WCI F119827 Contact Us For Availability
15
SCREW WCI F57906 Contact Us For Availability
15
WCI F95424 WCI F95424 Contact Us For Availability
16
WCI G190358 WCI G190358 Contact Us For Availability
16
CLAMP-HOSE WCI F122718 Contact Us For Availability
16
FRONT SHELF (3) WCI F300386 Contact Us For Availability
16
WCI F81693 WCI F81693 Contact Us For Availability
17
CONTROL TEMPERATURE WCI F126974 Contact Us For Availability
17
CLIP-CORD (2) WCI F111846 Contact Us For Availability
18
WIRE WCI F129669 Contact Us For Availability
18
LEG (4) WCI F91169 Contact Us For Availability
18
HOUSING WCI F128633 Contact Us For Availability
18
WCI Q86065 WCI Q86065 Contact Us For Availability
19
GASKET WCI F129797 Contact Us For Availability
19
WCI F124787 WCI F124787 Contact Us For Availability
19
KNOB WCI F127717 Contact Us For Availability
19
RETAINER (NOT ORIGINAL EQUIPMENT--SERVICE REP WCI F128777 Contact Us For Availability
20
INNER PANEL WCI F124698-95 Contact Us For Availability
20
PIN WCI F118001 Contact Us For Availability
20
SCREW KNOB WCI F110410 Contact Us For Availability
21
WCI F124860 WCI F124860 Contact Us For Availability
21
WCI F118003 WCI F118003 Contact Us For Availability
21
SCREW CONTROL WCI F55160 Contact Us For Availability
22
CLIP, BREAKER (5) WCI F126240 Contact Us For Availability
23
WCI F99438 WCI F99438 Contact Us For Availability
23
WCI F120978 WCI F120978 Contact Us For Availability
24
WCI F84943 WCI F84943 Contact Us For Availability
25
WCI F301011 WCI F301011 Contact Us For Availability
26
DOOR CLOSER W/ BEARING WCI F900253 Contact Us For Availability
27
INSULATION WCI F116171-50 Contact Us For Availability
× ![]()
