Model Hotpoint FV19CKB Freezer – Common Parts & Diagrams
0
1
2
Common parts from model Hotpoint FV19CKB Freezer
1
GEN WR78X7497 GEN WR78X7497 Contact Us For Availability
2
GEN WR04X5064 GEN WR04X5064 Contact Us For Availability
3
GEN WR02X3757 GEN WR02X3757 Contact Us For Availability
4
GEN WR12X5116 GEN WR12X5116 Contact Us For Availability
5
GEN WR01X1530 GEN WR01X1530 Contact Us For Availability
5
GEN WZ06X0112 GEN WZ06X0112 Contact Us For Availability
7
GEN WR01X5405 GEN WR01X5405 Contact Us For Availability
7
GEN WR77X5595 GEN WR77X5595 Contact Us For Availability
8
GASKET DOOR/LID GEN WR24X5143 Contact Us For Availability
9
GEN WR13X5102 GEN WR13X5102 Contact Us For Availability
10
GEN WR71X5763 GEN WR71X5763 Contact Us For Availability
11
GEN WR02X6052 GEN WR02X6052 Contact Us For Availability
11
GEN WR02X6053 GEN WR02X6053 Contact Us For Availability
12
GEN WR05X5049 GEN WR05X5049 Contact Us For Availability
13
KEY GEN WR05X5050 Contact Us For Availability
14
HOOK-LOCK GEN WR05X0066 Contact Us For Availability
15
GEN WR02X6054 GEN WR02X6054 Contact Us For Availability
16
GEN WR17X5719 GEN WR17X5719 Contact Us For Availability
17
GEN WR01X5406 GEN WR01X5406 Contact Us For Availability
17
GEN WR14X5097 GEN WR14X5097 Contact Us For Availability
18
GEN WR02X5637 GEN WR02X5637 Contact Us For Availability
18
GEN WR13X5013 GEN WR13X5013 Contact Us For Availability
19
GEN WR01X5485 GEN WR01X5485 Contact Us For Availability
30
HINGE TOP GEN WR13X5208 Contact Us For Availability
31
GEN WR24X5095 GEN WR24X5095 Contact Us For Availability
32
SCREW HINGE-FRONT GEN WR01X5451 Contact Us For Availability
32
SCREW HINGE-REAR GEN WR01X5656 Contact Us For Availability
33
GEN WR13X5100 GEN WR13X5100 Contact Us For Availability
33
GEN WR17X5361 GEN WR17X5361 Contact Us For Availability
34
SHIM HINGE GEN WR02X6354 Contact Us For Availability
35
GEN WR01X5098 GEN WR01X5098 Contact Us For Availability
36
WASHER TOP & BTM HINGE GEN WR13X5101 Contact Us For Availability
37
SPACER BREAKER TOP GEN WR01X5482 Contact Us For Availability
37
GEN WR40X5336 GEN WR40X5336 Contact Us For Availability
38
BREAKER STRIP R. SIDE GEN WR40X5557 Contact Us For Availability
39
CLIP BOTTOM BREAKER GEN WR01X5340 Contact Us For Availability
39
BREAKER STRIP L. SIDE GEN WR40X5418 Contact Us For Availability
40
BREAKER STRIP BOTTOM GEN WR40X5339 Contact Us For Availability
43
SCREW CONTROL TO BRKT. GEN WR01X5187 Contact Us For Availability
43
CONTROL TEMP GEN WR09X5219 Contact Us For Availability
44
BRACKET CONTROL GEN WR02X7469 Contact Us For Availability
47
GEN WR01X5483 GEN WR01X5483 Contact Us For Availability
47
GEN WR02X7470 GEN WR02X7470 Contact Us For Availability
48
GEN WR23X5123 GEN WR23X5123 Contact Us For Availability
50
GEN WR02X6312 GEN WR02X6312 Contact Us For Availability
52
GEN WR17X5367 GEN WR17X5367 Contact Us For Availability
53
SLEEVE DRAIN TUBE GEN WR02X6353 Contact Us For Availability
54
STOPPER DRAIN TUBE GEN WR02X5648 Contact Us For Availability
55
CLAMP DRAIN TUBE GEN WR02X6884 Contact Us For Availability
56
SHELF ADJUSTABLE W/TRIM GEN WR71X5917 Contact Us For Availability
57
GEN WR02X6400 GEN WR02X6400 Contact Us For Availability
58
GEN WR21X5085 GEN WR21X5085 Contact Us For Availability
59
GEN WR02X6359 GEN WR02X6359 Contact Us For Availability
60
GLIDER (LEVELING LEG) GEN WR02X5523 Contact Us For Availability
61
GEN WR02X6271 GEN WR02X6271 Contact Us For Availability
61
GRILLE O. CASE GEN WR79X5153 Contact Us For Availability
62
PIN GRILLE GEN WR02X6270 Contact Us For Availability
63
GEN WR02X6249 GEN WR02X6249 Contact Us For Availability
65
SUPPORT TOP R.H. GEN WR02X6355 Contact Us For Availability
66
SUPPORT BOTTOM R.H. GEN WR02X6356 Contact Us For Availability
67
SUPPORT TOP L.H. GEN WR02X6357 Contact Us For Availability
68
SUPPORT BOTTOM L.H. GEN WR02X6358 Contact Us For Availability
69
CLIP CABINET GEN WR02X4817 Contact Us For Availability

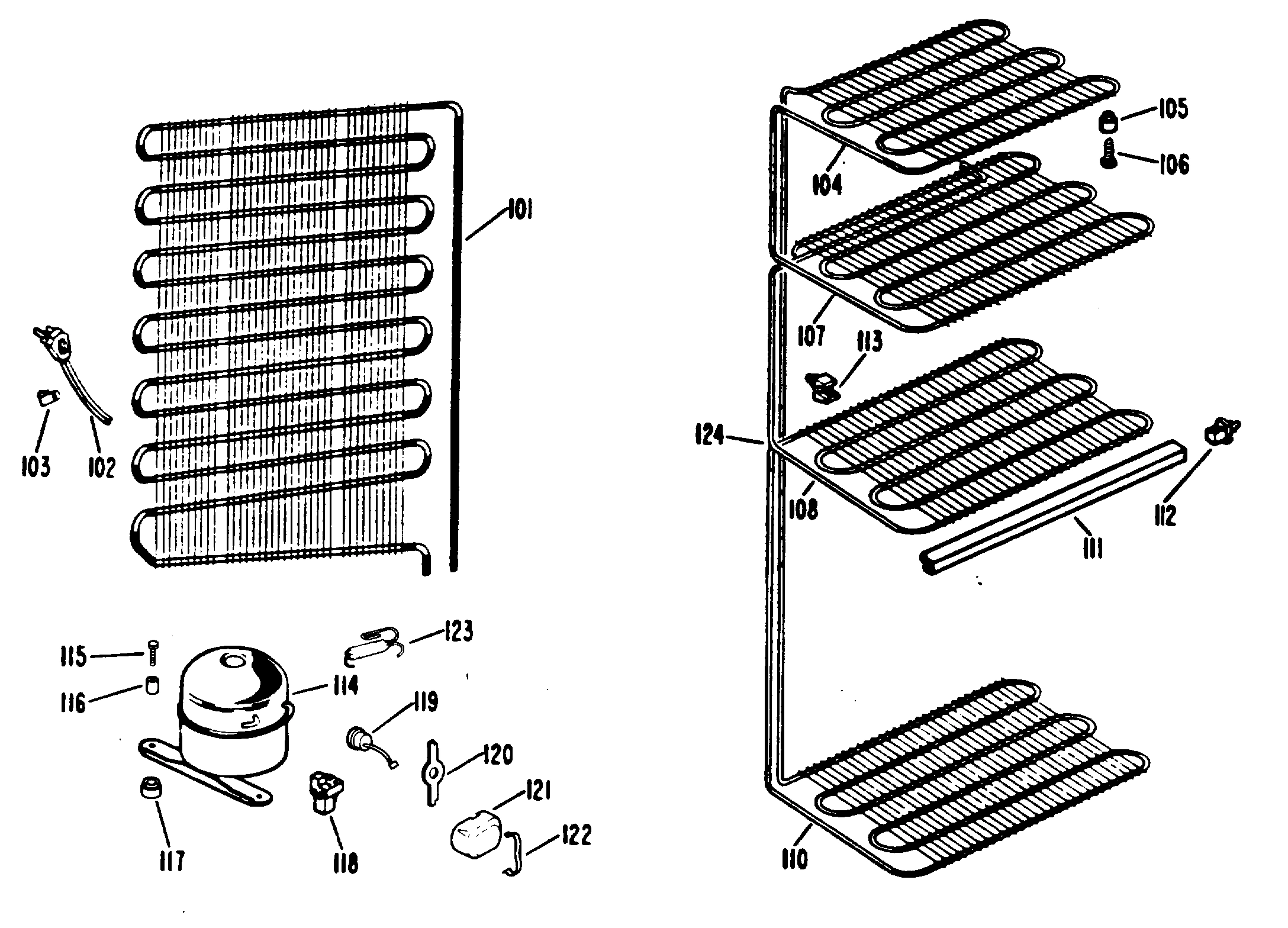

104
GEN WR85X0078 GEN WR85X0078 Contact Us For Availability
105
GROM. TOP GRID MTG (REAR) GEN WR01X5142 Contact Us For Availability
105
GROM. TOP GRID MTG (FRT) GEN WR01X5259 Contact Us For Availability
106
GEN WR01X5400 GEN WR01X5400 Contact Us For Availability
107
GEN WR85X0067 GEN WR85X0067 Contact Us For Availability
108
GEN WR85X0149 GEN WR85X0149 Contact Us For Availability
110
SHELF, BOTTOM GEN WR85X0070 Contact Us For Availability
111
GEN WR38X5290 GEN WR38X5290 Contact Us For Availability
112
SUPPORT LEFT SIDE GEN WR02X7621 Contact Us For Availability
112
SUPPORT RIGHT SIDE GEN WR02X7622 Contact Us For Availability
113
GEN WR02X6250 GEN WR02X6250 Contact Us For Availability
113
GEN WR07X0135 GEN WR07X0135 Contact Us For Availability
114
MACHINE HIGH SIDE GEN WR87X0197 Contact Us For Availability
114
FREON 9 OZ. GEN WR97X0156 Contact Us For Availability
115
SCREW COMP. MTG. GEN WR01X5060 Contact Us For Availability
116
GEN WR02X5642 GEN WR02X5642 Contact Us For Availability
117
GROM. COMPRESSOR MTG. GEN WR01X5134 Contact Us For Availability
118
GEN WR07X5125 GEN WR07X5125 Contact Us For Availability
119
GEN WR08X5170 GEN WR08X5170 Contact Us For Availability
120
GEN WR02X5641 GEN WR02X5641 Contact Us For Availability
121
GEN WR13X5103 GEN WR13X5103 Contact Us For Availability
122
CLIP COVER GEN WR01X5660 Contact Us For Availability
124
USE & CARE BOOK GEN 39-6177-3 Contact Us For Availability
× ![]()
