Model Electrolux FV16M6WTFC FREEZER – Common Parts & Diagrams

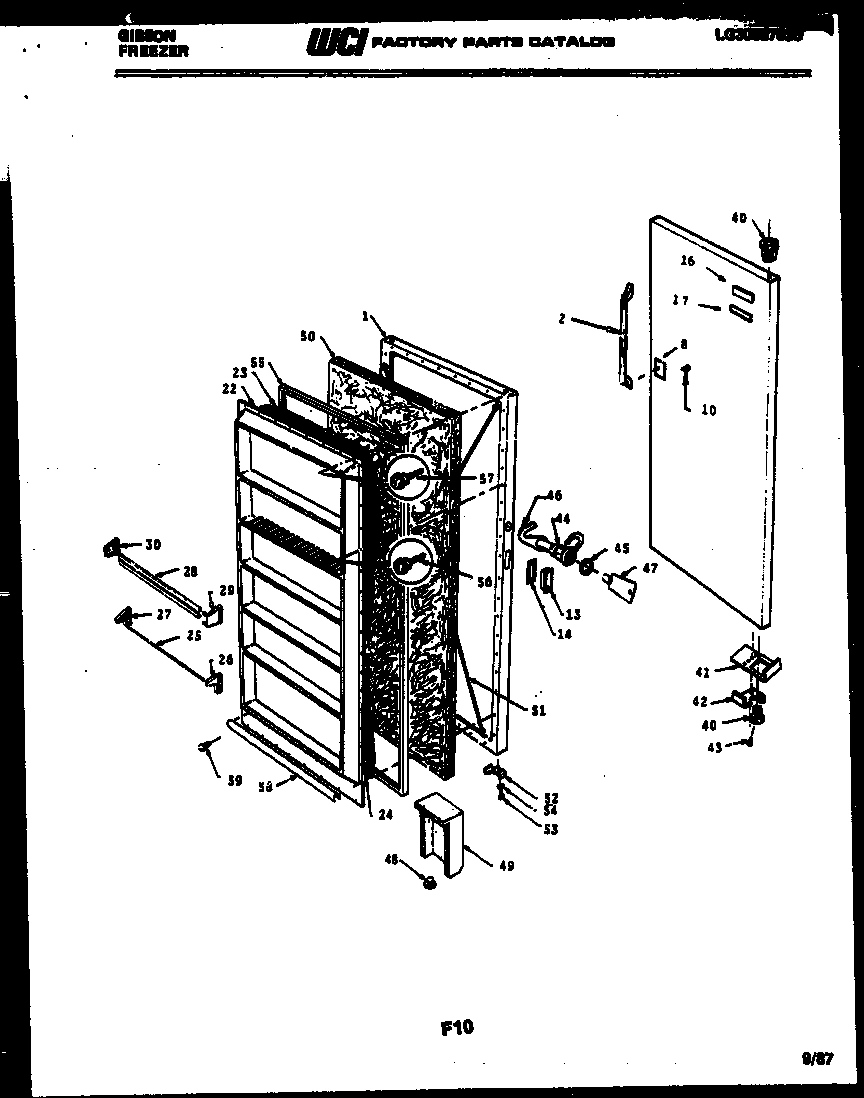

02 - DOOR PARTS

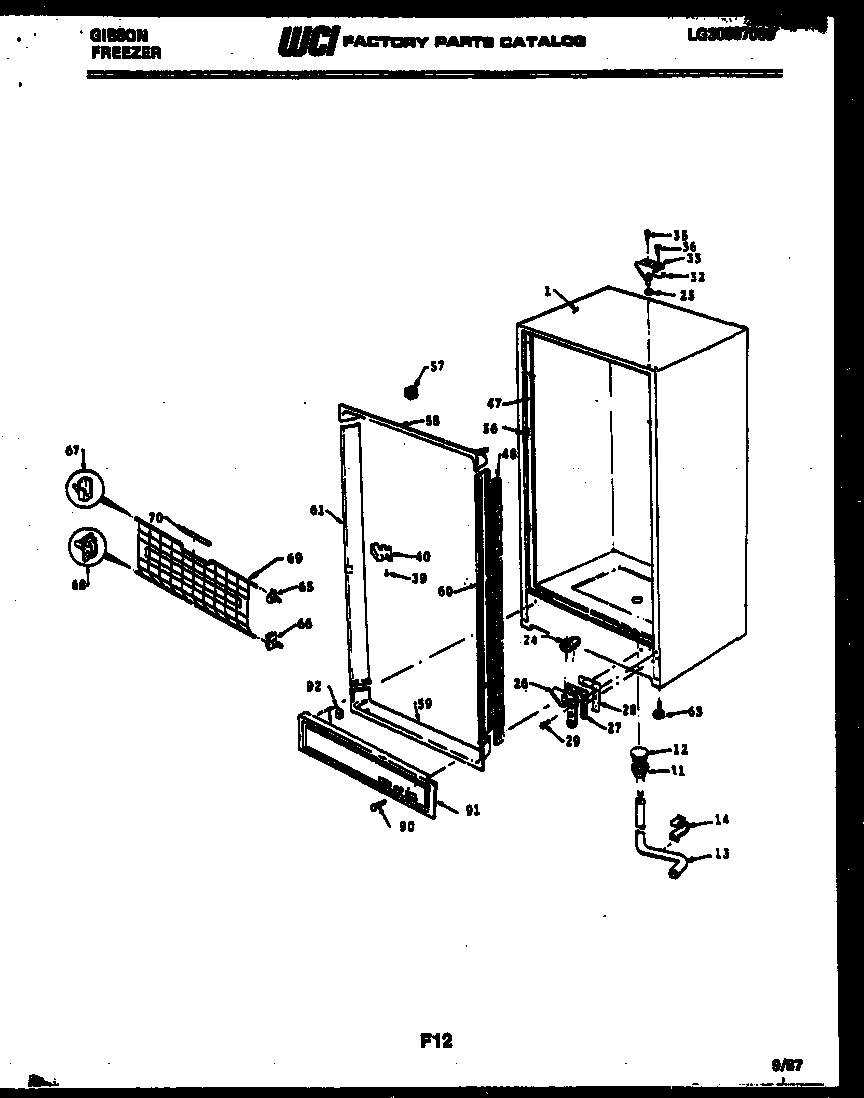

03 - CABINET PARTS

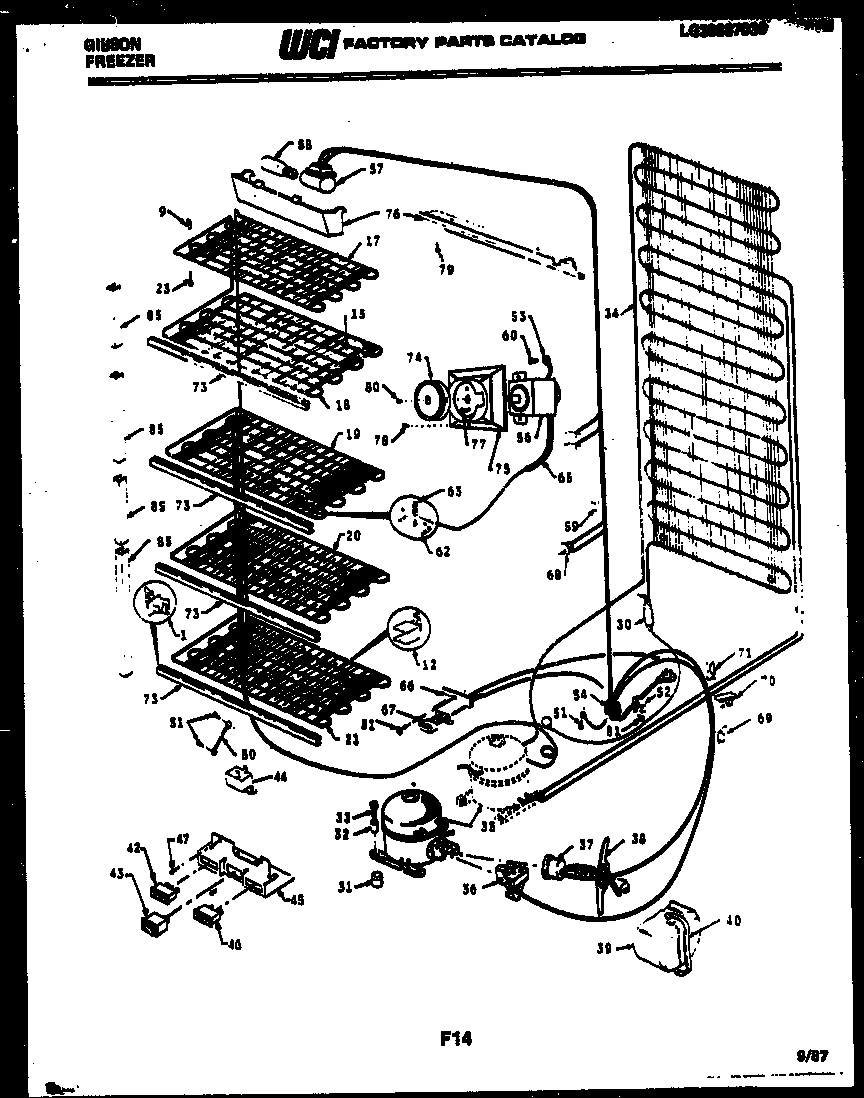

04 - SYSTEM AND ELECTRICAL PARTS
Common parts from model Electrolux FV16M6WTFC FREEZER
1
WCI F129289-64 WCI F129289-64 Contact Us For Availability
2
WCI F119165 WCI F119165 Contact Us For Availability
8
PLATE REINFORC (2) WCI F115980 Contact Us For Availability
9
SPACR TP GRID FRNT (2) WCI F81445 Contact Us For Availability
9A
SPACR, TP GRID RR (NON-ILLUSTRATED) WCI F56640 Contact Us For Availability
10
SCREW HNL (2) WCI F111365 Contact Us For Availability
12
SUPT REAR (6) WCI F117447 Contact Us For Availability
14
WCI F122718 WCI F122718 Contact Us For Availability
15
WCI F125249 WCI F125249 Contact Us For Availability
16
WCI F128767 WCI F128767 Contact Us For Availability
17
WCI F300246 WCI F300246 Contact Us For Availability
17
WCI F121179 WCI F121179 Contact Us For Availability
18
FIRST SHELF WCI F121180 Contact Us For Availability
18A
TAPE NAMEPLATE (NON-ILLUSTRATED) WCI F124190 Contact Us For Availability
19
WCI F125251 WCI F125251 Contact Us For Availability
21
BOTTOM SHELF WCI F121182 Contact Us For Availability
22
PNL INSERT PNL WCI F124566-95 Contact Us For Availability
23
SCREW TP GRID (3) WCI F126260 Contact Us For Availability
24
RAMP, DOOR CLOSER WCI F124610 Contact Us For Availability
25
BEARING HNG (3) WCI F57523 Contact Us For Availability
26
HNGE BOTTOM WCI F84943 Contact Us For Availability
27
WCI F120978 WCI F120978 Contact Us For Availability
28
SHELF FRNT (5) WCI F124601 Contact Us For Availability
28
TAP. PLATE, BTM WCI F84948 Contact Us For Availability
32
TAP. PLATE, TOP WCI F93207 Contact Us For Availability
32
WCI F59556 WCI F59556 Contact Us For Availability
33
WCI F300271 WCI F300271 Contact Us For Availability
33
WCI F59211 WCI F59211 Contact Us For Availability
35
SCREW TP HNG, FRNT (2) WCI F94110 Contact Us For Availability
35
WCI F127169 WCI F127169 Contact Us For Availability
36
SCREW TP HNG, RR (2) WCI F300459 Contact Us For Availability
36
WCI F127165 WCI F127165 Contact Us For Availability
37
WCI F127166 WCI F127166 Contact Us For Availability
38
WCI F300749 WCI F300749 Contact Us For Availability
40
BEARING, TOP WCI F84893 Contact Us For Availability
40
WCI F117634 WCI F117634 Contact Us For Availability
41
REINFORC DR STOP WCI F91170 Contact Us For Availability
42
STOP DOOR WCI F84896 Contact Us For Availability
42
SIGNAL LITE-EMBER WCI F128520 Contact Us For Availability
43
SCREW DR STOP (2) WCI F121387 Contact Us For Availability
43
WCI F128517 WCI F128517 Contact Us For Availability
44
WCI F300788 WCI F300788 Contact Us For Availability
44
WCI F128518 WCI F128518 Contact Us For Availability
45
SEAL, WASHR LOCK WCI F114366 Contact Us For Availability
45
WCI F129965 WCI F129965 Contact Us For Availability
46
WCI F124455 WCI F124455 Contact Us For Availability
46
SIGNAL LITE-RED WCI F128519 Contact Us For Availability
46A
WIRE HARN.-ALARM (NON-ILLUSTRATED) WCI F300210 Contact Us For Availability
47
INSUL. 1`` X 4`` WCI F58187 Contact Us For Availability
47
WCI F81693 WCI F81693 Contact Us For Availability
48
INSUL. 1/2`` X 2`` X 4`` WCI F86843 Contact Us For Availability
49
AIR DUCT BREATHR WCI F128421 Contact Us For Availability
50
WCI F116277 WCI F116277 Contact Us For Availability
50
GRND WIRE WCI F95424 Contact Us For Availability
51
WIRE ADJUST. (2) WCI F129671 Contact Us For Availability
52
BRACKT (2) WCI F57880 Contact Us For Availability
53
SCREW, BRACKET (2) WCI F57906 Contact Us For Availability
53
WCI F125347 WCI F125347 Contact Us For Availability
54
WASHER BRACKET (2) WCI F119827 Contact Us For Availability
54
WIRE HARNESS WCI F128913 Contact Us For Availability
55
WCI F129795 WCI F129795 Contact Us For Availability
56
CLIP, BREAKR (5) WCI F126240 Contact Us For Availability
56
WCI F126974 WCI F126974 Contact Us For Availability
57
SCREW SHLDR PNL (16) WCI F124860 Contact Us For Availability
57
SPACR TP BRKR (2) WCI F86536 Contact Us For Availability
57
WCI F115515 WCI F115515 Contact Us For Availability
58
GASKET SECONDARY WCI F99439 Contact Us For Availability
58
WCI F121239-64 WCI F121239-64 Contact Us For Availability
58
WCI F92472 WCI F92472 Contact Us For Availability
59
WCI F121241-64 WCI F121241-64 Contact Us For Availability
59
RETAINR HARN. (3) WCI F112321 Contact Us For Availability
60
WCI F300738 WCI F300738 Contact Us For Availability
61
WCI F121320-64 WCI F121320-64 Contact Us For Availability
61
CAPILLARY CLIP (2) WCI F125094 Contact Us For Availability
62
CLAMP CAPILL. WCI F96850 Contact Us For Availability
63
LEVELING LEG (4) WCI F91169 Contact Us For Availability
63
SCREW CAP WCI F52943 Contact Us For Availability
65
SUPT, TOP RH WCI F81200 Contact Us For Availability
66
SUPT BOTTOM RH WCI F81210 Contact Us For Availability
67
SUPT, TOP LH WCI F81201 Contact Us For Availability
68
SUPT, BOTTOM LH WCI F81211 Contact Us For Availability
69
WCI F121419 WCI F121419 Contact Us For Availability
70
HANDLE DROP FRNT WCI F82754 Contact Us For Availability
70
WCI F111846 WCI F111846 Contact Us For Availability
73
SHELF TRIM (3) WCI F300385 Contact Us For Availability
74
WCI F129271 WCI F129271 Contact Us For Availability
75
HEG COLD CONTROL WCI F128633 Contact Us For Availability
77
SCREW CNTRL TO CVR (2) WCI F55160 Contact Us For Availability
80
SCRW KNOB TO CNTRL WCI F110410 Contact Us For Availability
85
WCI F126171-2 WCI F126171-2 Contact Us For Availability
85
WCI F126171-3 WCI F126171-3 Contact Us For Availability
85
WCI F300082 WCI F300082 Contact Us For Availability
85
WCI F300085 WCI F300085 Contact Us For Availability
90
PIN FASTNR (2) WCI F118001 Contact Us For Availability
91
WCI F129872 WCI F129872 Contact Us For Availability
92
BUMPER (3) WCI F118003 Contact Us For Availability
× ![]()
