Model Electrolux FV16M4WSFC FREEZER – Common Parts & Diagrams

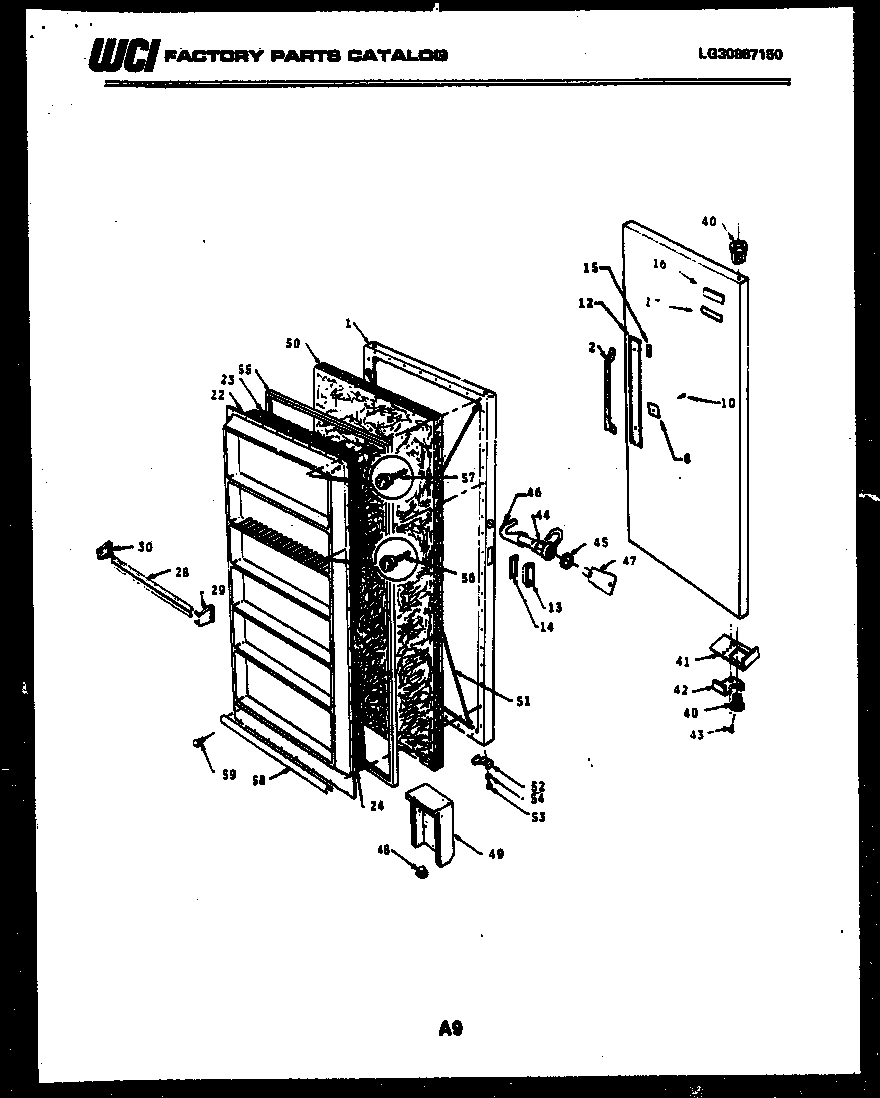

02 - DOOR PARTS

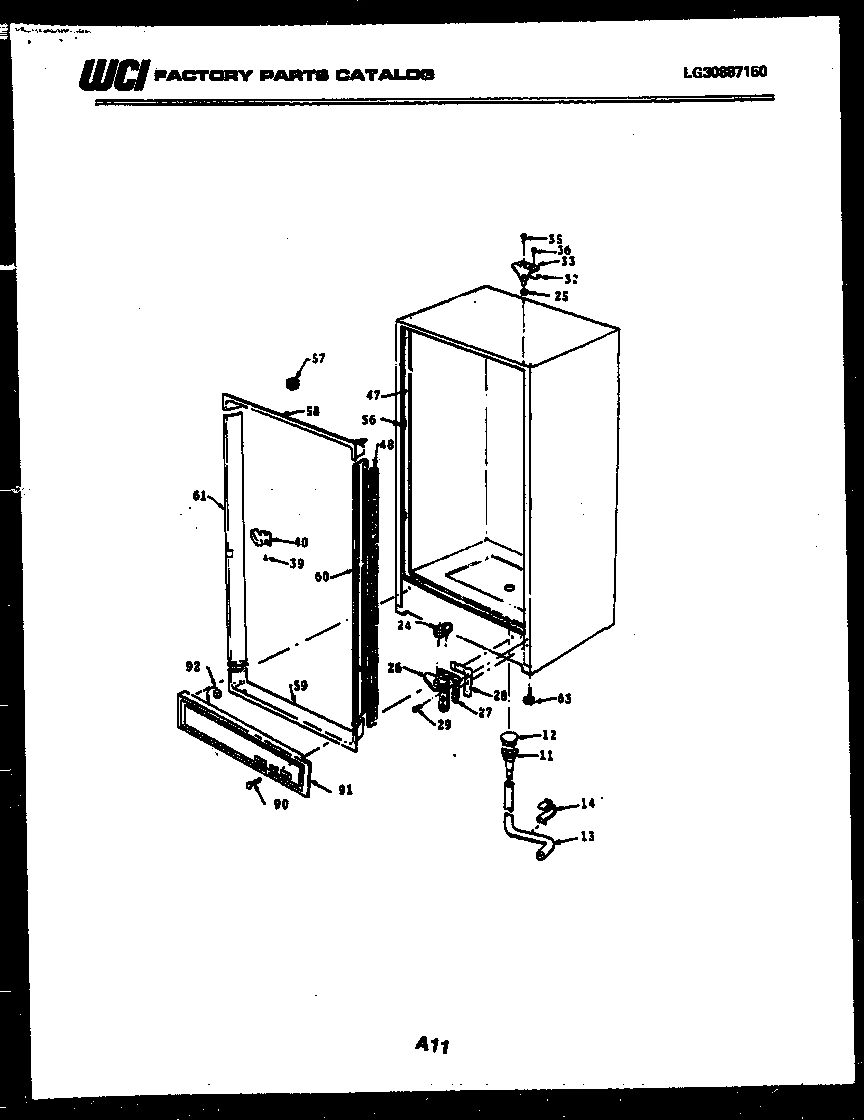

03 - CABINET PARTS

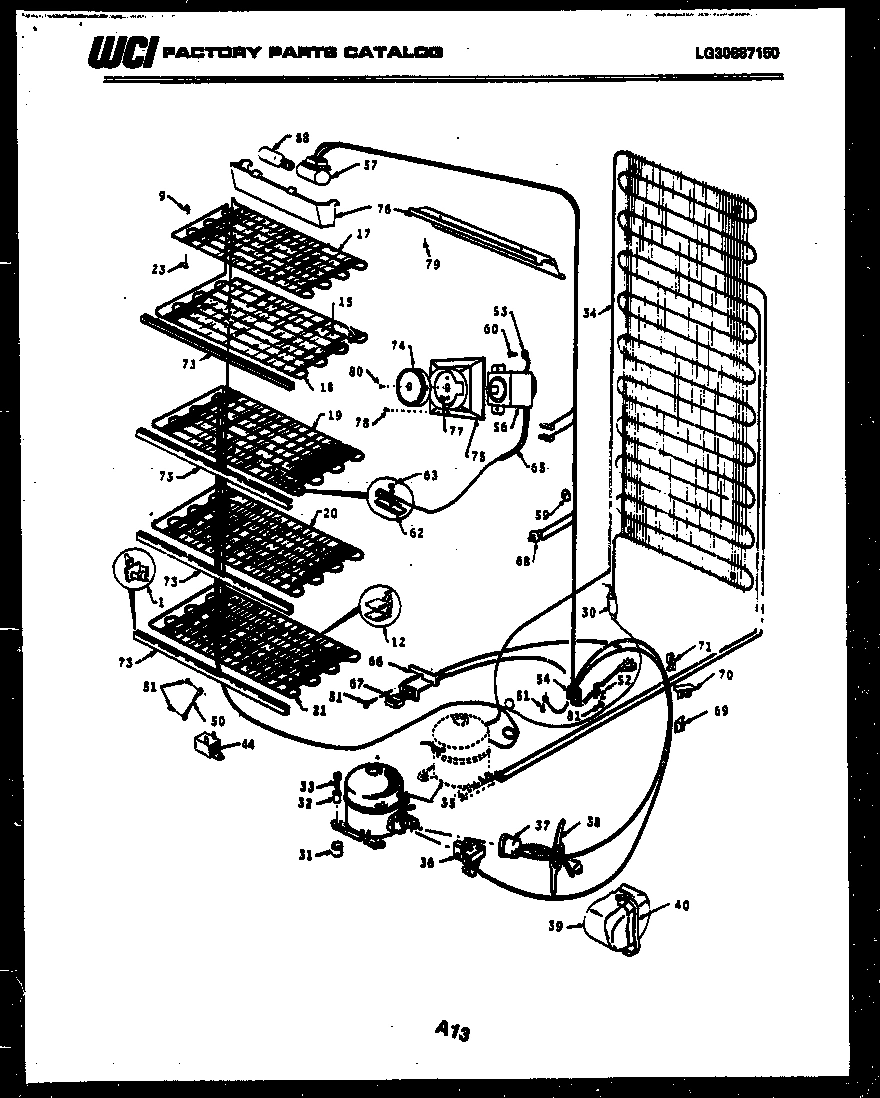

04 - SYSTEM AND ELECTRICAL PARTS
Common parts from model Electrolux FV16M4WSFC FREEZER
1
PANEL, OUTER DR WCI F129293 Contact Us For Availability
2
WCI F120973 WCI F120973 Contact Us For Availability
8
PLATE (2) WCI F119623 Contact Us For Availability
9
SPACR TOP GRID FRONT (2) WCI F81445 Contact Us For Availability
10
WCI F110462 WCI F110462 Contact Us For Availability
10
SPACR TP GRID REAR (NON-ILLUSTRATED) WCI F56640 Contact Us For Availability
12
SUPT REAR (6) WCI F117447 Contact Us For Availability
15
WCI F125249 WCI F125249 Contact Us For Availability
16
NAMEPLATE WCI F128767 Contact Us For Availability
17
INSERT WCI F300246 Contact Us For Availability
17
WCI F121179 WCI F121179 Contact Us For Availability
18
TAPE NAMEPLATE (NON-ILLUSTRATED) WCI F124190 Contact Us For Availability
18
FIRST SHELF WCI F121180 Contact Us For Availability
19
WCI F125251 WCI F125251 Contact Us For Availability
21
BOTTOM SHELF WCI F121182 Contact Us For Availability
22
INNER PANEL WCI F124566-95 Contact Us For Availability
23
WCI F126260 WCI F126260 Contact Us For Availability
24
RAMP, DOOR CLOSER WCI F124610 Contact Us For Availability
25
BEARING HNG (3) WCI F57523 Contact Us For Availability
26
HNG BOTTOM WCI F84943 Contact Us For Availability
27
WCI F120978 WCI F120978 Contact Us For Availability
28
WCI F129682 WCI F129682 Contact Us For Availability
28
PLATE BTM WCI F84948 Contact Us For Availability
32
PLATE-TOP WCI F93207 Contact Us For Availability
32
WCI F127140 WCI F127140 Contact Us For Availability
33
WCI F300271 WCI F300271 Contact Us For Availability
33
WCI F59211 WCI F59211 Contact Us For Availability
35
SCREW (2) WCI F94110 Contact Us For Availability
35
WCI F127169 WCI F127169 Contact Us For Availability
36
SCREW (2) WCI F300459 Contact Us For Availability
36
WCI F127165 WCI F127165 Contact Us For Availability
37
WCI F127166 WCI F127166 Contact Us For Availability
38
WCI F300749 WCI F300749 Contact Us For Availability
40
BEARING TOP (2) WCI F84893 Contact Us For Availability
40
WCI F117634 WCI F117634 Contact Us For Availability
41
PLATE WCI F91170 Contact Us For Availability
42
STOP DOOR WCI F84896 Contact Us For Availability
43
SCREW (2) WCI F121387 Contact Us For Availability
44
LOCK-COMPLETE WCI F300788 Contact Us For Availability
45
WASHER WCI F114366 Contact Us For Availability
46
WCI F134455 WCI F134455 Contact Us For Availability
47
INSULATION WCI F58187 Contact Us For Availability
48
WCI F86843 WCI F86843 Contact Us For Availability
49
AIR DUCT WCI F128421 Contact Us For Availability
50
INSULATION WCI F116277 Contact Us For Availability
50
WCI F95424 WCI F95424 Contact Us For Availability
51
WIRE ADJUSTING (2) WCI F129667 Contact Us For Availability
52
BRACKET (2) WCI F57880 Contact Us For Availability
53
SCREW (2) WCI F57906 Contact Us For Availability
53
WCI F125347 WCI F125347 Contact Us For Availability
54
WASHER (2) WCI F119827 Contact Us For Availability
54
WCI F128543 WCI F128543 Contact Us For Availability
55
GASKET WCI F129795 Contact Us For Availability
56
CLIP (5) WCI F126240 Contact Us For Availability
56
CONTROL, TEMP. WCI F126974 Contact Us For Availability
57
SCREW 16 WCI F124860 Contact Us For Availability
57
SPACER (2) WCI F86536 Contact Us For Availability
58
WCI F99439 WCI F99439 Contact Us For Availability
58
WCI F121239-64 WCI F121239-64 Contact Us For Availability
59
WCI F121241-64 WCI F121241-64 Contact Us For Availability
59
RETAINR HARN. (3) WCI F112321 Contact Us For Availability
60
WCI F121458-64 WCI F121458-64 Contact Us For Availability
61
WCI F121320-64 WCI F121320-64 Contact Us For Availability
61
CLIP (2) WCI F125094 Contact Us For Availability
62
CLAMP WCI F96850 Contact Us For Availability
63
LEG (4) WCI F91169 Contact Us For Availability
63
SCREW WCI F52943 Contact Us For Availability
70
CLIP (2) WCI F111846 Contact Us For Availability
73
TRIM, SHELF (3) WCI F300385 Contact Us For Availability
74
KNOB WCI F127717 Contact Us For Availability
75
HOUSING WCI F128633 Contact Us For Availability
77
SCREW (2) WCI F55160 Contact Us For Availability
80
SCREW WCI F110410 Contact Us For Availability
90
PIN (2) WCI F118001 Contact Us For Availability
91
TOE GRILLE WCI F124786 Contact Us For Availability
92
BUMPER (3) WCI F118003 Contact Us For Availability
× ![]()
