Model Electrolux FV16M2WXFE FREEZER – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

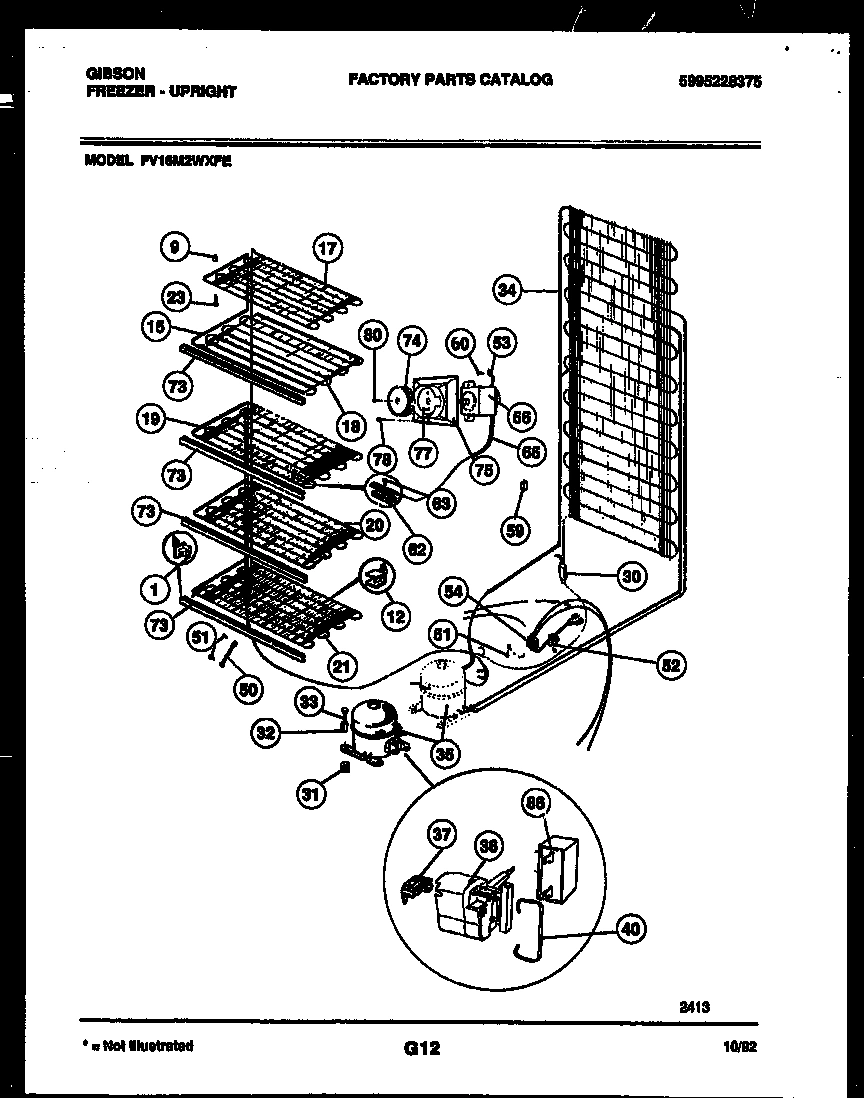

04 - SYSTEM AND ELECTRICAL PARTS
Common parts from model Electrolux FV16M2WXFE FREEZER
9
SPCR-TOPGRID FRONT (2) WCI 5300081445 Contact Us For Availability
9A
SPCR-TOP GRID REAR (NON-ILLUSTRATED) WCI 08037929 Contact Us For Availability
12
WCI 09949960 WCI 09949960 Contact Us For Availability
14B
TAPE (NON-ILLUSTRATED) WCI 5300460947 Contact Us For Availability
15
WCI 08010753 WCI 08010753 Contact Us For Availability
17
WCI 5300121179 WCI 5300121179 Contact Us For Availability
18
WCI 08037939 WCI 08037939 Contact Us For Availability
19
SECOND SHELF WCI 08037941 Contact Us For Availability
21
BOTTOM SHELF WCI 08037940 Contact Us For Availability
23
SCREW-TOP GRID (3) WCI 08013446 Contact Us For Availability
24
WCI 5303210424 WCI 5303210424 Contact Us For Availability
26
WCI 5303210383 WCI 5303210383 Contact Us For Availability
28
SHELF FRONT NARROW (5) WCI 3016802 Contact Us For Availability
32
SLEEVE (3) WCI 5306594529 Contact Us For Availability
32
WCI 5303212912 WCI 5303212912 Contact Us For Availability
33
HINGE, TOP WCI 5303212935 Contact Us For Availability
33
SCREW (3) WCI 08002679 Contact Us For Availability
35
SCREW-HINGE (TOP) WCI 5303210386 Contact Us For Availability
35
SCREW-HINGE WCI 5303212937 Contact Us For Availability
35
COMPRESSOR WCI 5303917190 Contact Us For Availability
36
RELAY WCI 216008900 Contact Us For Availability
37
WCI 5308037789 WCI 5308037789 Contact Us For Availability
40
BEARING TOP (2) WCI 5306593364 Contact Us For Availability
40
CLAMP, COVER WCI 215012000 Contact Us For Availability
41
REINFORCEMENT DR STOP WCI 5300091170 Contact Us For Availability
41
CLIP LOCK WCI 216013700 Contact Us For Availability
42
STOP-DOOR STOP WCI 08016354 Contact Us For Availability
42
WCI 216013600 WCI 216013600 Contact Us For Availability
43
WCI 08005520 WCI 08005520 Contact Us For Availability
44
LOCK-COMPLETE WCI 5303925107 Contact Us For Availability
45
WCI 5300114366 WCI 5300114366 Contact Us For Availability
46
LOCK HOOK WCI 216013800 Contact Us For Availability
47
WCI 09950831 WCI 09950831 Contact Us For Availability
48
VALVE BREATHER (2) WCI 5309950074 Contact Us For Availability
49
WCI 5300128421 WCI 5300128421 Contact Us For Availability
50
INSULATION, DOOR WCI 5303007739 Contact Us For Availability
50
WCI 06594651 WCI 06594651 Contact Us For Availability
51
WIRE ADJUSTING (2) WCI 08037953 Contact Us For Availability
52
WCI 05879859 WCI 05879859 Contact Us For Availability
53
SCREW, BRACKET (2) WCI 5300057906 Contact Us For Availability
53
WCI 5300125347 WCI 5300125347 Contact Us For Availability
54
WASHER, BRACKET (2) WCI 09950839 Contact Us For Availability
54
WCI 216088600 WCI 216088600 Contact Us For Availability
55
WCI 3206246 WCI 3206246 Contact Us For Availability
56
WCI 06594680 WCI 06594680 Contact Us For Availability
56
WCI 216023000 WCI 216023000 Contact Us For Availability
57
SCREW-PANEL (16) WCI 08009384 Contact Us For Availability
57
WCI 08037937 WCI 08037937 Contact Us For Availability
58
WCI 06594682 WCI 06594682 Contact Us For Availability
58
WCI 5308005501 WCI 5308005501 Contact Us For Availability
59
WCI 5308005502 WCI 5308005502 Contact Us For Availability
59
RETAINER-HARNESS (3) WCI 08037401 Contact Us For Availability
60
WCI 08009388 WCI 08009388 Contact Us For Availability
61
WCI 216014100 WCI 216014100 Contact Us For Availability
62
WCI 08037931 WCI 08037931 Contact Us For Availability
63
LEVELING LEG (4) WCI 5303205540 Contact Us For Availability
63
WCI 5300052943 WCI 5300052943 Contact Us For Availability
73
WCI 216045701 WCI 216045701 Contact Us For Availability
74
KNOB-CONTROL WCI 216008602 Contact Us For Availability
75
WCI 08016370 WCI 08016370 Contact Us For Availability
77
WCI 08003539 WCI 08003539 Contact Us For Availability
80
WCI 09950853 WCI 09950853 Contact Us For Availability
86
CAPACITOR-RUN WCI 5303916391 Contact Us For Availability
× ![]()
