Model Electrolux FV10M2WSFH FREEZER – Common Parts & Diagrams

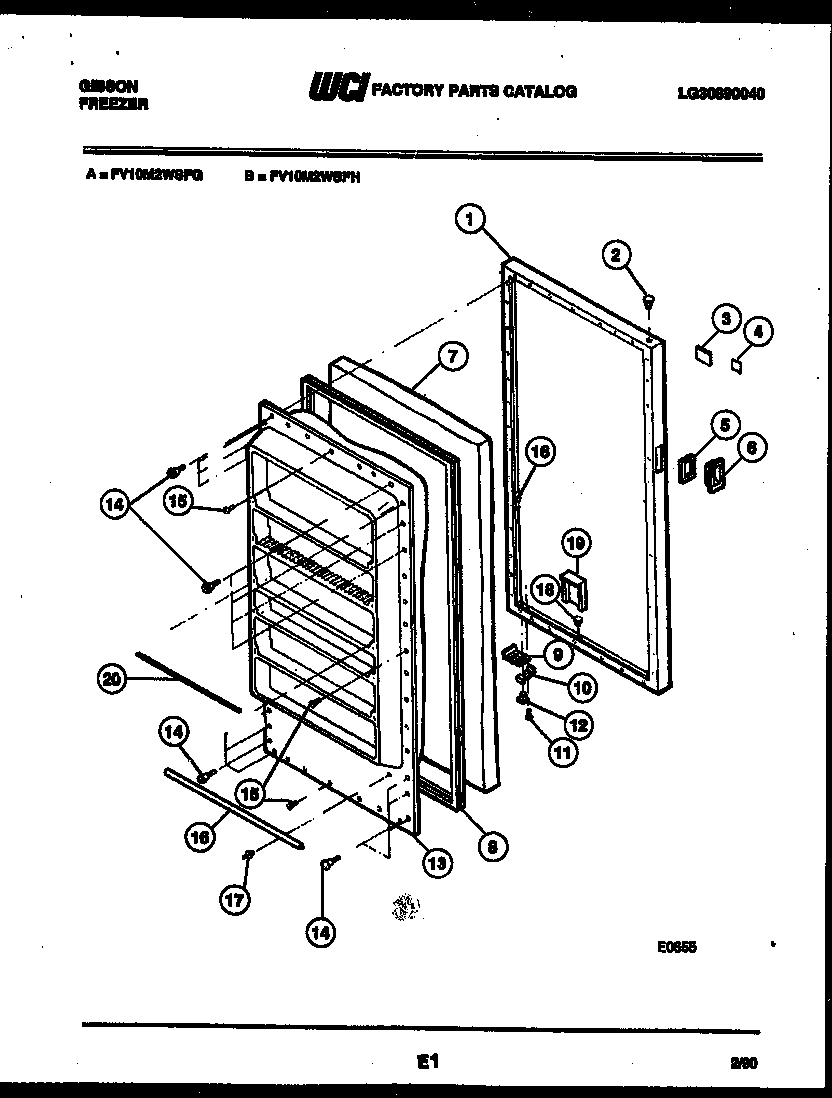

02 - DOOR PARTS

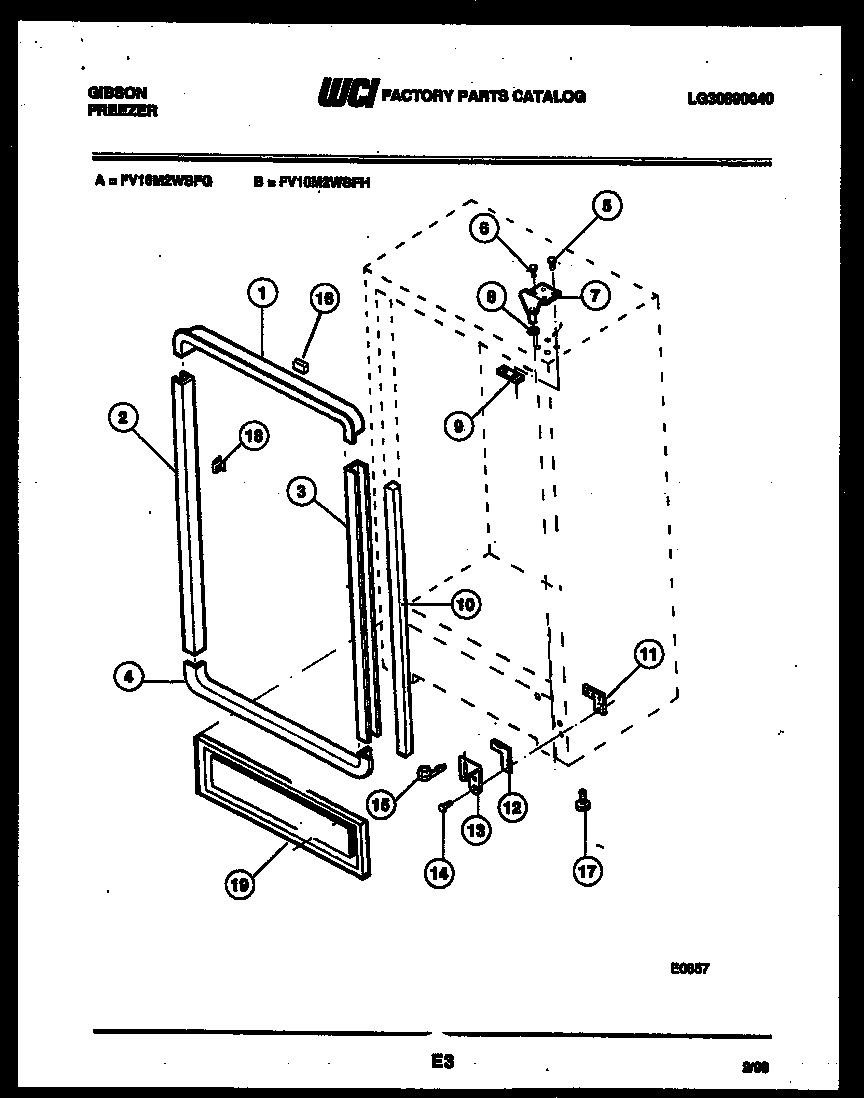

03 - CABINET PARTS

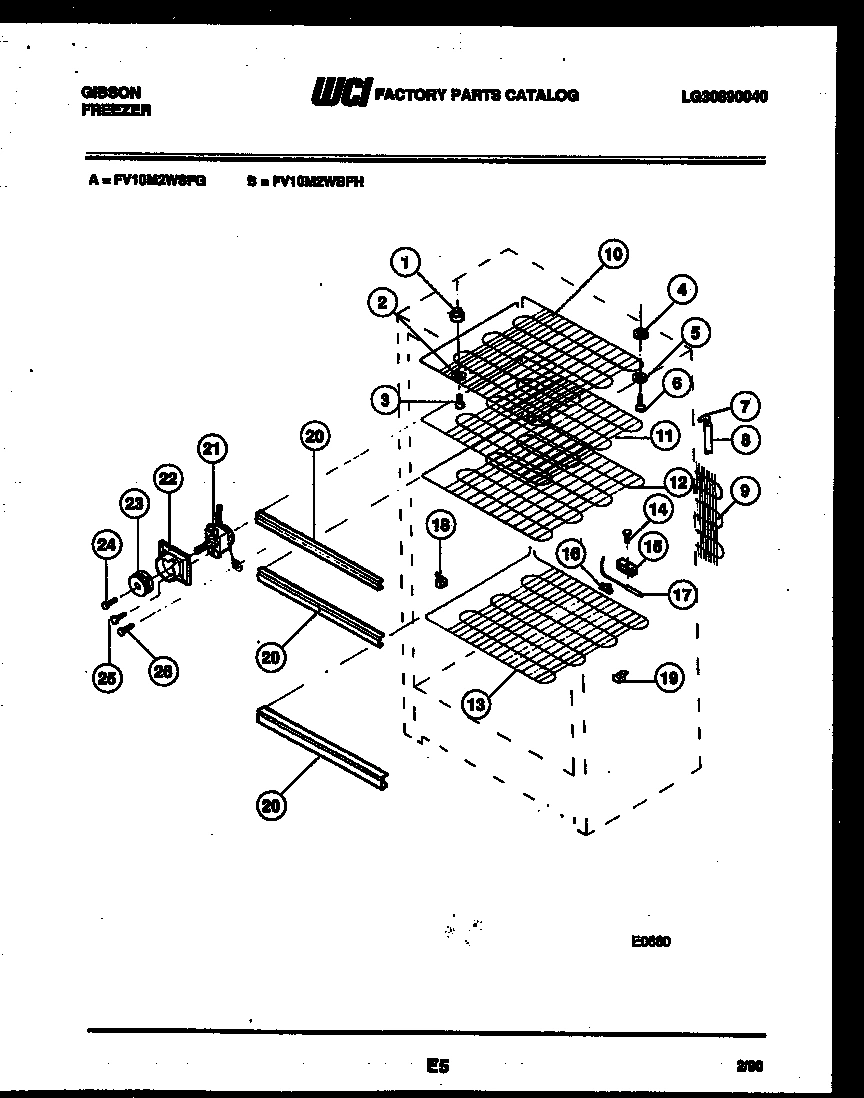

04 - SHELVES AND SUPPORTS

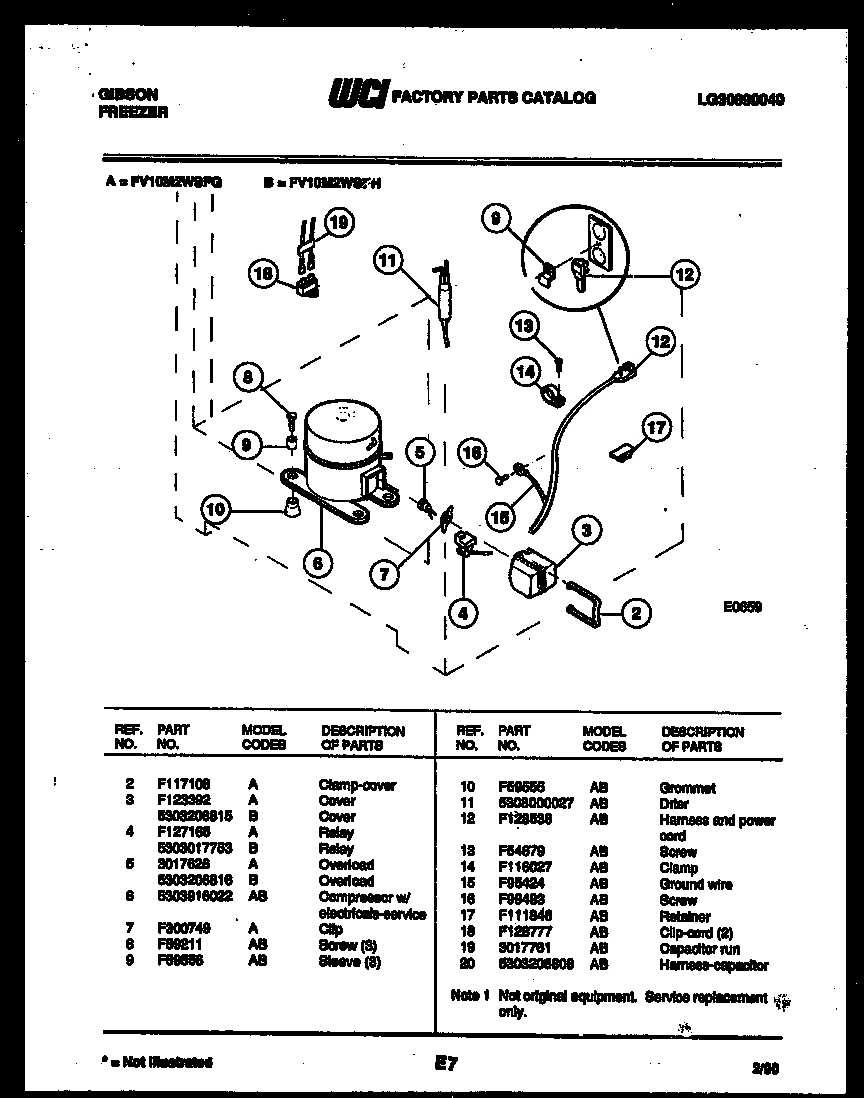

05 - COMPRESSOR AND ELECTRICAL PARTS
Common parts from model Electrolux FV10M2WSFH FREEZER
1
PANEL-OUTER DOOR WCI F127713-64 Contact Us For Availability
1
BREAKER, TOP WCI F122968-64 Contact Us For Availability
1
WCI F81445 WCI F81445 Contact Us For Availability
2
BEARING, TOP WCI F84893 Contact Us For Availability
2
BREAKER LH WCI F122973-64 Contact Us For Availability
3
NAMEPLATE WCI F128767 Contact Us For Availability
3
BREAKER RH WCI F122971-64 Contact Us For Availability
3
COVER WCI 5303206815 Contact Us For Availability
4
INSERT WCI F300246 Contact Us For Availability
4
WCI F122969-64 WCI F122969-64 Contact Us For Availability
4
WCI F56640 WCI F56640 Contact Us For Availability
4
WCI 5303017753 WCI 5303017753 Contact Us For Availability
5
HANDLE RECESSED WCI F112637 Contact Us For Availability
5
WASHER WCI F55598 Contact Us For Availability
5
WCI 5303206816 WCI 5303206816 Contact Us For Availability
6
WCI F112639 WCI F112639 Contact Us For Availability
6
SCREW-FRONT WCI F300459 Contact Us For Availability
6
SCREW WCI F126260 Contact Us For Availability
6
WCI 5303916022 WCI 5303916022 Contact Us For Availability
7
INSULATION WCI F116277 Contact Us For Availability
7
HINGE WCI F94110 Contact Us For Availability
7
WCI F125274 WCI F125274 Contact Us For Availability
8
WCI F129799 WCI F129799 Contact Us For Availability
8
BEARING WCI F300271 Contact Us For Availability
8
WCI F58148-58 WCI F58148-58 Contact Us For Availability
8
WCI F59211 WCI F59211 Contact Us For Availability
9
WCI F91170 WCI F91170 Contact Us For Availability
9
PLATE-TOP WCI F93207 Contact Us For Availability
9
CONDENSER (NOT ORIGINAL EQUIPMENT. SERVICE RE WCI F124042 Contact Us For Availability
9
WCI F59556 WCI F59556 Contact Us For Availability
10
DOOR STOP WCI F124623 Contact Us For Availability
10
INSULATION WCI F116171-50 Contact Us For Availability
10
WCI F122960 WCI F122960 Contact Us For Availability
11
WCI F84948 WCI F84948 Contact Us For Availability
11
FIRST SHELF WCI F122961 Contact Us For Availability
12
SCREW (2) WCI F121387 Contact Us For Availability
12
SPACER WCI 5303207296 Contact Us For Availability
12
WCI F125272 WCI F125272 Contact Us For Availability
12
HARNESS AND POWER CORD WCI F128536 Contact Us For Availability
13
INNER PANEL WCI F129633 Contact Us For Availability
13
WCI F84943 WCI F84943 Contact Us For Availability
13
BOTTOM SHELF WCI F122963 Contact Us For Availability
14
SCREW 16 WCI F124860 Contact Us For Availability
14
SCREW WCI F52943 Contact Us For Availability
15
DOOR CLOSER WCI F000900253 Contact Us For Availability
15
CLAMP WCI F96850 Contact Us For Availability
15
WCI F95424 WCI F95424 Contact Us For Availability
16
WCI F122978 WCI F122978 Contact Us For Availability
16
WCI 08037937 WCI 08037937 Contact Us For Availability
16
SUPPORT (6) WCI F117447 Contact Us For Availability
17
WCI F91169 WCI F91169 Contact Us For Availability
17
RETAINER WCI F111846 Contact Us For Availability
18
CLIP-BREAKER (2) WCI F126240 Contact Us For Availability
18
CLIP-CORD (2) WCI F128777 Contact Us For Availability
19
AIR DUCT WCI F128421 Contact Us For Availability
20
FRONT-SHELF WIRE (4) WCI F128141 Contact Us For Availability
20
FRONT-SHELF (3) WCI F300389 Contact Us For Availability
20
WCI 5303206808 WCI 5303206808 Contact Us For Availability
21
CONTROL TEMPERATURE WCI F126974 Contact Us For Availability
22
HOUSING WCI F128633 Contact Us For Availability
23
KNOB WCI F127717 Contact Us For Availability
24
SCREW KNOB WCI F110410 Contact Us For Availability
26
SCREW (2) WCI F55160 Contact Us For Availability
× ![]()
