Model GE FUM9HDPDRWH – Common Parts & Diagrams

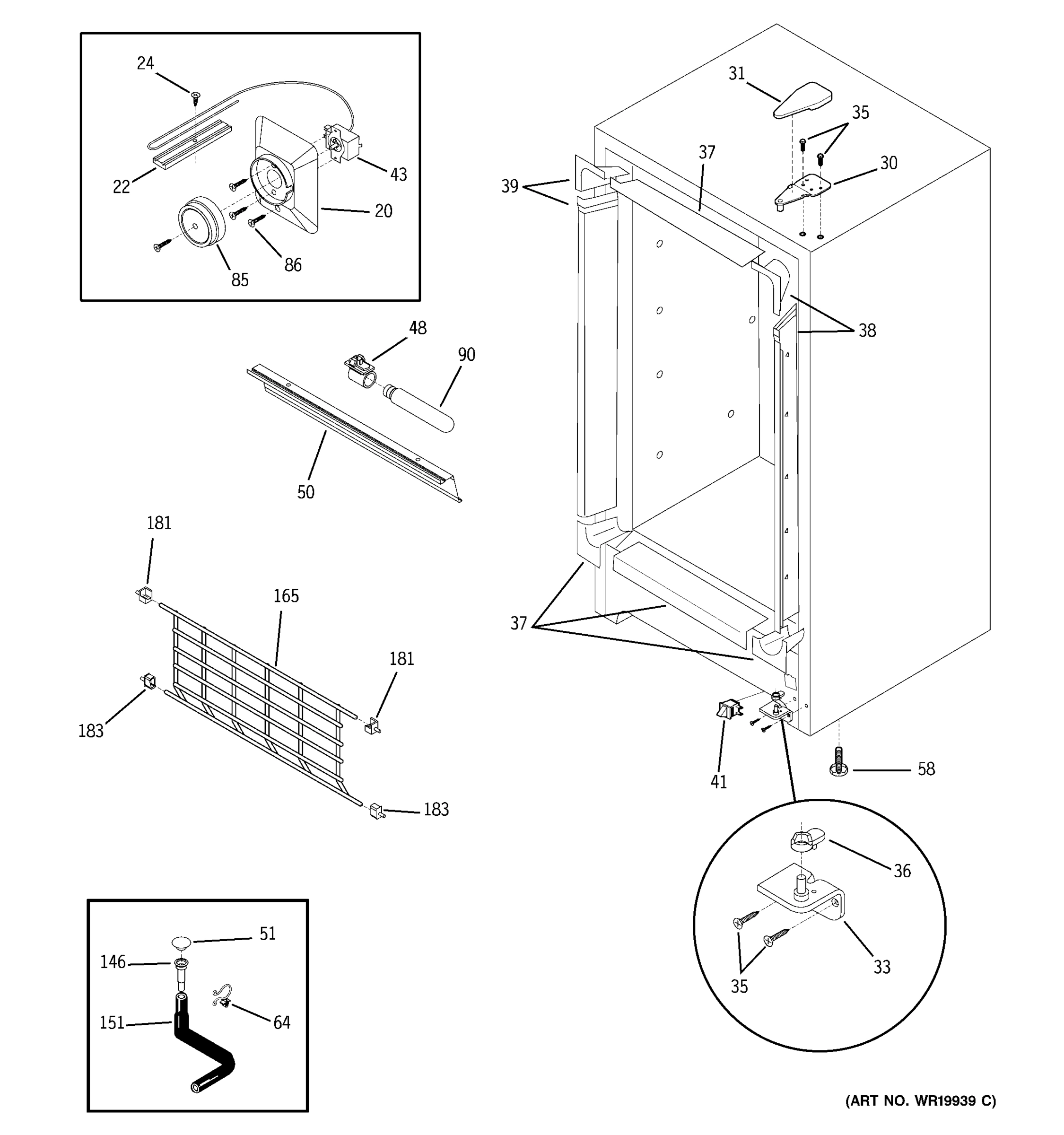

CABINET

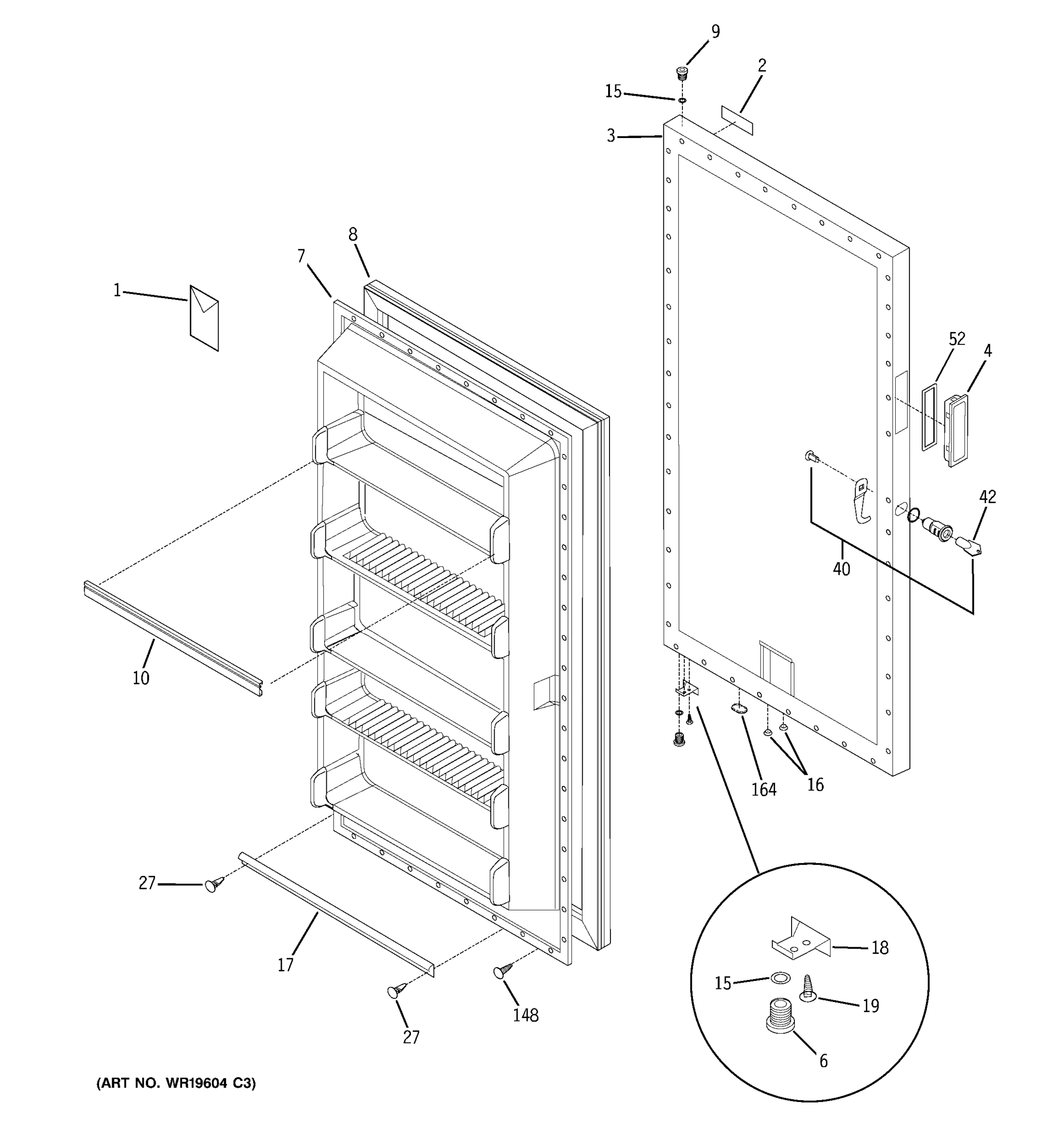

FREEZER DOOR

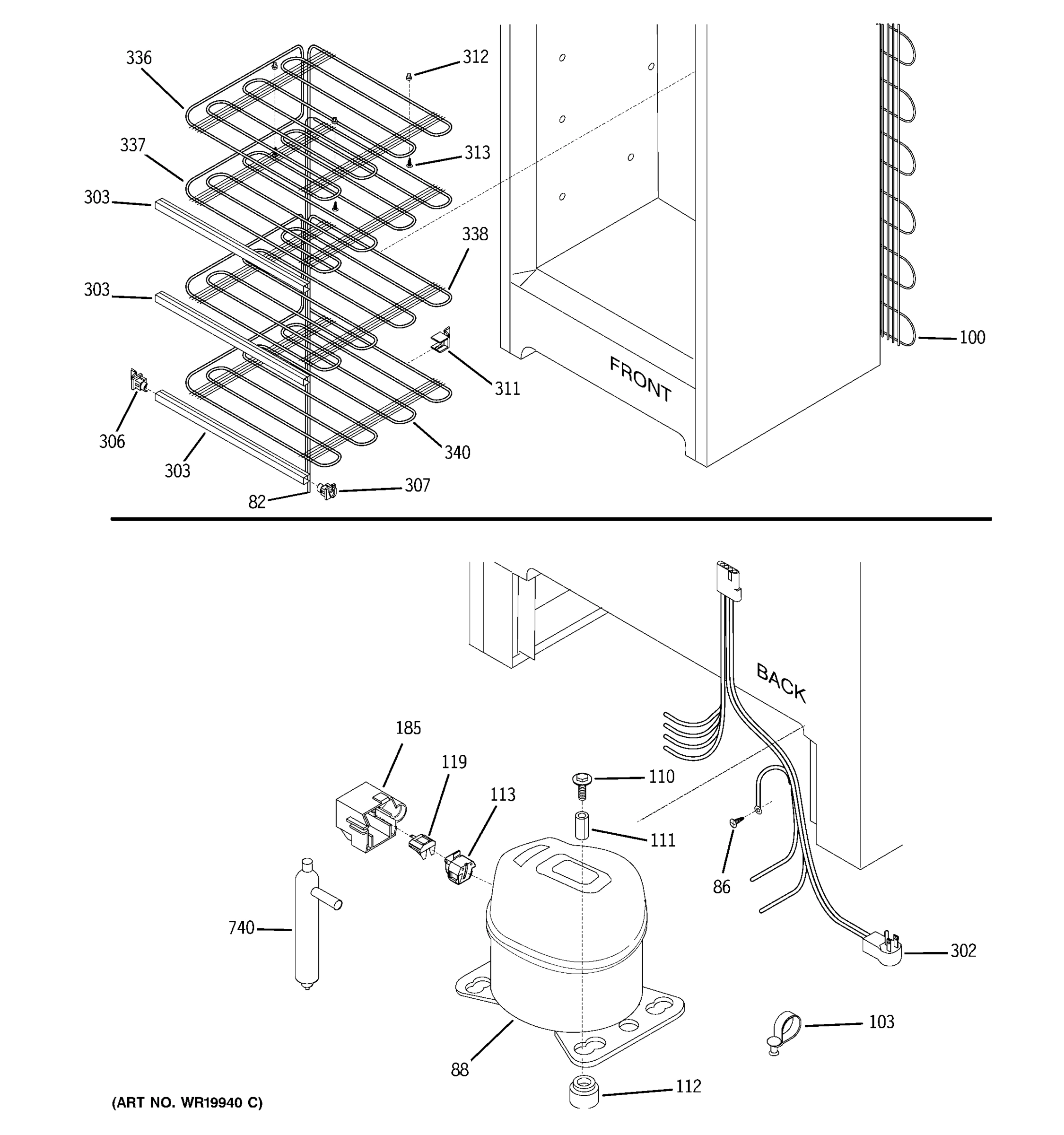

UNIT PARTS
Common parts from model GE FUM9HDPDRWH
1
GEN 31-51656 GEN 31-51656 Contact Us For Availability
1
GEN 49-60172 GEN 49-60172 Contact Us For Availability
2
GEN WR04X10093 GEN WR04X10093 Contact Us For Availability
3
GEN WR78X11115 GEN WR78X11115 Contact Us For Availability
4
HANDLE WH GEN WR12X10072 Contact Us For Availability
6
GEN WR02X10092 GEN WR02X10092 Contact Us For Availability
7
GEN WR77X10066 GEN WR77X10066 Contact Us For Availability
8
GEN WR24X10082 GEN WR24X10082 Contact Us For Availability
9
BEARING, TOP GEN WR02X3812 Contact Us For Availability
10
GEN WR17X11820 GEN WR17X11820 Contact Us For Availability
15
GEN WR01X2180 GEN WR01X2180 Contact Us For Availability
16
GEN WR17X6045 GEN WR17X6045 Contact Us For Availability
17
GEN WR14X10113 GEN WR14X10113 Contact Us For Availability
18
GEN WR02X11443 GEN WR02X11443 Contact Us For Availability
19
GEN WR08X10051 GEN WR08X10051 Contact Us For Availability
27
GEN WR01X1520D GEN WR01X1520D Contact Us For Availability
30
GEN WR12X10740 GEN WR12X10740 Contact Us For Availability
36
GEN WR02X10393 GEN WR02X10393 Contact Us For Availability
39
GEN WR40X10046 GEN WR40X10046 Contact Us For Availability
40
GEN WR05X0087 GEN WR05X0087 Contact Us For Availability
42
GEN WR05X10005 GEN WR05X10005 Contact Us For Availability
43
GEN WR09X10122 GEN WR09X10122 Contact Us For Availability
48
GEN WR23X10302 GEN WR23X10302 Contact Us For Availability
50
GEN WR02X8907 GEN WR02X8907 Contact Us For Availability
51
PLUG DRAIN INTERIOR GEN WR02X10073 Contact Us For Availability
52
GASKET WH GEN WR14X10186 Contact Us For Availability
64
GEN WR01X2181 GEN WR01X2181 Contact Us For Availability
82
GEN WR86X0111 GEN WR86X0111 Contact Us For Availability
86
SCREW 8-32CA x 0.500 GEN WR02X5105 Contact Us For Availability
88
GEN WR87X10109 GEN WR87X10109 Contact Us For Availability
90
GEN PURCH. LOCAL1 GEN PURCH. LOCAL1 Contact Us For Availability
100
GEN WR84X10069 GEN WR84X10069 Contact Us For Availability
103
CLIP GEN WR01X10368 Contact Us For Availability
110
SCREW COMP MTG GEN WR01X2174 Contact Us For Availability
111
GEN WR02X9497 GEN WR02X9497 Contact Us For Availability
112
GROMMET COMPRESSOR GEN WR01X5134 Contact Us For Availability
113
GEN WR07X10005 GEN WR07X10005 Contact Us For Availability
119
GEN WR08X10059 GEN WR08X10059 Contact Us For Availability
146
DRAIN GEN WR02X6353 Contact Us For Availability
151
GEN WR17X11821 GEN WR17X11821 Contact Us For Availability
164
GEN WR02X10087 GEN WR02X10087 Contact Us For Availability
165
GEN WR21X10101 GEN WR21X10101 Contact Us For Availability
181
GEN WR02X10085 GEN WR02X10085 Contact Us For Availability
183
GEN WR02X10086 GEN WR02X10086 Contact Us For Availability
185
GEN WR02X9506 GEN WR02X9506 Contact Us For Availability
302
GEN WR23X10462 GEN WR23X10462 Contact Us For Availability
303
GEN WR38X10354 GEN WR38X10354 Contact Us For Availability
306
SUPPORT SHELF FRONT LH GEN WR02X7621 Contact Us For Availability
307
GEN WR02X7622 GEN WR02X7622 Contact Us For Availability
311
GEN WR02X10053 GEN WR02X10053 Contact Us For Availability
313
SCREW-GROMMET GEN WR01X5060 Contact Us For Availability
336
GEN WR85X10028 GEN WR85X10028 Contact Us For Availability
337
GEN WR85X10029 GEN WR85X10029 Contact Us For Availability
338
GEN WR85X10030 GEN WR85X10030 Contact Us For Availability
340
GEN WR85X10031 GEN WR85X10031 Contact Us For Availability
× ![]()
