Model GE FUM21DHBRWW Freezer – Common Parts & Diagrams

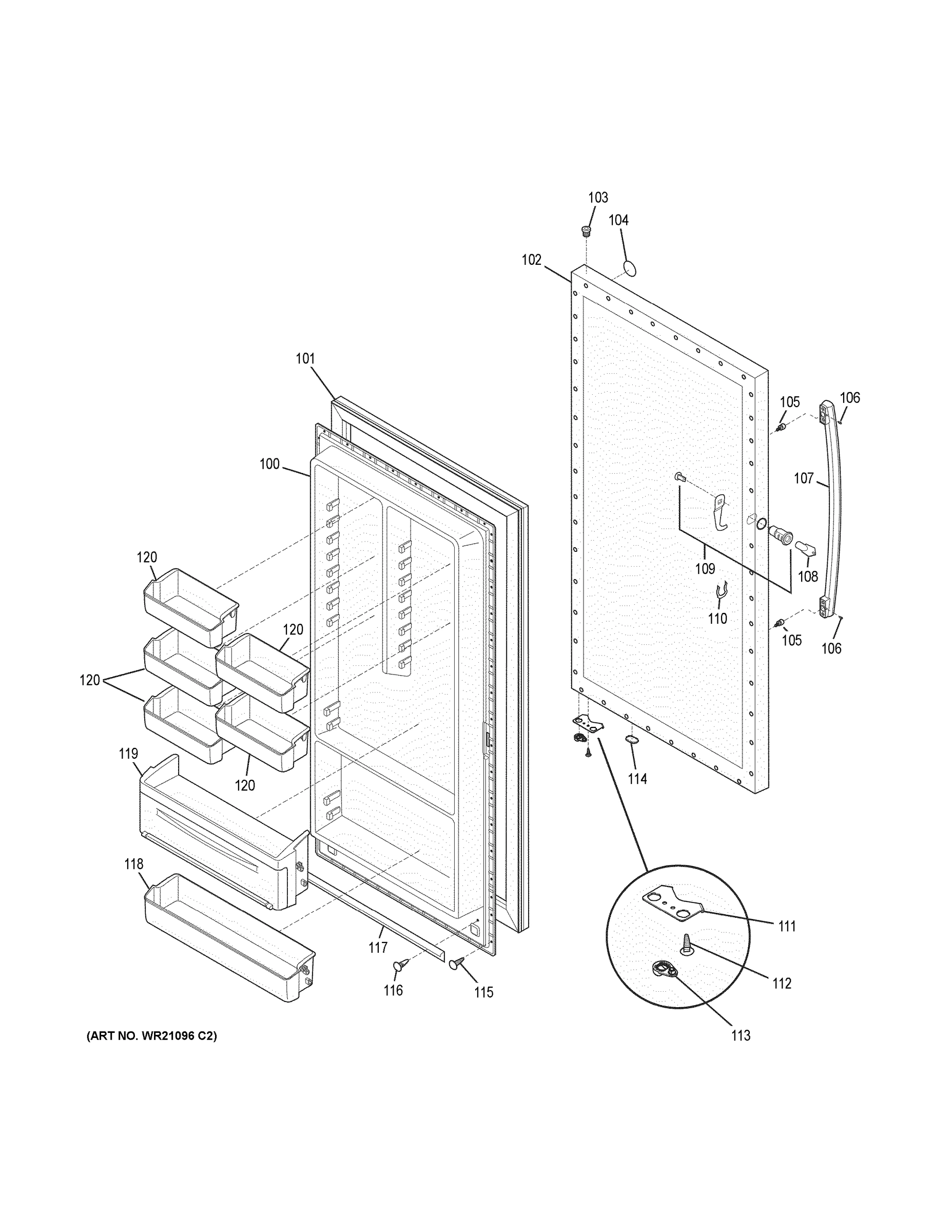

DOOR

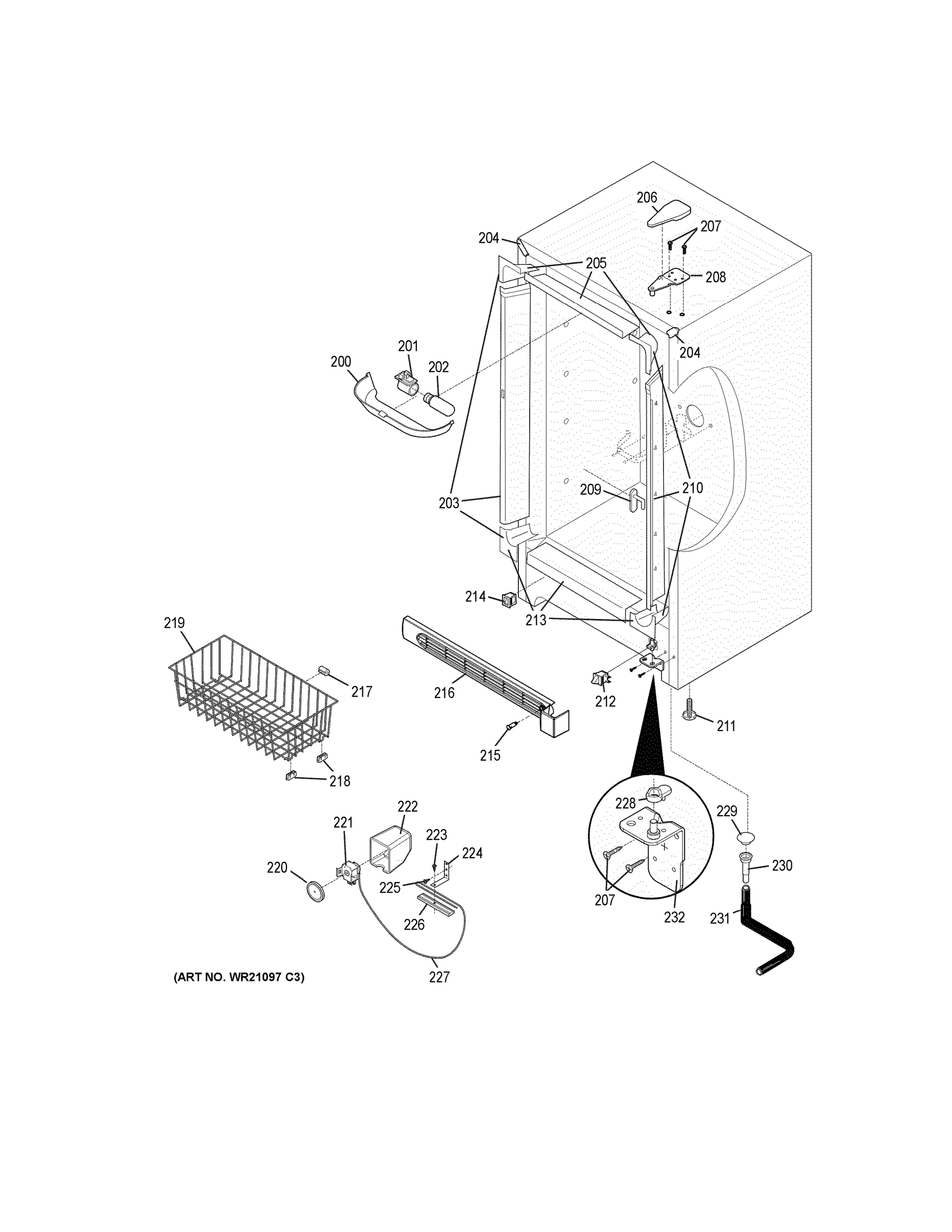

CABINET
MACHINE COMPARTMENT
Common parts from model GE FUM21DHBRWW Freezer
108
KEY GEN WR05X10005 Contact Us For Availability
114
PLUG-BUTTON,DOOR BASE GEN WR02X23542 Contact Us For Availability
117
GASKET,SECONDARY GEN WR14X23528 Contact Us For Availability
118
BIN-DOOR,GALLON GEN WR17X23507 Contact Us For Availability
200
SHIELD-LIGHT GEN WR02X12994 Contact Us For Availability
201
LIGHT SOCKET GEN WR23X10690 Contact Us For Availability
202
LIGHT BULB/LAMP GEN WR01X23536 Contact Us For Availability
203
BREAKER GEN WR40X23511 Contact Us For Availability
204
TRIM-CABINET CORNER, WHI GEN WR02X13348 Contact Us For Availability
205
BREAKER,TOP GEN WR40X23513 Contact Us For Availability
206
COVER-HINGE GEN WR02X12689 Contact Us For Availability
207
SCREW BOTTOM HINGE GEN WR01X10997 Contact Us For Availability
208
HINGE-UPPER GEN WR12X10963 Contact Us For Availability
209
STOP-BASKET GEN WR02X11446 Contact Us For Availability
210
BREAKER,U21 ,W/LOCK GEN WR40X23514 Contact Us For Availability
212
SWITCH LIGHT GEN WR23X10303 Contact Us For Availability
213
BREAKER,BOTTOM GEN WR40X23512 Contact Us For Availability
214
VALVE, BREATHER GEN WR86X10064 Contact Us For Availability
215
LIGHT SIGNAL,ROUND ,GREE GEN WR23X23537 Contact Us For Availability
216
GRILLE,W/SIGNAL LIGHT GEN WR74X23560 Contact Us For Availability
222
COVER-CONTROL HOUSING GEN WR02X12316 Contact Us For Availability
223
SCREW,RWHD ,8-32A X 0.50 GEN WR02X12764 Contact Us For Availability
225
SCREW,TYPE A ,10-24 X 3/ GEN WR01X10796 Contact Us For Availability
226
CLAMP CAP TUBE GEN WR02X11441 Contact Us For Availability
227
INSULATOR GEN WR2X9500 Contact Us For Availability
229
PLUG DRAIN GEN WR02X10073 Contact Us For Availability
230
DRAIN GEN WR17X23526 Contact Us For Availability
231
HOSE-DRAIN GEN WR17X11418 Contact Us For Availability
232
HINGE,1/2" PIN ,BOTTOM R GEN WR12X23534 Contact Us For Availability
300
EVAPORATOR,TUBING ASM GEN WR85X10132 Contact Us For Availability
302
SUPPORT GEN WR2X7622 Contact Us For Availability
303
SUPPORT GEN WR2X7621 Contact Us For Availability
304
SUPPORT-REAR SHELF GEN WR02X10053 Contact Us For Availability
305
SCREW,HEX SEMS ,8-18AB X GEN WR01X10784 Contact Us For Availability
306
GROMMET SPAC GEN WR1X2182 Contact Us For Availability
308
CLIP,CONTROLLER GEN WR02X12032 Contact Us For Availability
309
CAPACITOR-RUN GEN WR62X23515 Contact Us For Availability
310
CONTROLLER,COMPRESSOR GEN WR07X23521 Contact Us For Availability
312
COMPRESSOR,DGK57C GEN WR87X23519 Contact Us For Availability
313
SCREW COMP. MTG GEN WR01X10999 Contact Us For Availability
× ![]()
