Model GE FUM17DMBRWH Freezer – Common Parts & Diagrams
CABINET
DOOR

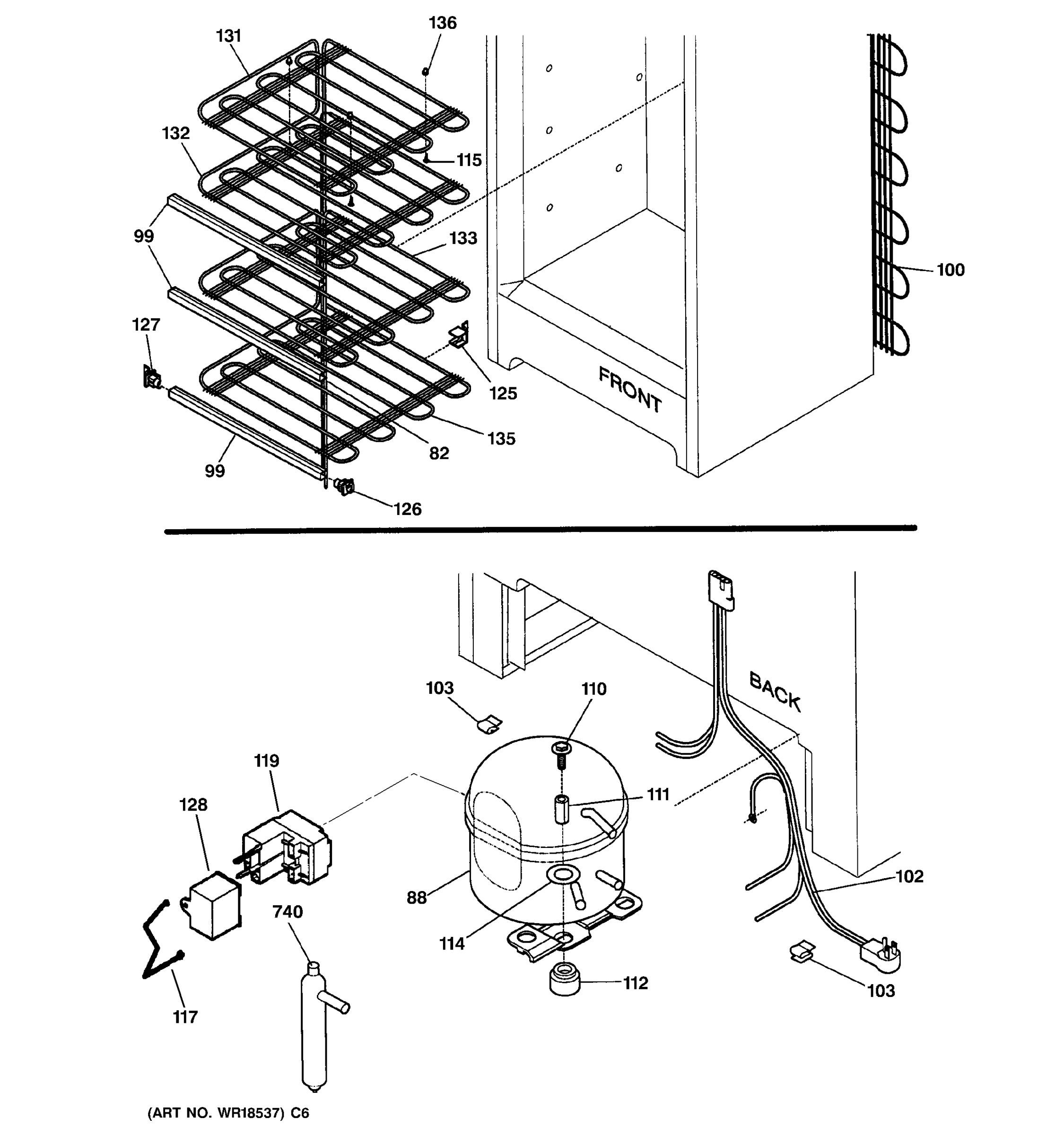

UNIT PARTS
Common parts from model GE FUM17DMBRWH Freezer
1
GEN 31-51373 GEN 31-51373 Contact Us For Availability
1
GEN 49-60040 GEN 49-60040 Contact Us For Availability
2
GEN WR04X10093 GEN WR04X10093 Contact Us For Availability
3
OUTER DOOR PANEL WH GEN WR78X10293 Contact Us For Availability
4
HANDLE WHITE GEN WR12X10075 Contact Us For Availability
5
END CAP CHROME GEN WR02X8156 Contact Us For Availability
6
GEN WR02X10092 GEN WR02X10092 Contact Us For Availability
7
GEN WR77X10012 GEN WR77X10012 Contact Us For Availability
9
GEN WR02X9491 GEN WR02X9491 Contact Us For Availability
10
GEN WR17X11407 GEN WR17X11407 Contact Us For Availability
11
WASHER FLAT HANDLE GEN WR01X2172 Contact Us For Availability
12
LOCK ASS'Y GEN WR05X0087 Contact Us For Availability
13
KEY GEN WR05X0093 Contact Us For Availability
15
GEN WR01X2180 GEN WR01X2180 Contact Us For Availability
16
GEN WR17X6045 GEN WR17X6045 Contact Us For Availability
17
GEN WR14X10004 GEN WR14X10004 Contact Us For Availability
18
GEN WR02X5637 GEN WR02X5637 Contact Us For Availability
19
SCREW- DOOR STOP GEN WR01X5485 Contact Us For Availability
26
GEN WR01X5405 GEN WR01X5405 Contact Us For Availability
27
GEN WR01X1520D GEN WR01X1520D Contact Us For Availability
36
GEN WR02X10393 GEN WR02X10393 Contact Us For Availability
41
GEN WR23X10303 GEN WR23X10303 Contact Us For Availability
43
GEN WR09X10063 GEN WR09X10063 Contact Us For Availability
44
GEN WR02X10939 GEN WR02X10939 Contact Us For Availability
48
GEN WR23X10302 GEN WR23X10302 Contact Us For Availability
49
GEN PURCH. LOCAL1 GEN PURCH. LOCAL1 Contact Us For Availability
50
GEN WR02X8907 GEN WR02X8907 Contact Us For Availability
51
PLUG DRAIN GEN WR02X10073 Contact Us For Availability
52
GEN WR01X10373 GEN WR01X10373 Contact Us For Availability
54
GEN WR71X10069 GEN WR71X10069 Contact Us For Availability
55
GEN WR21X10002 GEN WR21X10002 Contact Us For Availability
57
GEN WR02X11446 GEN WR02X11446 Contact Us For Availability
64
GEN WR01X2181 GEN WR01X2181 Contact Us For Availability
67
GEN WR17X11418 GEN WR17X11418 Contact Us For Availability
70
GEN WR02X11463 GEN WR02X11463 Contact Us For Availability
82
HEAT EXCHANGER GEN WR86X0110 Contact Us For Availability
88
COMPRESSOR GEN WR87X10086 Contact Us For Availability
101
GEN WR12X10617 GEN WR12X10617 Contact Us For Availability
102
GEN WR23X10306 GEN WR23X10306 Contact Us For Availability
103
GEN WR01X10368 GEN WR01X10368 Contact Us For Availability
110
SCREW COMP MTG GEN WR01X2174 Contact Us For Availability
111
GEN WR02X9497 GEN WR02X9497 Contact Us For Availability
112
GEN WR01X10378 GEN WR01X10378 Contact Us For Availability
114
GEN WR01X2170 GEN WR01X2170 Contact Us For Availability
115
SCREW-GROMMET GEN WR01X5060 Contact Us For Availability
117
GEN WR02X10403 GEN WR02X10403 Contact Us For Availability
119
PTC RELAY GEN WR07X10020 Contact Us For Availability
125
GEN WR02X10053 GEN WR02X10053 Contact Us For Availability
126
SUPPORT SHELF FRONT RH GEN WR02X7622 Contact Us For Availability
127
SUPPORT SHELF FRONT LH GEN WR02X7621 Contact Us For Availability
128
CAPACITOR GEN WR62X10016 Contact Us For Availability
131
GRID TOP EVAP GEN WR85X0294 Contact Us For Availability
132
SHELF TOP GEN WR85X0295 Contact Us For Availability
133
SHELF MIDDLE GEN WR85X0296 Contact Us For Availability
135
SHELF BOTTOM GEN WR85X0297 Contact Us For Availability
140
SCREW HANDLE GEN WR01X5749 Contact Us For Availability
146
DRAIN GEN WR02X6353 Contact Us For Availability
153
GEN WR02X11441 GEN WR02X11441 Contact Us For Availability
164
GEN WR02X10087 GEN WR02X10087 Contact Us For Availability
× ![]()
