Model GE FUF17SVFRWW Freezer – Common Parts & Diagrams

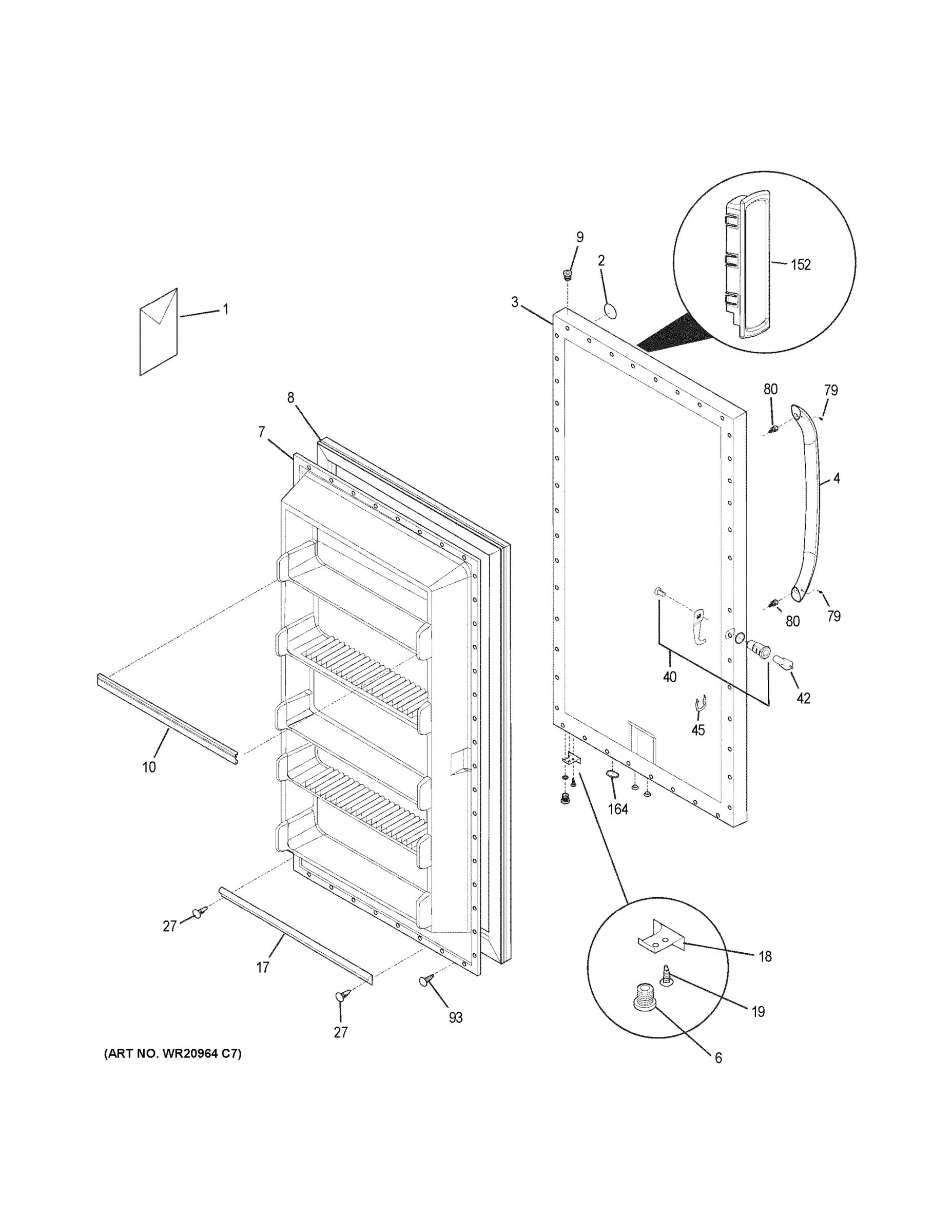

DOOR

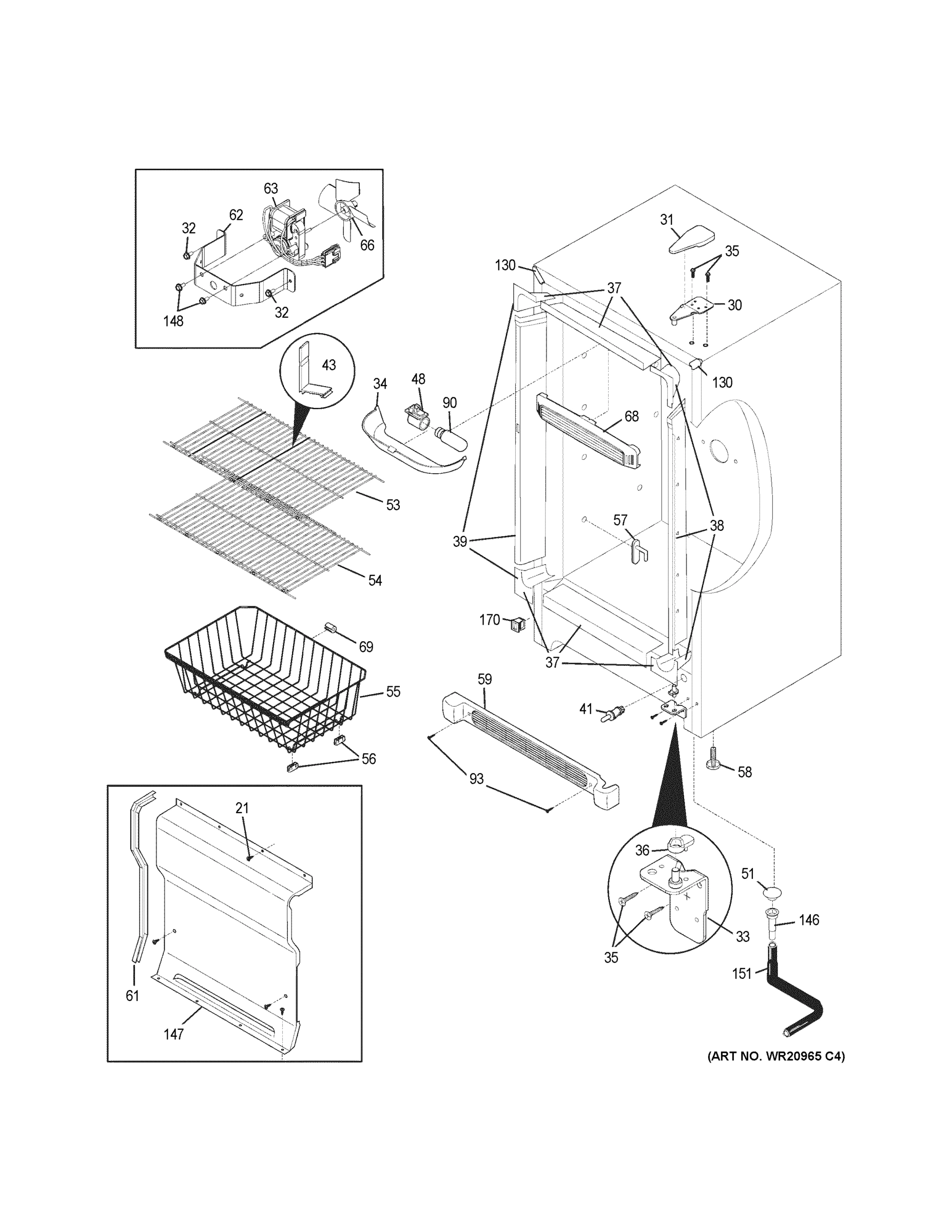

CABINET

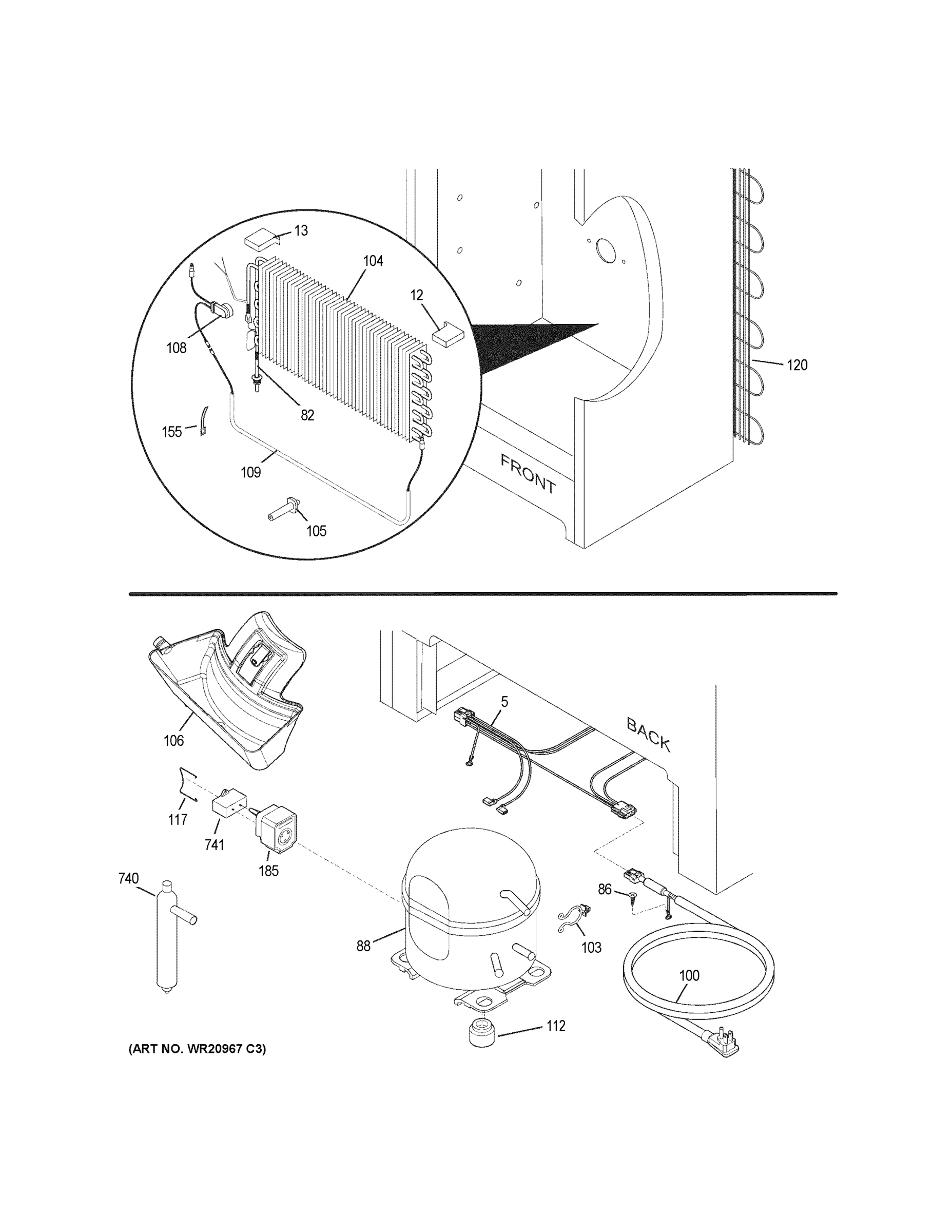

MACHINE COMPARTMENT
Common parts from model GE FUF17SVFRWW Freezer
4
HANDLE DOOR GEN WR12X11025 Contact Us For Availability
5
HARNESS, MAIN GEN WR23X10756 Contact Us For Availability
6
BEARING-HINGE BOTTOM GEN WR02X12310 Contact Us For Availability
10
RACK-DOOR,(6) GEN WR17X11913 Contact Us For Availability
12
INSULATOR-EVAP, STYROFOA GEN WR02X13242 Contact Us For Availability
13
INSULATOR-EVAP, STYROFOA GEN WR02X13243 Contact Us For Availability
17
GASKET, SECONDARY GEN WR14X10314 Contact Us For Availability
34
SHIELD-LIGHT GEN WR02X12994 Contact Us For Availability
35
SCREW, TAMPER PROOF, 1/4 GEN WR01X10874 Contact Us For Availability
35
SCREW-COMPRESSOR MTG, 1/ GEN WR01X10876 Contact Us For Availability
36
RAMP DOOR CLOSURE GEN WR02X10393 Contact Us For Availability
37
BREAKER KIT W/CORNERS,32 GEN WR40X10058 Contact Us For Availability
38
BREAKER KIT W/CORNERS,NO GEN WR40X10059 Contact Us For Availability
39
BREAKER KIT W/CORNERS,IN GEN WR40X10060 Contact Us For Availability
41
SWITCH LIGHT GEN WR23X10303 Contact Us For Availability
42
KEY GEN WR05X10005 Contact Us For Availability
43
DIVIDER, WHITE, WIRE SHE GEN WR02X12993 Contact Us For Availability
48
LIGHT SOCKET GEN WR23X10302 Contact Us For Availability
51
PLUG-DRAIN GEN WR01X10031 Contact Us For Availability
53
SHELF GEN WR71X10072 Contact Us For Availability
55
BOTTOM BASKET GEN WR21X10237 Contact Us For Availability
57
STOP-BASKET GEN WR02X11446 Contact Us For Availability
59
GRILLE/KICKPLATE, 32", W GEN WR74X10300 Contact Us For Availability
63
MOTOR,FAN ,115 V GEN WR60X10293 Contact Us For Availability
66
WR60X139 GEN WR60X5082 Contact Us For Availability
68
BAFFLE, AIR GEN WR17X12658 Contact Us For Availability
86
SCREW,RWHD ,8-32A X 0.50 GEN WR02X12764 Contact Us For Availability
88
COMPRESSOR, W/GROMMETS, GEN WR87X10196 Contact Us For Availability
90
LIGHT BULB/LAMP GEN PURCHLOCAL1 Contact Us For Availability
104
EVAPORATOR GEN WR85X10157 Contact Us For Availability
105
SUPPORT, EVAPORATOR MTG GEN WR02X12991 Contact Us For Availability
106
PAN-DRAIN GEN WR02X13003 Contact Us For Availability
108
THERMOSTAT GEN WR50X10031 Contact Us For Availability
109
DEFROST HEATER GEN WR51X10060 Contact Us For Availability
112
GROMMET GEN WR01X5134 Contact Us For Availability
117
CLIP,CONTROLLER GEN WR02X12032 Contact Us For Availability
130
TRIM-CABINET CORNER, WHI GEN WR02X13348 Contact Us For Availability
146
DRAIN GEN WR02X6353 Contact Us For Availability
147
COVER-EVAPORATOR GEN WR17X12665 Contact Us For Availability
148
SCREW,HEX WASHER HEAD ,8 GEN WR01X10798 Contact Us For Availability
151
HOSE-DRAIN 17 50" GEN WR17X4120 Contact Us For Availability
185
CONTROLLER, COMPRESSOR GEN WR07X10121 Contact Us For Availability
× ![]()
