Model GE FUF14SVGRWW Freezer – Common Parts & Diagrams

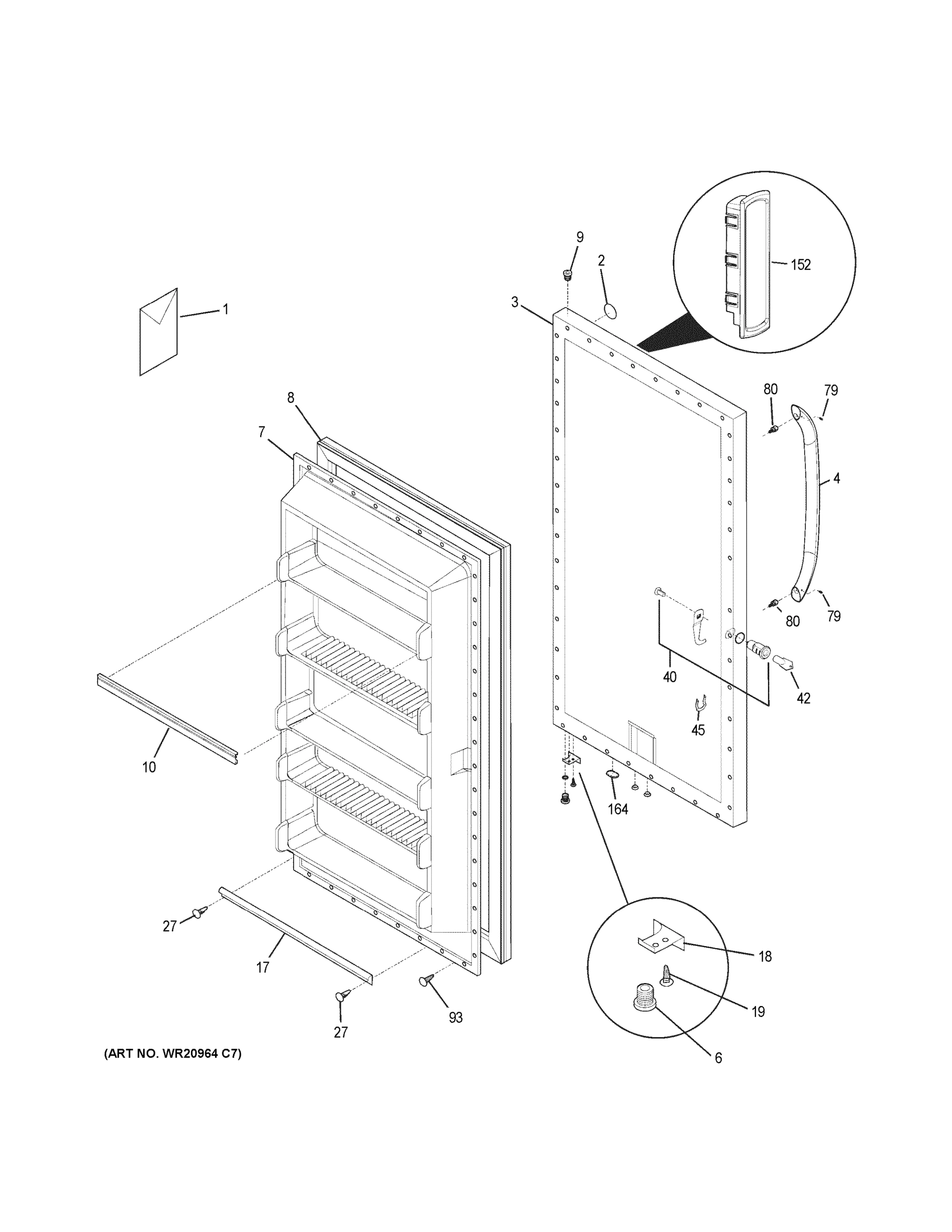

DOOR

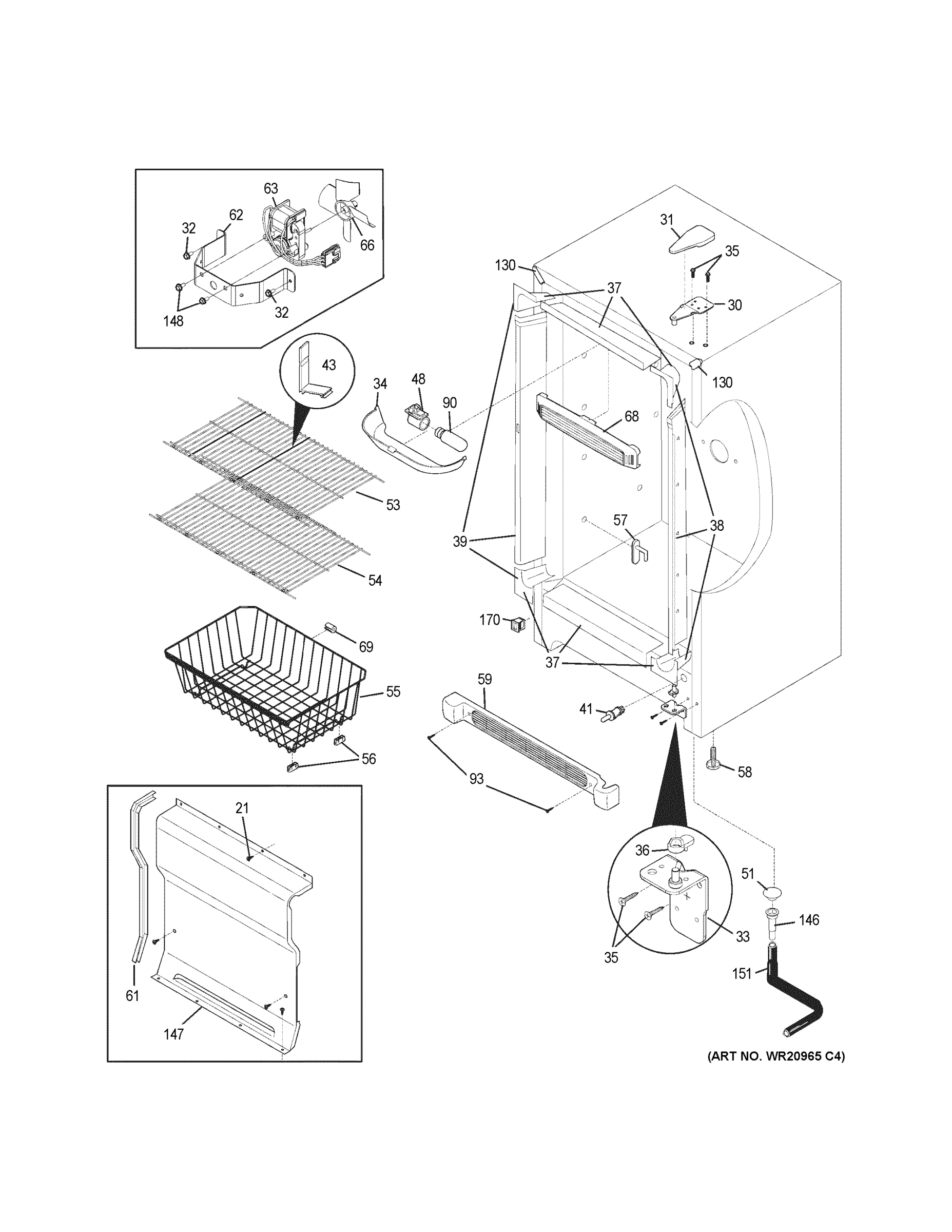

CABINET

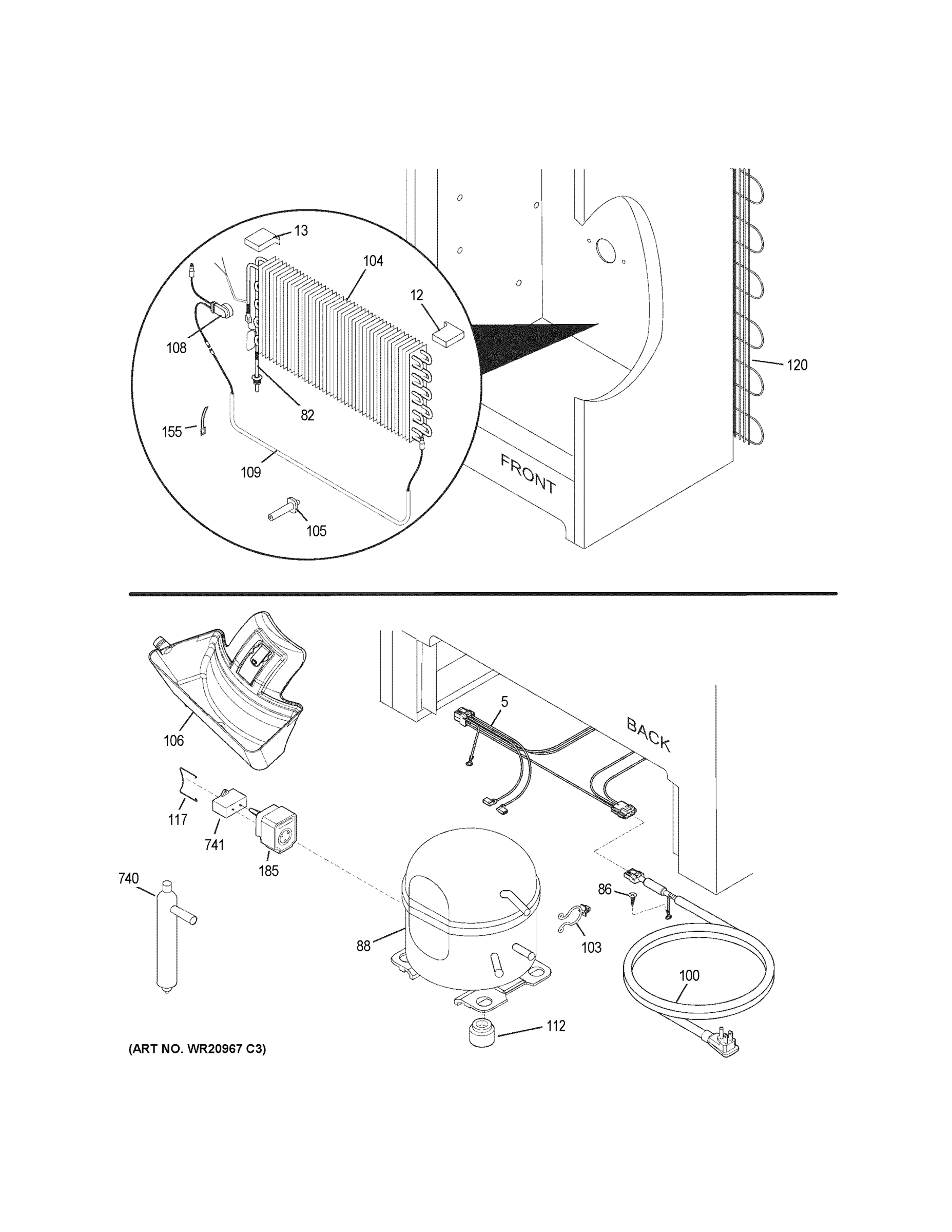

MACHINE COMPARTMENT
Common parts from model GE FUF14SVGRWW Freezer
4
HANDLE DOOR GEN WR12X11025 Contact Us For Availability
5
HARNESS, MAIN GEN WR23X10756 Contact Us For Availability
6
BEARING-HINGE BOTTOM GEN WR02X12310 Contact Us For Availability
8
GASKET, DOOR SEAL, WHIT GEN WR24X10253 Contact Us For Availability
12
INSULATOR-EVAP, STYROFOA GEN WR02X13242 Contact Us For Availability
13
INSULATOR-EVAP, STYROFOA GEN WR02X13243 Contact Us For Availability
21
SCREW, 8-18AB X.470 QX" GEN WR01X10958 Contact Us For Availability
30
HINGE-UPPER GEN WR12X10963 Contact Us For Availability
31
COVER-HINGE GEN WR02X12689 Contact Us For Availability
32
SCREW, #8, 18X.63, SELF GEN WR01X10915 Contact Us For Availability
34
SHIELD-LIGHT GEN WR02X12994 Contact Us For Availability
35
SCREW, TAMPER PROOF, 1/4 GEN WR01X10874 Contact Us For Availability
36
RAMP DOOR CLOSURE GEN WR02X10393 Contact Us For Availability
37
BREAKER KIT W/CORNERS,28 GEN WR40X10061 Contact Us For Availability
38
BREAKER KIT W/CORNERS,NO GEN WR40X10062 Contact Us For Availability
39
BREAKER KIT W/CORNERS,IN GEN WR40X10063 Contact Us For Availability
41
SWITCH LIGHT GEN WR23X10303 Contact Us For Availability
42
KEY GEN WR05X10005 Contact Us For Availability
43
DIVIDER, WHITE, WIRE SHE GEN WR02X12993 Contact Us For Availability
48
LIGHT SOCKET GEN WR23X10302 Contact Us For Availability
51
PLUG-DRAIN GEN WR01X10031 Contact Us For Availability
53
SHELF, 16.69 X 23.88, WH GEN WR71X10907 Contact Us For Availability
54
SHELF, LOWER, WH GEN WR71X10921 Contact Us For Availability
55
BOTTOM BASKET GEN WR21X10236 Contact Us For Availability
57
STOP-BASKET GEN WR02X11446 Contact Us For Availability
59
GRILLE/KICKPLATE, 28", W GEN WR74X10299 Contact Us For Availability
61
GASKET EVAP COVER GEN WR14X0489 Contact Us For Availability
63
MOTOR,FAN ,115 V GEN WR60X10293 Contact Us For Availability
66
WR60X139 GEN WR60X5082 Contact Us For Availability
68
BAFFLE, AIR GEN WR17X12658 Contact Us For Availability
86
SCREW,RWHD ,8-32A X 0.50 GEN WR02X12764 Contact Us For Availability
88
COMPRESSOR, W/O ELECTRIC GEN WR87X10194 Contact Us For Availability
90
LIGHT BULB/LAMP GEN PURCHLOCAL1 Contact Us For Availability
105
SUPPORT, EVAPORATOR MTG GEN WR02X12991 Contact Us For Availability
108
THERMOSTAT GEN WR50X10031 Contact Us For Availability
112
GROMMET GEN WR01X5134 Contact Us For Availability
117
CLIP,CONTROLLER GEN WR02X12032 Contact Us For Availability
130
TRIM-CABINET CORNER, WHI GEN WR02X13348 Contact Us For Availability
146
DRAIN GEN WR02X6353 Contact Us For Availability
147
COVER-EVAPORATOR GEN WR17X12657 Contact Us For Availability
148
SCREW,HEX WASHER HEAD ,8 GEN WR01X10798 Contact Us For Availability
185
CONTROLLER, COMPRESSOR GEN WR07X10119 Contact Us For Availability
741
CAPACITOR-RUN, 15 MF GEN WR62X10079 Contact Us For Availability
× ![]()
