Model Electrolux FU218JRW4 FREEZER – Common Parts & Diagrams

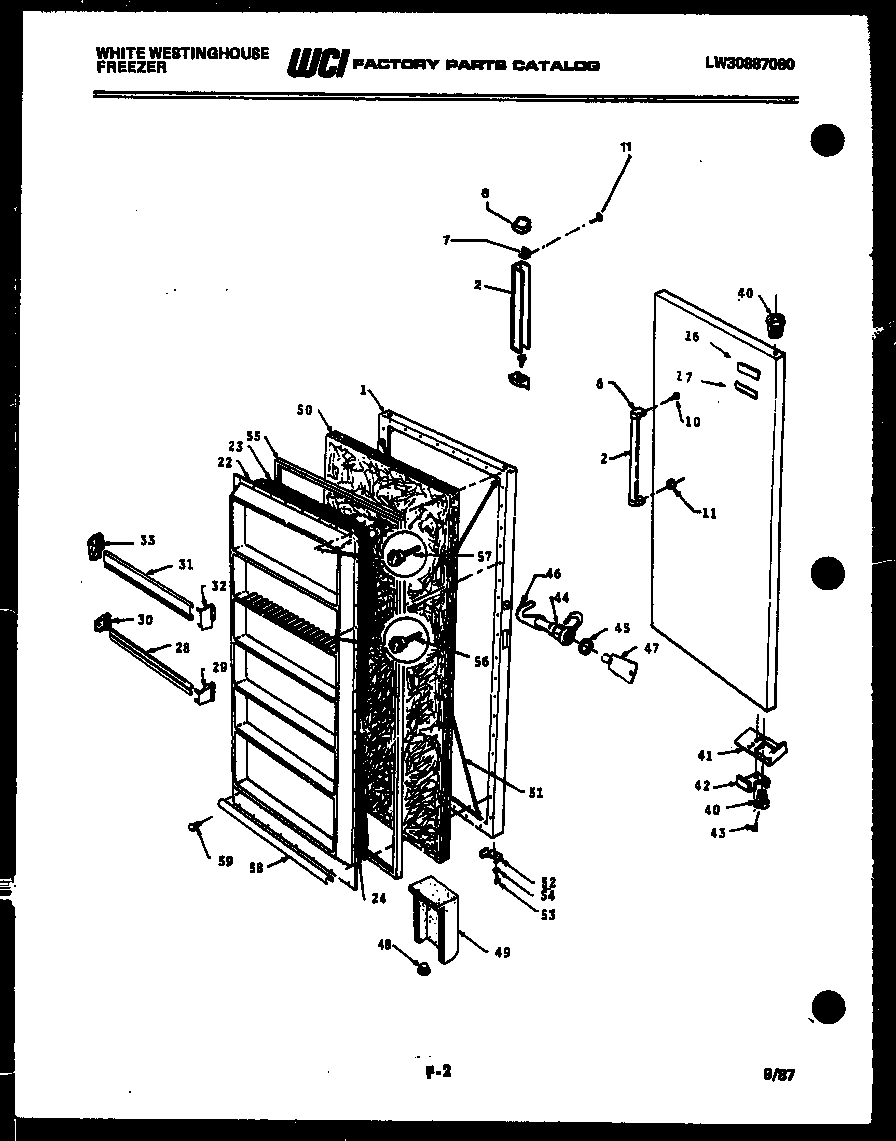

02 - DOOR PARTS

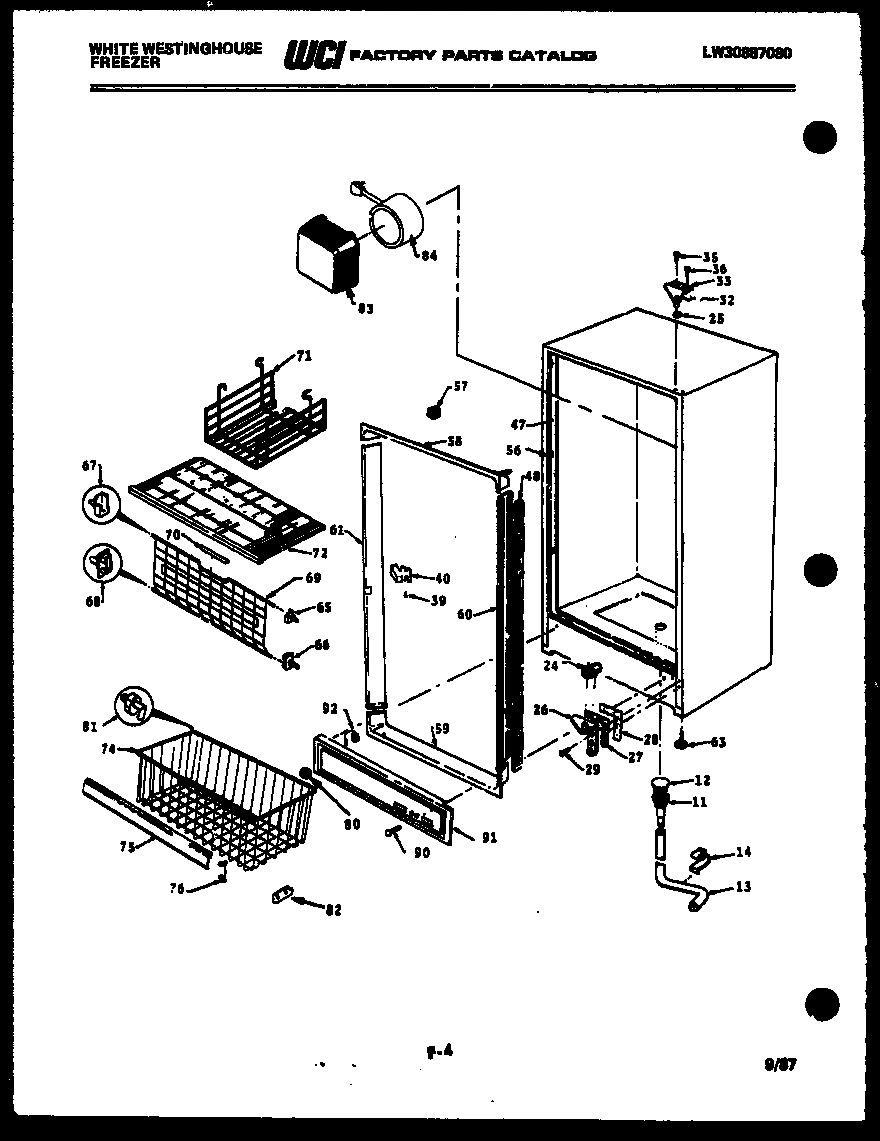

03 - CABINET PARTS

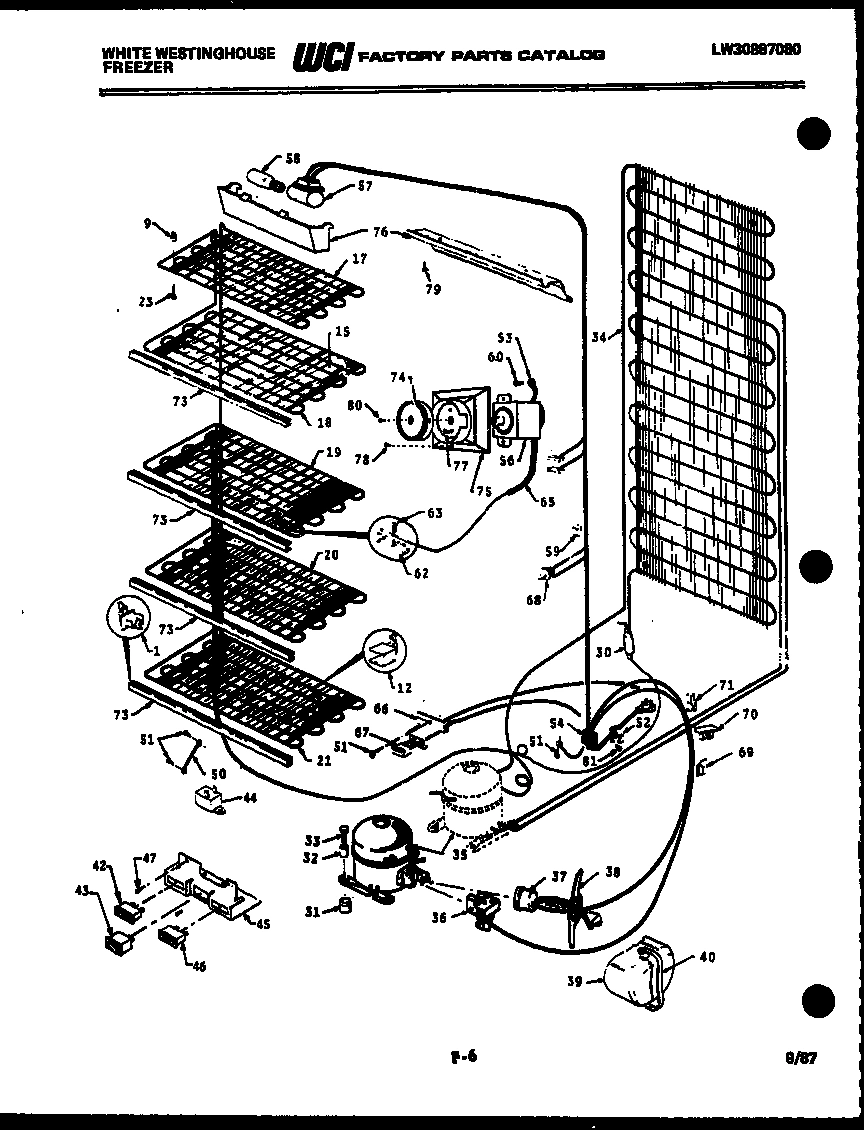

04 - SYSTEM AND ELECTRICAL PARTS
Common parts from model Electrolux FU218JRW4 FREEZER
1
WCI F119929-S WCI F119929-S Contact Us For Availability
2
WCI F124665 WCI F124665 Contact Us For Availability
6
HANDL END CAP, TOP WCI F124647 Contact Us For Availability
6
HANDL END CAP, BTM WCI F124648 Contact Us For Availability
7
WCI 188C433H01 WCI 188C433H01 Contact Us For Availability
9
WCI F56640 WCI F56640 Contact Us For Availability
9
SPACER, FRNT (2) WCI F81445 Contact Us For Availability
12
SUPT. REAR (8) WCI F117447 Contact Us For Availability
14
CLAMP WCI F122718 Contact Us For Availability
15
HEAT EXCHANGER (NON-ILLUSTRATED) WCI F125197 Contact Us For Availability
16
WCI F124668 WCI F124668 Contact Us For Availability
17
INSERT WCI F124669 Contact Us For Availability
17
GRID, TOP (NON-ILLUSTRATED) WCI F129768 Contact Us For Availability
18
TAPE (NON-ILLUSTRATED) WCI F124667 Contact Us For Availability
18
SHELF, FIRST (NON-ILLUSTRATED) WCI F300036 Contact Us For Availability
19
SHELF, SECOND (NON-ILLUSTRATED) WCI F125184 Contact Us For Availability
20
SHELF, THIRD (NON-ILLUSTRATED) WCI F129769 Contact Us For Availability
21
SHELF, BTM (NON-ILLUSTRATED) WCI F300037 Contact Us For Availability
22
PNL INSERT PNL WCI F124704-64 Contact Us For Availability
23
SCREW (3) WCI F126260 Contact Us For Availability
24
CLOSER DOOR WCI F124610 Contact Us For Availability
26
HINGE, BTM WCI F84943 Contact Us For Availability
27
WCI F120978 WCI F120978 Contact Us For Availability
28
WCI F84948 WCI F84948 Contact Us For Availability
32
END CAP RH (6) WCI F112630 Contact Us For Availability
32
WCI F92307 WCI F92307 Contact Us For Availability
32
WCI F59556 WCI F59556 Contact Us For Availability
33
END CAP LH (6) WCI F112631 Contact Us For Availability
33
WCI F300271 WCI F300271 Contact Us For Availability
33
WCI F59211 WCI F59211 Contact Us For Availability
35
SCREW, FRONT WCI F94110 Contact Us For Availability
35
COMPRESSOR (NON-ILLUSTRATED) WCI F126956 Contact Us For Availability
36
WCI F300459 WCI F300459 Contact Us For Availability
36
RELAY (NON-ILLUSTRATED) WCI F126878-2 Contact Us For Availability
37
OVERLOAD (NON-ILLUSTRATED) WCI F126879 Contact Us For Availability
38
WCI F300749 WCI F300749 Contact Us For Availability
40
BEARING, TOP WCI F84893 Contact Us For Availability
40
WCI F117634 WCI F117634 Contact Us For Availability
41
WCI F91170 WCI F91170 Contact Us For Availability
42
WCI F124623 WCI F124623 Contact Us For Availability
42
SIGNAL LITE-AMBER WCI F128520 Contact Us For Availability
43
SCREW (2) WCI F121387 Contact Us For Availability
43
WCI F128517 WCI F128517 Contact Us For Availability
44
LOCK COMPL. WCI F300788 Contact Us For Availability
44
WCI F128518 WCI F128518 Contact Us For Availability
45
WASHER WCI F114366 Contact Us For Availability
45
BRKT-ALARM WCI F129965 Contact Us For Availability
46
WCI F128908 WCI F128908 Contact Us For Availability
46
SIGNAL LITE-RED WCI F128519 Contact Us For Availability
47
INSULATION WCI F58187-50 Contact Us For Availability
48
WCI F86843 WCI F86843 Contact Us For Availability
48
WIRE HARNS-ALARM WCI F300210 Contact Us For Availability
49
AIR DUCT BREATHER WCI F128421 Contact Us For Availability
50
INSULATION DOOR WCI F126806 Contact Us For Availability
50
WCI F95424 WCI F95424 Contact Us For Availability
51
WIRE ADJUSTING (2) WCI F129670 Contact Us For Availability
51
SCREW (2) WCI F81693 Contact Us For Availability
52
BRACKET (2) WCI F57880 Contact Us For Availability
53
SCREW (2) WCI F57906 Contact Us For Availability
54
WASHER (2) WCI F119827 Contact Us For Availability
54
WIRING HARNESS WCI F129550 Contact Us For Availability
56
CLIP BREAKER (7) WCI F126240 Contact Us For Availability
56
CONTROL TEMP (NON-ILLUSTRATED) WCI F126974 Contact Us For Availability
57
SCREW SHLDR PNL (24) WCI F124860 Contact Us For Availability
57
LIGHT SOCKET WCI F125347 Contact Us For Availability
58
GASKET, SECONDARY WCI F99438 Contact Us For Availability
58
WCI F085126-64 WCI F085126-64 Contact Us For Availability
58
BULB WCI F92472 Contact Us For Availability
59
RETAINR HARNS (4) WCI F112321 Contact Us For Availability
59
WCI F085127-64 WCI F085127-64 Contact Us For Availability
60
WCI F300736 WCI F300736 Contact Us For Availability
61
WCI F113765-64 WCI F113765-64 Contact Us For Availability
62
CLAMP WCI F96850 Contact Us For Availability
63
WCI F91100 WCI F91100 Contact Us For Availability
63
SCREW WCI F52943 Contact Us For Availability
70
CLIP (2) WCI F111846 Contact Us For Availability
72
DRY SHELF WCI F121577 Contact Us For Availability
73
TRIM, SHELF (3) WCI F300386 Contact Us For Availability
74
BASKET W/O TRIM WCI F125543 Contact Us For Availability
74
WCI F128874 WCI F128874 Contact Us For Availability
75
BASKET WCI F124674 Contact Us For Availability
75
HOUSING WCI F128633 Contact Us For Availability
76
WCI F119052 WCI F119052 Contact Us For Availability
76
WCI F128809 WCI F128809 Contact Us For Availability
77
SCREW (2) WCI F55160 Contact Us For Availability
80
SCREW WCI F110410 Contact Us For Availability
81
STOP LINER (2) WCI F115158 Contact Us For Availability
83
HOUSING WCI F129186 Contact Us For Availability
84
SENSOR WCI F300951 Contact Us For Availability
85
SPACER BSKT (4) (NON-ILLUSTRATED) WCI F129806 Contact Us For Availability
90
WCI F119001 WCI F119001 Contact Us For Availability
91
WCI F124838 WCI F124838 Contact Us For Availability
91
WCI F128877 WCI F128877 Contact Us For Availability
92
BUMPER (2) WCI F118003 Contact Us For Availability
× ![]()
