Model Electrolux FU196JRW1 FREEZER – Common Parts & Diagrams

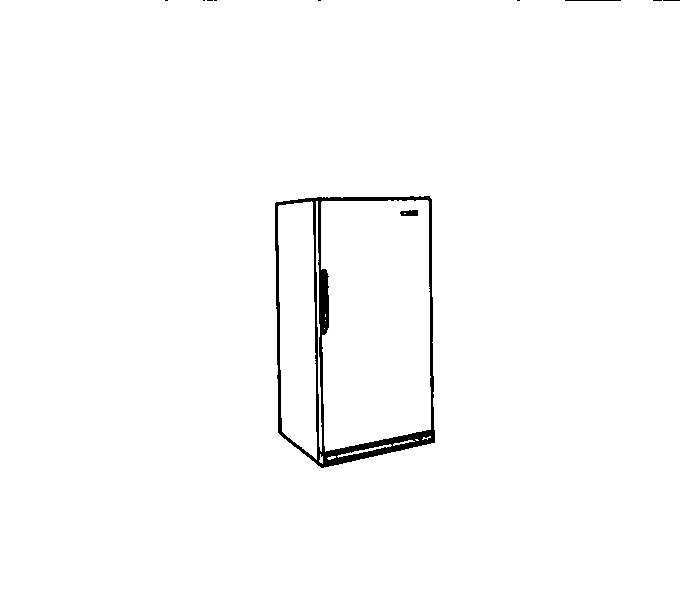

01 - COVER

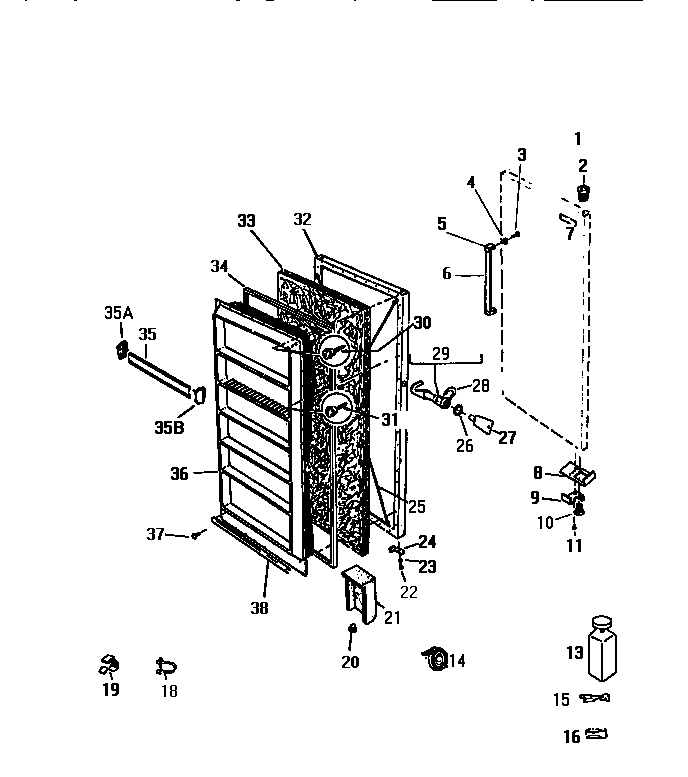

02 - DOOR
03 - CABINET
04 - SYSTEMS
Common parts from model Electrolux FU196JRW1 FREEZER
*97280
RAMP, DOOR CLOSER WCI F124610 Contact Us For Availability
*97281
SEALANT LINER REPAIR WCI S900113 Contact Us For Availability
1
WASHER WCI F124077 Contact Us For Availability
1
SCREW WCI F94110 Contact Us For Availability
1
WCI F82754 WCI F82754 Contact Us For Availability
2
HINGE WCI F93193 Contact Us For Availability
2
TOP PLATE WCI F119996-3 Contact Us For Availability
3
WCI Q503165 WCI Q503165 Contact Us For Availability
3
PLATE WCI F93207 Contact Us For Availability
3
WCI F120027 WCI F120027 Contact Us For Availability
4
WCI C501867 WCI C501867 Contact Us For Availability
5
WCI Q293701 WCI Q293701 Contact Us For Availability
5
LEG WCI K1322905 Contact Us For Availability
5
SOCKET WCI F115515 Contact Us For Availability
6
WCI Q277252 WCI Q277252 Contact Us For Availability
6
WCI R901059 WCI R901059 Contact Us For Availability
7
NAMEPLATE WCI R901064 Contact Us For Availability
7
WCI F86523 WCI F86523 Contact Us For Availability
8
SUPPORT WCI F91170 Contact Us For Availability
8
WCI F58024 WCI F58024 Contact Us For Availability
8
SCREW WCI F52943 Contact Us For Availability
9
WCI F84896 WCI F84896 Contact Us For Availability
9
CLAMP WCI F96850 Contact Us For Availability
10
BEARING WCI F84893 Contact Us For Availability
10
GASKET WCI F84948 Contact Us For Availability
10
SUPPORT REAR WCI F117447 Contact Us For Availability
11
SCREW WCI F121387 Contact Us For Availability
11
GASKET WCI F120978 Contact Us For Availability
11
WCI F58105 WCI F58105 Contact Us For Availability
12
HINGE WCI F84943 Contact Us For Availability
12
SUPPORT R.H. WCI F117449 Contact Us For Availability
13
TOUCH UP PAINT, ALMOND (1 OZ) WCI Q171155 Contact Us For Availability
13
TOUCH-UP PAINT, WHITE (1 OZ) WCI Q49587 Contact Us For Availability
13
WCI F116211-3 WCI F116211-3 Contact Us For Availability
14
WCI F900126 WCI F900126 Contact Us For Availability
14
TRIM, SHELF WCI F119270-3 Contact Us For Availability
15
RECEPTACLE 3/16`` BLADE TERM. (PKG 12) WCI Q301294 Contact Us For Availability
15
RECEPTACLE 1/4`` BLADE TERM. (PKG 12) WCI Q301295 Contact Us For Availability
15
RECEPTACLE 5/16`` BLADE TERM. (PKG 12) WCI Q301297 Contact Us For Availability
15
WCI F99412 WCI F99412 Contact Us For Availability
16
RECEPTACLE 1/4`` FLAG TERM. (PKG 12) WCI Q301296 Contact Us For Availability
16
WCI F111247-64 WCI F111247-64 Contact Us For Availability
16
WCI F125241 WCI F125241 Contact Us For Availability
17
BREAKER WCI F85127-64 Contact Us For Availability
17
WCI F57966 WCI F57966 Contact Us For Availability
18
WCI Q502063 WCI Q502063 Contact Us For Availability
18
WCI R901050 WCI R901050 Contact Us For Availability
18
WCI F55598 WCI F55598 Contact Us For Availability
19
WCI Q502207 WCI Q502207 Contact Us For Availability
19
PIN WCI F118001 Contact Us For Availability
19
WCI F50732 WCI F50732 Contact Us For Availability
20
WCI F118003 WCI F118003 Contact Us For Availability
20
WCI F115299 WCI F115299 Contact Us For Availability
21
WCI F111111 WCI F111111 Contact Us For Availability
21
WCI F116209-3 WCI F116209-3 Contact Us For Availability
22
SCREW WCI F57906 Contact Us For Availability
22
CATCH WCI F117634 Contact Us For Availability
22
SPACER WCI F81445 Contact Us For Availability
23
WASHER WCI F119827 Contact Us For Availability
23
SPACER WCI F86536 Contact Us For Availability
23
CONTROL, TEMP. WCI F126974 Contact Us For Availability
24
WCI F57880 WCI F57880 Contact Us For Availability
24
WCI F85126-64 WCI F85126-64 Contact Us For Availability
24
WCI R901020 WCI R901020 Contact Us For Availability
25
WCI F57688-23 WCI F57688-23 Contact Us For Availability
25
BREAKER WCI F113764-64 Contact Us For Availability
25
SCREW WCI F55160 Contact Us For Availability
26
WASHER WCI F114366 Contact Us For Availability
26
WCI R901060 WCI R901060 Contact Us For Availability
26
WCI R901029 WCI R901029 Contact Us For Availability
27
WCI F122542 WCI F122542 Contact Us For Availability
27
SCREW WCI F110410 Contact Us For Availability
28
CLIP WCI F81496-4 Contact Us For Availability
28
SUPPORT, L.H. WCI F81201 Contact Us For Availability
29
LOCK COMPLETE WCI F113760 Contact Us For Availability
29
SUPPORT LH WCI F81211 Contact Us For Availability
30
WCI F59900 WCI F59900 Contact Us For Availability
30
WCI F85105-1 WCI F85105-1 Contact Us For Availability
30
RETAINER WCI F112321 Contact Us For Availability
31
SUPPORT R.H. WCI F81210 Contact Us For Availability
32
OUTER PANEL DOOR, TEXTURE FINISH WCI F120139-64 Contact Us For Availability
32
SUPPORT WCI F81200 Contact Us For Availability
32
WCI Q86067 WCI Q86067 Contact Us For Availability
33
WCI F116277 WCI F116277 Contact Us For Availability
33
SCREW WCI F59211 Contact Us For Availability
34
WCI R901052 WCI R901052 Contact Us For Availability
34
SLEEVE WCI F59556 Contact Us For Availability
35
WCI F124673 WCI F124673 Contact Us For Availability
36
WCI R901051 WCI R901051 Contact Us For Availability
36
COMPRESSOR W/ OVLD-RELAY, 4`` X 6-1/2`` MTG ( WCI C620102 Contact Us For Availability
37
RELAY WCI R900998 Contact Us For Availability
38
WCI F99438 WCI F99438 Contact Us For Availability
38
WCI R900997 WCI R900997 Contact Us For Availability
41
CLIP WCI F117104 Contact Us For Availability
43
CLIP WCI F111846 Contact Us For Availability
44
DRIER-REGULAR WCI C101601 Contact Us For Availability
44
WCI C900125 WCI C900125 Contact Us For Availability
× ![]()
