Model Electrolux FU169LRW6 FREEZER – Common Parts & Diagrams

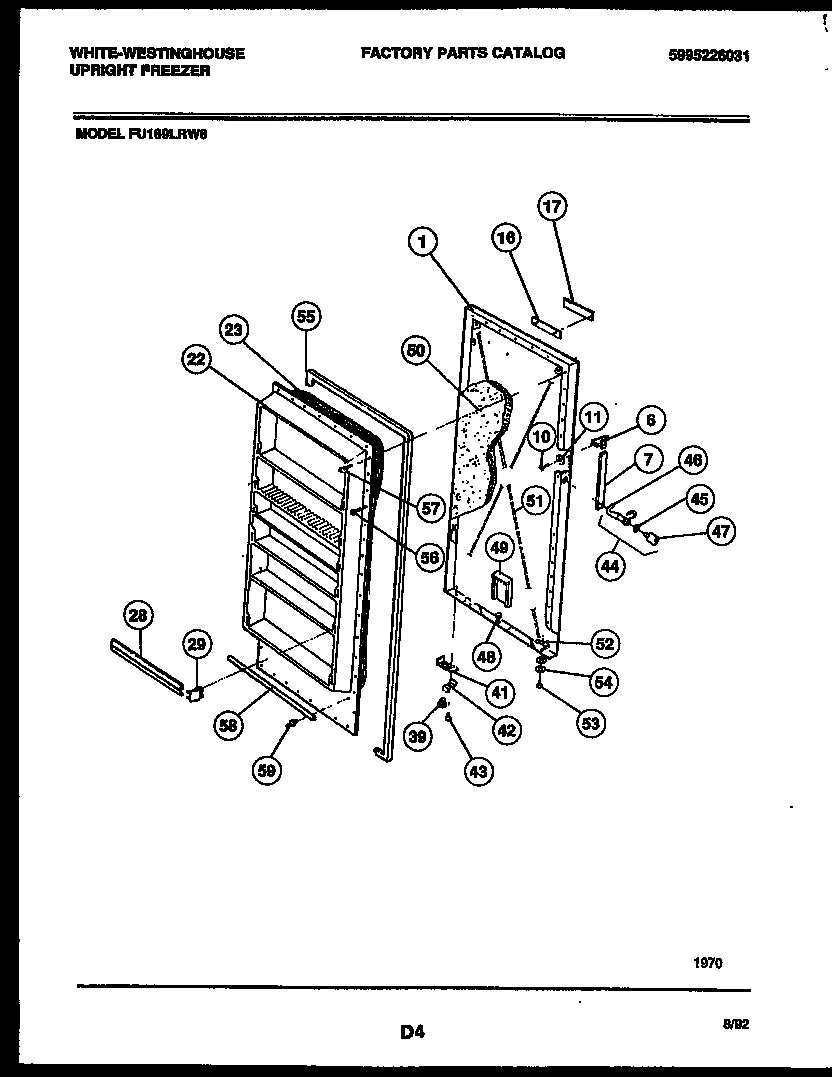

02 - DOOR PARTS

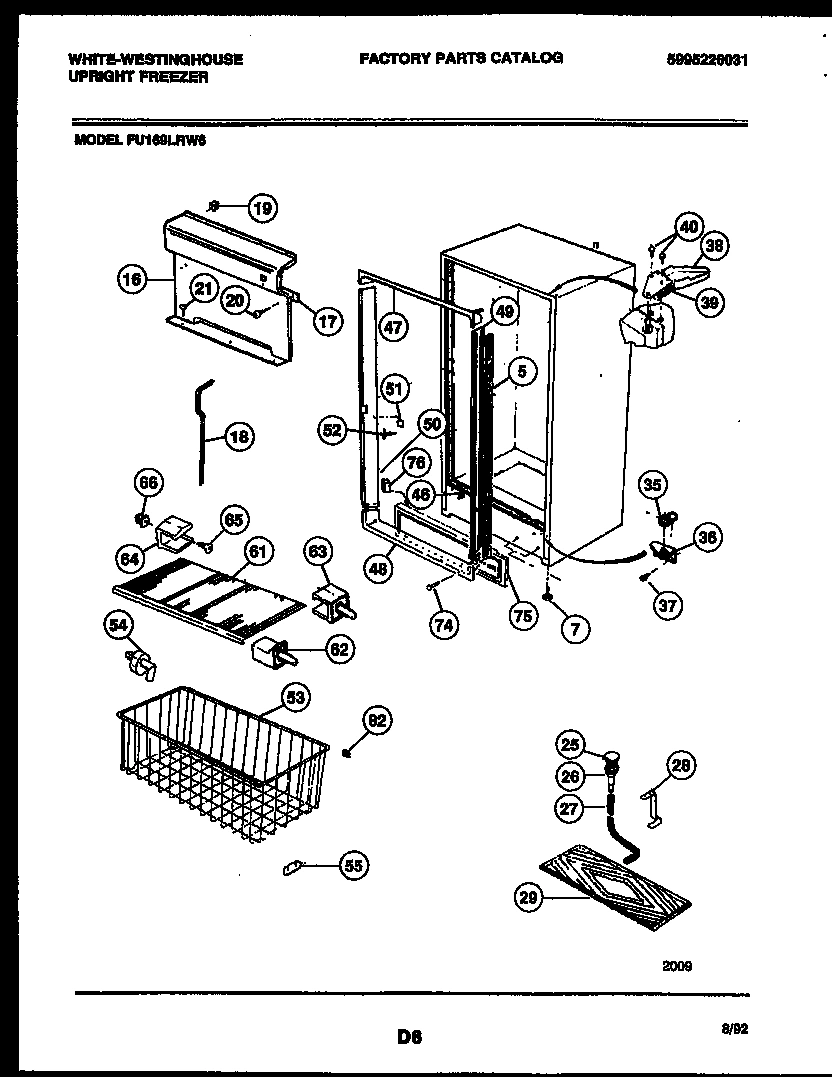

03 - CABINET PARTS

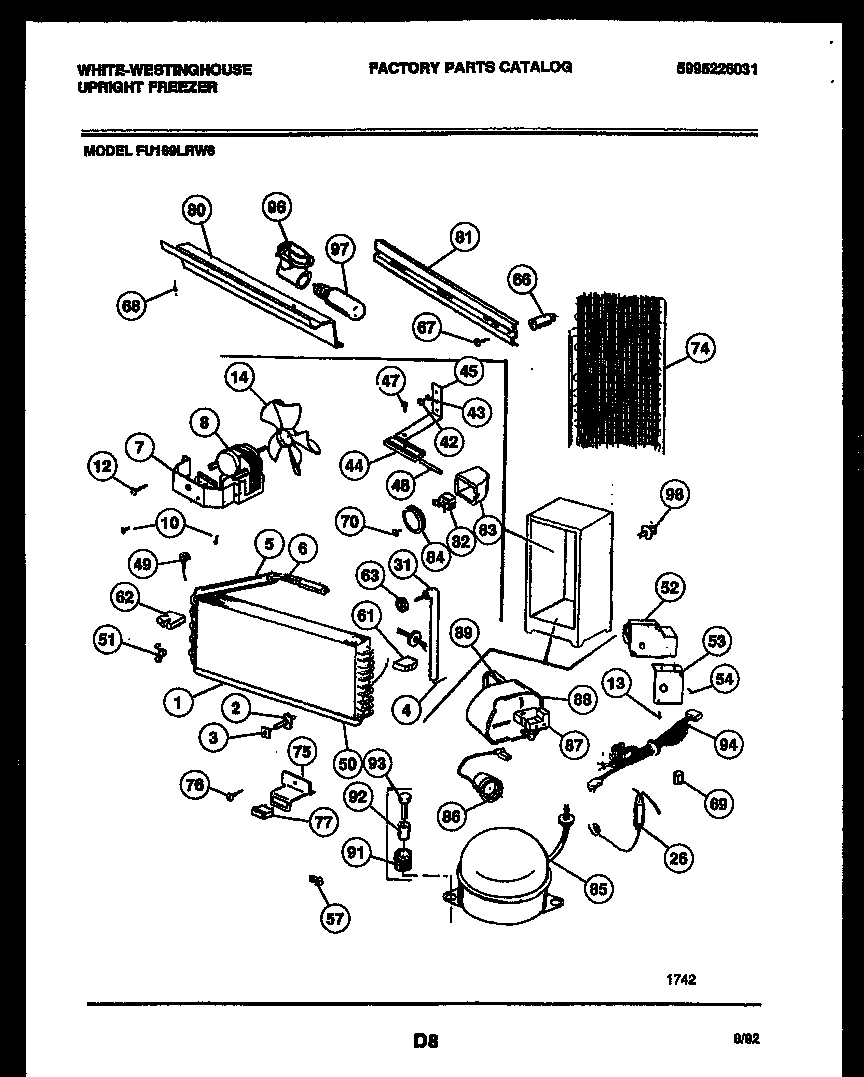

04 - SYSTEM AND ELECTRICAL PARTS
Common parts from model Electrolux FU169LRW6 FREEZER
1
WCI 3205656 WCI 3205656 Contact Us For Availability
2
WCI 06599544 WCI 06599544 Contact Us For Availability
3
SPACER EVAP (2) WCI 08013198 Contact Us For Availability
3A
WCI 06599546 WCI 06599546 Contact Us For Availability
4
HEAT EXCHANGER WCI 5303272332 Contact Us For Availability
5
WCI 09950831 WCI 09950831 Contact Us For Availability
5
SLEEVE WCI 5303207297 Contact Us For Availability
6
SLEEVE-EVAP TUBING WCI 5303208489 Contact Us For Availability
7
LEG EVELER (4) WCI 5303205540 Contact Us For Availability
7
WCI 08013207 WCI 08013207 Contact Us For Availability
14
WCI 3205520 WCI 3205520 Contact Us For Availability
16
PANEL-EVAPORATOR WCI 06599550 Contact Us For Availability
17
WCI 06599547 WCI 06599547 Contact Us For Availability
18
WCI 5306599551 WCI 5306599551 Contact Us For Availability
19
INSERT NUT (6) WCI 09948978 Contact Us For Availability
28
WCI 06594637 WCI 06594637 Contact Us For Availability
29
DEFROST DRAIN PAN WCI 5308016387 Contact Us For Availability
31
INSULATION WCI 09948773 Contact Us For Availability
35
WCI 5303210424 WCI 5303210424 Contact Us For Availability
36
WCI 5303210383 WCI 5303210383 Contact Us For Availability
38
WCI 5303212912 WCI 5303212912 Contact Us For Availability
39
HINGE, TOP WCI 5303212935 Contact Us For Availability
39A
BEARING TOP WCI 06593364 Contact Us For Availability
40
WCI 5303212937 WCI 5303212937 Contact Us For Availability
40A
SPACER-TOP BREAKER (2) (NON-ILLUSTRATED) WCI 08037937 Contact Us For Availability
41
STOP WCI 5300091170 Contact Us For Availability
42
WCI 08016354 WCI 08016354 Contact Us For Availability
43
WASHER BRACKET WCI 5300095480 Contact Us For Availability
44
WCI 5300190358 WCI 5300190358 Contact Us For Availability
44
WCI 05878562 WCI 05878562 Contact Us For Availability
45
WASHER WCI 5300114366 Contact Us For Availability
45
WCI 06594601 WCI 06594601 Contact Us For Availability
46
WCI 3202005 WCI 3202005 Contact Us For Availability
46
WCI 06594680 WCI 06594680 Contact Us For Availability
47
BREAKER-TOP WCI 06594559 Contact Us For Availability
47
SCREW, CLAMP WCI 5300052943 Contact Us For Availability
48
BREAKER-BOTTOM WCI 06594560 Contact Us For Availability
49
AIR DUCT WCI 5300128421 Contact Us For Availability
49
BREAKER-HINGE SIDE WCI 08037994 Contact Us For Availability
50
INSULATION WCI 3007739 Contact Us For Availability
50
WCI 216014200 WCI 216014200 Contact Us For Availability
50
WCI 5306599535 WCI 5306599535 Contact Us For Availability
51
WIRE, ADJUSTING (2) WCI 08037415 Contact Us For Availability
51
LATCH CATCH WCI 216013600 Contact Us For Availability
52
WCI 05879859 WCI 05879859 Contact Us For Availability
52
SCREW WCI 216013700 Contact Us For Availability
53
SCREW (2) WCI 5300057906 Contact Us For Availability
53
WCI 08016580 WCI 08016580 Contact Us For Availability
54
WCI 09948791 No Longer Available
54
WASHER WCI 09950839 Contact Us For Availability
54
SCREW-TIMER TO BRKT WCI 08037849 Contact Us For Availability
55
WCI 3206254 WCI 3206254 Contact Us For Availability
55A
SPACERS-BASKET (4) (NON-ILLUSTRATED) WCI 5303288196 Contact Us For Availability
57
SCREW (24) WCI 08009384 Contact Us For Availability
57
CLIP, COMPRESSOR WIRE WCI 05878556 Contact Us For Availability
58
WCI 08016356 WCI 08016356 Contact Us For Availability
61
WCI 08037963 WCI 08037963 Contact Us For Availability
61
AIR SEAL, RH WCI 06599531 Contact Us For Availability
61A
WCI 08037964 WCI 08037964 Contact Us For Availability
62
WCI 5306594706 WCI 5306594706 Contact Us For Availability
62
AIR SEAL, LH WCI 3017674 Contact Us For Availability
62A
WCI 5306594707 WCI 5306594707 Contact Us For Availability
63
SUPPORT, REAR (8) WCI 5306594584 Contact Us For Availability
63
WCI 06594629 WCI 06594629 Contact Us For Availability
64
WCI 5306594585 WCI 5306594585 Contact Us For Availability
65
WCI 08005520 WCI 08005520 Contact Us For Availability
66
WCI 06594537 WCI 06594537 Contact Us For Availability
66
SPACER BAFFLE PLATE (2) WCI 08000456 Contact Us For Availability
68
SCREW LIGHT SHIELD WCI 5303283898 Contact Us For Availability
69
RETAINER-HARNESS (2) WCI 08037401 Contact Us For Availability
70
WCI 09950853 WCI 09950853 Contact Us For Availability
70A
WCI 06594651 WCI 06594651 Contact Us For Availability
74
PIN (2) WCI 5309950066 Contact Us For Availability
75
WCI 3200983 WCI 3200983 Contact Us For Availability
75
BRACKET, SIGNAL LIGHT WCI 216009101 Contact Us For Availability
76
WCI 5300118003 WCI 5300118003 Contact Us For Availability
76
SCREW-BRACKET WCI 08037851 Contact Us For Availability
77
SIGNAL LIGHT WCI 5308002706 Contact Us For Availability
80
LIGHT SHIELD WCI 08037418 Contact Us For Availability
81
WCI 3200989 WCI 3200989 Contact Us For Availability
82
WCI 216022900 WCI 216022900 Contact Us For Availability
83
COVER-COLD CONTROL WCI 5306599543 Contact Us For Availability
84
WCI 216008802 WCI 216008802 Contact Us For Availability
84A
WCI 06599553 WCI 06599553 Contact Us For Availability
85
COMPRESSOR W/ ELECTRICALS WCI 5303916411 Contact Us For Availability
86
WCI 3204568 WCI 3204568 Contact Us For Availability
92
WCI 5306594529 WCI 5306594529 Contact Us For Availability
93
WCI 08002679 WCI 08002679 Contact Us For Availability
94
WCI 5303210209 WCI 5303210209 Contact Us For Availability
96
SOCKET WCI 5300136117 Contact Us For Availability
× ![]()
