Model Electrolux FU168JRW3 FREEZER – Common Parts & Diagrams

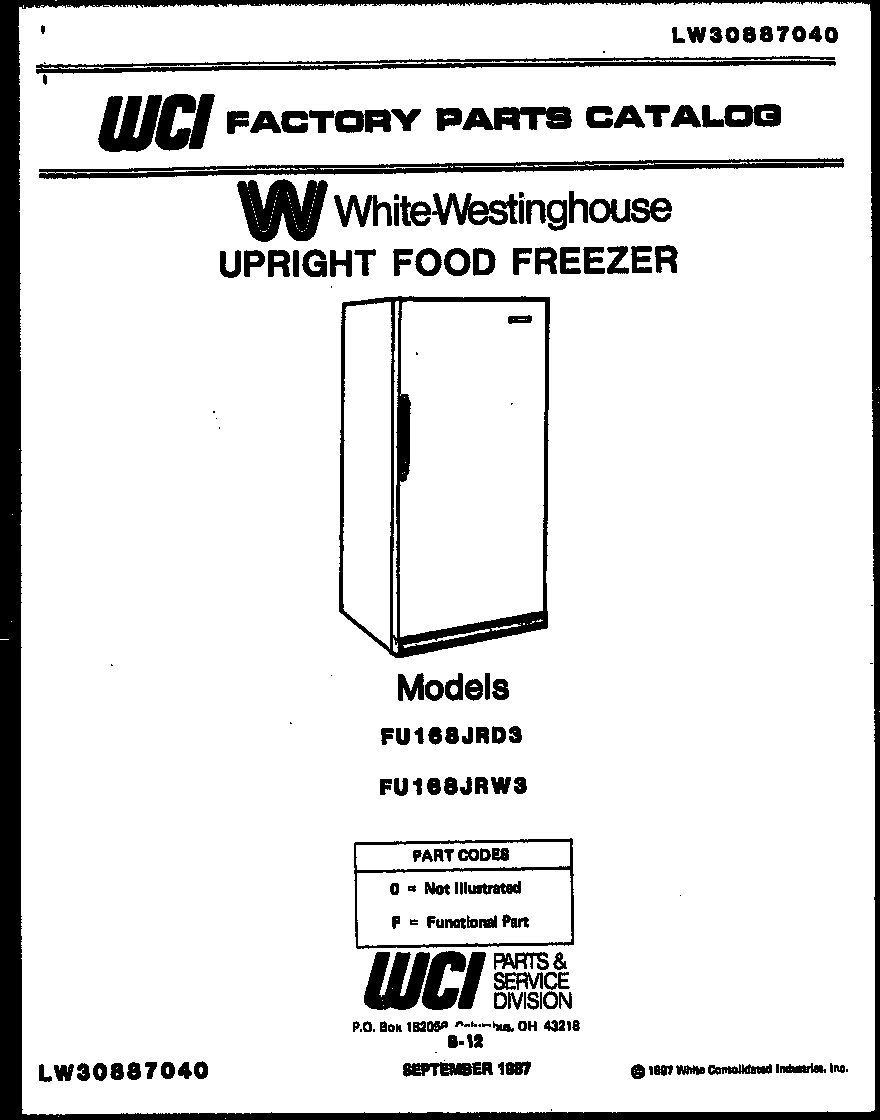

01 - COVER

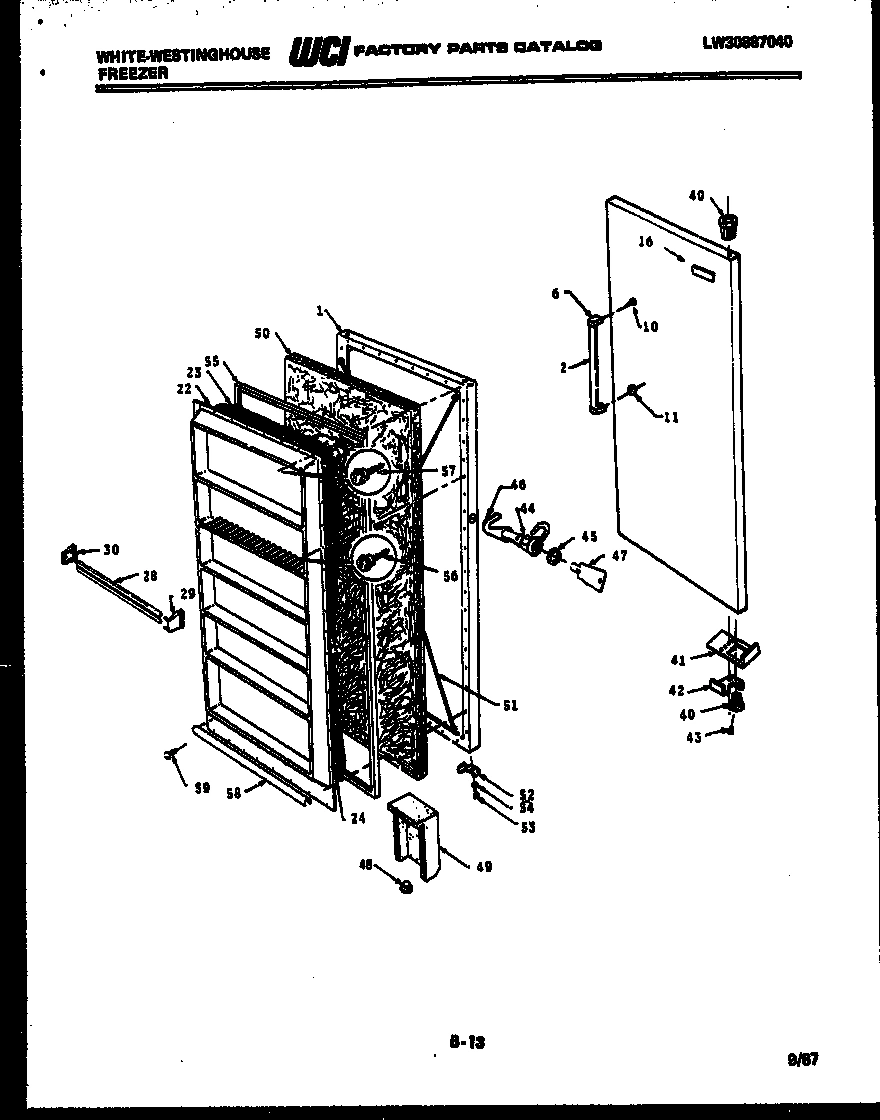

02 - DOOR PARTS

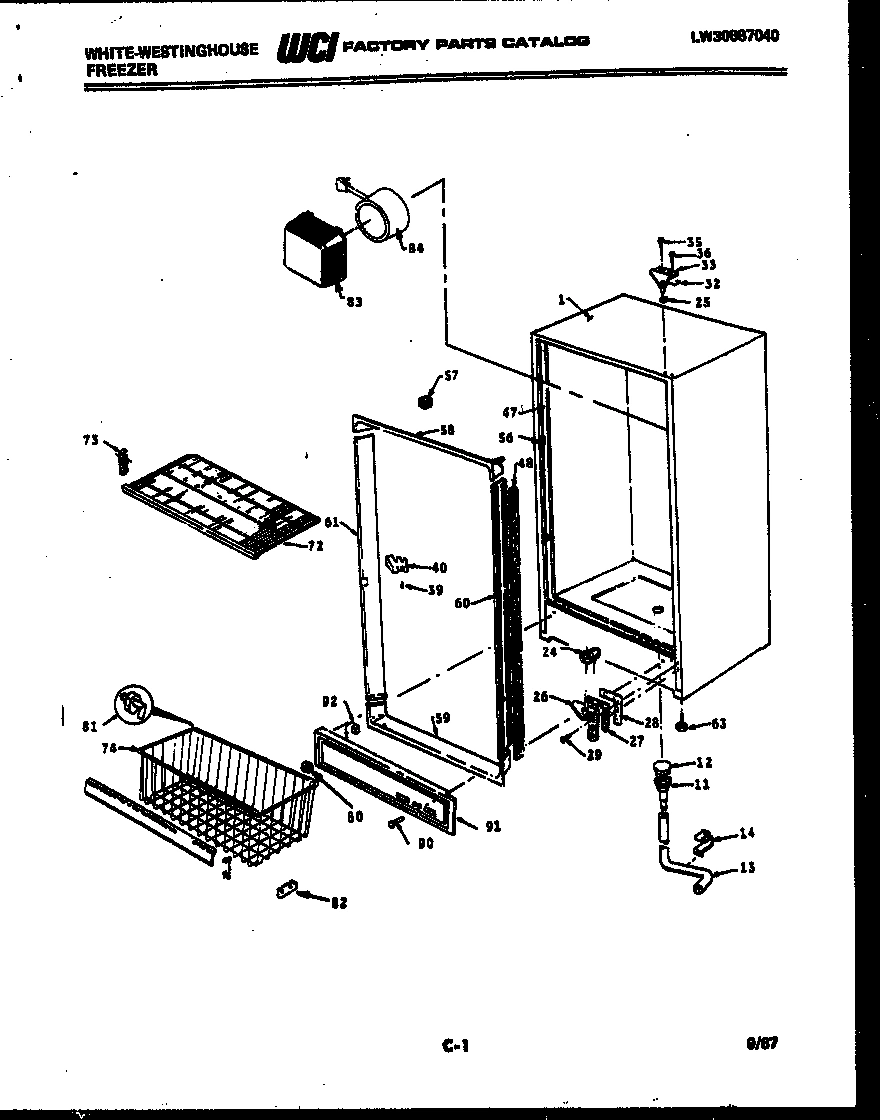

03 - CABINET PARTS

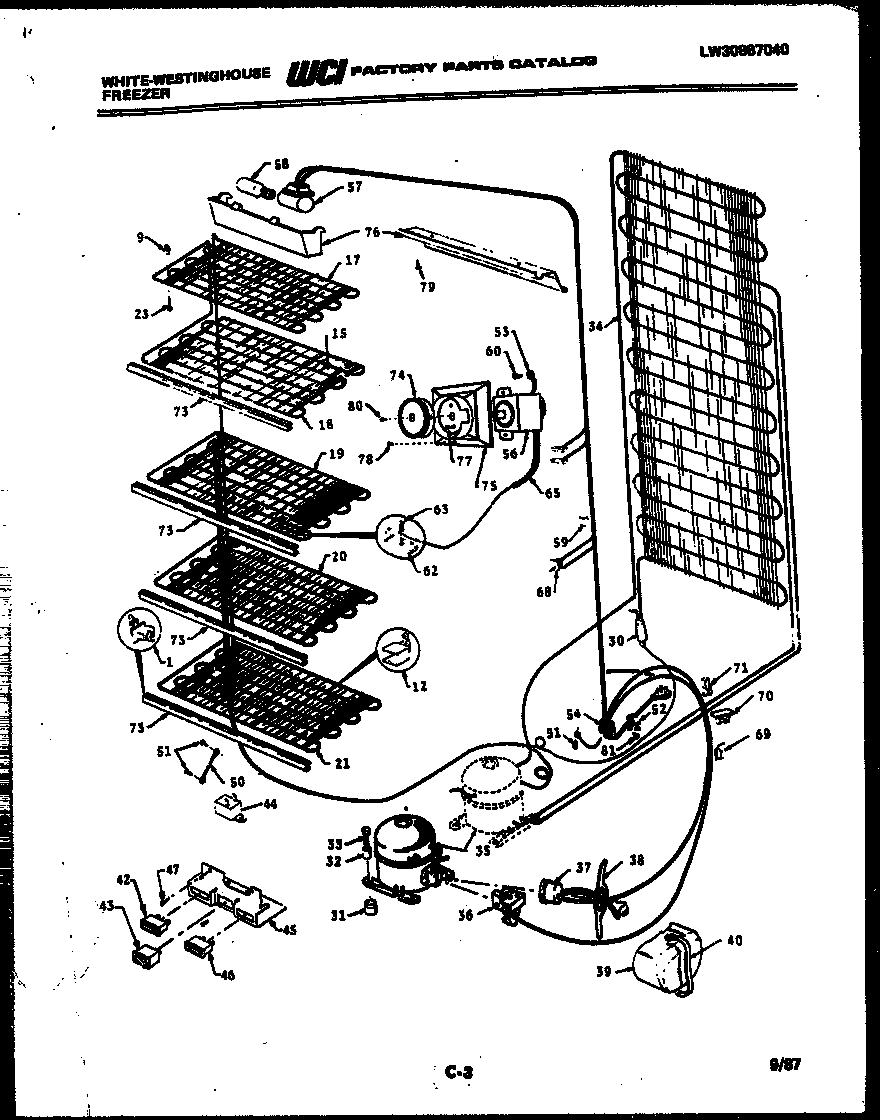

04 - SYSTEM AND ELECTRICAL PARTS
Common parts from model Electrolux FU168JRW3 FREEZER
1
WCI F129886-P WCI F129886-P Contact Us For Availability
2
WCI Q277252 WCI Q277252 Contact Us For Availability
6
END CAP (2) WCI Q293701 Contact Us For Availability
9
SPACER, FRNT (2) WCI F81445 Contact Us For Availability
10
SPACER, REAR (1) (NON-ILLUSTRATED) WCI F56640 Contact Us For Availability
12
SUPT REAR (6) WCI F117447 Contact Us For Availability
14
CLAMP WCI F122718 Contact Us For Availability
15
WCI F125249 WCI F125249 Contact Us For Availability
16
NAMEPLATE WCI R901064 Contact Us For Availability
17
WCI F126700 WCI F126700 Contact Us For Availability
17
WCI F129766 WCI F129766 Contact Us For Availability
18
WCI F300092 WCI F300092 Contact Us For Availability
19
SECOND SHELF WCI F126701 Contact Us For Availability
21
WCI F300093 WCI F300093 Contact Us For Availability
22
WCI F128882-64 WCI F128882-64 Contact Us For Availability
23
SCREW (3) WCI F126260 Contact Us For Availability
24
DOOR CLOSER WCI F124610 Contact Us For Availability
26
WCI F84943 WCI F84943 Contact Us For Availability
27
WCI F120978 WCI F120978 Contact Us For Availability
28
FRONT (5) WCI F124676 Contact Us For Availability
28
WCI F84948 WCI F84948 Contact Us For Availability
30
DRYER WCI C101601 Contact Us For Availability
32
WCI F93207 WCI F93207 Contact Us For Availability
32
WCI F59556 WCI F59556 Contact Us For Availability
33
WCI F300271 WCI F300271 Contact Us For Availability
33
WCI F59211 WCI F59211 Contact Us For Availability
35
SCREW HNG, FRNT WCI F94110 Contact Us For Availability
35
WCI C620106 WCI C620106 Contact Us For Availability
36
SCREW, HNG, REAR WCI F300459 Contact Us For Availability
36
WCI F127165 WCI F127165 Contact Us For Availability
37
WCI F127166 WCI F127166 Contact Us For Availability
38
WCI F117104 WCI F117104 Contact Us For Availability
40
BEARING, TOP WCI F84893 Contact Us For Availability
40
WCI F117634 WCI F117634 Contact Us For Availability
41
WCI F91170 WCI F91170 Contact Us For Availability
41
WCI F300210 WCI F300210 Contact Us For Availability
42
WCI F124623 WCI F124623 Contact Us For Availability
42
SIGNAL LITE-AMBER WCI F128520 Contact Us For Availability
43
SCREW WCI F121387 Contact Us For Availability
43
WCI F128517 WCI F128517 Contact Us For Availability
44
LOCK COMPLETE WCI R900927 Contact Us For Availability
44
WCI F128518 WCI F128518 Contact Us For Availability
45
WASHER WCI F114366 Contact Us For Availability
45
WCI F129965 WCI F129965 Contact Us For Availability
46
HOOK WCI F124455 Contact Us For Availability
46
SIGNAL LITE-RED WCI F128519 Contact Us For Availability
47
INSULATION WCI F58187-50 Contact Us For Availability
48
WCI F86843 WCI F86843 Contact Us For Availability
49
AIR DUCT WCI F128421 Contact Us For Availability
50
WCI F116277 WCI F116277 Contact Us For Availability
50
WCI F95424 WCI F95424 Contact Us For Availability
51
WCI F129668 WCI F129668 Contact Us For Availability
51
WCI F81693 WCI F81693 Contact Us For Availability
52
BRACKET (2) WCI F57880 Contact Us For Availability
53
SCREW BRKT WCI F57906 Contact Us For Availability
54
WASHER BRKT (2) WCI F119827 Contact Us For Availability
54
WCI F129551 WCI F129551 Contact Us For Availability
55
WCI F126006 WCI F126006 Contact Us For Availability
56
CLIP, BREAKER (5) WCI F126240 Contact Us For Availability
56
CONTROL, TEMP. WCI F126974 Contact Us For Availability
57
WCI F124860 WCI F124860 Contact Us For Availability
57
SOCKET WCI F125347 Contact Us For Availability
58
WCI F99438 WCI F99438 Contact Us For Availability
58
BREAKER, TOP WCI F85124-64 Contact Us For Availability
58
BULB WCI F92472 Contact Us For Availability
59
RETAINR HARNS (3) WCI F112321 Contact Us For Availability
59
BREAKER-BOTTOM WCI F85125-64 Contact Us For Availability
60
WCI F300738 WCI F300738 Contact Us For Availability
61
WCI F113736-64 WCI F113736-64 Contact Us For Availability
62
CLAMP WCI F96850 Contact Us For Availability
63
LEG (4) WCI F91169 Contact Us For Availability
63
SCREW WCI F52943 Contact Us For Availability
70
CLIP (2) WCI F111846 Contact Us For Availability
72
WCI F126881 WCI F126881 Contact Us For Availability
73
SUPPORT (2) WCI F122542 Contact Us For Availability
73
SHELF TRIM WCI F300385 Contact Us For Availability
74
WCI F126888 WCI F126888 Contact Us For Availability
74
WCI F128874 WCI F128874 Contact Us For Availability
75
HOUSING WCI F128633 Contact Us For Availability
76
WCI F128809 WCI F128809 Contact Us For Availability
77
SCREW WCI F55160 Contact Us For Availability
80
SCREW WCI F110410 Contact Us For Availability
81
STOP, BASKET (2) WCI F115158 Contact Us For Availability
83
HOUSING SENSOR WCI F129186 Contact Us For Availability
84
SENSOR WCI F300951 Contact Us For Availability
85
WCI F129806 WCI F129806 Contact Us For Availability
90
PIN FASTENER (2) WCI F118001 Contact Us For Availability
91
WCI F128877 WCI F128877 Contact Us For Availability
92
BUMPER (2) WCI F118003 Contact Us For Availability
× ![]()
