Model Electrolux FU168JRW2 FREEZER – Common Parts & Diagrams

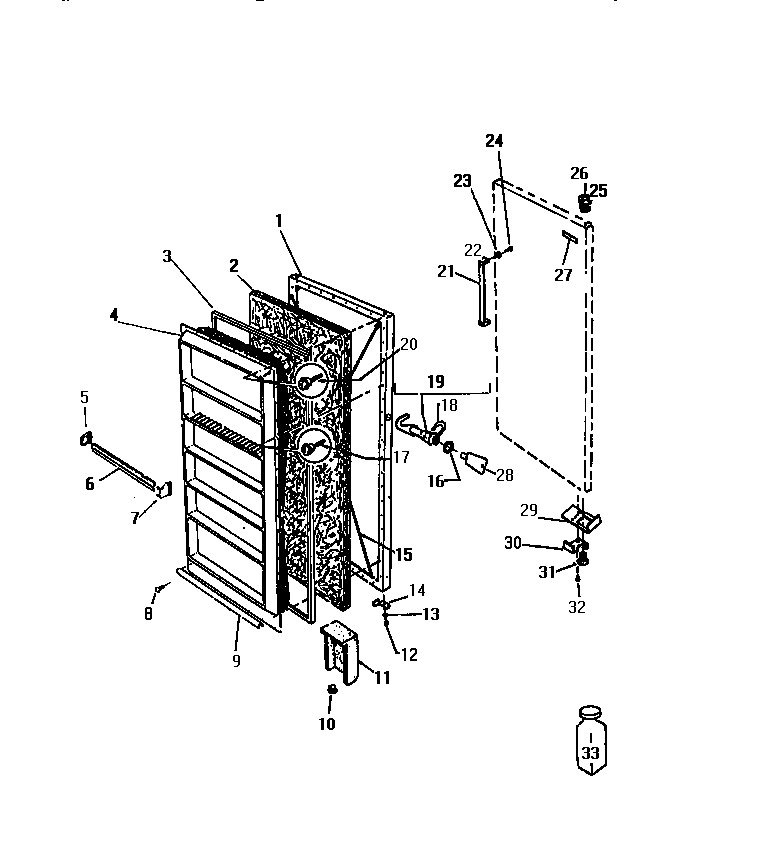

02 - DOOR

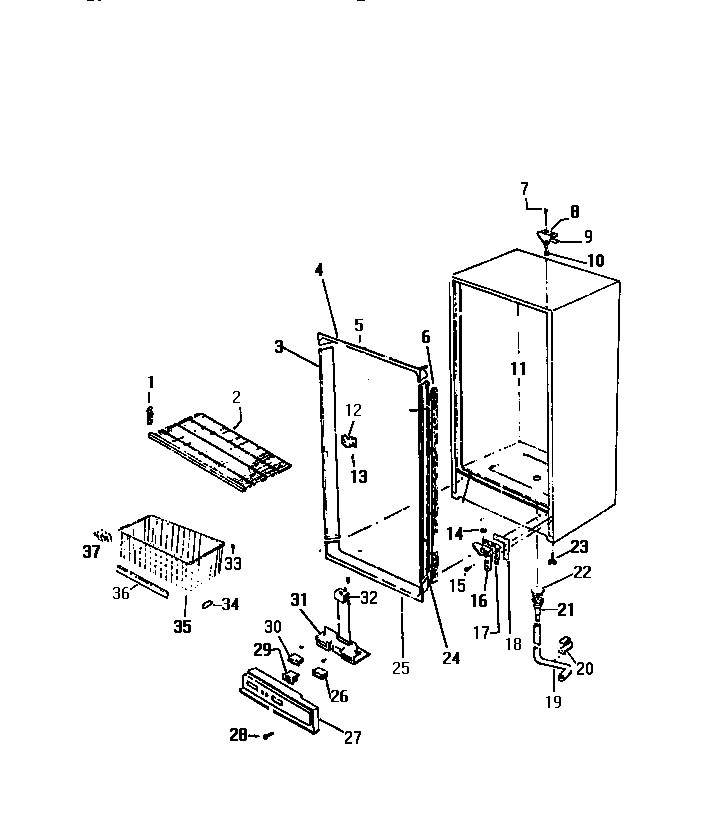

03 - CABINET

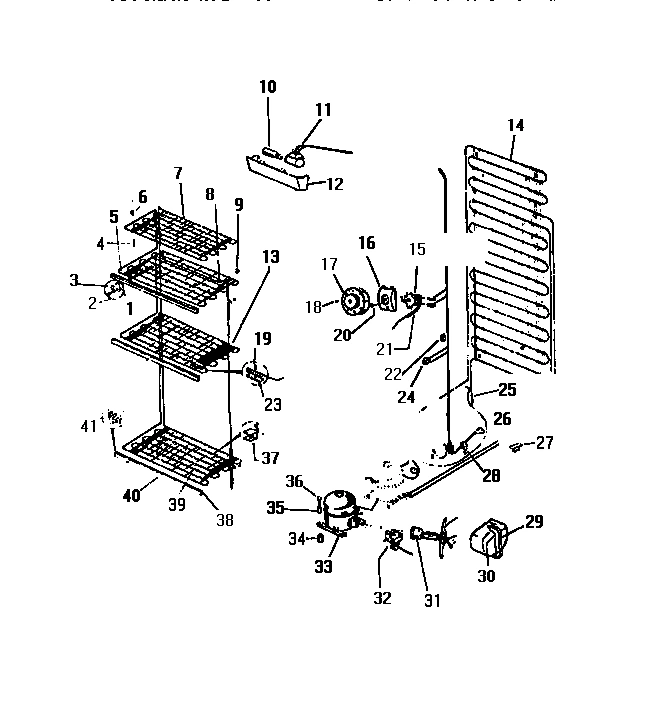

04 - SYSTEMS
Common parts from model Electrolux FU168JRW2 FREEZER
*22640
WCI R901034 WCI R901034 Contact Us For Availability
1
WCI F127148-84 WCI F127148-84 Contact Us For Availability
1
WCI F122542 WCI F122542 Contact Us For Availability
1
WCI F55598 WCI F55598 Contact Us For Availability
2
INSULATION KIT WCI F116277 Contact Us For Availability
2
WCI F126886 WCI F126886 Contact Us For Availability
2
WCI F57966 WCI F57966 Contact Us For Availability
3
WCI F126372 WCI F126372 Contact Us For Availability
3
WCI F113763-64 WCI F113763-64 Contact Us For Availability
3
WCI F50732 WCI F50732 Contact Us For Availability
4
WCI R901024 WCI R901024 Contact Us For Availability
4
WCI F85124-64 WCI F85124-64 Contact Us For Availability
4
WCI F115299 WCI F115299 Contact Us For Availability
5
SPACER WCI F86536 Contact Us For Availability
5
WCI F118961-2 WCI F118961-2 Contact Us For Availability
6
WCI F124676 WCI F124676 Contact Us For Availability
6
1`` X 4`` X 50`` WCI F58187-50 Contact Us For Availability
6
SPACER WCI F81445 Contact Us For Availability
7
SCREW WCI F94110 Contact Us For Availability
7
WCI F119996-2 WCI F119996-2 Contact Us For Availability
8
WCI F124621 WCI F124621 Contact Us For Availability
8
HEAT EXHC. WCI R901023 Contact Us For Availability
9
WCI F99433 WCI F99433 Contact Us For Availability
9
PLATE WCI F93207 Contact Us For Availability
9
GROMMET WCI F56640 Contact Us For Availability
10
BEARING WCI F57523 Contact Us For Availability
10
WCI C501867 WCI C501867 Contact Us For Availability
11
DUCT AIR WCI F111111 Contact Us For Availability
11
WCI F126240 WCI F126240 Contact Us For Availability
11
SOCKET WCI F115515 Contact Us For Availability
12
SCREW WCI F57906 Contact Us For Availability
12
CATCH WCI F117634 Contact Us For Availability
12
SHEILD WCI R901035 Contact Us For Availability
13
WCI F119627 WCI F119627 Contact Us For Availability
13
WCI F126701 WCI F126701 Contact Us For Availability
14
WCI F57880 WCI F57880 Contact Us For Availability
14
WCI F900126 WCI F900126 Contact Us For Availability
15
WCI F57688-22 WCI F57688-22 Contact Us For Availability
15
CONTROL, TEMP. WCI F126974 Contact Us For Availability
16
WASHER WCI F114366 Contact Us For Availability
16
HINGE WCI F84943 Contact Us For Availability
16
WCI R901020 WCI R901020 Contact Us For Availability
17
WCI F124860 WCI F124860 Contact Us For Availability
17
GASKET WCI F120978 Contact Us For Availability
17
WCI R901029 WCI R901029 Contact Us For Availability
18
CLIP WCI F81496-4 Contact Us For Availability
18
GASKET WCI F84948 Contact Us For Availability
18
SCREW WCI F110410 Contact Us For Availability
19
LOCK COMPLETE WCI F113760 Contact Us For Availability
19
WCI F25943 WCI F25943 Contact Us For Availability
20
CLAMP WCI F122718 Contact Us For Availability
21
WCI Q277252 WCI Q277252 Contact Us For Availability
22
END CAP TOP & BTM WCI Q293701 Contact Us For Availability
22
RETAINER WCI F112321 Contact Us For Availability
23
WCI Q13325 WCI Q13325 Contact Us For Availability
23
CLAMP WCI F96850 Contact Us For Availability
24
WCI Q503165 WCI Q503165 Contact Us For Availability
24
WCI F85173-64 WCI F85173-64 Contact Us For Availability
24
WCI F1112771 WCI F1112771 Contact Us For Availability
25
WASHER WCI F124077 Contact Us For Availability
25
WCI F85125-64 WCI F85125-64 Contact Us For Availability
25
DRIER-REGULAR WCI C101601 Contact Us For Availability
25
WCI R900125 WCI R900125 Contact Us For Availability
26
BEARING WCI F84893 Contact Us For Availability
26
LIGHT RED WCI R901032 Contact Us For Availability
26
SERVICE CORD WCI Q86065 Contact Us For Availability
27
NAMEPLATE WCI R901066 Contact Us For Availability
27
WCI R901036 WCI R901036 Contact Us For Availability
27
CLIP WCI F111846 Contact Us For Availability
28
PIN WCI F118001 Contact Us For Availability
29
SUPPORT WCI F91170 Contact Us For Availability
29
WCI R901030 WCI R901030 Contact Us For Availability
30
STOP WCI R901014 Contact Us For Availability
30
LIGHT AMBER WCI R901033 Contact Us For Availability
31
WCI R901013 WCI R901013 Contact Us For Availability
31
WCI R901038 WCI R901038 Contact Us For Availability
31
WCI R901027 WCI R901027 Contact Us For Availability
32
SCREW WCI F121387 Contact Us For Availability
32
WCI R901031 WCI R901031 Contact Us For Availability
32
WCI R901026 WCI R901026 Contact Us For Availability
33
WCI Q49587 WCI Q49587 Contact Us For Availability
33
WCI Q620106 WCI Q620106 Contact Us For Availability
35
WCI R901037 WCI R901037 Contact Us For Availability
35
SLEEVE WCI F59556 Contact Us For Availability
36
FRONT WCI F1192704 Contact Us For Availability
36
SCREW WCI F59211 Contact Us For Availability
37
STOP WCI F115158 Contact Us For Availability
37
SUPORT, REAR ( 6 REQ ) WCI F117447 Contact Us For Availability
38
WCI F117449 WCI F117449 Contact Us For Availability
39
WCI F118962-2 WCI F118962-2 Contact Us For Availability
40
TRIM ( CUT TO SIZE ) WCI F119270-4 Contact Us For Availability
× ![]()
