Model Electrolux FU161JRW1 FREEZER – Common Parts & Diagrams
01 - COVER

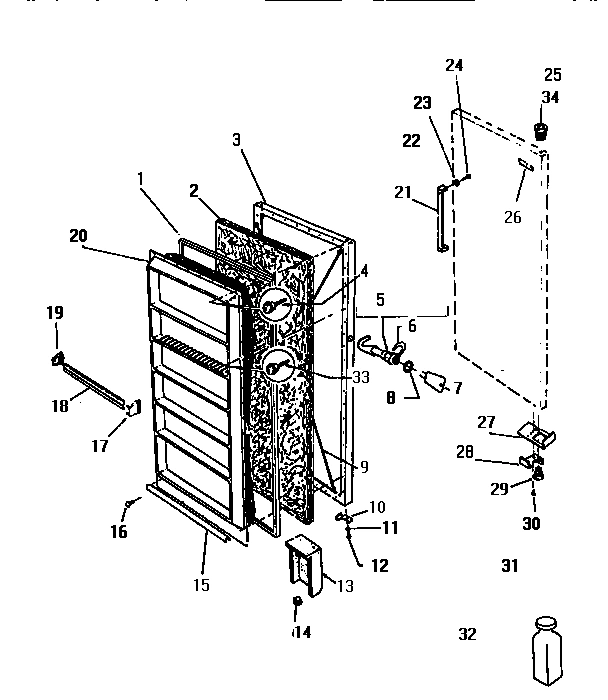

02 - DOOR

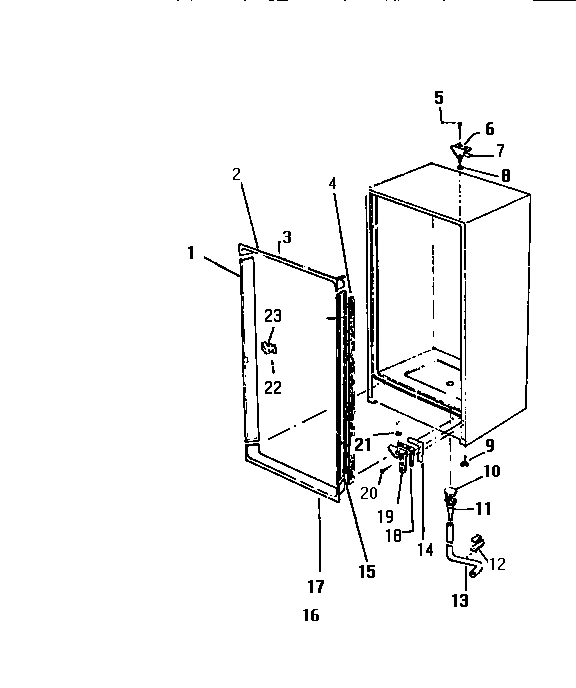

03 - CABINET

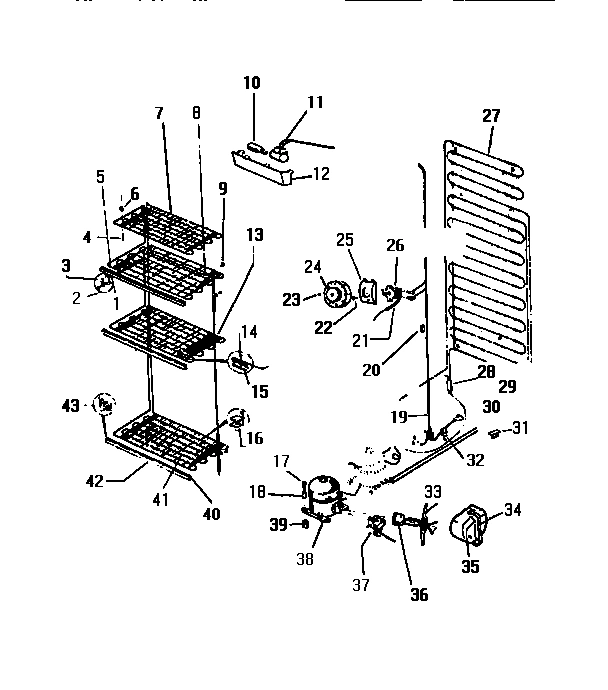

04 - SYSTEMS
Common parts from model Electrolux FU161JRW1 FREEZER
1
WCI F122543-2 WCI F122543-2 Contact Us For Availability
1
BREAKER WCI F121320-64 Contact Us For Availability
1
WCI F55598 WCI F55598 Contact Us For Availability
2
INSULATION KIT WCI F116277 Contact Us For Availability
2
BREAKER WCI F121239-64 Contact Us For Availability
2
WCI F57966 WCI F57966 Contact Us For Availability
3
WCI R901012 WCI R901012 Contact Us For Availability
3
SPACER WCI F86536 Contact Us For Availability
3
WCI F50732 WCI F50732 Contact Us For Availability
4
1`` X 4`` X 50`` WCI F58187-50 Contact Us For Availability
4
WCI F115299 WCI F115299 Contact Us For Availability
5
LOCK COMPLETE WCI F113760 Contact Us For Availability
5
SCREW WCI F94110 Contact Us For Availability
5
WCI F121180 WCI F121180 Contact Us For Availability
6
CLIP WCI F81496-4 Contact Us For Availability
6
WCI F124621 WCI F124621 Contact Us For Availability
6
SPACER WCI F81445 Contact Us For Availability
7
PLATE WCI F93207 Contact Us For Availability
7
TOP PLATE WCI F121179 Contact Us For Availability
8
WASHER WCI F114366 Contact Us For Availability
8
BEARING WCI F57523 Contact Us For Availability
8
WCI R901023 WCI R901023 Contact Us For Availability
9
WCI F57688-22 WCI F57688-22 Contact Us For Availability
9
WCI Q13325 WCI Q13325 Contact Us For Availability
9
GROMMET WCI F56640 Contact Us For Availability
10
WCI F57880 WCI F57880 Contact Us For Availability
10
WCI C501867 WCI C501867 Contact Us For Availability
11
WASHER WCI F119827 Contact Us For Availability
11
SOCKET WCI F115515 Contact Us For Availability
12
SCREW WCI F57906 Contact Us For Availability
12
CLAMP WCI F122718 Contact Us For Availability
12
WCI R901035 WCI R901035 Contact Us For Availability
13
DUCT AIR WCI F111111 Contact Us For Availability
13
WCI F121181 WCI F121181 Contact Us For Availability
14
GASKET WCI F84948 Contact Us For Availability
14
SCREW WCI F52943 Contact Us For Availability
15
WCI F99438 WCI F99438 Contact Us For Availability
15
BREAKER WCI F121458-64 Contact Us For Availability
15
CLAMP WCI F96850 Contact Us For Availability
16
TOE GRILLE WCI N/A Contact Us For Availability
16
SUPPORT, REAR ( 6 REQ ) WCI F117447 Contact Us For Availability
17
BREAKER WCI F121241-64 Contact Us For Availability
17
SCREW WCI F59211 Contact Us For Availability
18
WCI F91564-21 WCI F91564-21 Contact Us For Availability
18
GASKET WCI F120978 Contact Us For Availability
18
SLEEVE WCI F59556 Contact Us For Availability
19
HINGE WCI F84943 Contact Us For Availability
19
WCI R901018 WCI R901018 Contact Us For Availability
20
WCI R901015 WCI R901015 Contact Us For Availability
20
RETAINER WCI F112321 Contact Us For Availability
21
WCI Q277252 WCI Q277252 Contact Us For Availability
21
WCI F900126 WCI F900126 Contact Us For Availability
22
END CAP TOP & BTM WCI Q293701 Contact Us For Availability
23
CATCH WCI F117634 Contact Us For Availability
23
SCREW WCI F110410 Contact Us For Availability
24
WCI Q503165 WCI Q503165 Contact Us For Availability
24
WCI R901021 WCI R901021 Contact Us For Availability
25
WASHER WCI F124077 Contact Us For Availability
25
WCI R901020 WCI R901020 Contact Us For Availability
26
NAMEPLATE WCI R901066 Contact Us For Availability
26
CONTROL, TEMP. WCI F126974 Contact Us For Availability
27
SUPPORT WCI F91170 Contact Us For Availability
28
STOP WCI R901014 Contact Us For Availability
28
DRIER-REGULAR WCI C101601 Contact Us For Availability
29
WCI R901013 WCI R901013 Contact Us For Availability
29
BURNOUT WCI R900125 Contact Us For Availability
30
SCREW WCI F121387 Contact Us For Availability
30
SERVICE CORD (NON-ILLUSTRATED) WCI Q86065 Contact Us For Availability
31
RAMP DOOR CLOSER (NON-ILLUSTRATED) WCI F124610 Contact Us For Availability
31
CLIP WCI F111846 Contact Us For Availability
32
WCI Q171155 WCI Q171155 Contact Us For Availability
32
WCI Q49587 WCI Q49587 Contact Us For Availability
33
WCI F124860 WCI F124860 Contact Us For Availability
33
CLIP WCI F117104 Contact Us For Availability
34
BEARING WCI F84893 Contact Us For Availability
36
WCI R900997 WCI R900997 Contact Us For Availability
37
RELAY WCI R900998 Contact Us For Availability
38
COMPRESSOR W/OVLD-RELAY (IF COMPRESSOR HAS BE WCI C620102 Contact Us For Availability
40
WCI F117449 WCI F117449 Contact Us For Availability
41
SHELF BTM WCI F121182 Contact Us For Availability
42
TRIM ( CUT TO SIZE ) WCI F119270-4 Contact Us For Availability
× ![]()
