Model Electrolux FU134JRW5 FREEZER – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

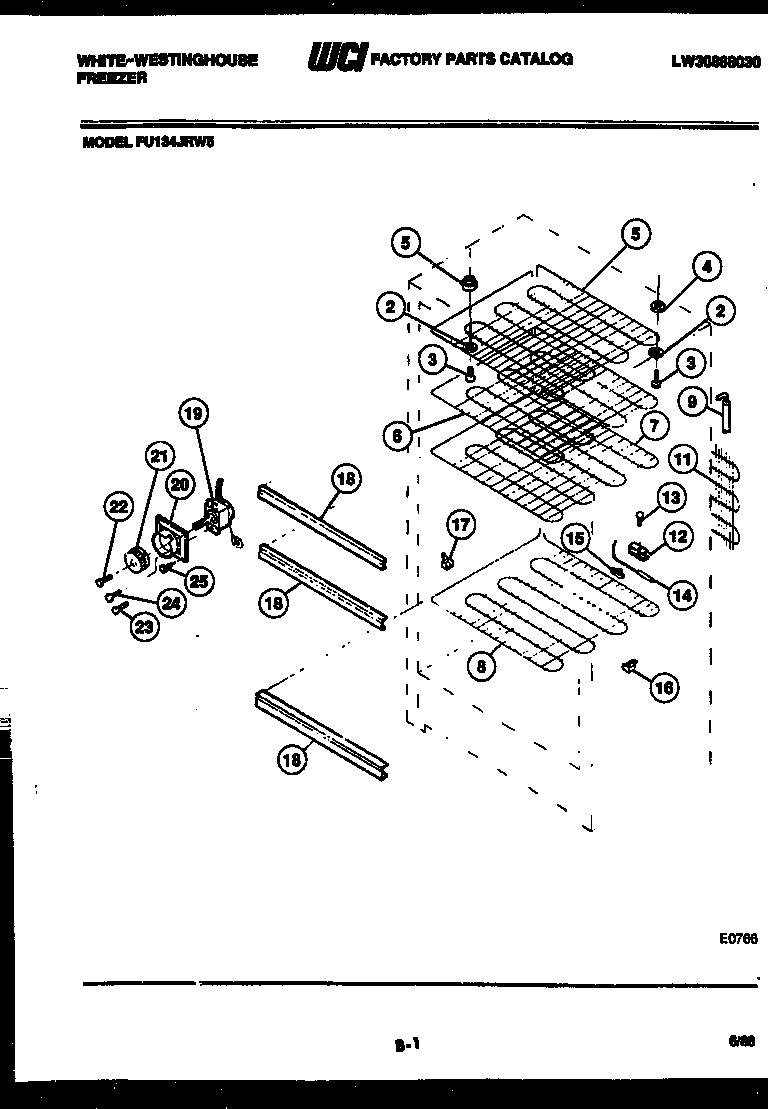

04 - SHELVES AND SUPPORTS

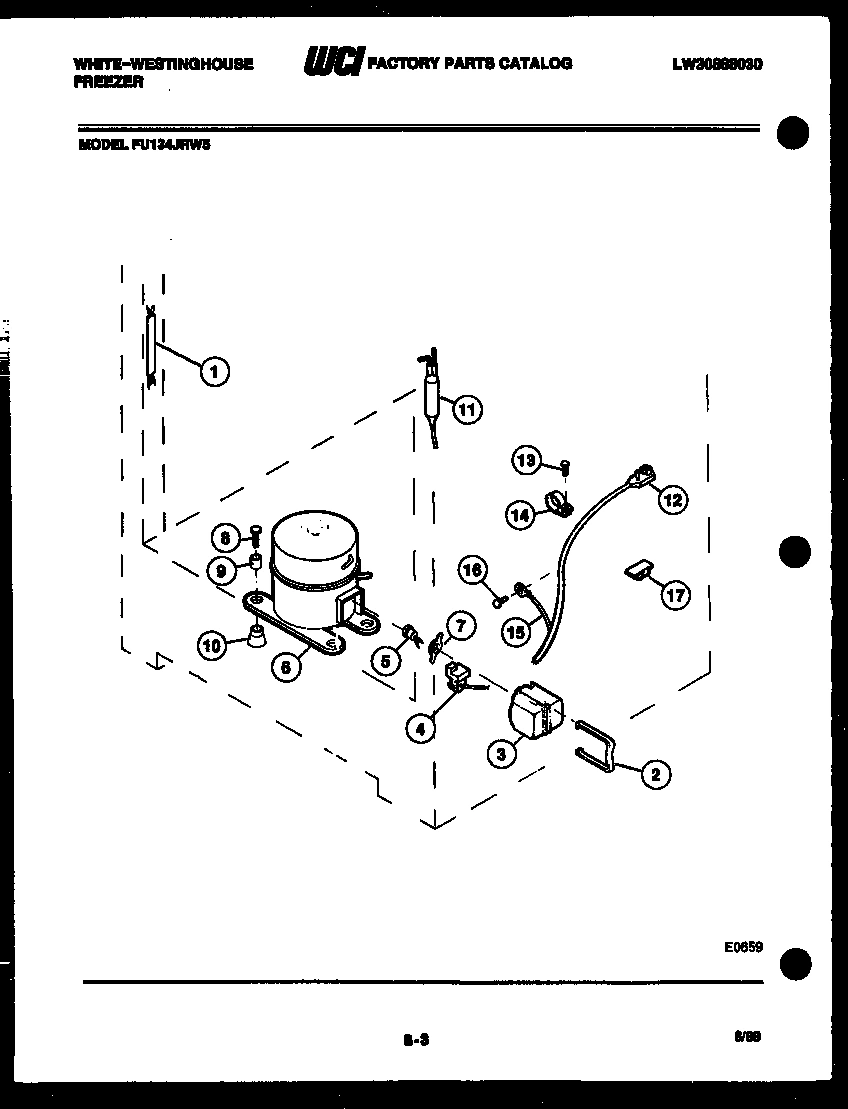

05 - SYSTEM PARTS
Common parts from model Electrolux FU134JRW5 FREEZER
1
PANEL DOOR (WHITE TEXTURE) WCI F129280-S Contact Us For Availability
1
WCI F121239-64 WCI F121239-64 Contact Us For Availability
1
SPACER, FRONT WCI F81445 Contact Us For Availability
1
WCI F83588 WCI F83588 Contact Us For Availability
2
BEARING, TOP WCI F84893 Contact Us For Availability
2
BREAKER L.H. WCI F121319-64 Contact Us For Availability
2
WASHER (3) WCI F55598 Contact Us For Availability
3
NAMEPLATE WCI R901066 Contact Us For Availability
3
BREAKER R.H. WCI F121456-64 Contact Us For Availability
3
SCREW (3) WCI F126260 Contact Us For Availability
4
END CAP (2) WCI Q293701 Contact Us For Availability
4
WCI F121241-64 WCI F121241-64 Contact Us For Availability
4
WCI F56640 WCI F56640 Contact Us For Availability
4
WCI R127165 WCI R127165 Contact Us For Availability
5
WCI Q277252 WCI Q277252 Contact Us For Availability
5
SCREW-REAR (2) WCI F300549 Contact Us For Availability
5
WCI F121174 WCI F121174 Contact Us For Availability
5
WCI 3017626 WCI 3017626 Contact Us For Availability
6
WCI F94110 WCI F94110 Contact Us For Availability
6
WCI F121175 WCI F121175 Contact Us For Availability
6
WCI F301710 WCI F301710 Contact Us For Availability
7
WCI F300271 WCI F300271 Contact Us For Availability
7
WCI F125270 WCI F125270 Contact Us For Availability
7
CLIP WCI F300749 Contact Us For Availability
8
WCI F900260 WCI F900260 Contact Us For Availability
8
WCI F121177 WCI F121177 Contact Us For Availability
8
SCREW WCI F59211 Contact Us For Availability
9
PLATE-TOP WCI F93207 Contact Us For Availability
9
WCI F125274 WCI F125274 Contact Us For Availability
9
SLEEVE WCI F59556 Contact Us For Availability
10
WCI F55689 WCI F55689 Contact Us For Availability
10
LATCH WCI F117634 Contact Us For Availability
10
WCI F58148-58 WCI F58148-58 Contact Us For Availability
11
WIRE ADJUSTMENT WCI F129671 Contact Us For Availability
11
DRIER-REGULAR WCI C101601 Contact Us For Availability
11A
WCI R900125 WCI R900125 Contact Us For Availability
12
AIR DUCT WCI F128421 Contact Us For Availability
12
CLAMP WCI F96850 Contact Us For Availability
12
HARNESS-W/ PWR CORD WCI F128536 Contact Us For Availability
13
WCI F84948 WCI F84948 Contact Us For Availability
13
SCREW WCI F52943 Contact Us For Availability
14
WCI F57880 WCI F57880 Contact Us For Availability
15
WASHER (2) WCI F119827 Contact Us For Availability
15
SUPPORT REAR WCI F117447 Contact Us For Availability
15
WCI F125347 WCI F125347 Contact Us For Availability
16
SCREW WCI F57906 Contact Us For Availability
16
CLAMP WCI F122718 Contact Us For Availability
16
WCI F81693 WCI F81693 Contact Us For Availability
17
WCI F91170 WCI F91170 Contact Us For Availability
17
CLIP-CORD (2) WCI F111846 Contact Us For Availability
18
DOOR STOP WCI R901014 Contact Us For Availability
18
LEG (4) WCI F91169 Contact Us For Availability
18
WCI F300385 WCI F300385 Contact Us For Availability
19
CONTROL TEMPERATURE WCI F126974 Contact Us For Availability
20
SCREW WCI F121387 Contact Us For Availability
20
WCI F121419 WCI F121419 Contact Us For Availability
20
HOUSING WCI F128633 Contact Us For Availability
21
INSULATION WCI F116277 Contact Us For Availability
21
WCI F82754 WCI F82754 Contact Us For Availability
21
KNOB WCI F127717 Contact Us For Availability
22
WCI R901056 WCI R901056 Contact Us For Availability
22
WCI F81200 WCI F81200 Contact Us For Availability
22
SCREW KNOB WCI F110410 Contact Us For Availability
23
INNER PANEL WCI F129608 Contact Us For Availability
23
WCI F81210 WCI F81210 Contact Us For Availability
23
SCREW CONTROL WCI F55160 Contact Us For Availability
24
SCREW 16 WCI F124860 Contact Us For Availability
24
WCI F81201 WCI F81201 Contact Us For Availability
25
SUPPORT-BTM LH WCI F81211 Contact Us For Availability
26
WCI F99439 WCI F99439 Contact Us For Availability
26
WCI F120978 WCI F120978 Contact Us For Availability
27
WCI F84943 WCI F84943 Contact Us For Availability
28
SHELF FRONT WIRE (4) WCI F128142 Contact Us For Availability
29
END CAP RH (4) WCI F122691 Contact Us For Availability
29
DOOR CLOSER W/ BEARING WCI F900253 Contact Us For Availability
30
END CAP LH (4) WCI F122692 Contact Us For Availability
30
CLIP, BREAKER (5) WCI F126240 Contact Us For Availability
31
WCI F86843 WCI F86843 Contact Us For Availability
× ![]()
