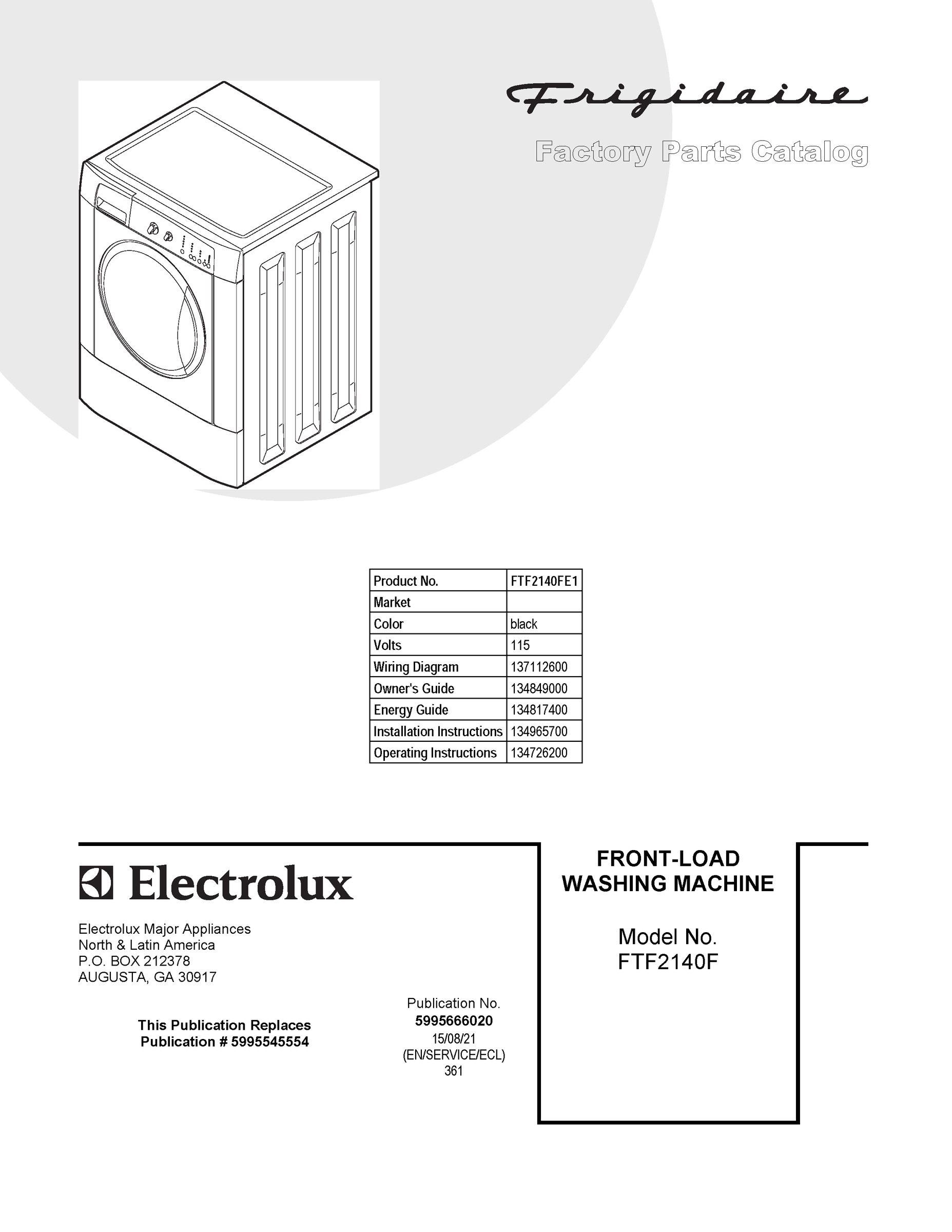

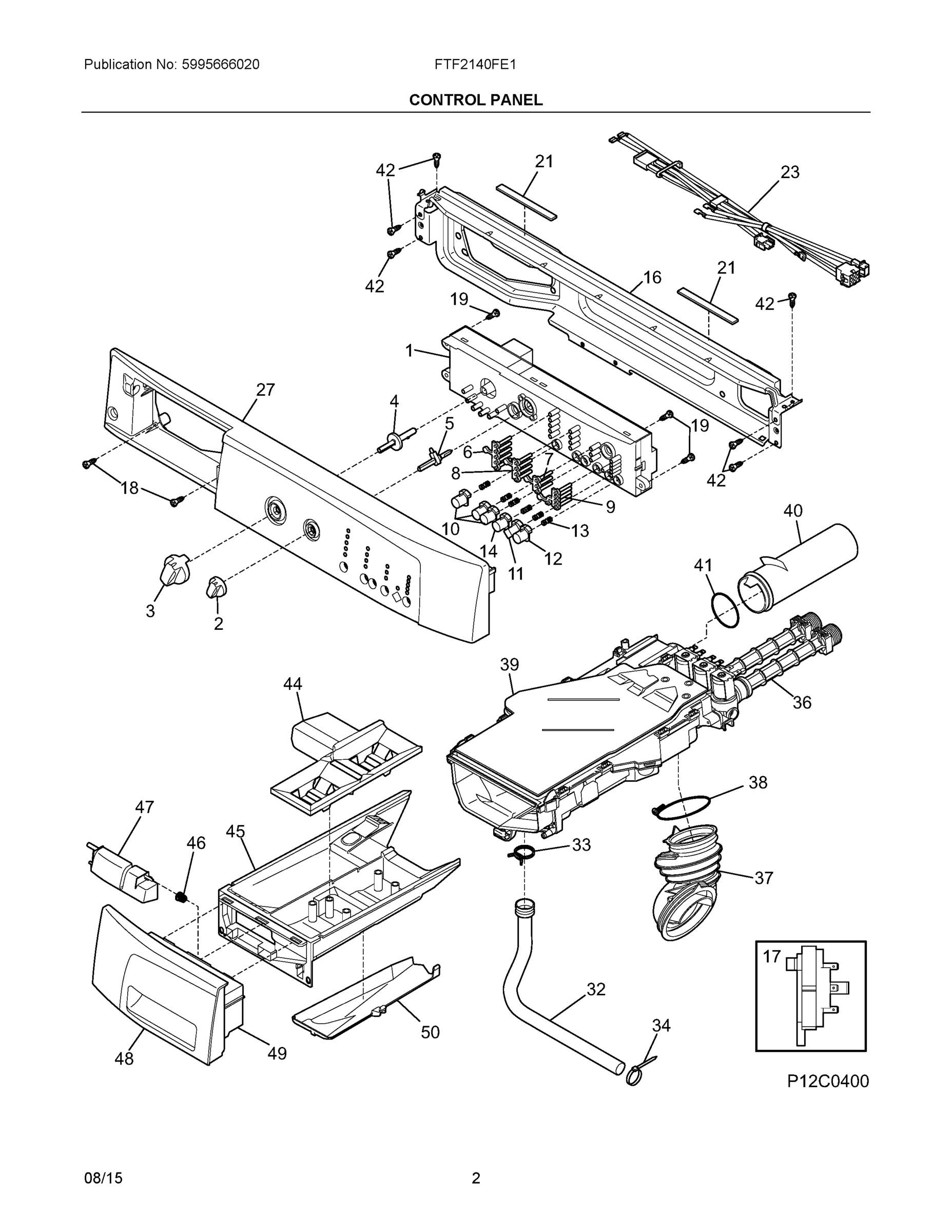

Model Electrolux FTF2140FE1 WASHER – Common Parts & Diagrams

3
BOLT, CARRIAGE, 1/4-20 X 2.60
BOLT, CARRIAGE, 1/4-20 X 2.60 WCI 131793303 Contact Us For Availability
View on Model
4
PIN, PROGRAM KNOB
PIN, PROGRAM KNOB WCI 134347700 Contact Us For Availability
View on Model
6
COUNTERWEIGHT, FRONT, ONE PIECE
COUNTERWEIGHT, FRONT, ONE PIECE WCI 134362200 Contact Us For Availability
View on Model
7
LIGHT PIPE, ARRAY, 3 ROW OF 3
LIGHT PIPE, ARRAY, 3 ROW OF 3 WCI 134429300 Contact Us For Availability
View on Model
9
LIGHT PIPE, ARRAY, 4 START GROUP
LIGHT PIPE, ARRAY, 4 START GROUP WCI 134429400 Contact Us For Availability
View on Model
13
SPRING, PUSH BUTTON
SPRING, PUSH BUTTON WCI 134349400 No Longer Available
View on Model
14
SPRING ASSY, SUSPENSION
SPRING ASSY, SUSPENSION WCI 137099300 Contact Us For Availability
View on Model
16
DRUM ASSY, SPIN BASKET
DRUM ASSY, SPIN BASKET WCI 137105900 Contact Us For Availability
View on Model
16
BRACKET, TOP FRONT
BRACKET, TOP FRONT WCI 134364800 Contact Us For Availability
View on Model
17
SWITCH, PRESSURE
SWITCH, PRESSURE WCI 134844501 Contact Us For Availability
View on Model
20
BRACKET, LS PANEL, REINFORCEMENT
BRACKET, LS PANEL, REINFORCEMENT WCI 134434901 Contact Us For Availability
View on Model
22
BRACKET-SPRING, RETAINER
BRACKET-SPRING, RETAINER WCI 134648500 Contact Us For Availability
View on Model
23
WIRING HARNESS, CONTROLS
WIRING HARNESS, CONTROLS WCI 134435300 No Longer Available
View on Model
23
SCREW, #12 FLAT HEAD, 10-14P, QUAD DRIVE
SCREW, #12 FLAT HEAD, 10-14P, QUAD DRIVE WCI 134522100 No Longer Available
View on Model
25
BELT, DRIVE, 6-RIB
BELT, DRIVE, 6-RIB WCI 134051003 Contact Us For Availability
View on Model
28
PANEL, SERVICE ACCESS, REAR
PANEL, SERVICE ACCESS, REAR WCI 134364300 Contact Us For Availability
View on Model
32
HOSE, DISP-TO-BELLOWS
HOSE, DISP-TO-BELLOWS WCI 134586500 Contact Us For Availability
View on Model
40
TUBE, DISP-TO-OVERFLO
TUBE, DISP-TO-OVERFLO WCI 134372100 Contact Us For Availability
View on Model
41
HINGE, DOOR, BLACK
HINGE, DOOR, BLACK WCI 134412460 Contact Us For Availability
View on Model
45
CLAMP, HOSE
CLAMP, HOSE WCI 131306202 Contact Us For Availability
View on Model
46
HANDLE, DOOR, BLACK
HANDLE, DOOR, BLACK WCI 134412860 Contact Us For Availability
View on Model
46
SPRING, DOOR LATCH
SPRING, DOOR LATCH WCI 134349500 Contact Us For Availability
View on Model
48
PANEL, OUTER DOOR, BLACK
PANEL, OUTER DOOR, BLACK WCI 134913160 Contact Us For Availability
View on Model
49
FRAME, DRAWER HANDLE, BLACK
FRAME, DRAWER HANDLE, BLACK WCI 134386260 Contact Us For Availability
View on Model
50
BRACKET, TUB SUSPENSION
BRACKET, TUB SUSPENSION WCI 134645600 Contact Us For Availability
View on Model
53
ADAPTER, DOOR GLASS RING
ADAPTER, DOOR GLASS RING WCI 134507401 Contact Us For Availability
View on Model
58
HANGER, DRAIN HOSE
HANGER, DRAIN HOSE WCI 134440700 Contact Us For Availability
View on Model
NIA
WCI 134547600
WCI 134547600 WCI 134547600 Contact Us For Availability
View on Model
NIA
WCI 134606800
WCI 134606800 WCI 134606800 Contact Us For Availability
View on Model
