Model Maytag FSP11SS COMMERCIAL MICROWAVE – Common Parts & Diagrams
01 - MISCELLAEOUS INFORMATION
02 - DOOR ASSY
03 - CONTROL PANEL ASSY
04 - CAVITY ASSY
05 - INTERIOR ELECCOMPNT & RELATED MTG PARTS
06 - BACK PANEL & COMPONENTS

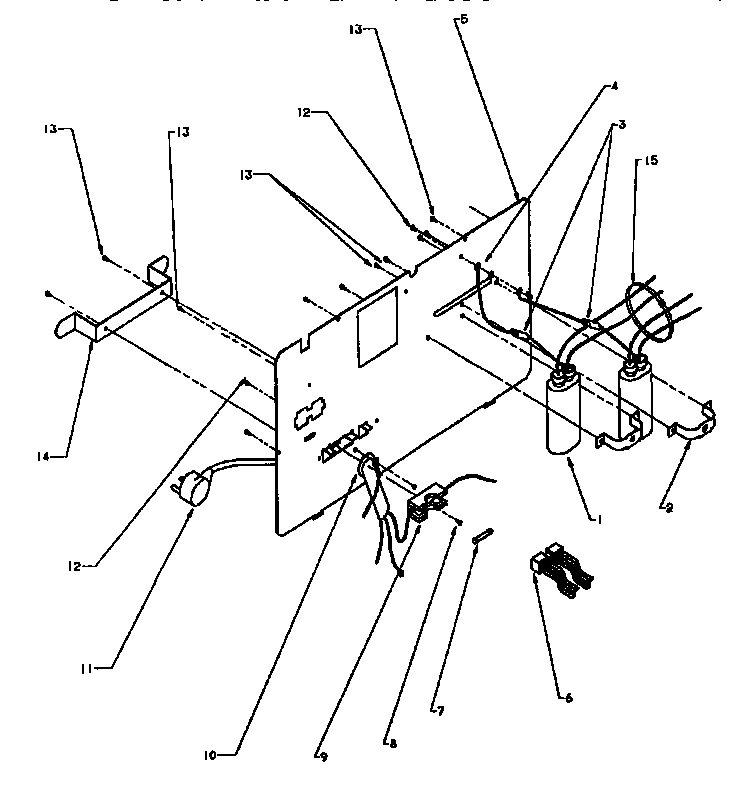

01 - BACK PANEL & COMPONENTS

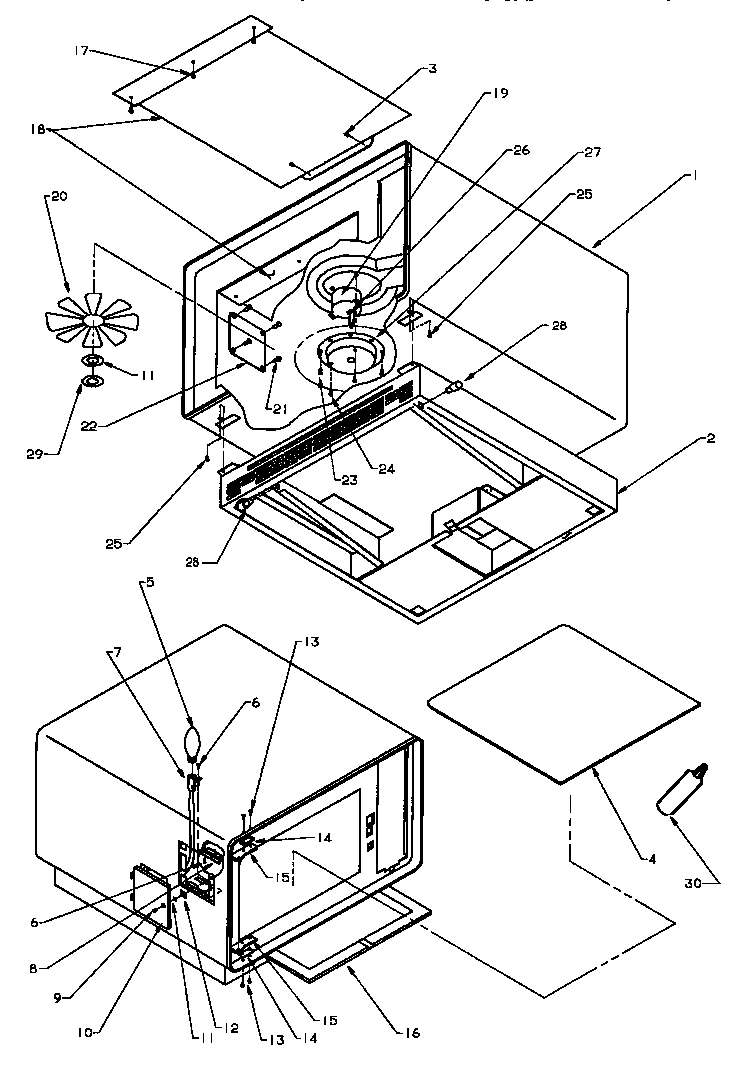

02 - CAVITY ASSY
03 - CONTROL PANEL ASSY

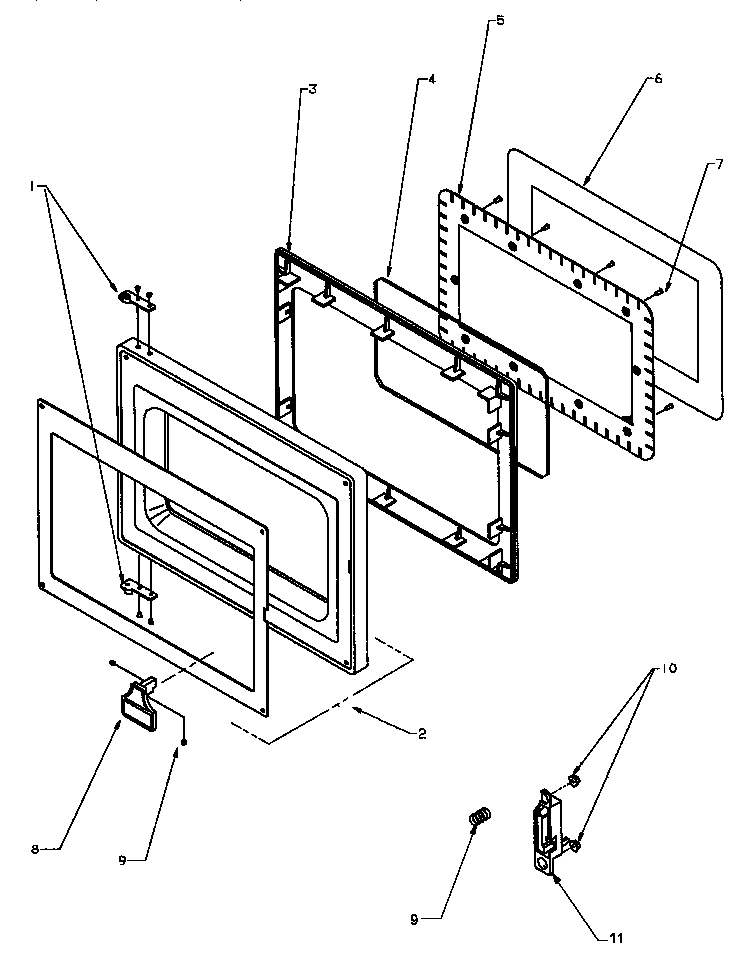

04 - DOOR ASSY

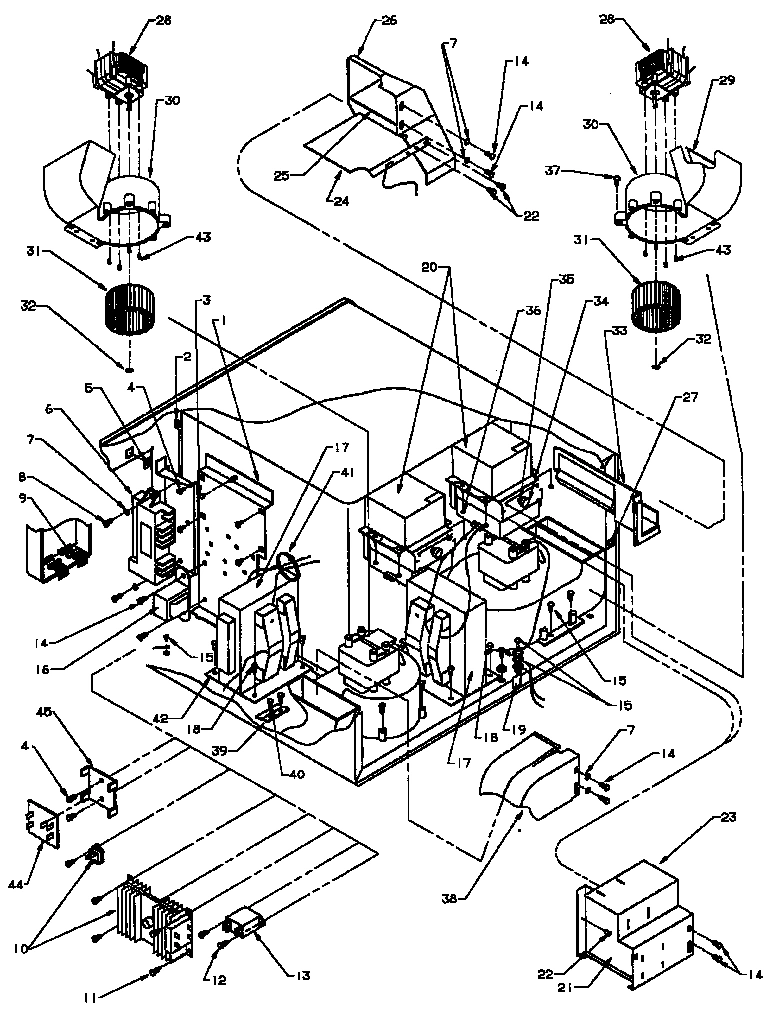

05 - INTERIOR ELECCOMPNT & RELATED MTG PARTS
Common parts from model Maytag FSP11SS COMMERCIAL MICROWAVE
1
HINGE ASY KIT MAY R0163252 Contact Us For Availability
1
FRAME, CONT PNL MAY 45398P04 Contact Us For Availability
1
MAY 94392P01 MAY 94392P01 Contact Us For Availability
1
CAVITY MAY R0163264 Contact Us For Availability
1
MAY R0163301 MAY R0163301 Contact Us For Availability
1
MAY 10791901 MAY 10791901 Contact Us For Availability
1
CAPACITOR-.65 MAY D8547930 Contact Us For Availability
2
OUTER DOOR ASSY. MAY 4002005201 Contact Us For Availability
2
MAY 4100010316 MAY 4100010316 Contact Us For Availability
2
KIT, BASE MAY R0163258 Contact Us For Availability
2
MAY 10825501 MAY 10825501 Contact Us For Availability
2
MAY 42365P01 MAY 42365P01 Contact Us For Availability
3
MAY M55D18 MAY M55D18 Contact Us For Availability
3
SCREW,No.8-32 X 1-1/4 FL HD SCRE MAY 5149-P Contact Us For Availability
3
MAY B8383102 MAY B8383102 Contact Us For Availability
4
MAY M70D246 MAY M70D246 Contact Us For Availability
4
MAY 4180001602 MAY 4180001602 Contact Us For Availability
4
MAY R0156904 MAY R0156904 Contact Us For Availability
5
INNER DOOR KIT MAY R0163255 Contact Us For Availability
5
CLIP MAY 5522546002 Contact Us For Availability
5
M9D107 LAMP MAY 2031415101 Contact Us For Availability
5
No.8-32 CAPTIVE NUT(25) MAY 5072-D Contact Us For Availability
5
PANEL, BACK ACCESS MAY 10794702 Contact Us For Availability
6
MAY 10785001 MAY 10785001 Contact Us For Availability
6
KIT, CONTROLLER +$50.00 CORE MAY M31R60 Contact Us For Availability
6
SVC INTERLOCK SWITCH ASY MAY 4002006801 Contact Us For Availability
6
MAY 10798801 MAY 10798801 Contact Us For Availability
007
FUSE MAY NLA Contact Us For Availability
7
No.6 PAN HD MACHINE SCREW MAY 5057-N Contact Us For Availability
7
MAY 2040100701 MAY 2040100701 Contact Us For Availability
7
MAY 36107P01 MAY 36107P01 Contact Us For Availability
8
MAY 4520500504 MAY 4520500504 Contact Us For Availability
8
MAY M0211018 MAY M0211018 Contact Us For Availability
8
MAY M0216529 MAY M0216529 Contact Us For Availability
8
MAY 41628P01 MAY 41628P01 Contact Us For Availability
9
MAY 41205P01 MAY 41205P01 Contact Us For Availability
9
ASSY, CONNECTOR MAY 4520400703 Contact Us For Availability
9
FUSE HOLDER MAY 10091101 Contact Us For Availability
10
No.10-24 FLANGE WHIZ-LK NUT MAY 5015-T Contact Us For Availability
10
COVER LIGHT (SS) MAY 10785601 Contact Us For Availability
10
MAY D7681501 MAY D7681501 Contact Us For Availability
10
MAY M0370010 MAY M0370010 Contact Us For Availability
11
DOOR LATCH KIT MAY R0163256 Contact Us For Availability
11
SCREW, SM MAY 5042-B Contact Us For Availability
11
MAY 32383P01 MAY 32383P01 Contact Us For Availability
11
CORD, POWER (300V) MAY 1732500101 Contact Us For Availability
12
SCREW K MAY 5074-DD Contact Us For Availability
12
MAY 45751P03 MAY 45751P03 Contact Us For Availability
13
No.8-32 PAN HD MACH SCR (25) MAY 5149-C Contact Us For Availability
13
MAY 38806P04 MAY 38806P04 Contact Us For Availability
14
MAY 5027-ZZ MAY 5027-ZZ Contact Us For Availability
14
MAY 45540P01 MAY 45540P01 Contact Us For Availability
14
MAY 45531P01 MAY 45531P01 Contact Us For Availability
15
ASSY, HINGE MAY 4180032601 Contact Us For Availability
15
SCREW MAY 5078-CC Contact Us For Availability
16
MAY 45412P01 MAY 45412P01 Contact Us For Availability
16
MAY 45507P01 MAY 45507P01 Contact Us For Availability
17
TRANSFORMER MAY 10133702 Contact Us For Availability
18
STIRRER COVER MAY 45422P01 Contact Us For Availability
18
No.10 T X 3/8`` SCREW MAY 5018-JJ Contact Us For Availability
19
KIT, STIRRER MOTOR MAY R0163259 Contact Us For Availability
19
MAY 39126P01 MAY 39126P01 Contact Us For Availability
20
MAY M35D53 MAY M35D53 Contact Us For Availability
20
MAY 10794401 MAY 10794401 Contact Us For Availability
21
RIVET-PLASTCx MAY 42192P01 Contact Us For Availability
22
.187 DIA PUSH RIVET MAY 5039-T Contact Us For Availability
22
MAY 2570000202 MAY 2570000202 Contact Us For Availability
24
DEFLECTOR-AIR M65D344 MAY 46762P01 Contact Us For Availability
24
MAY 5001-ZZ MAY 5001-ZZ Contact Us For Availability
25
M65D346 DIVIDER AIR MAY 45402P01 Contact Us For Availability
26
MAY 24597P01 MAY 24597P01 Contact Us For Availability
26
M65D345 DUCT, AIR MAY 45407P01 Contact Us For Availability
27
MAY 45437P01 MAY 45437P01 Contact Us For Availability
27
MAY 5147-ZZ MAY 5147-ZZ Contact Us For Availability
28
MAY 2010000701 MAY 2010000701 Contact Us For Availability
28
MAY 5571173001 MAY 5571173001 Contact Us For Availability
029
MAY Y5147V MAY Y5147V Contact Us For Availability
29
MAY 10825601 MAY 10825601 Contact Us For Availability
29
MAY 5147-V MAY 5147-V Contact Us For Availability
30
MAY M0275598 MAY M0275598 Contact Us For Availability
30
MAY 45559P01 MAY 45559P01 Contact Us For Availability
31
WHEEL, BLOWER M35D39 MAY 36300P01 Contact Us For Availability
32
SEE NOTE E-RING MAY Y00000000 Contact Us For Availability
33
TRANSITION-CAV EXH FS-10 MAY 45753P01 Contact Us For Availability
34
PROTECTOR,THERMAL 180C 25 AMP MAY 1751802501 Contact Us For Availability
35
SCREW MAY M0251717 Contact Us For Availability
36
MAY 35691P01 MAY 35691P01 Contact Us For Availability
37
SCREW 1`` MAY M0211021 Contact Us For Availability
38
MAY 46385P01 MAY 46385P01 Contact Us For Availability
39
CLIP, BLOWER MTG MAY 45537P01 Contact Us For Availability
40
.187 DIA POP RIVET STEEL MAY 5067-A Contact Us For Availability
41
TIE-ELECT. MAY 5140-FF Contact Us For Availability
42
MAY 45602P01 MAY 45602P01 Contact Us For Availability
43
SCREW K MAY 5072-V Contact Us For Availability
44
BOARD, P.C. MAY 10791801 Contact Us For Availability
45
MAY 10741801 MAY 10741801 Contact Us For Availability
999
MAY 10808624 MAY 10808624 Contact Us For Availability
× ![]()
